1.3” Linear Surface

Description:

IUS series 1.3" linear surface lighting is a unique linear series that brings any space to the center stage. These timeless, streamlined forms blend well with contemporary decors and modern workplaces. These linear luminaries is available in 2ft, 3ft, 4ft and 8ft, simply provide wide, powerful lighting to any atmosphere with continuous runs. Unleash lighting design flexibility with different shapes and patterns, it adds fun factor into each room. These creations will let you suggest rhythm, communicate meaning and showcase element of life.

Contact Us

Feature

  • 90+ CRI
  • CCT adjustable and wattage selectable
  • Available in diffuser, louver and drop lens
  • Individual units or continuous runs
  • 0-10V dimming, dim to 10% or 1% options
  • Custom pattern with optional Line, L, X, T, Y, V joiners
  • 2ft, 3ft, 4ft and 8ft lengths

PERFORMANCE



Lens



Length

Wattage

Selectable



100%DOWN



CCT Adjustable

Efficacy

Lumen Output





Diffuser

2'

20W/15W/10W





800m/ft

Up to 1600LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 2400LM

4'

40W/30W/20W

Up to 3200LM

8'

80W/60W/40W

Up to 6400LM





Louver

2'

20W/15W/10W





700lm/ft

Up to 1400LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 2100LM

4'

40W/30W/20W

Up to 2800LM

8'

80W/60W/40W

Up to 5600LM





Drop Lens

2'

20W/15W/10W





950lm/ft

Up to 1900LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 2900LM

4'

40W/30W/20W

Up to 3800LM

8'

80W/60W/40W

Up to 7600LM

Remark: Lumens are subjuect to maximum wattage,4000K with white finish only.

Lumen output may vary ± 5% base on different CCT and wattage. Actual wattage may vary ± 5%.

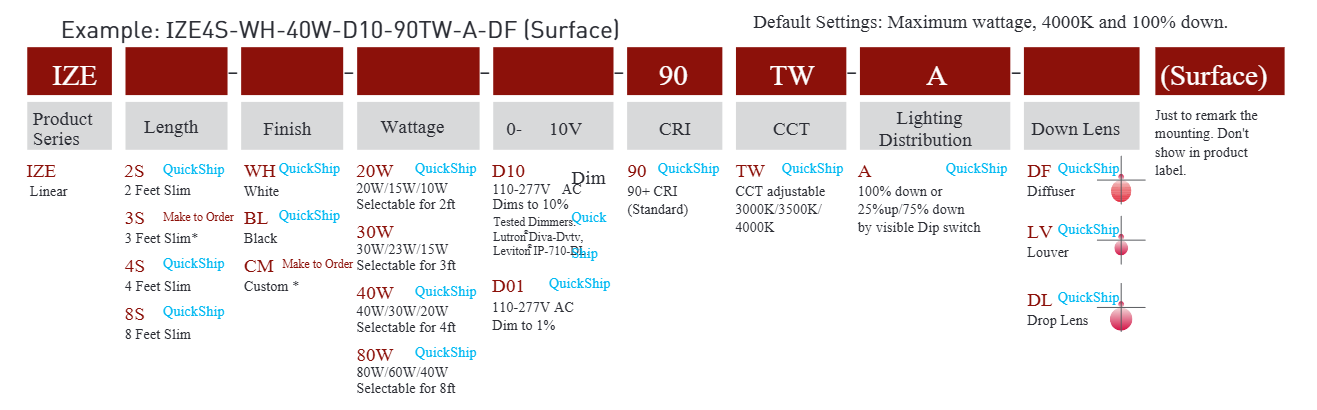

PRODUCT ORDERING GUIDE

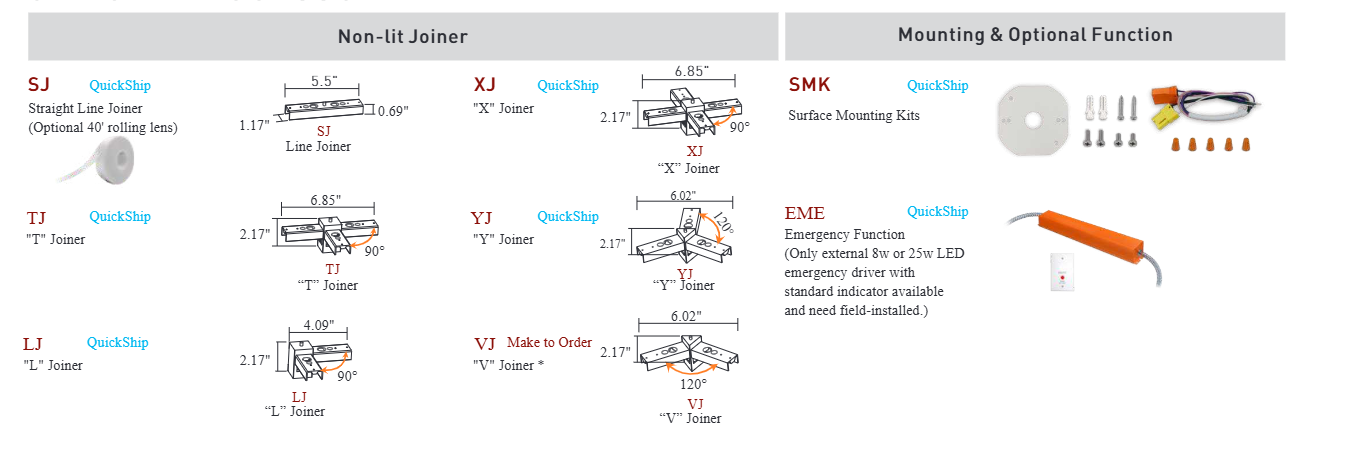

OPTIONAL ACCESSORY

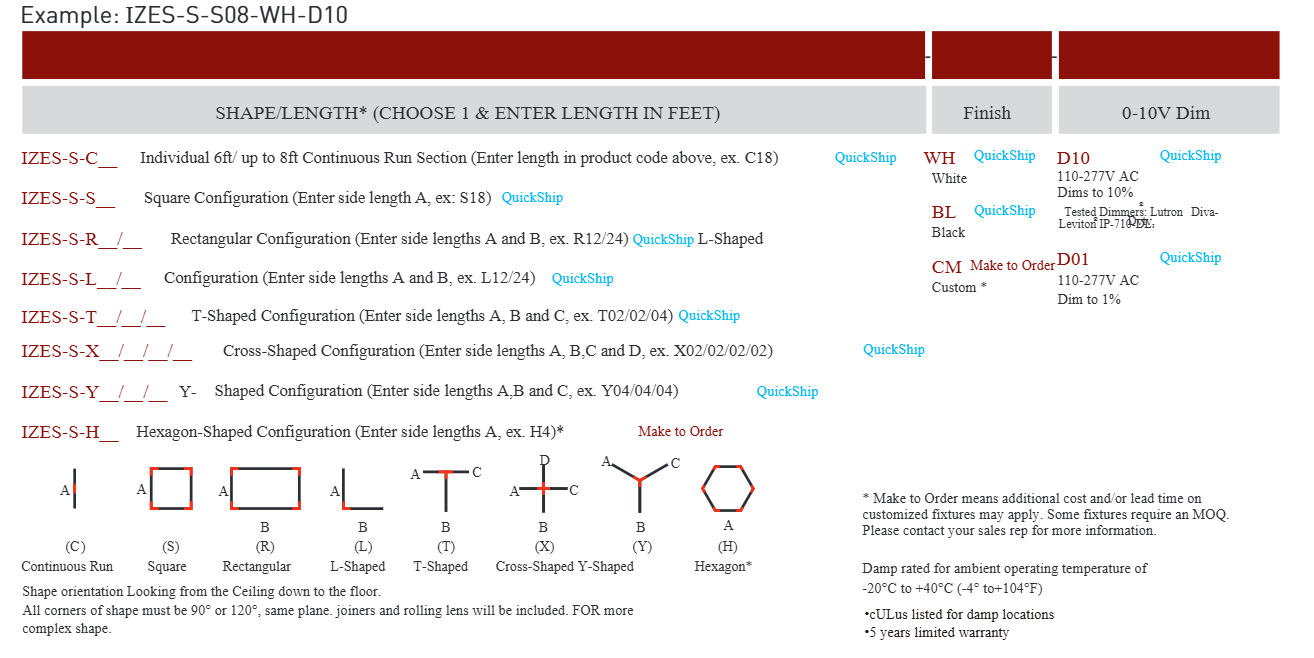

CUSTOM LINE OR SHAPE ORDERING GUIDE

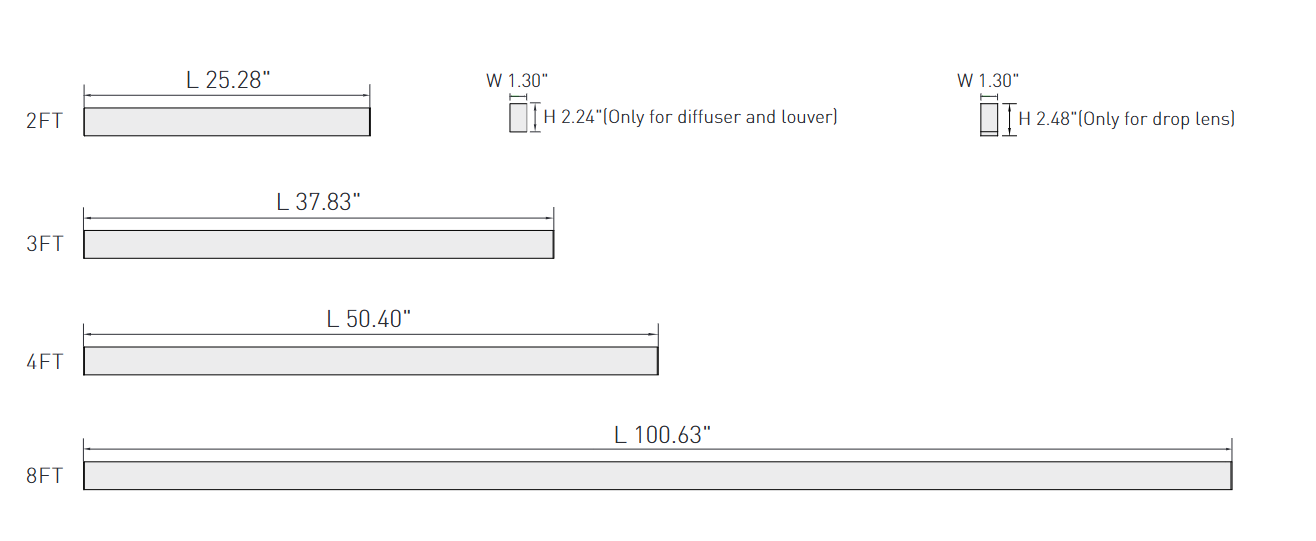

DIMENSIONS

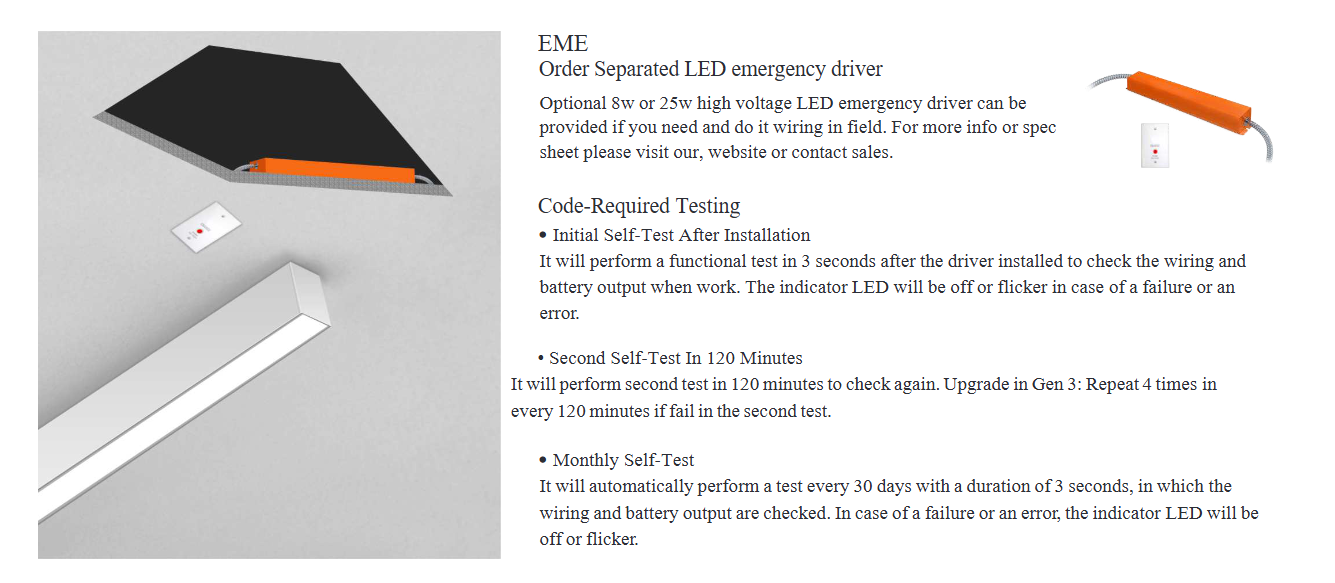

Emergency Option

IUS Lighting offers UL& CEC Listed LED emergency drivers. They could be factory installed or field installed. When AC power fails it, immediately switches to the emergency mode operating for lighting minimum 90 minutes. When AC power is restored it, automatically returns to the charging mode which meets critical life-safety lighting requirements.

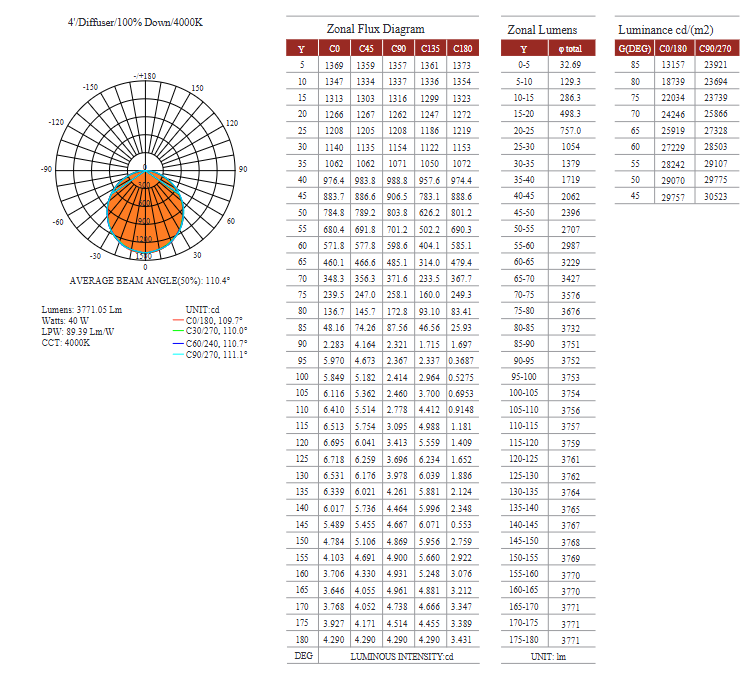

DISTRIBUTION DIAGRAM

1.3” Linear Surface

Coming Soon
