1.3” Linear Wall mount

Description:

IUS series 1.3" is available in a wall mount design, with a sleek low-profile sensibility optimal for architectural lighting applications, ideal for corridors, stairwells, and more. These timeless, streamlined forms blend well with contemporary decors and modern workplaces. It is available in 2ft, 3ft, 4ft and 8ft, simply provide wide, powerful lighting to any atmosphere with continuous runs. It can provide smooth uplight and downlight, allowing for wider spacing between fixtures and better ceiling light uniformity.

Feature

90+ CRI
2 lighting distributions by DIP switch CCT
adjustable and wattage selectable 0-10V
dimming, dim to 10% or 1% options
Available in diffuser, louver and drop lens
Individual units or continuous runs
2ft,3ft, 4ft and 8ft lengths

PERFORMANCE

Lens	Length	Wattage Selectable	25% UP/75%DOWN		100%DOWN		CCT Adjustable
Lens	Length	Wattage Selectable	Efficacy	Lumen Output	Efficacy	Lumen Output	CCT Adjustable
Diffuser	2'	20W/15W/10W	850lm/ft	Up to 1700LM	800m/ft	Up to 1600LM	3000K/3500K/4000K
	3'	30W/23W/15W		Up to 2600LM		Up to 2400LM
	4'	40W/30W/20W		Up to 3400LM		Up to 3200LM
	8'	80W/60W/40W		Up to 6800LM		Up to 6400LM
Louver	2'	20W/15W/10W	750lm/ft	Up to 1500LM	700lm/ft	Up to 1400LM	3000K/3500K/4000K
	3'	30W/23W/15W		Up to 2300LM		Up to 2100LM
	4'	40W/30W/20W		Up to 3000LM		Up to 2800LM
	8'	80W/60W/40W		Up to 6000LM		Up to 5600LM
Drop Lens	2'	20W/15W/10W	1000lm/ft	Up to 2000LM	950lm/ft	Up to 1900LM	3000K/3500K/4000K
	3'	30W/23W/15W		Up to 3000LM		Up to 2900LM
	4'	40W/30W/20W		Up to 4000LM		Up to 3800LM
	8'	80W/60W/40W		Up to 8000LM		Up to 7600LM

Remark: Lumens are subjuect to maximum wattage,4000K with white finish only.

Lumen output may vary ± 5% base on different CCT and wattage. Actual wattage may vary ± 5%. Finish

1.3” Linear Wall mount

Description:

Feature

PERFORMANCE

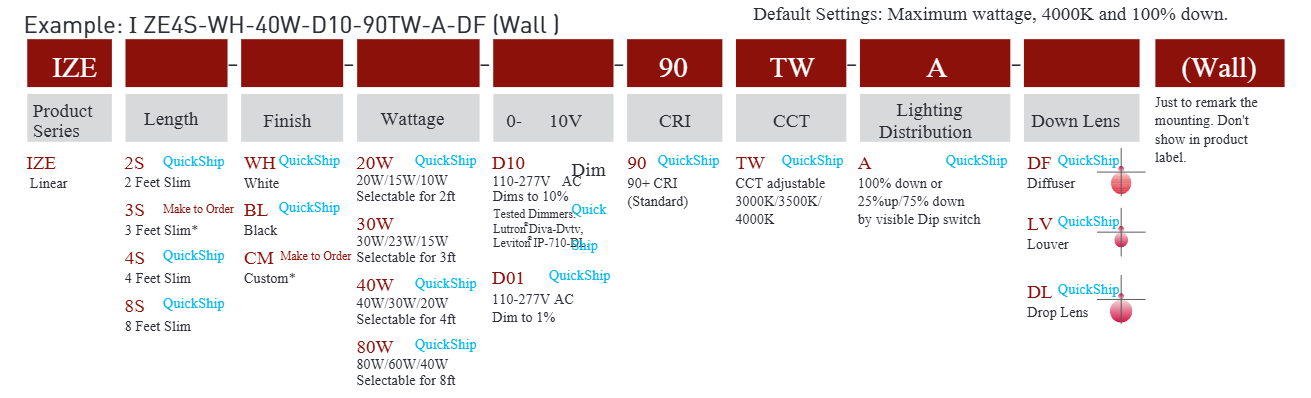

PRODUCT ORDERING GUIDE

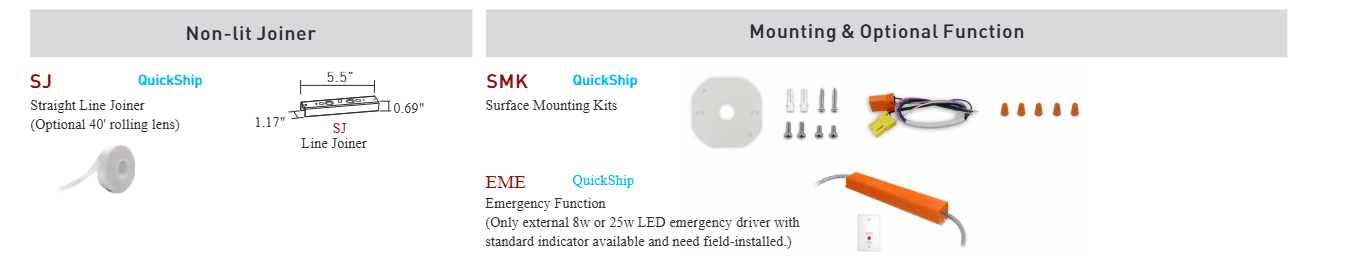

OPTIONAL ACCESSORY

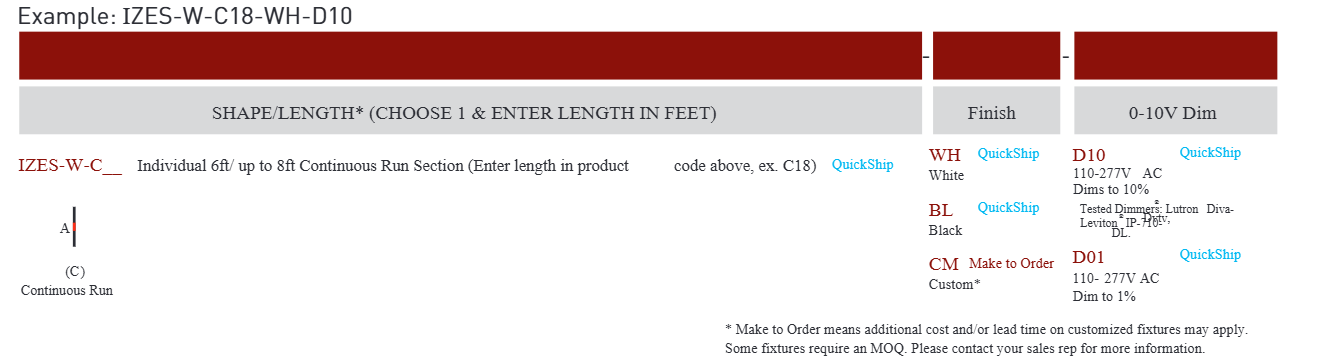

CUSTOM LINE OR SHAPE ORDERING GUIDE

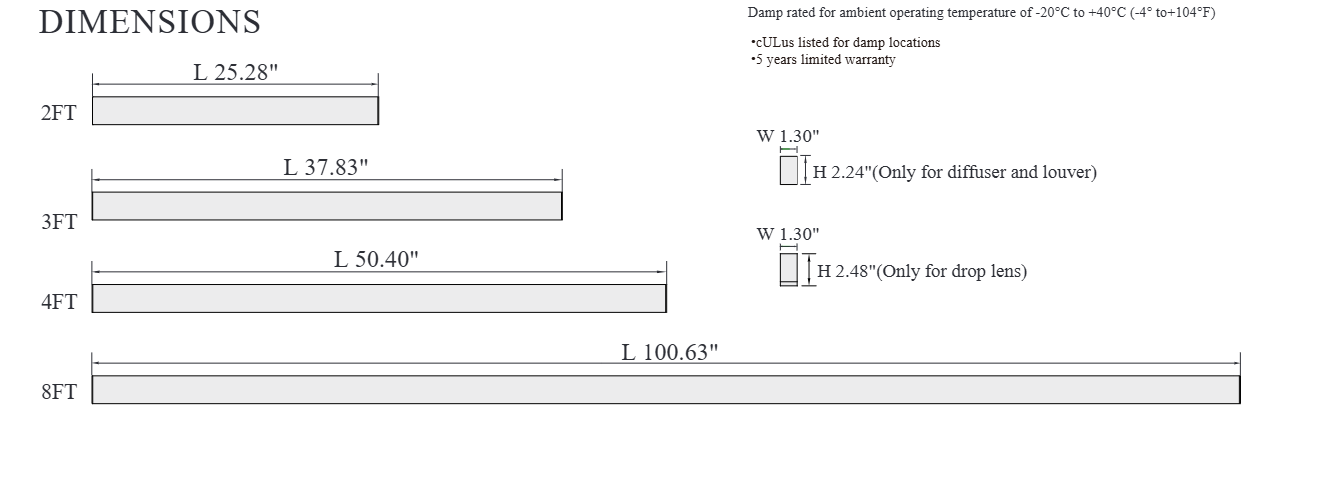

DIMENSIONS

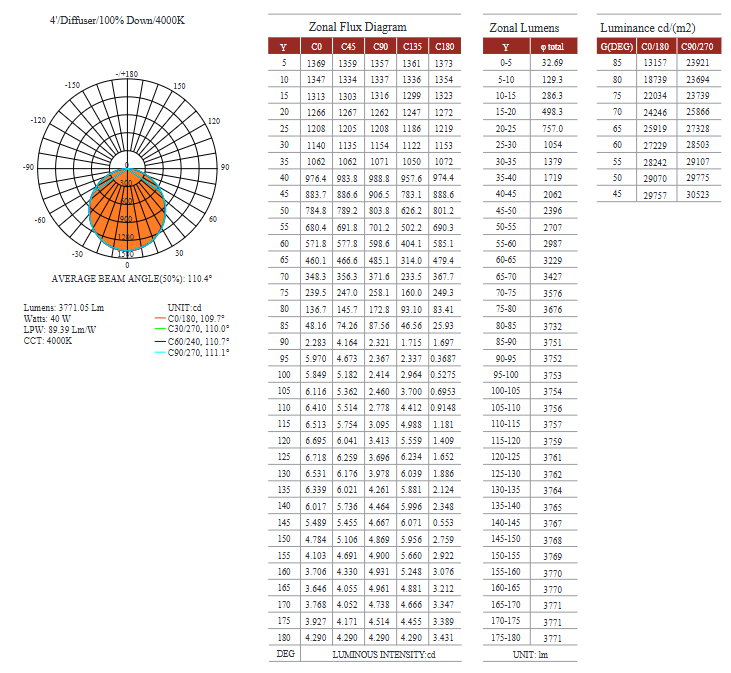

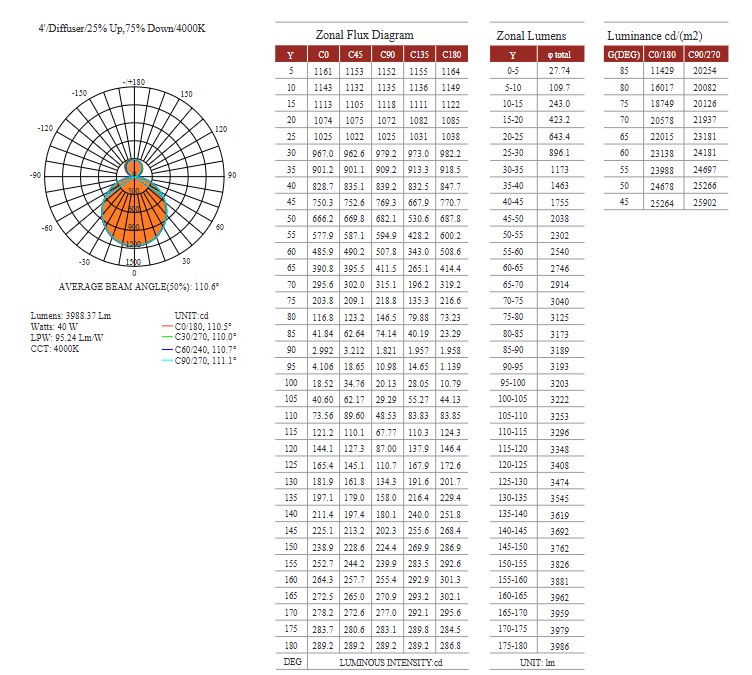

DISTRIBUTION DIAGRAM
