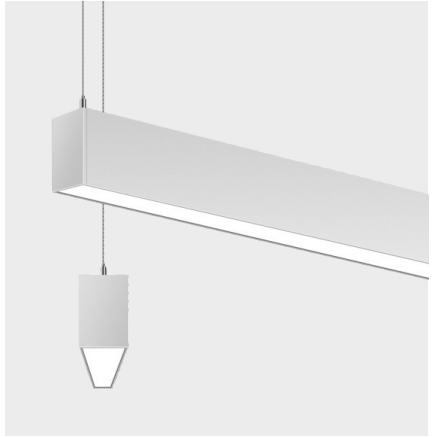

1.8” Linear Pendant

Description:

Combining superior esthetics, quality performance and unparalleled versatility, 1.8" series offers new opportunities to capture the beauty and benefits of true lighting.With a maximum output of 1200 lm/ft and a choice of various lengths, It is capable of delivering the light levels needed for the most demanding applications by CCT adjustable and wattage selectable functions, compatible for dry ceiling and drop ceiling. While simple in appearance.

Contact Us

Feature

  • 2 lighting distribution by visible Dip switch
  • CCT and wattage adjustable by visible Dip switch
  • Continuous runs or Custom pattern
  • Dry ceiling or T-Grid ceiling compatible.
  • Pendant, surface and wall mount
  • cULus listed, Damp locations and 5 years limited warranty

PERFORMANCE



Finish



Length

Wattage Selectable

Lumen (25%up / 75% down)

Lumen (100% down)



Efficacy

3000K

3500K

4000K

3000K

3500K

4000K





White

2'

20W/15W/10W

1120~2240lm

1220~2440lm

1170~2340lm

1050~2100lm

1150~2300lm

1100~2200lm





580~1170 lm/ft

4'

40W/30W/20W

2240~4480lm

2440~4880lm

2340~4680lm

2100~4200lm

2300~4600lm

2200~4400lm

8'

80W/60W/40W

4480~8960lm

4880~9760lm

4680~9360lm

4200~8400lm

4600~9200lm

4400~8800lm





Black

2'

20W/15W/10W

920~1840lm

1020~2040lm

970~1940lm

850~1700lm

950~1900lm

900~1800lm





480~970 lm/ft

4'

40W/30W/20W

1840~3680lm

2040~4080lm

1940~3880lm

1700~3400lm

1900~3800lm

1800~3600lm

8'

80W/60W/40W

3680~7360lm

4080~8160lm

3880~7760lm

3400~6800lm

3800~7600lm

3600~7200lm

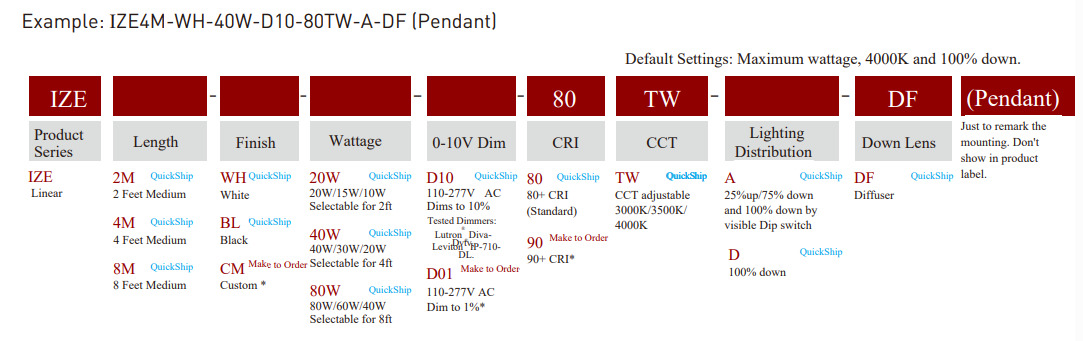

PRODUCT ORDERING GUIDE

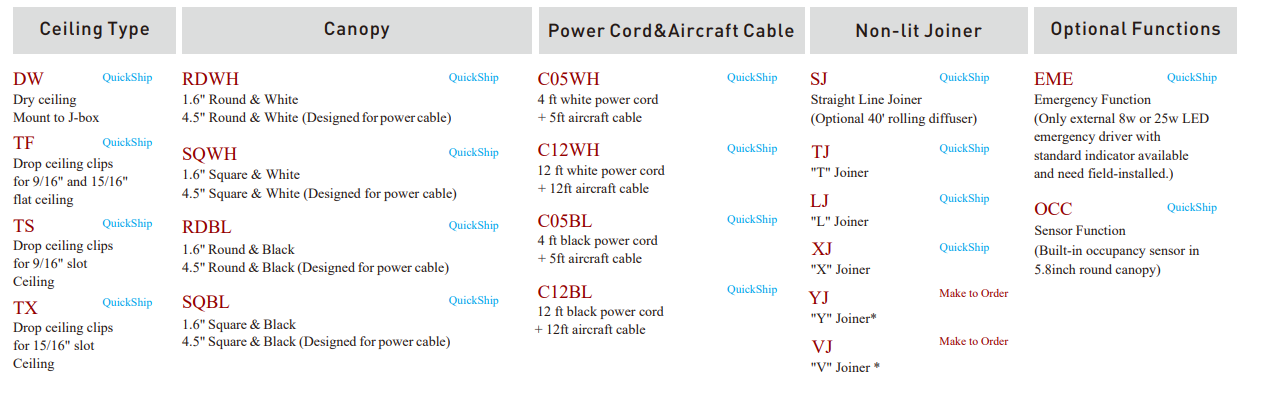

OPTIONAL PENDANT ACCESSORY

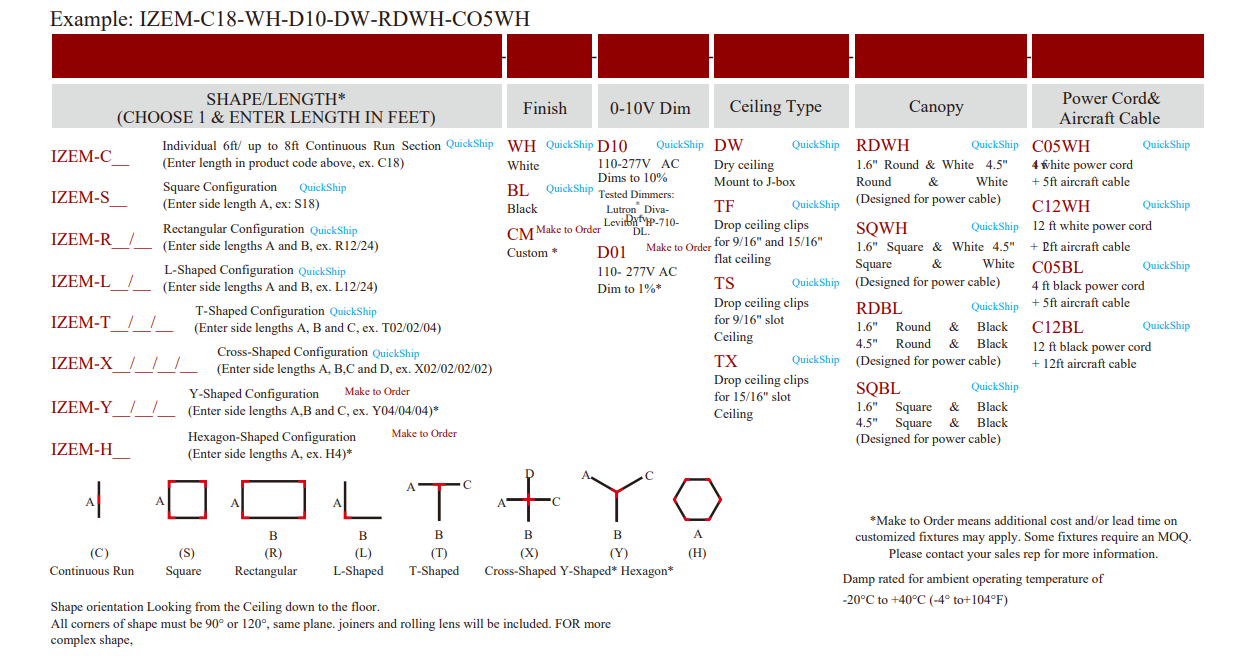

CUSTOM LINE OR SHAPE ORDERING GUIDE

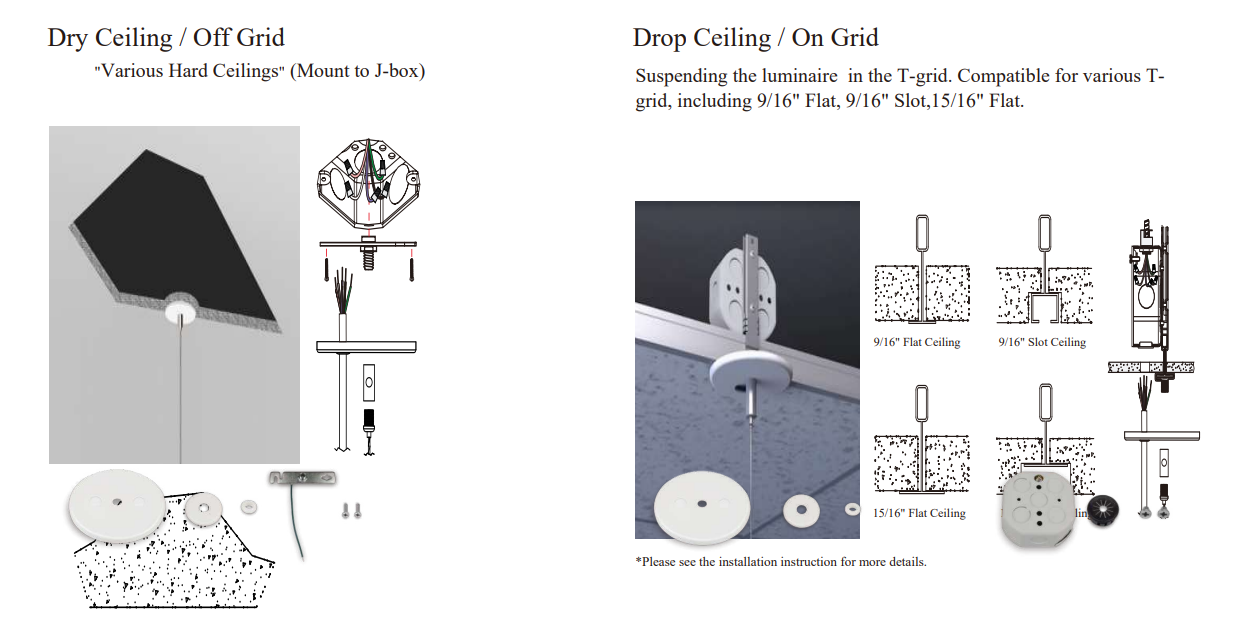

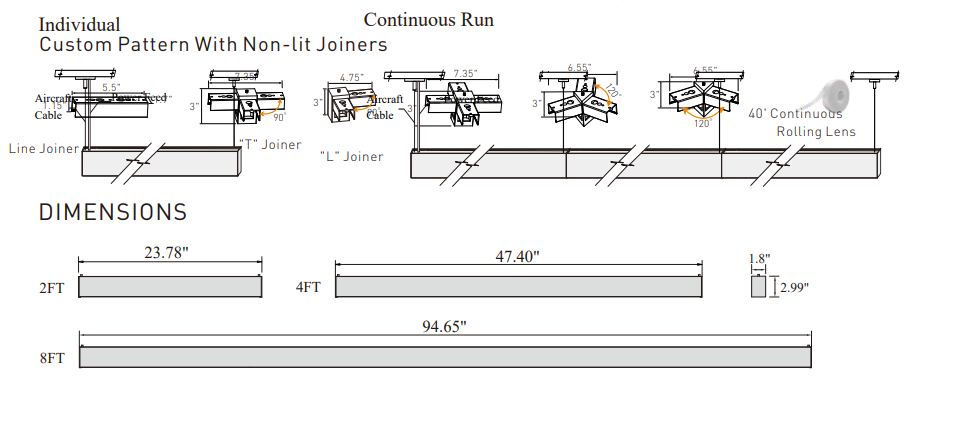

MOUNTING

Standard Line Runs In 120v

Luminaire Run Length (ft)



Run Configuration



Line Joiner



5' Power Cable



5' Aircraft Cable



Canopy

2

2'

-

1

2

2

4

4'

-

1

2

2

6

4'+2'

1

1

3

3

8

8'

-

1

2

2

10

8'+2'

1

1

3

3

12

8'+4'

1

1

3

3

14

8'+4'+2'

2

1

4

4

16

8'+8'

1

1

3

3

18

8'+8'+2'

2

1

4

4

20

8'+8'+4'

2

1

4

4

22

8'+8'+4'+2'

3

1

5

5

24

8'+8'+8'

2

1

4

4

26

8'+8'+8'+2'

3

1

5

5

28

8'+8'+8'+4'

3

1

5

5

30

8'+8'+8'+4'+2'

4

1

6

6

32

8'+8'+8'+8'

3

1

5

5

34

8'+8'+8'+8'+2'

4

1

6

6

36

8'+8'+8'+8'+4'

4

1

6

6

38

8'+8'+8'+8'+4'+2'

5

1

7

7

40

8'+8'+8'+8'+8'

4

1

6

6

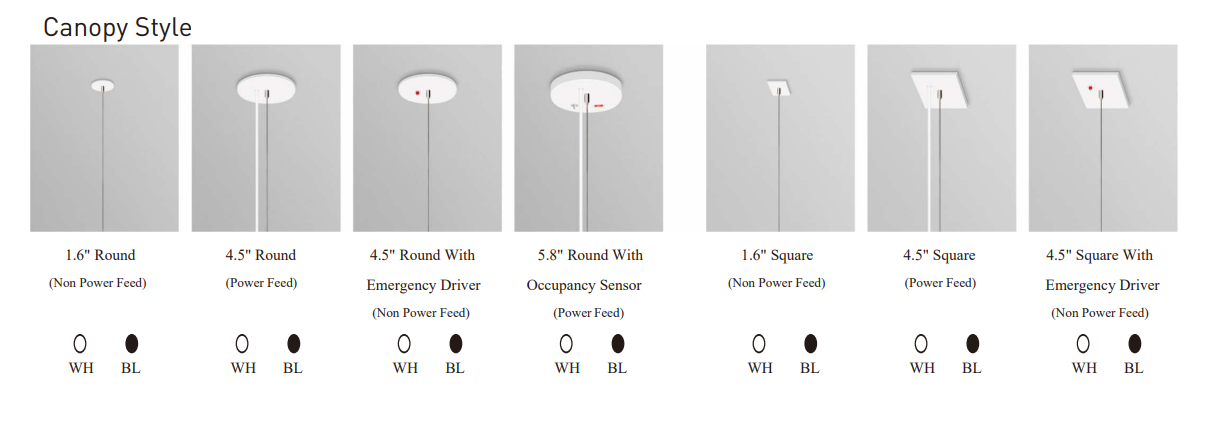

Note:4.5" canopy is designed for power cable

Individual or continuous run, up to 40ft in 120V AC,100ft in 277V AC.

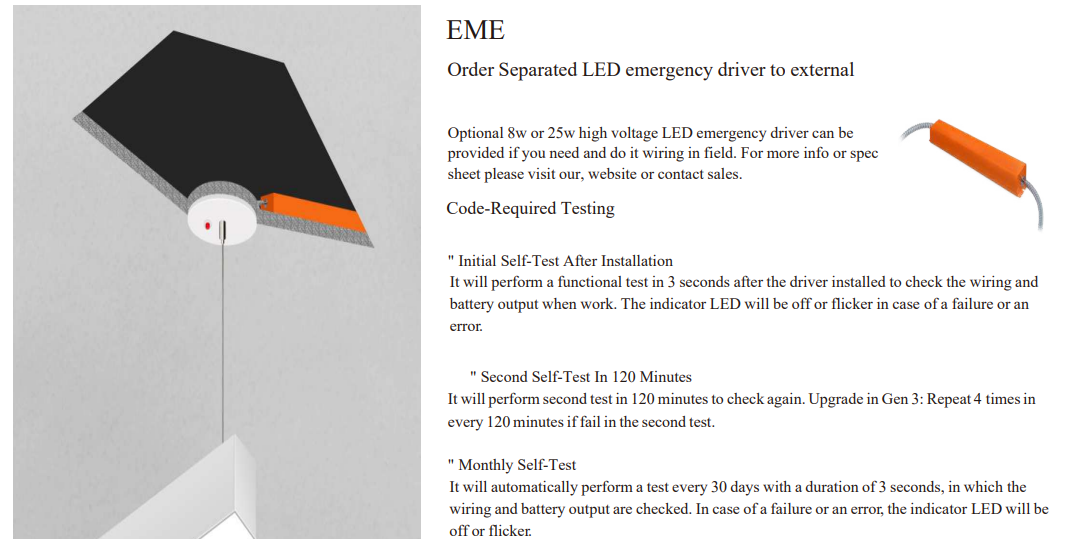

Emergency Option

IUS Lighting offers UL& CEC Listed LED emergency drivers. When AC power fails it, immediately switches to the emergency mode operating for lighting minimum 90 minutes. When AC power is restored it, automatically returns to the charging mode which meets critical life-safety lighting requirements.

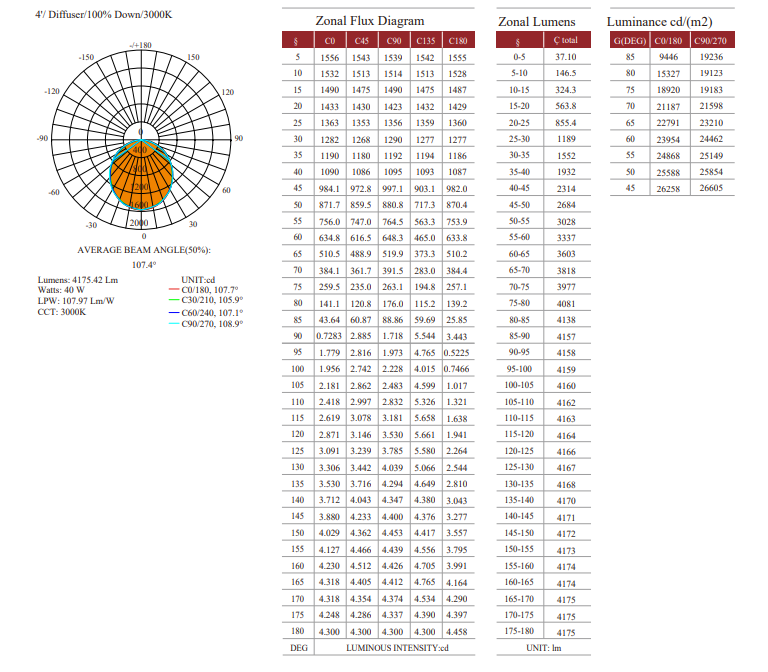

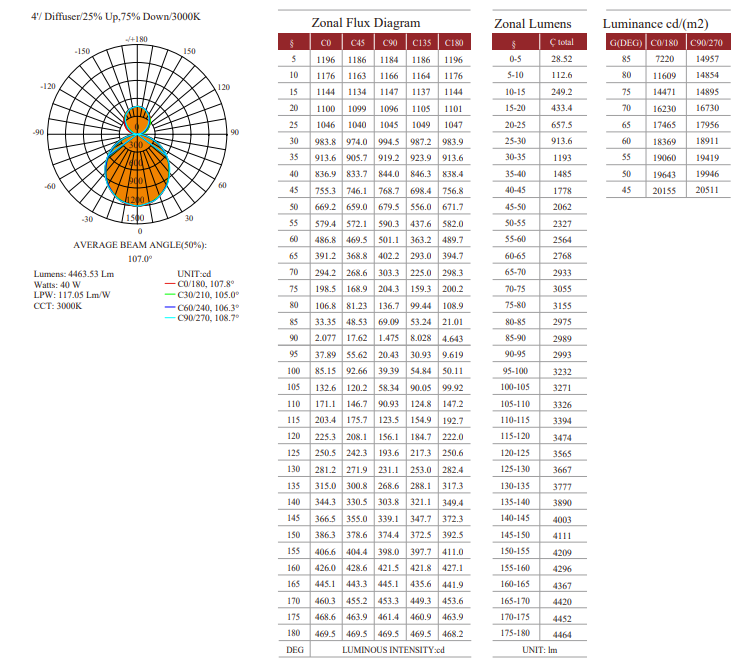

DISTRIBUTION DIAGRAM

1.8” Linear Pendant

Coming Soon
