1.8” Linear Surface
Description:
Combining superior esthetics, quality performance and unparalleled versatility, The1.8" series offers new opportunities to capture the beauty and benefits of true lighting.With a maximum output of 1200 lm/ft and a choice of various lengths, It is capable of delivering the light levels needed for the most demanding applications by CCT adjustable and wattage selectable functions, compatible for dry ceiling and drop ceiling. While simple in appearance.
Contact UsFeature
- 2 lighting distribution by dip switch CCT
- adjustable and wattage selectable Up to
- 1200 lm/ft
- Continuous runs or Custom pattern Surface
- (Pendant mounted available)
- 3 lengths &1.8" width with internal driver
.PNG)
PERFORMANCE
|
Finish |
Length |
Wattage Selectable |
Lumen (100% down) |
Efficacy |
||
|
3000K |
3500K |
4000K |
||||
|
White |
2' |
20W/15W/10W |
1050~2100lm |
1150~2300lm |
1100~2200lm |
580~1170 lm/ft |
|
4' |
40W/30W/20W |
2100~4200lm |
2300~4600lm |
2200~4400lm |
||
|
8' |
80W/60W/40W |
4200~8400lm |
4600~9200lm |
4400~8800lm |
||
|
Black |
2' |
20W/15W/10W |
850~1700lm |
950~1900lm |
900~1800lm |
480~970 lm/ft |
|
4' |
40W/30W/20W |
1700~3400lm |
1900~3800lm |
1800~3600lm |
||
|
8' |
80W/60W/40W |
3400~6800lm |
3800~7600lm |
3600~7200lm |
||
* Check the IES file to gain the accurate data.
.PNG)

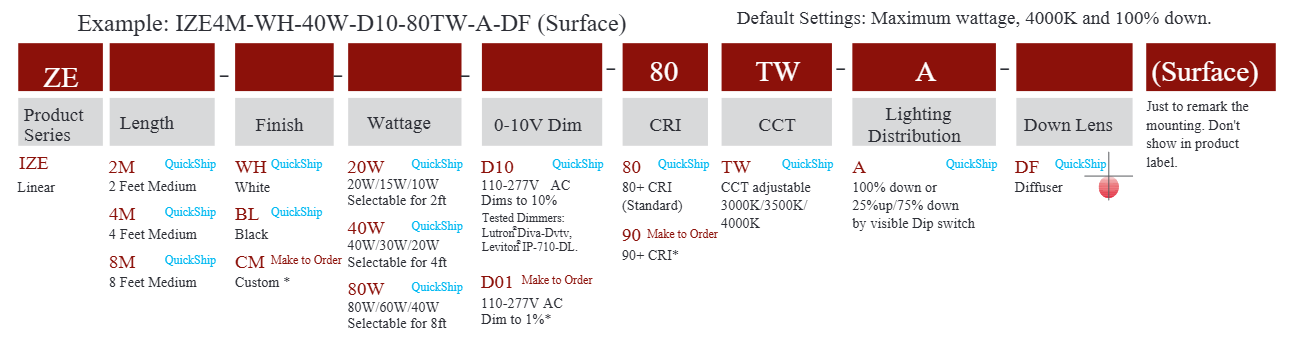

PRODUCT ORDERING GUIDE
.PNG)

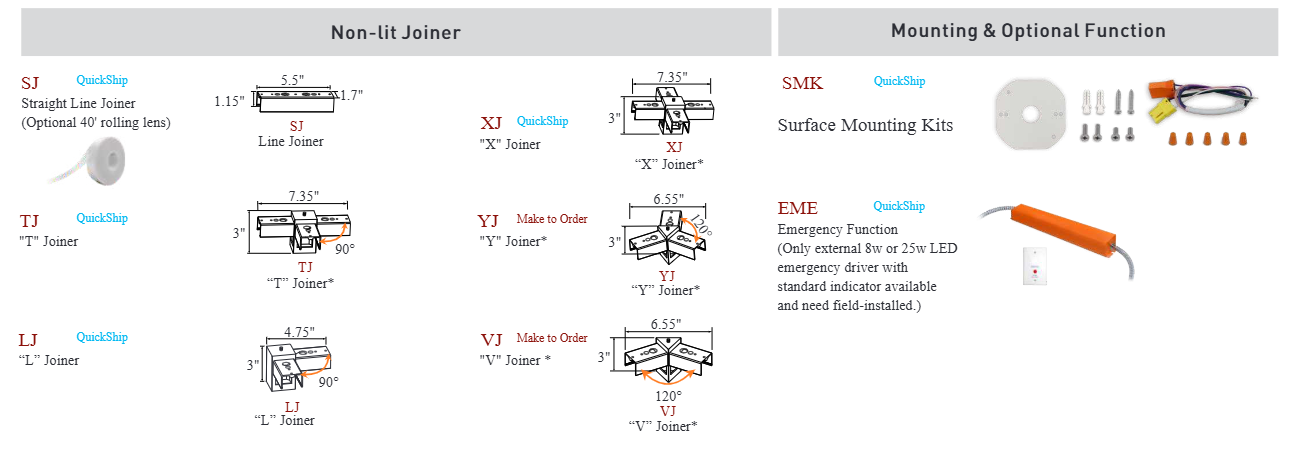

OPTIONAL ACCESSORY
.PNG)

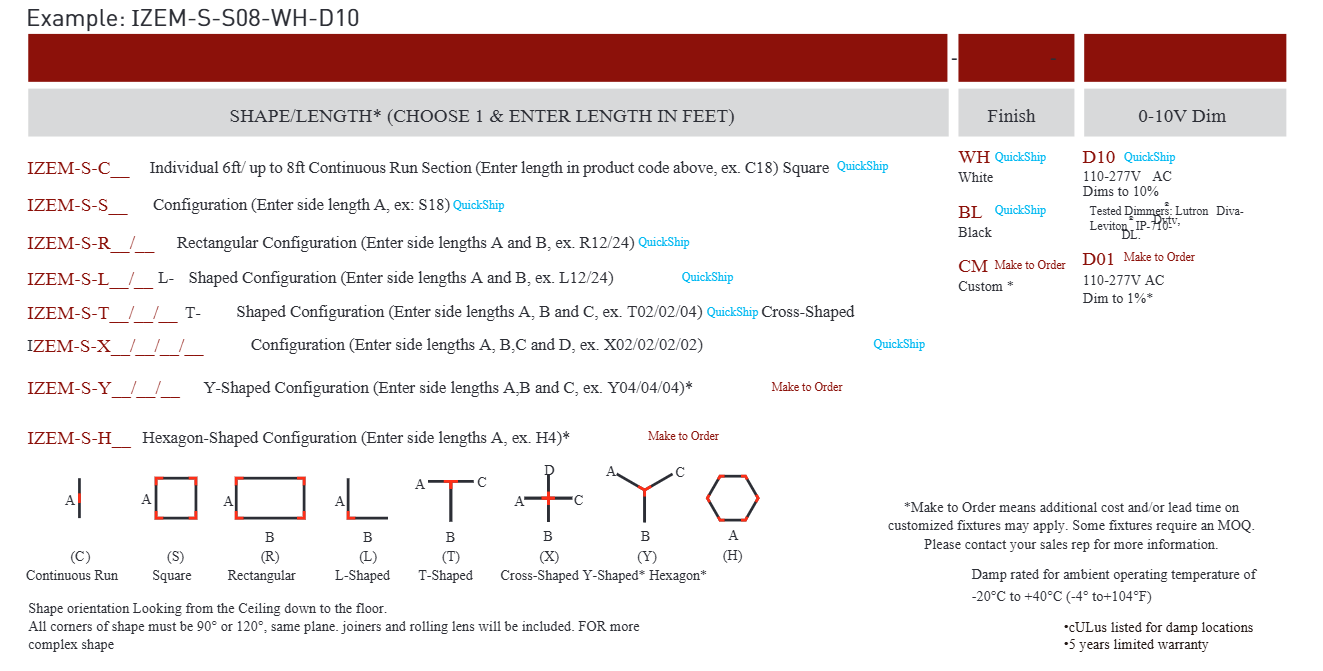

CUSTOM LINE OR SHAPE ORDERING GUIDE
.PNG)
DIMENSIONS
.PNG)

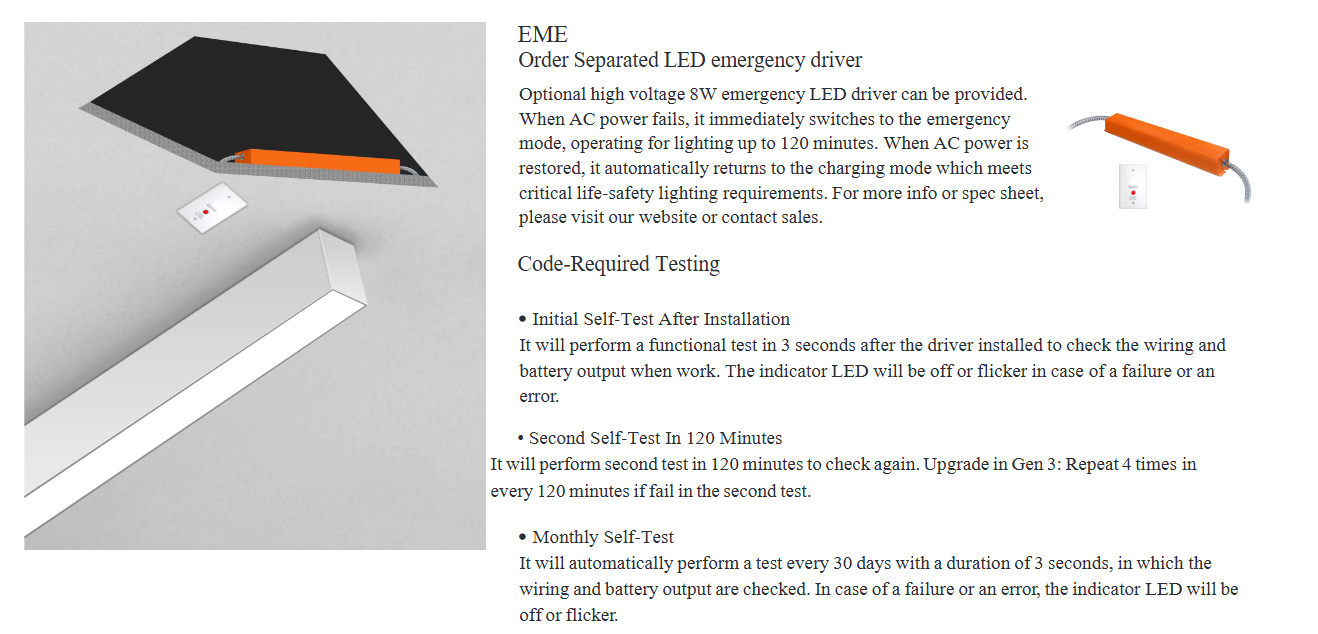

Emergency Option
IUS Lighting offers UL& CEC Listed LED emergency drivers. They could be factory installed or field installed. When AC power fails it, immediately switches to the emergency mode operating for lighting minimum 90 minutes. When AC power is restored it, automatically returns to the charging mode which meets critical life-safety lighting requirements.
.PNG)

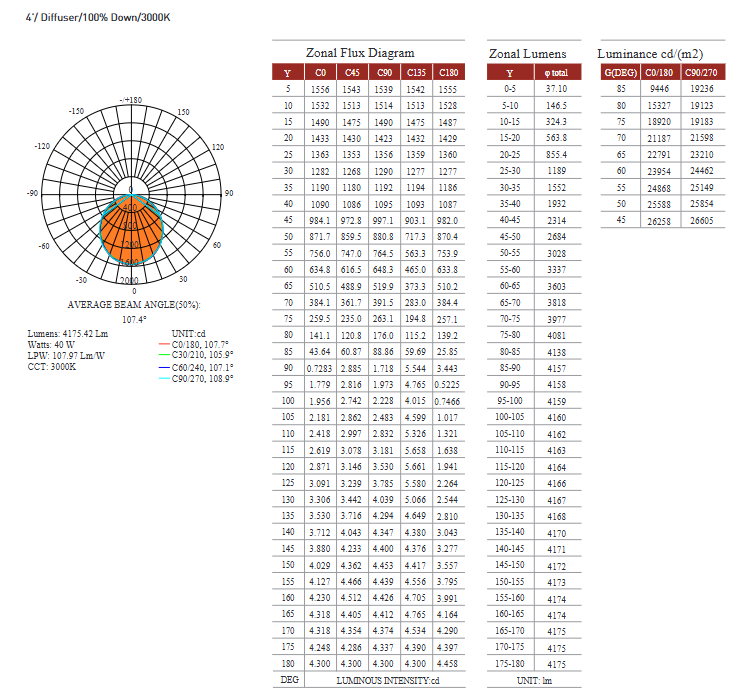

DISTRIBUTION DIAGRAM
.PNG)
1.8” Linear Surface
