1’ x 2’; 2 x 2’; 2’ x 4’ Floating Air Troffers Wattage and CCT Selectable
Description:
The indirect LED troffer offers a traditional modern design with the latest lighting technology. Transparent optics engineered specifically for LED sources are integrated with minimalist design and architectural materials to create a broad range of solutions with superior optical and energy performance. High performing optics allows for maximum energy savings and optimal illumination in a ultra-minimalistic shallow recessed fixture, provides a unique translucent appearance without sacrificing performance.It is architectural recessed lighting solution that compatible for commercial and institutional environments, including office building, medical, health, educational, retail, hotel, airport, hospitality, etc.
Contact UsFeature
- Available in 1x2ft, 2x2ft and 2x4ft sizes
- Transparent optics
- 0-10V dimming, dim to 10% or 1% options
- Wattage selectable, 110lm/w
- CCT adjustable from 3000K, 3500K and 4000K
- Recessed form factor fits most T-grid ceiling systems
PERFORMANCE
|
Model NO. |
Dimension |
Wattage Selectable |
Lumen @4000K |
Efficacy@4000K |
CCT Adjustable |
|
ITT22-DM-04W |
2'x2' |
40W/30W/20W |
Up to 4400lm |
110lm/w |
3000K/3500K/4000K |
|
ITT24-DM-04W |
2'x4' |
50W/40W/30W |
Up to 5500lm |
||
|
ITT12-DM-04W |
1'x2' |
20W/15W/10W |
Up to 2300lm |
115lm/w |
Lumen output may vary by ±5% based on different CCT and wattage settings. Actual wattage may also vary by ±5%.

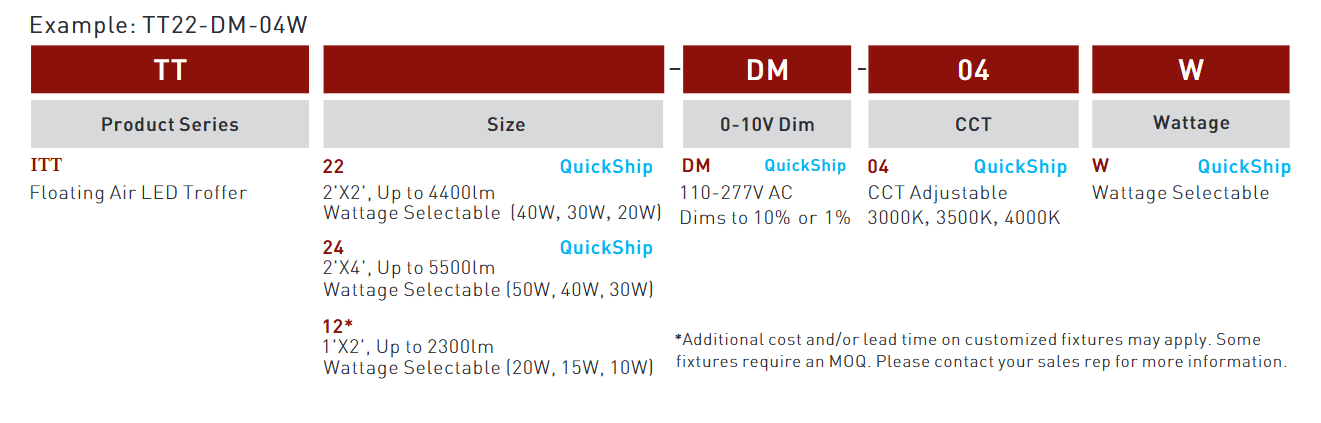

PRODUCT ORDERING GUIDE

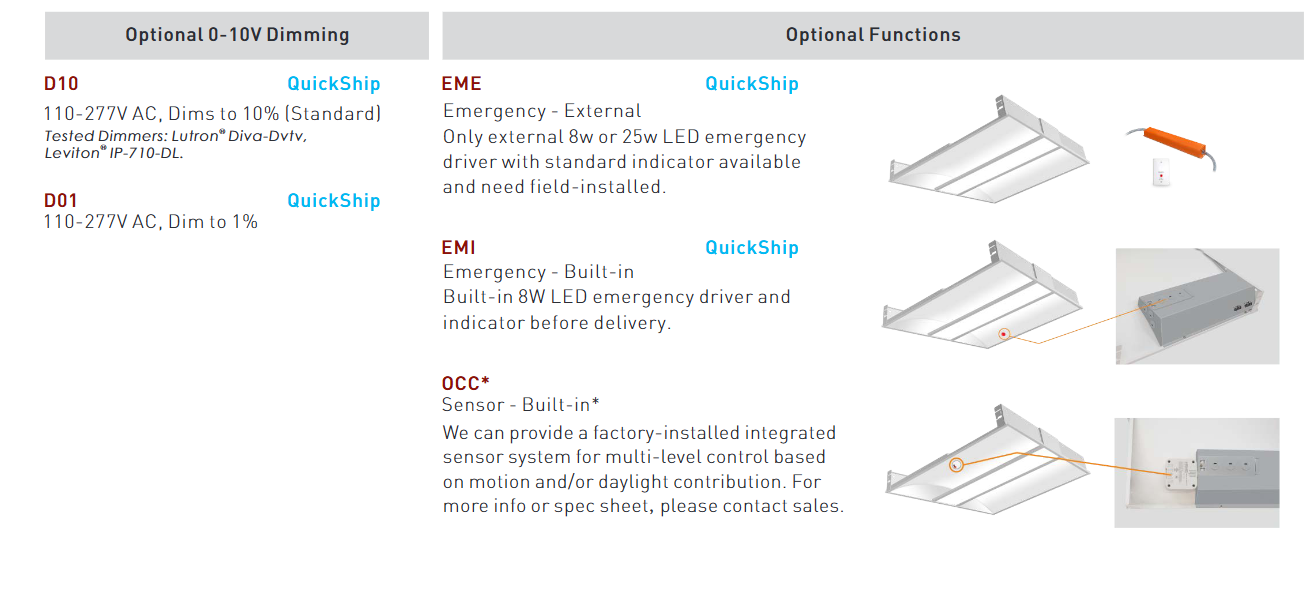

OPTIONAL ORDERING GUIDE

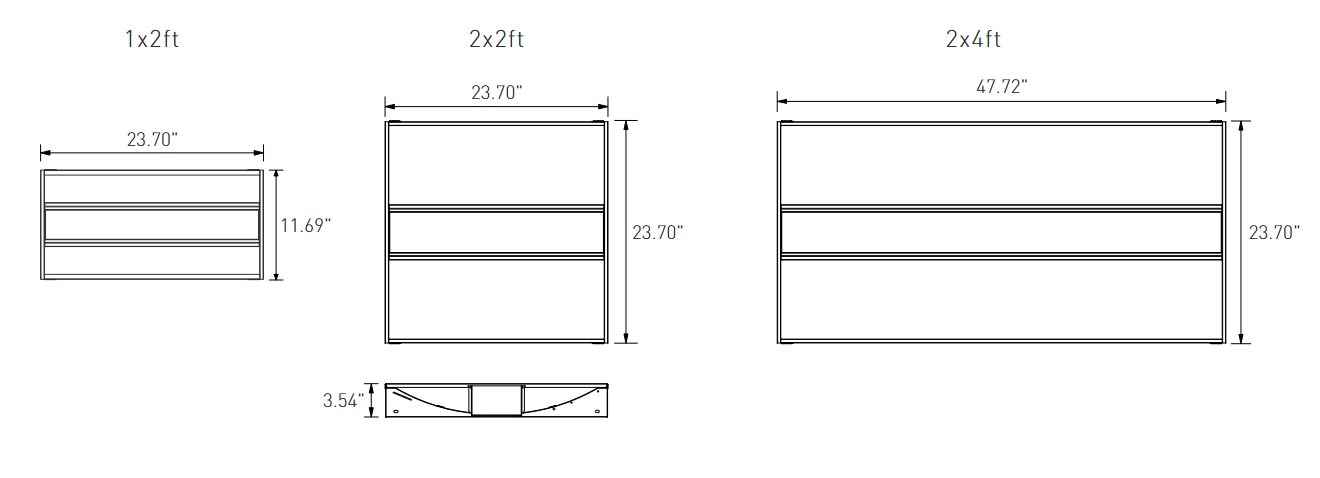

DIMENSION
Optics
It offers unique transparent optics to enhance the fixture aesthetic. fully- uniform transparent optics provide uniform, low-glare illumination for a clean, modern, upgraded look, creating direct and indirect light distribution
Construction
- Extruded aluminum housing.
Finish
- Powder coat white finish provides uniform finish providing long term performance and superior aesthetic.
Electrical
- LED Driver: It is powered by Class 2 high efficiency LED driver, with a standard 1-10V dimming which continuous dims to 10% that works with many types of controls. Tested ® ® Dimmers: Lutron Diva-Dvtv, Leviton IP-710-DL. Dim to 1% is available.
- THD: <20%
- Power Factor: >0.9
- Input Voltage: Standard electronic drivers are cULus recognized and available for 110-277V.
LED System
- CRI CCT: Minimum 80 color rendering index Thermal Management Environment CCT adjustable from 3000K, 3500K and 4000K with a great color consistency.
- LED: Life Minimum 50,000h with 87.8% of lumen maintenance in 25℃ ambient temperature, in compliance with IES LM-80 testing measurements.
- Thermal Management: Aluminum housing acting as the heat sink to maximize life.
- Environment: Damp rated in operating ambient temperatures of -20℃~40℃.
T-grids Ceiling Compatibility
- It is architectural recessed lighting solution that compatible with most 15/16" and 9/16" t-grid systems for commercial and institutional environment.
Mounting
- Recessed
Approvals
- US Patent (US D921,955 S)
- cULus listed for damp locations
- Tested to IESNA LM-79 and LM-80
- DesignLights Consortium Qualified and classified for DLC Standard, refer to www.designlights.org for details.
- 5-year Limited Warranty

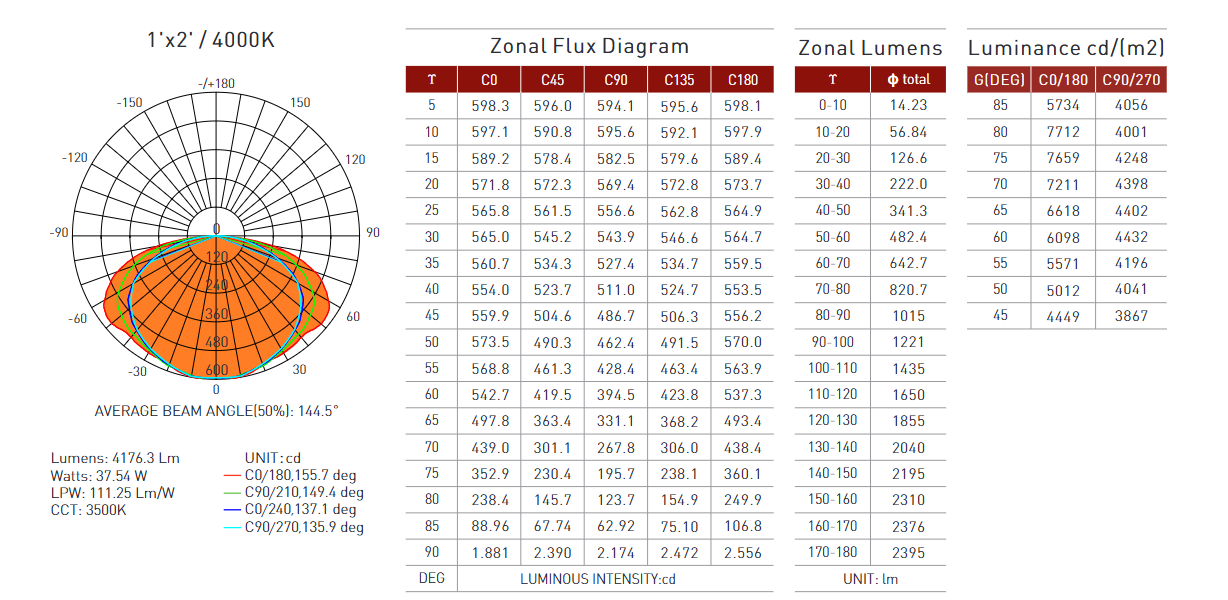

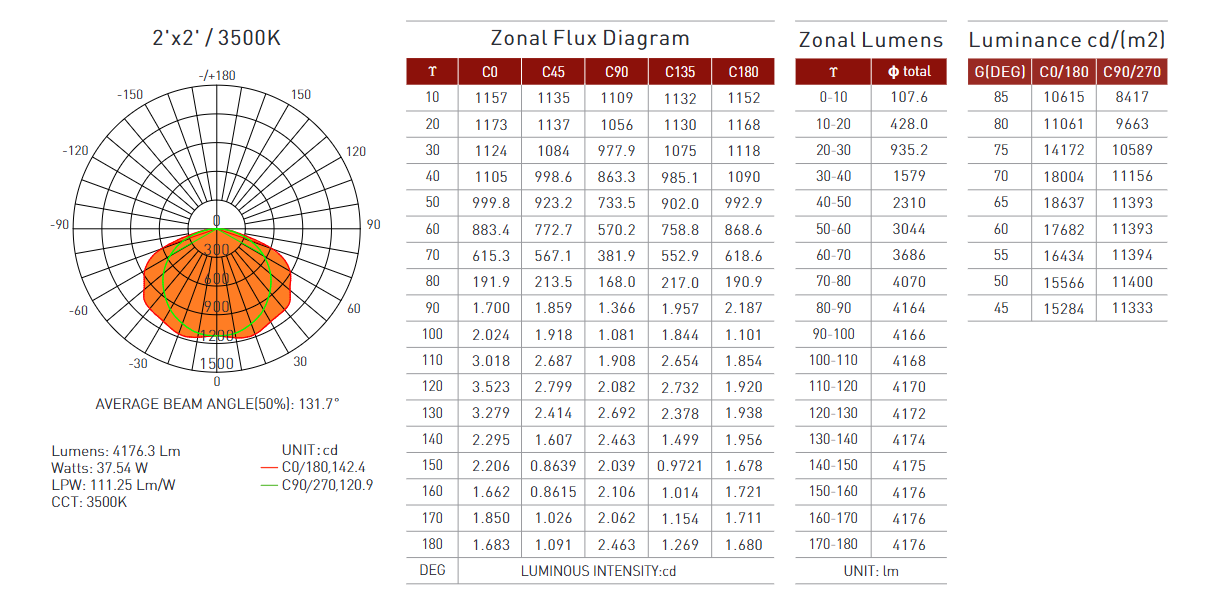

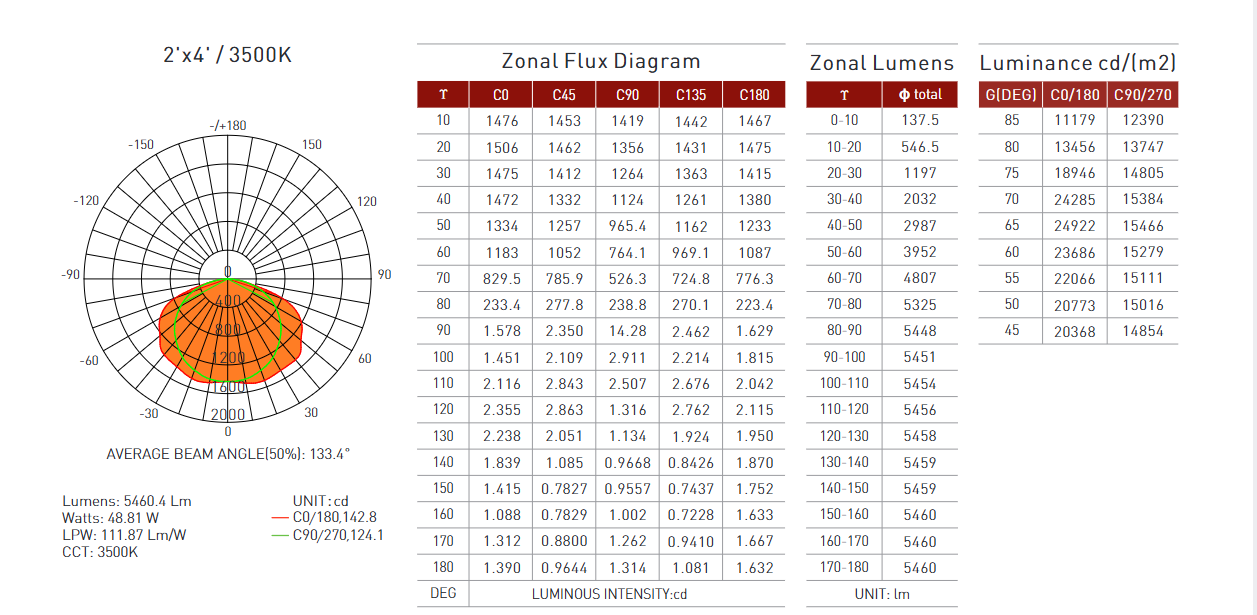

DISTRIBUTION DIAGRAM

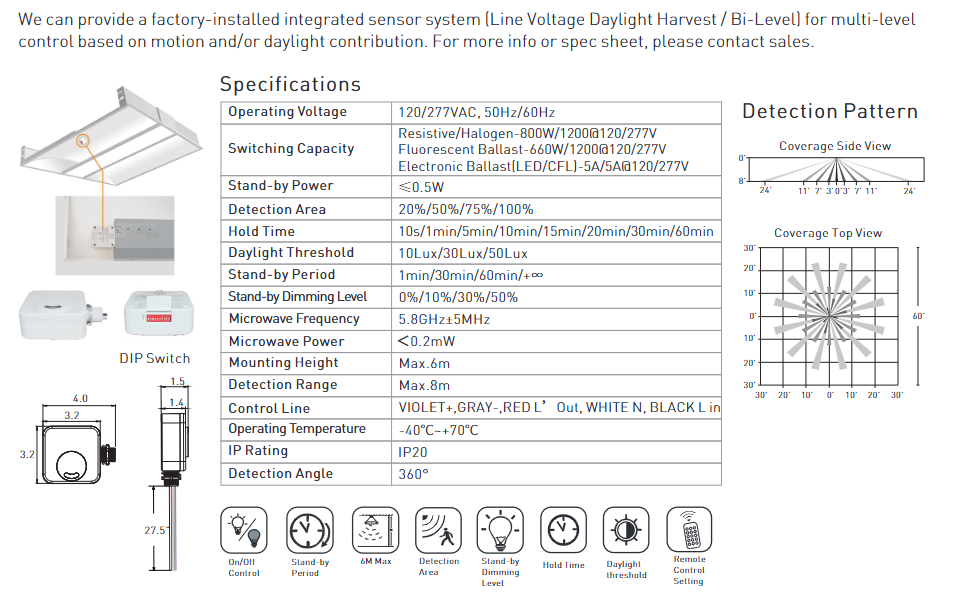

MICROWAVE SENSOR OPTION-BUILT-IN

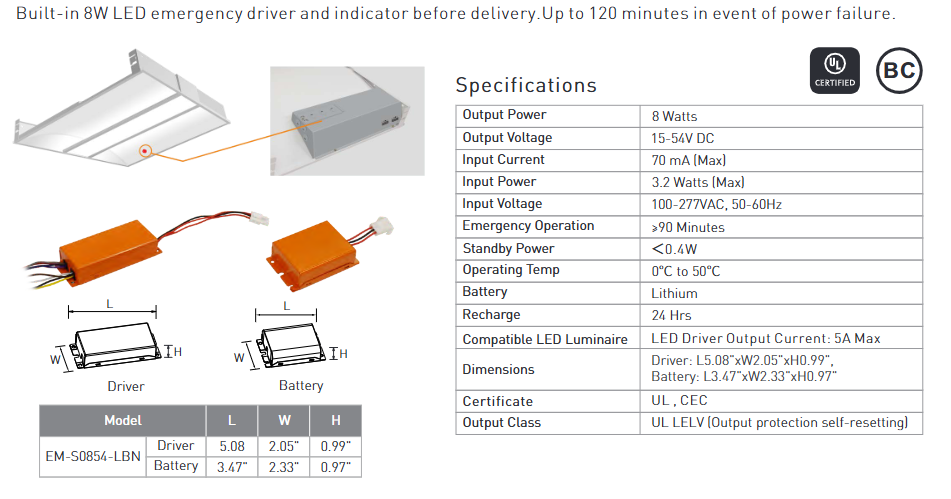

EMERGENCY OPTION - BUILT-IN
