10”/16”/24”/36” Adjustable Lens Undercabinet Light IMUCAD10
Description:
The IMUCAD Under Cabinet Task Light is an excellent lighting solution for commercial and residential applications like under cabinets, shelves, closets, offices, retail, coves, task lighting, utility lighting, and display cases. With the powder-coated painted die-formed cold-rolled steel frame and high transmission white acrylic lens, this energy-efficient product will illuminate your home or business for a very long period. You can adjust the light angle and 5 color temperature to select. Simple connection with this LED Under Cabinet Light. You connect with the power cable or hardwire.
Perfect use for residential housings, condominiums, hotels, and the hospitality industry.
TECHNICAL SUMMARY
|
MODEL # |
LUMENS |
WATTS |
EFFICACY |
CRI |
VOLTAGE |
BEAM º |
CCT |
PF |
LIFE |
OPERATING TEMP. |
|
IMUCAD10-7W-5CCT-WH |
385 |
7W |
55 lm/W |
90 |
120V, 60 Hz |
104º |
2700K/ 3000K/ 3500K/ 4000K/ 5000K |
>0.9 |
50,000 hrs |
-5ºF ~ 104ºF |
|
IMUCAD16-11W-5CCT-WH |
620 |
11W |
56 lm/W |
|||||||
|
IMUCAD24-15W-5CCT-WH |
925 |
15W |
62 lm/W |
|||||||
|
IMUCAD36-17W-5CCT-WH |
1050 |
16.5W |
63 lm/W |
CONSTRUCTION
- Extruded aluminum housing and high transmission white acrylic Lens.
DRIVER
- High Efficiency integral 120V 60Hz constant current dimmable driver.
- Smooth flicker free dimming to 10%.
MOUNTING
- Each unit is secured directly to the mounting surface with just two screws keeping installation costs and efforts low.
LISTING
- ETL Listed, Energy Star Listed, Suitable for Damp Locations, Title 24 JA8-2022, RoHS
WARRANTY
- 5 years manufacturer warranty, consult factory for more details. Terms and conditions may apply.

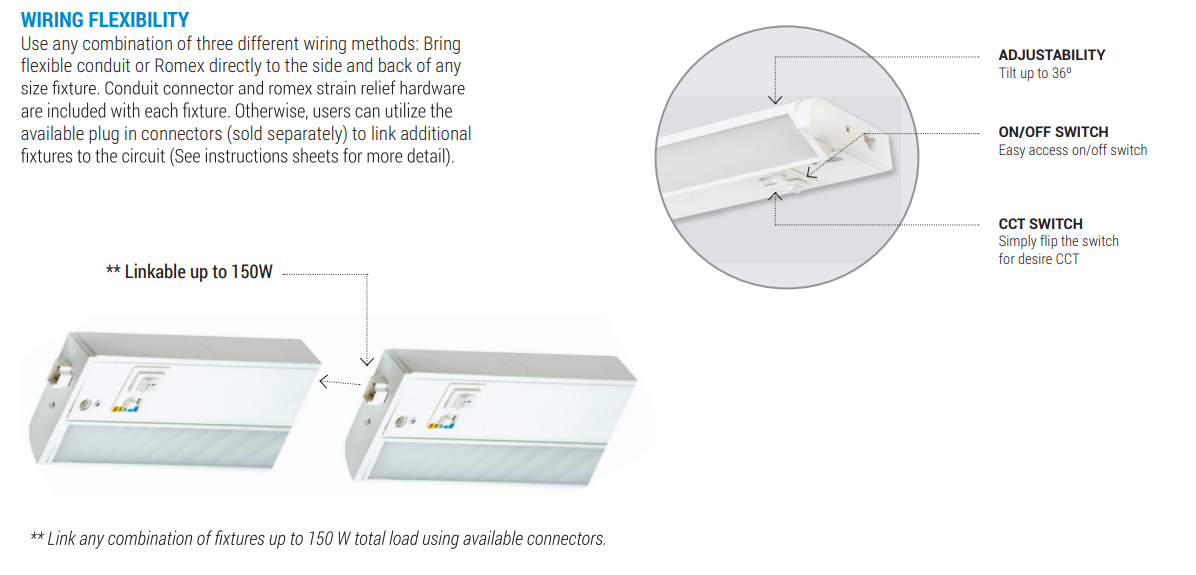

WIRING FLEXIBILITY
10”/16”/24”/36” Adjustable Lens Undercabinet Light IMUCAD10
IMUCAD10-7W-5CCT-WH
IMUCAD16-11W-5CCT-WH
IMUCAD24-15W-5CCT-WH
