100/150/200W Commercial Round NSF-rated High-Bay with Wattage and CCT Selector
Description:
The IMNUHB series, designed for food processing applications, features a durable aluminum alloy body with a black anti-corrosion coating. This UFO high bay fixture includes an active cooling heatsink for high thermal conduction and a non-flicker, anti-glare PC lens. It has an IP69k rating for dust and water resistance and rating for high-temperature, high-pressure water protection. Operating on AC120-277V, it is 0-10V dimmable and offers a color temperature of 5000K with selectable wattages of 100W, 150W, and 200W, delivering 150 lumens per watt. The product is UL, NSF, and FCC certified, and comes with a 5-year warranty
DIMENSIONS
TECHNICAL SUMMARY
|
MODEL NO. |
WATTS |
LUMENS |
CCT |
VOLTAGE |
DIMMING |
CRI |
CERTIFICATION |
|
IMNUHB-100/150/200-50K |
100/150/200 |
15000/22500/30000LM |
50K |
AC120-277V |
0-10V |
80 |
IP69K/FCC/UL/NSF |
.PNG)
CONSTRUCTION
- Unit includes heavy duty metal frame, LED array, heat sink, hanger, security cable and high quality PC lens.;
OPTICS
- Diffuse for uniform illumination.
- CRI 80
DRIVER
- 120 - 277V 60Hz universal input voltage
- 0 - 10V smooth flicker free dimming down to 5%
MOUNTING
- Pendant mount to the ceiling
LISTING
- FCC Listed
- UL 8750 LED equipment in Lighting Products
WARRANTY
- 5 years manufacturer warranty.
- Terms and conditions may apply.
*5 years limited LED luminaire warranty to the original purchaser that the luminaire shall be free from defects in mate-rials and workmanship from date of shipment, when under properly installed at normal conditions of use. The warranty may not cover physical damage or abuse under certain conditions.

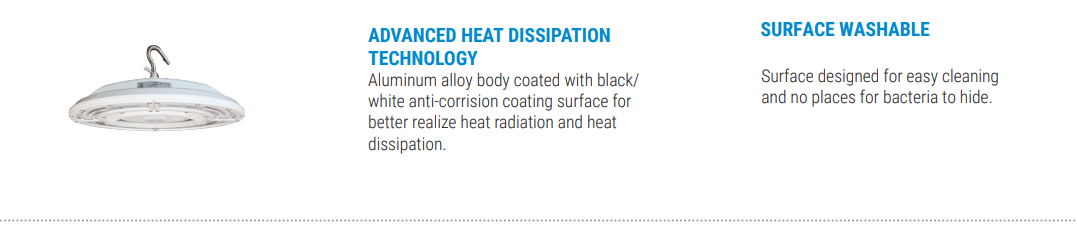

HIGHLIGHT

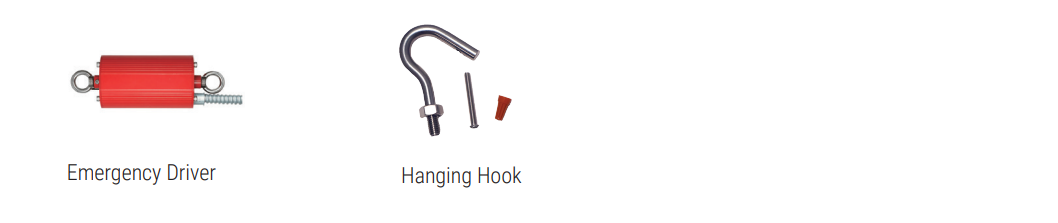

ACCESSORIES (SOLD SEPARATELY)
