1x4 2x2 2x4 Troffers – Wattage and CCT Selectable

Description:

Designed to deliver an unprecedented uniformity and functionality, this floating curved troffer features a compact yet sturdy aluminum construction designed to blend into modern architectural spaces. Featuring a low profile form factor, it is ideal for buildings with a low plenum space and is suitable for all standard 2x2ft, 1X4ft or 2x4ft grid ceilings. This creates a soft and comfortable lighting experience for commercial and institutional spaces including open offices, classrooms, retail and healthcare facilities, goes beyond what was previously possible with traditional LED luminaires.

*DesignLights Consortium Qualified and classified for DLC standard/premium, refer to www.designlights.org for details

Feature

Low profile design
Uniform and soft illumination with back-lit technology
CCT adjustable from 3500k,4000k and 5000k
Wattage selectable, up to 110lm/w or 125lm/w

PERFORMANCE

Model NO.	Dimension	Wattage Adjustable	Lumen@4000K	Efficacy@4000K	CCT Adjustable

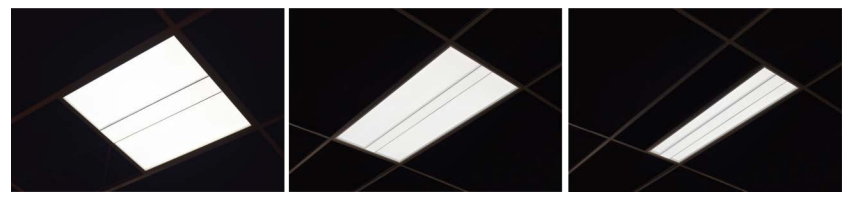

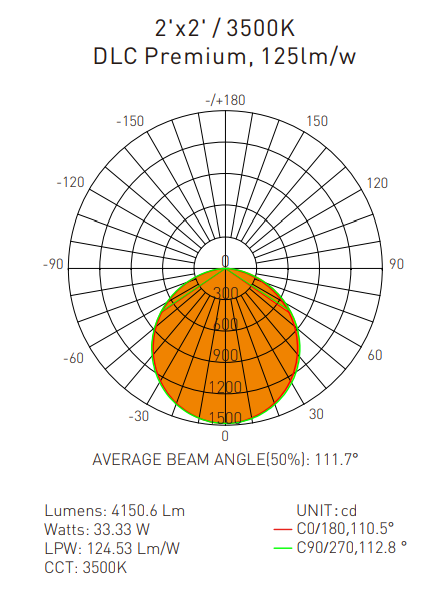

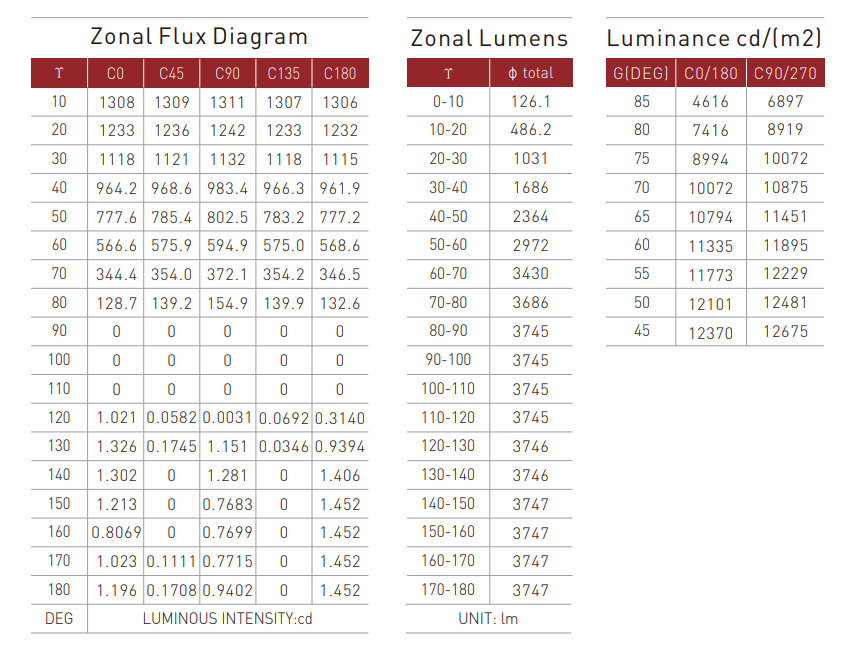

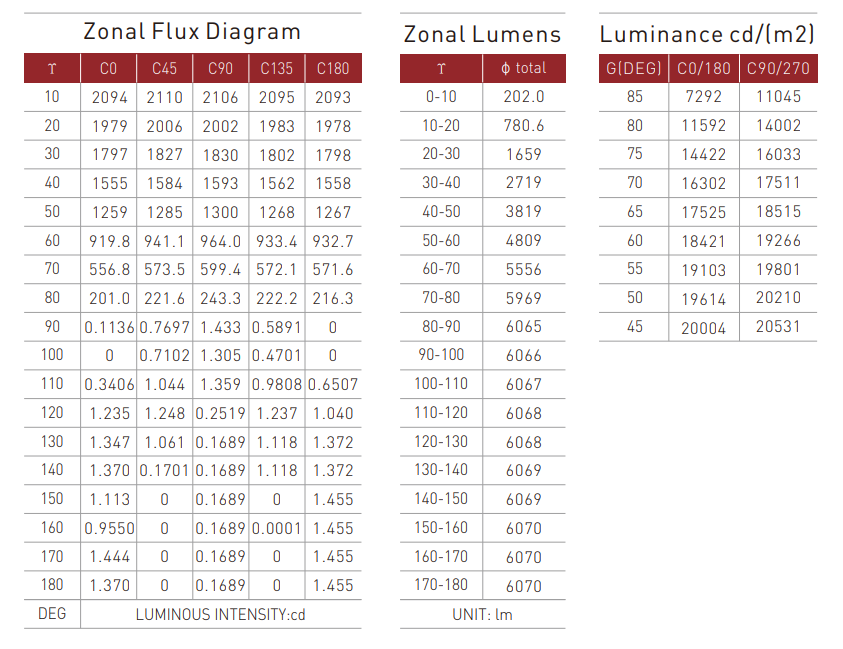

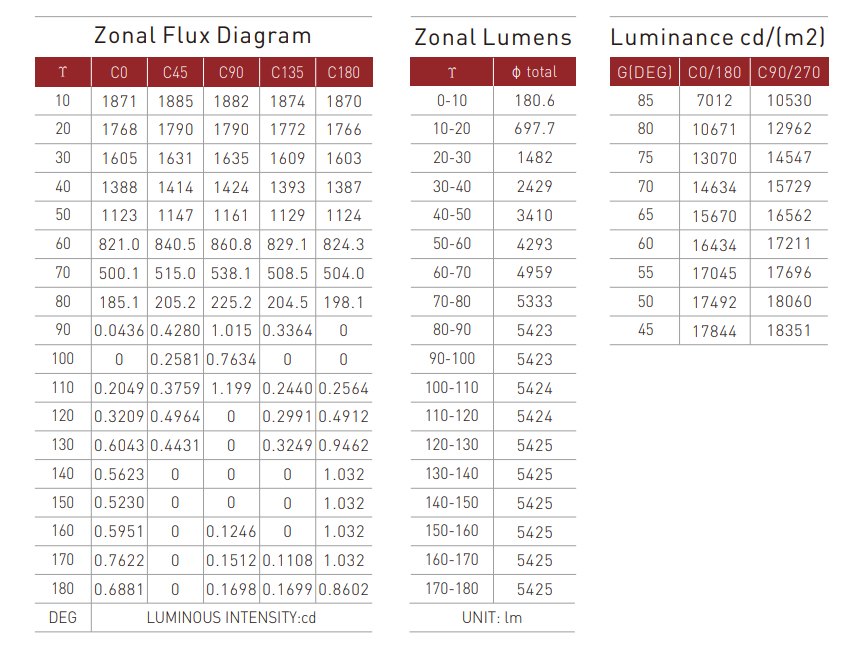

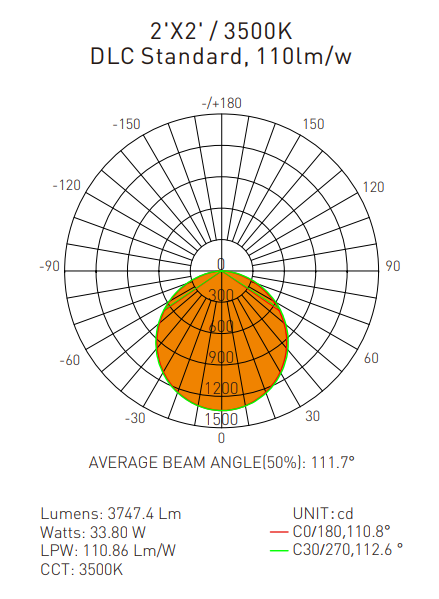

TR22-DM-TWTS	2'x2'	35W/30W/25W	3850lm	DLC Standard Up to 110lm/w	3500K/4000K/5000K
TR24-DM-TWTS	2'x4'	50W/40W/30W	5500lm
TR14-DM-TWTS	1'x4'	35W/30W/25W	3850lm
TR22-DM-TWTP	2'x2'	35W/30W/25W	4300lm	DLC Premium Up to 125lm/w
TR24-DM-TWTP	2'x4'	50W/40W/30W	6200lm	DLC Premium Up to 125lm/w

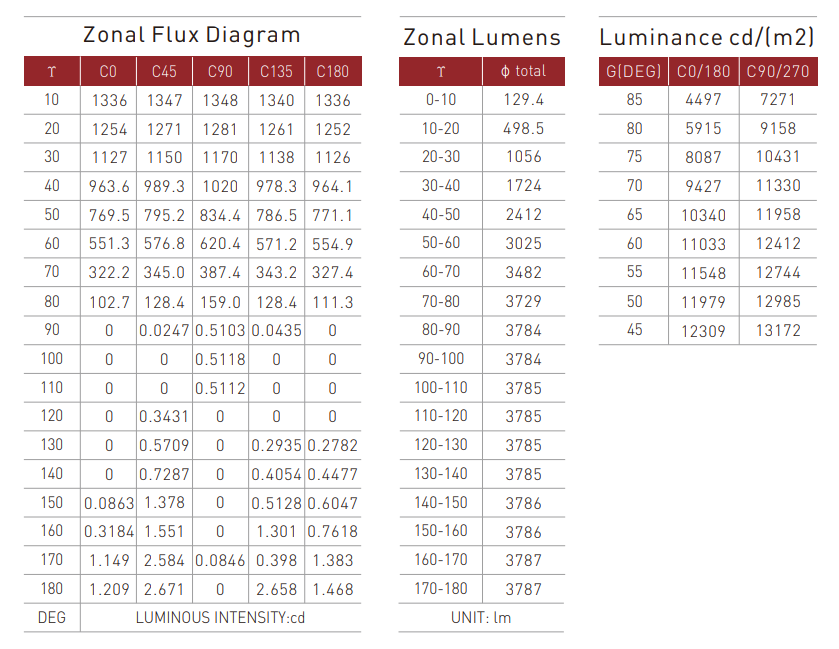

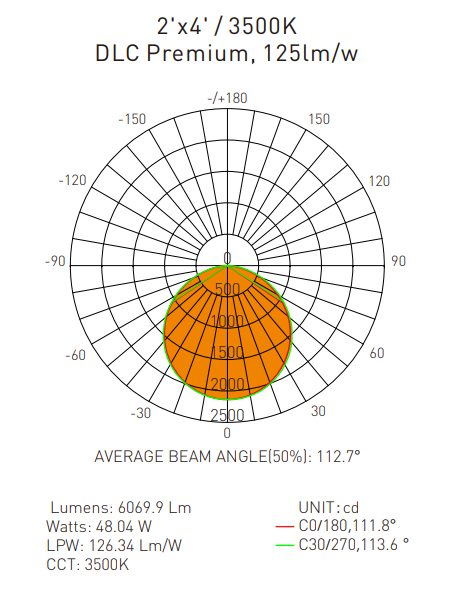

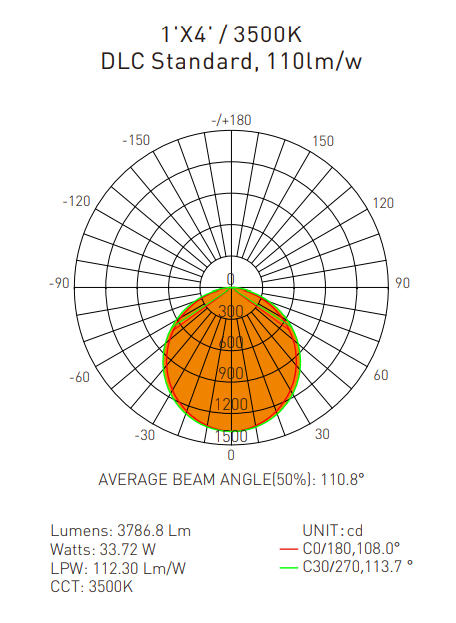

All efficacy is ±5% base on different CCT and wattage. Check the IES file to gain the accurate data.

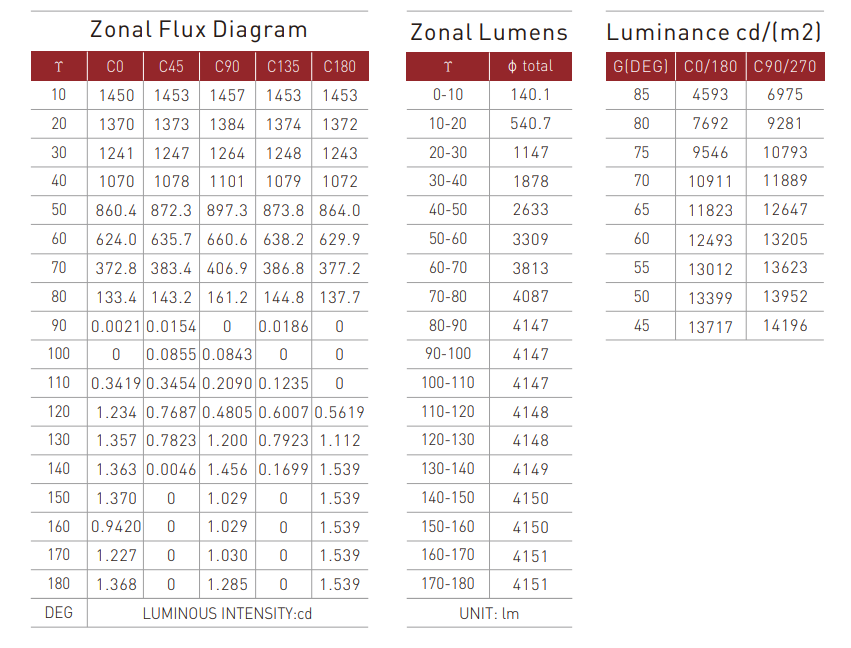

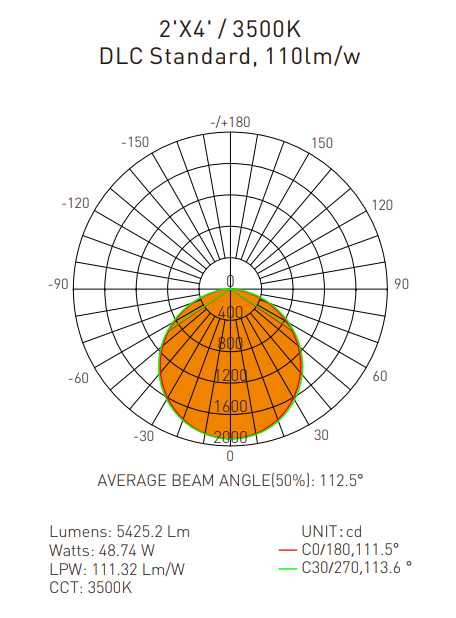

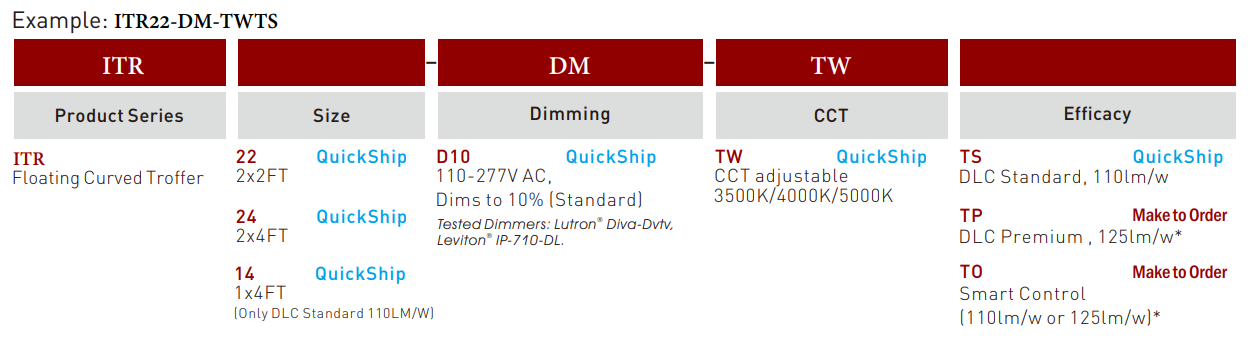

PRODUCT ORDERING GUIDE

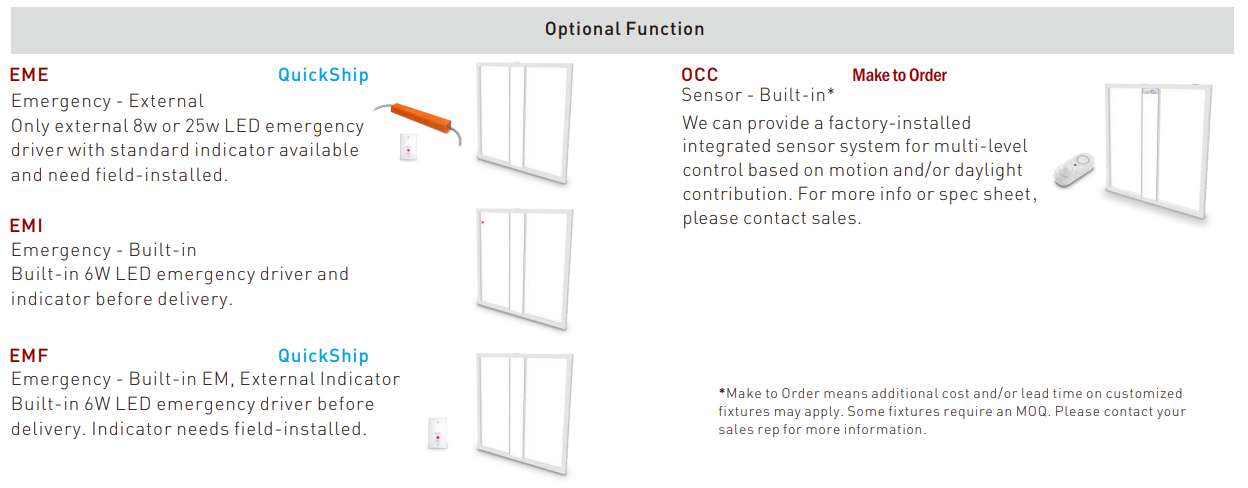

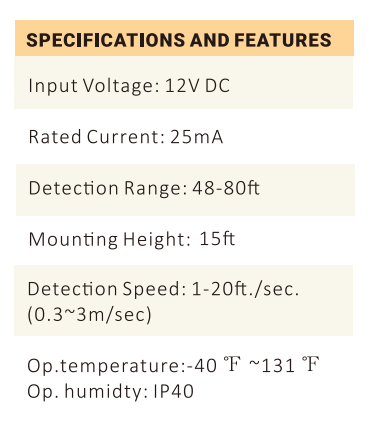

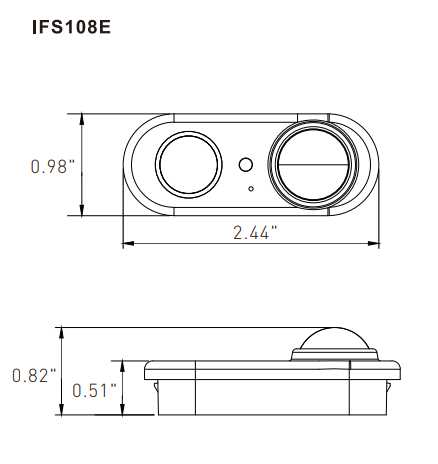

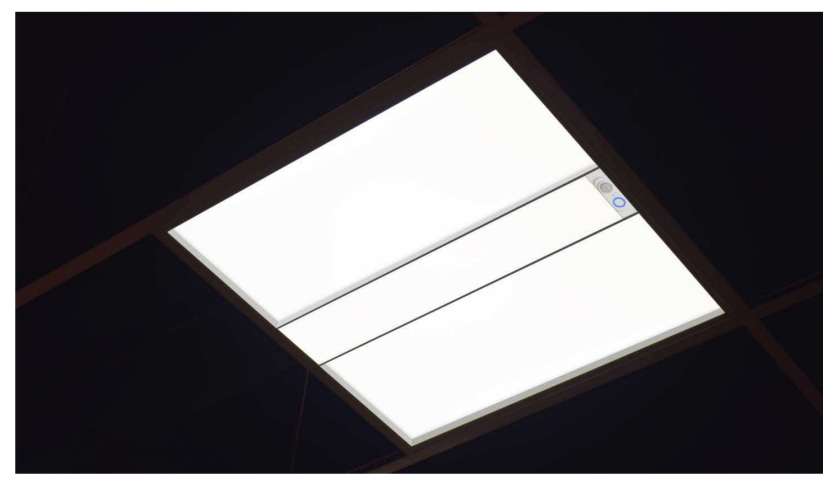

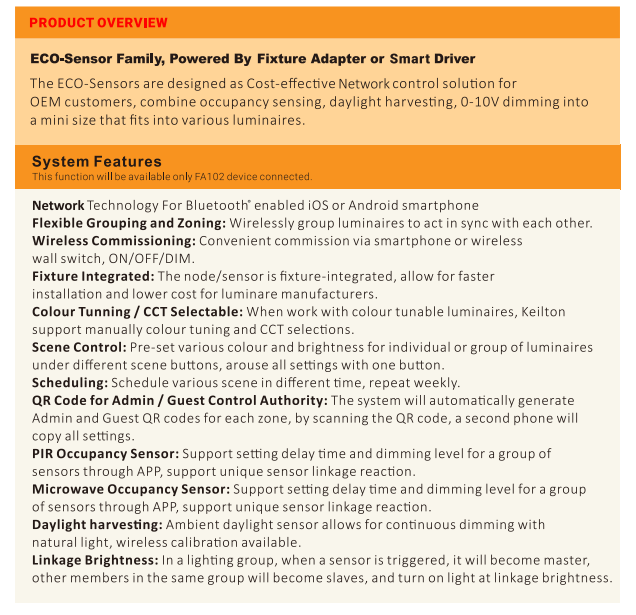

OPTIONAL FUNCTIONS

Finish

Extruded aluminum housing with powder coat white finish provides long term performance and superior aesthetic.

Electrical

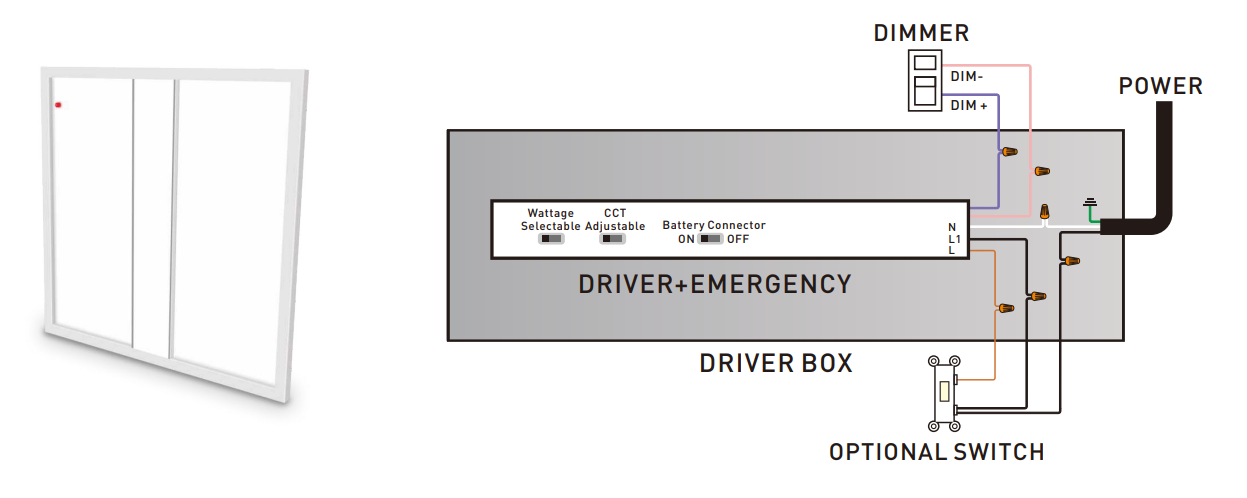

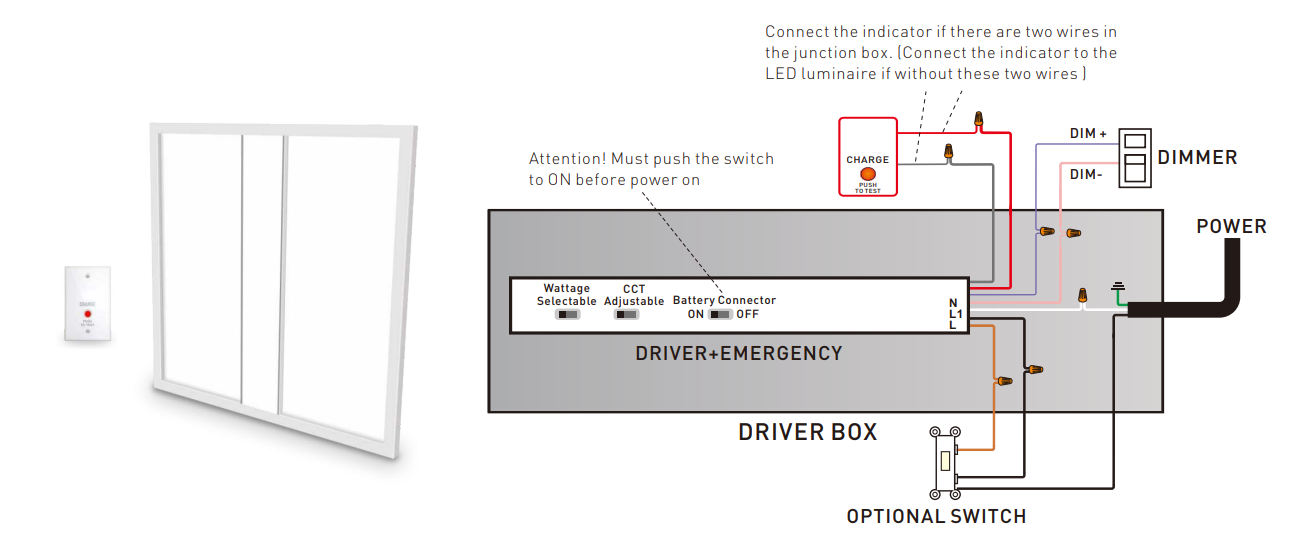

LED Driver	It is powered by Class 2 high efficiency LED driver, with a standard 0-10V dimming which continuous dims to 10% that works with many types of controls. Tested Dimmers: LUTRON® NTSTV-DV, LUTRON® DVSTV, LUTRON® MS-Z101, LEVITON® DD710 , LEVITON® IP710, LEGRAND RH4FBL3PTC.
THD	<20%
Power Factor	>0.9
Input Voltage	Standard electronic driver is UL recognized and available for 110-277V or 110-347V* AC.

Mounting

Recessed

LED System

CRI	Minimum 80 color rendering index
CCT	CCT adjustable from 3500K, 4000K and 5000K with a great color consistency
LED	Life Minimum 50,000h with 87.8% of lumen maintenance in 25°C ambient temperature, in compliance with IES LM-80 testing measurements.
Thermal Management	Aluminum housing acting as the heat sink to maximize life.
Environment	Damp rated in operating ambient temperatures of -20°C~40°C .

Approvals

cULus listed for damp locations
CCEA Option
Tested to IESNA LM-79 and LM-80
DesignLights Consortium Qualified and classified for DLC standard/premium, refer to www.designlights.org for details
5 years limited warranty

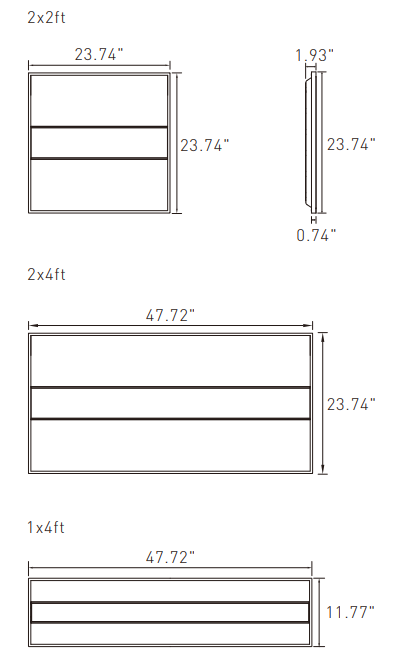

DIMENSION

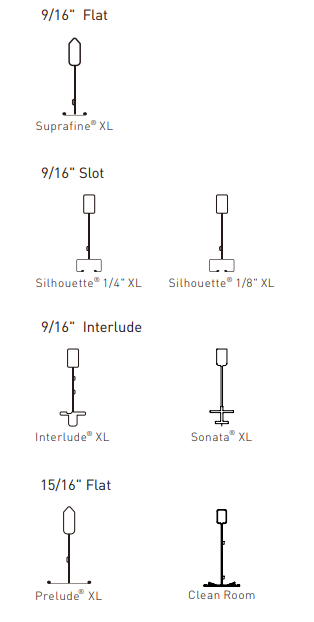

T-GRIDS CEILING COMPATIBILITY

It is architectural recessed lighting solution that compatible with most 15/16" and 9/16" t-grid systems for commercial and institutional environment. The following are only as some common examples to show.
