2.3” Linear Wall mount

Description:

IUS series 2.3" is available in a wall mount design, with a sleek low-profile sensibility optimal for architectural lighting applications, ideal for corridors, stairwells, and more. These linear luminaries is available in 2ft, 3ft, 4ft and 8ft, simply provide wide, powerful lighting to any atmosphere with continuous runs. With wattage and CCT adjustable function, It also has the flexibility to illuminate many types of spaces.

Feature

Wattage selectable (50%/75%/100%)
CCT adjustable from 3000K, 3500K, 4000K
Individual units or continuous runs
Available in diffuser, micro reflector, louver and regressed lens
Available in 2ft, 3ft, 4ft and 8ft, up to 1000lm/ft

PERFORMANCE

Lens	Length	Wattage Selectable	100%DOWN		CCT Adjustable
Lens	Length	Wattage Selectable	Efficacy	Lumen Output	CCT Adjustable
Diffuser	2'	20W/15W/10W	1050m/ft	Up to 2100LM	3000K/3500K/4000K
	3'	30W/23W/15W		Up to 3150LM
	4'	40W/30W/20W		Up to 4200LM
	8'	80W/60W/40W		Up to 8400LM
Regressed Lens	2'	20W/15W/10W	900lm/ft	Up to 1800LM	3000K/3500K/4000K
	3'	30W/23W/15W		Up to 2700LM
	4'	40W/30W/20W		Up to 3600LM
	8'	80W/60W/40W		Up to 7200LM
Louver	2'	20W/15W/10W	650m/ft	Up to 1300LM	3000K/3500K/4000K
	3'	30W/23W/15W		Up to 1950LM
	4'	40W/30W/20W		Up to 2600LM
	8'	80W/60W/40W		Up to 5200LM
Micro Reflector	2'	20W/15W/10W	900lm/ft	Up to 1800LM	3000K/3500K/4000K
	3'	30W/23W/15W		Up to 2700LM
	4'	40W/30W/20W		Up to 3600LM
	8'	80W/60W/40W		Up to 7200LM

Remark: Lumens are subjuect to maximum wattage,4000K with white finish only.

Lumen output may vary ± 5% base on different CCT and wattage. Actual wattage may vary ± 5%.

2.3” Linear Wall mount

Description:

Feature

PERFORMANCE

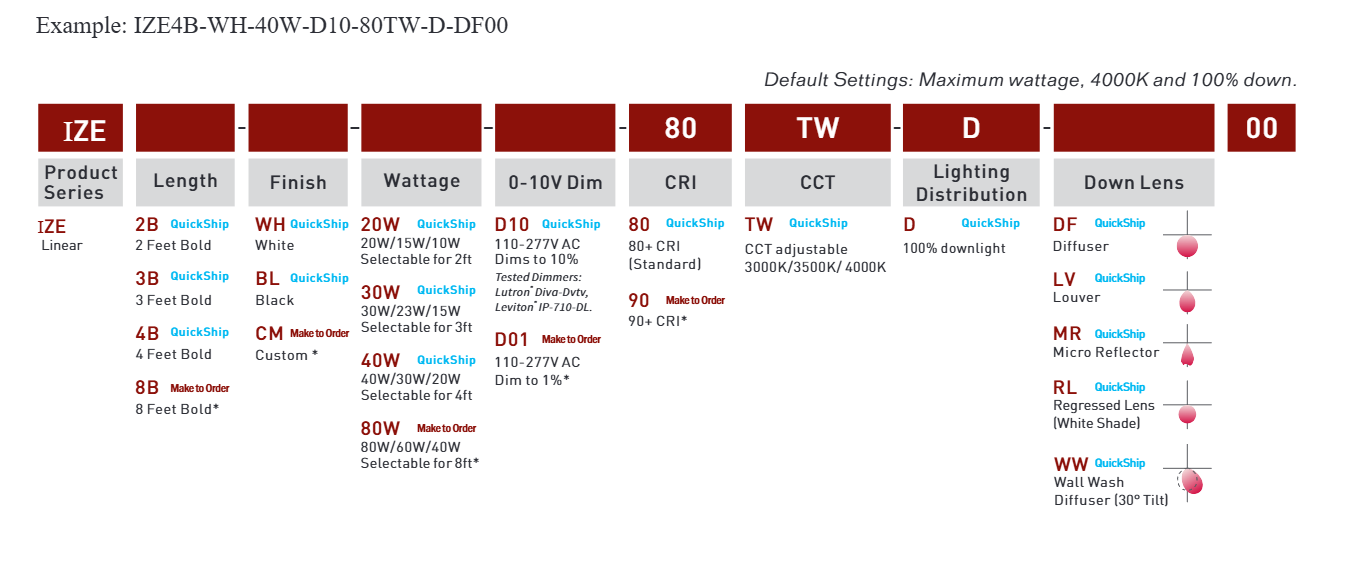

PRODUCT ORDERING GUIDE

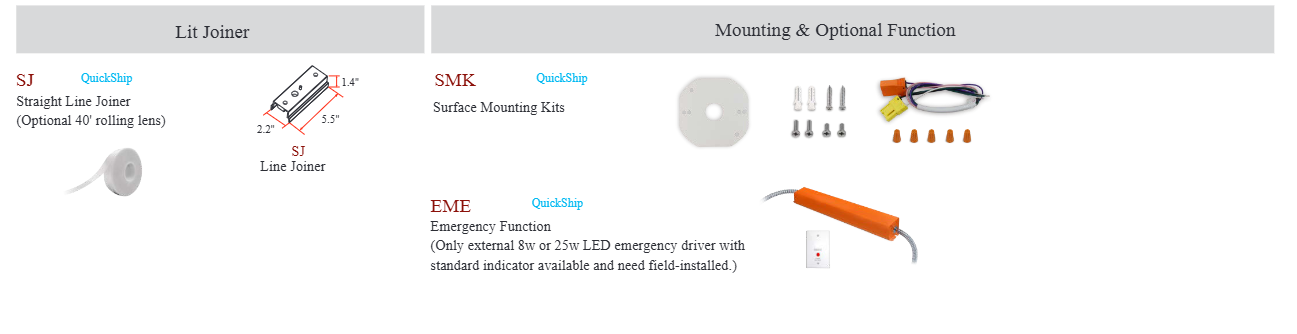

OPTIONAL ACCESSORY

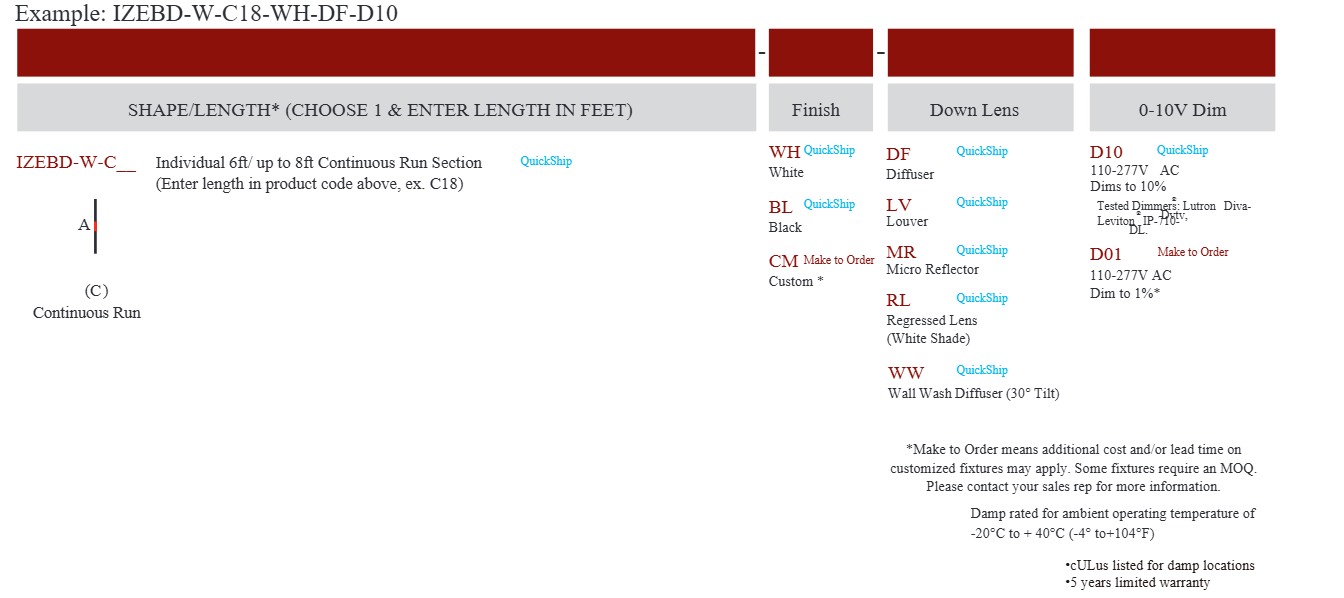

CUSTOM LINE OR SHAPE ORDERING GUIDE

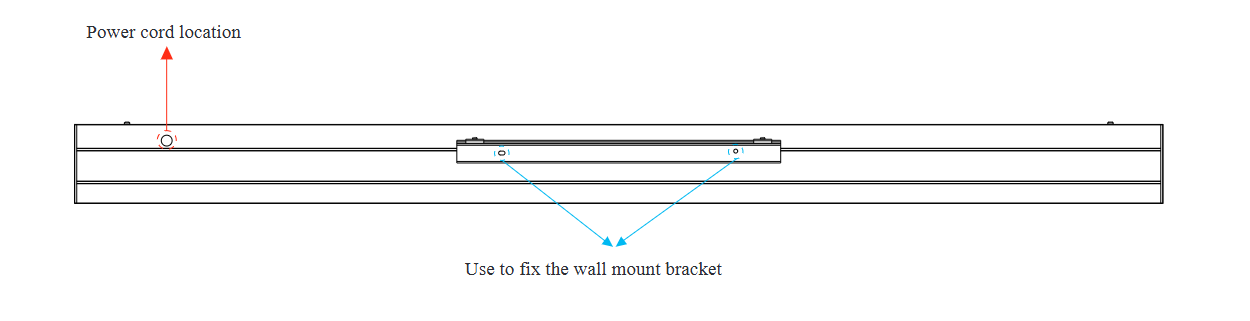

MOUNTING LOCATION

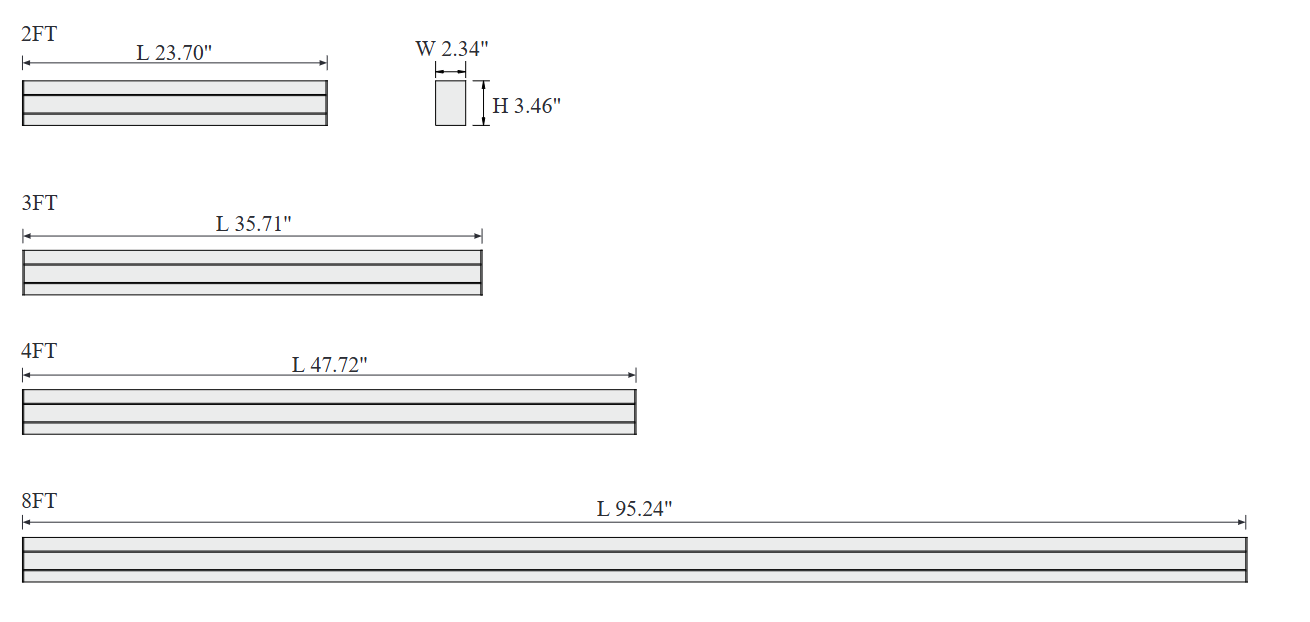

DIMENSIONS

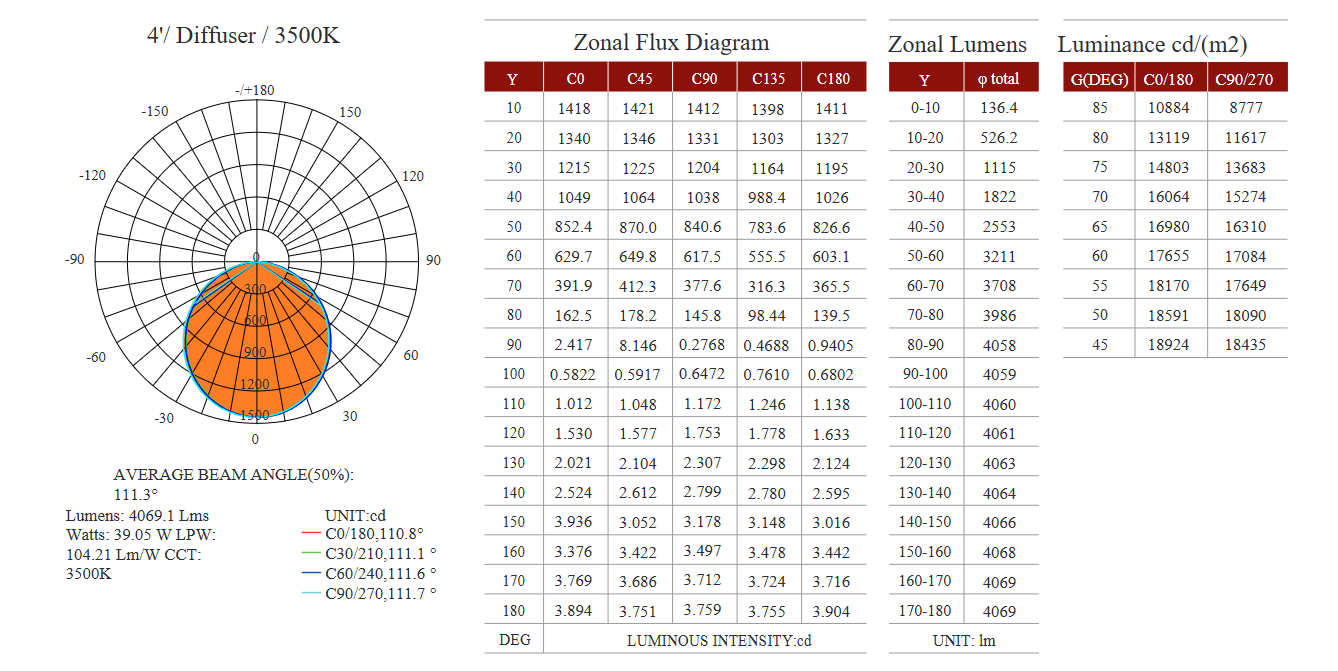

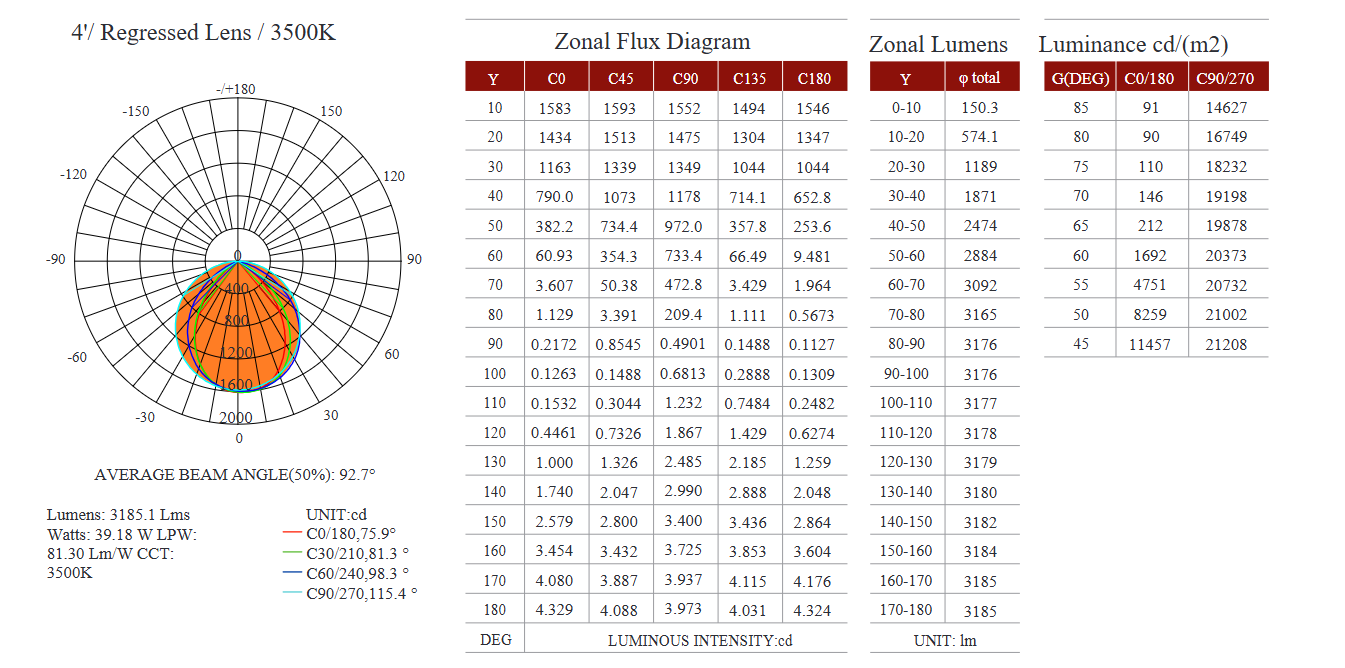

DISTRIBUTION DIAGRAM
