2.3” Recessed Linear

Description:

IUS 2.3" is available in recessed mount. It is available in 2.3" width with 2ft, 3ft, 4ft and 8ft lengths options, simply provide linear, powerful lighting to any atmosphere. This linear lighting features a streamlined linear form factor designed for maximum versatility. With their superior flexibility by wattage and CCT adjustable, This products create a balance between esthetics, visual comfort and lighting performance, designed to meet the most demanding lighting challenges. It is architectural recessed lighting solution that compatible with most 15/16" and 9/16" t-grid ceiling or dry ceiling , widely used in office spaces, major retail stores, education, government, healthcare, and hospitality

Contact Us

Feature

  • Trimless design or flange trim options
  • Application flexibility, T-grid or dry ceiling compatible Continuous
  • runs or custom pattern

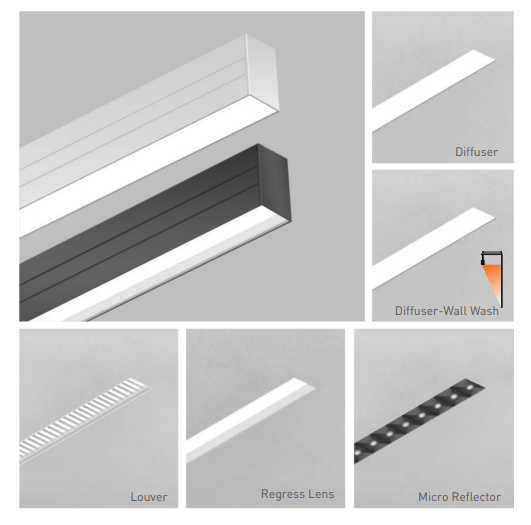

  • Available in diffuser, micro reflector, louver and regressed lens
  • Available in 2ft, 3ft, 4ft and 8ft, up to 1000lm/ft
  • Wattage selectable (50%/75%/100%)
  • CCT adjustable from 3000K, 3500K, 4000K

PERFORMANCE



Lens



Length

Wattage Selectable

100%DOWN



CCT Adjustable

Efficacy

Lumen Output





Diffuser

2'

20W/15W/10W





1050m/ft

Up to 2100LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 3150LM

4'

40W/30W/20W

Up to 4200LM

8'

80W/60W/40W

Up to 8400LM



Regressed Lens

2'

20W/15W/10W





900lm/ft

Up to 1800LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 2700LM

4'

40W/30W/20W

Up to 3600LM

8'

80W/60W/40W

Up to 7200LM





Louver

2'

20W/15W/10W





650m/ft

Up to 1300LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 1950LM

4'

40W/30W/20W

Up to 2600LM

8'

80W/60W/40W

Up to 5200LM



Micro Reflector

2'

20W/15W/10W





900lm/ft

Up to 1800LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 2700LM

4'

40W/30W/20W

Up to 3600LM

8'

80W/60W/40W

Up to 7200LM



Remark: Lumens are subjuect to maximum wattage,4000K with white finish only.

Lumen output may vary ± 5% base on different CCT and wattage. Actual wattage may vary ± 5%.

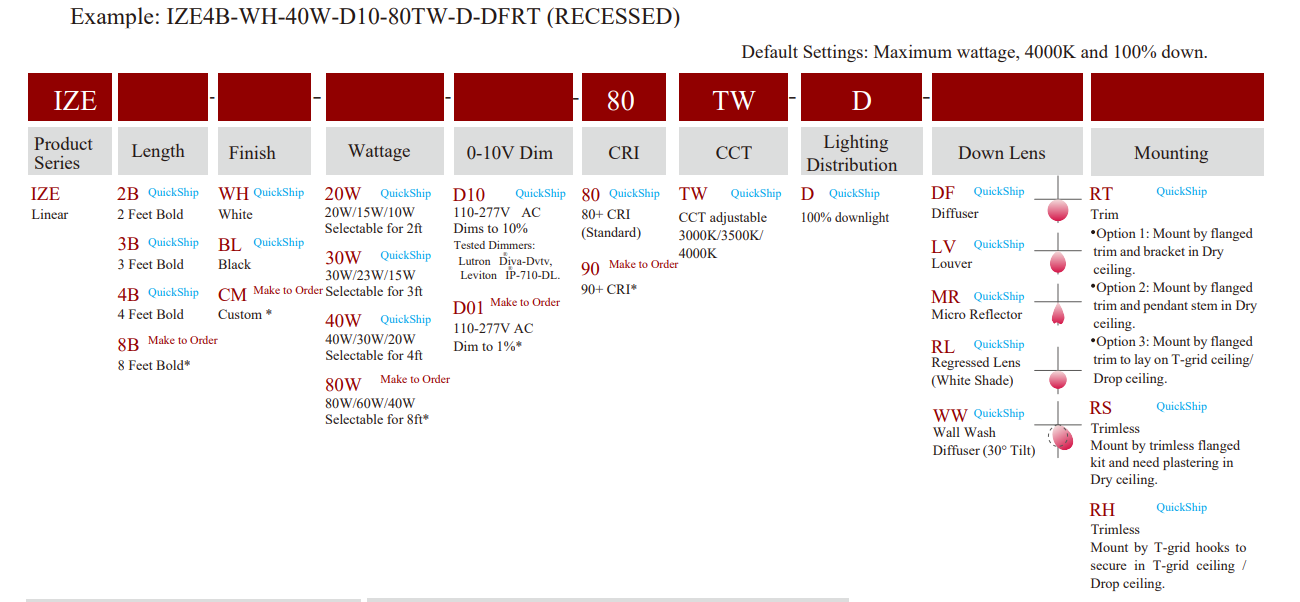

PRODUCT ORDERING GUIDE

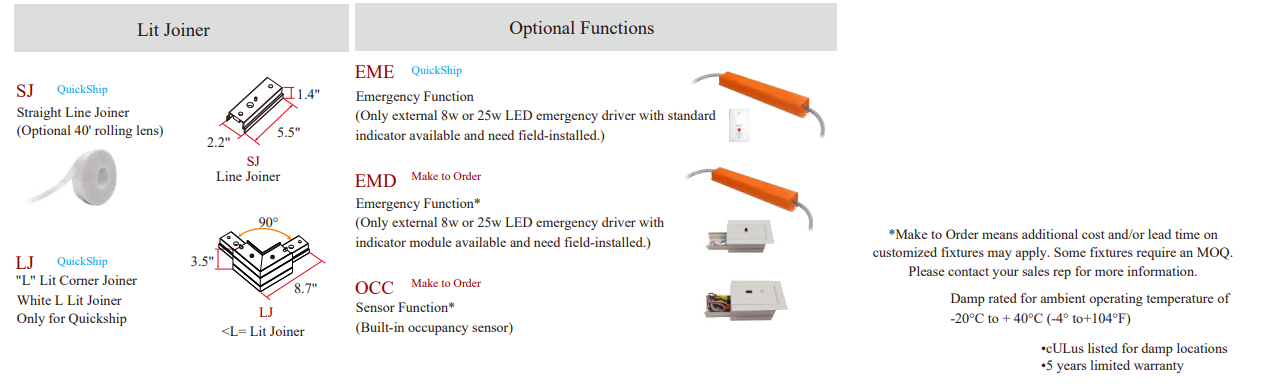

OPTIONAL ACCESSORY

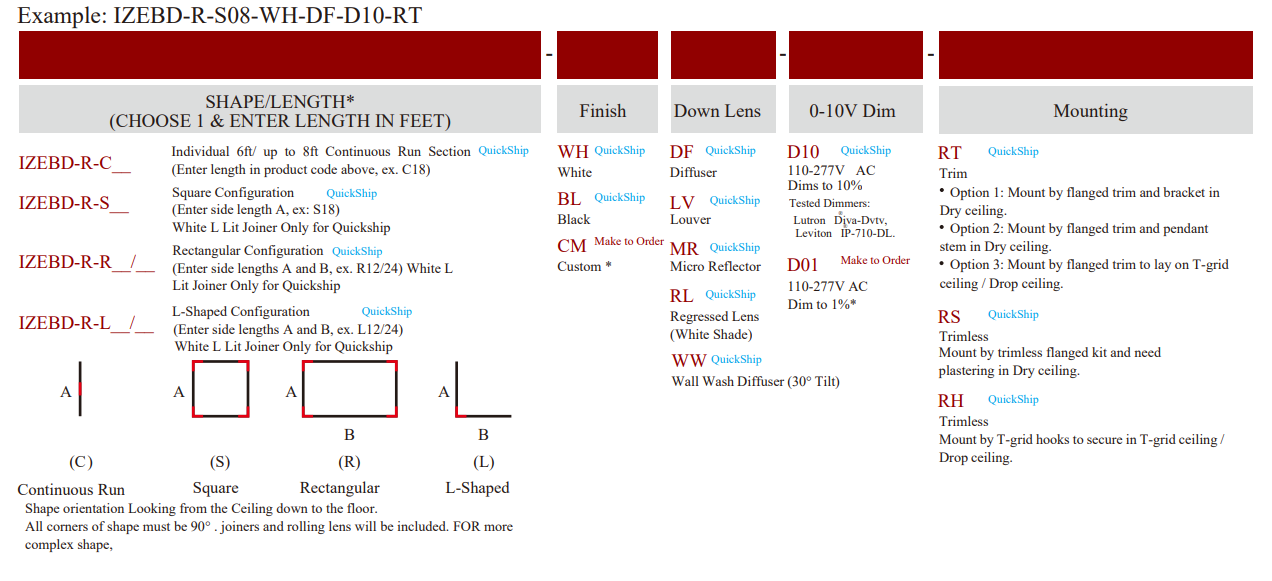

CUSTOM LINE OR SHAPE ORDERING GUIDE

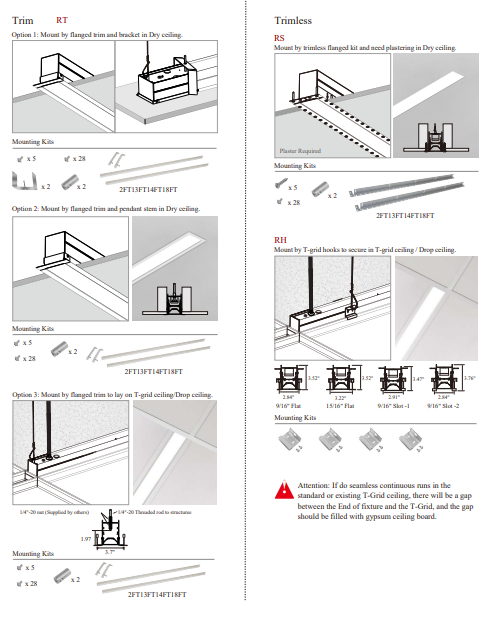

MOUNTING

MOUNTING LOCATION

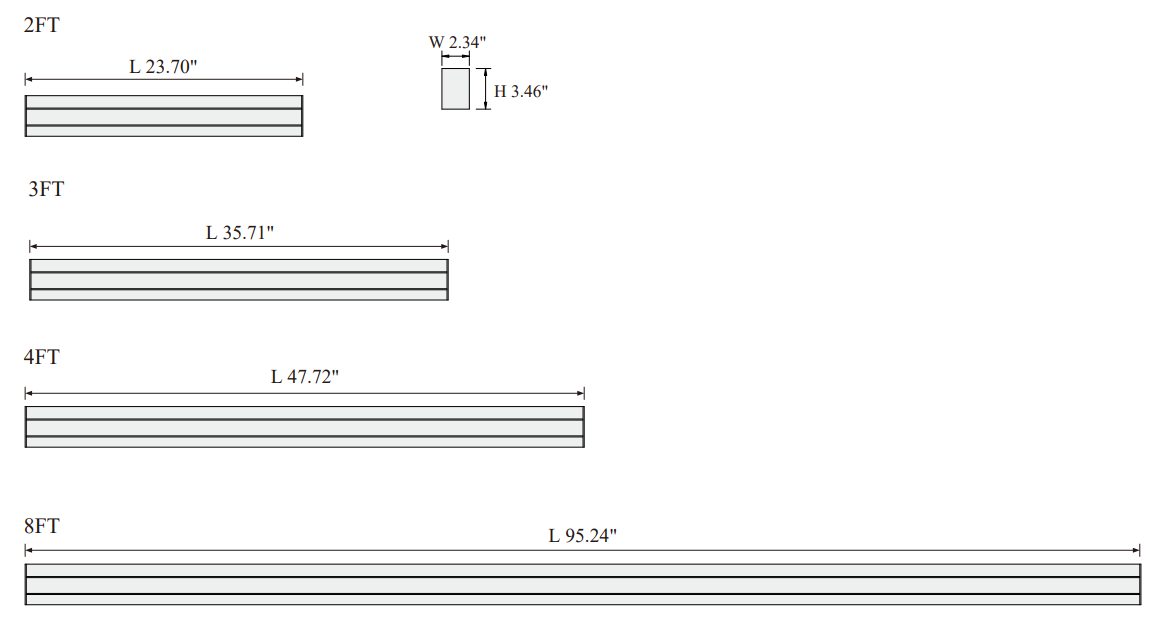

DIMENSIONS

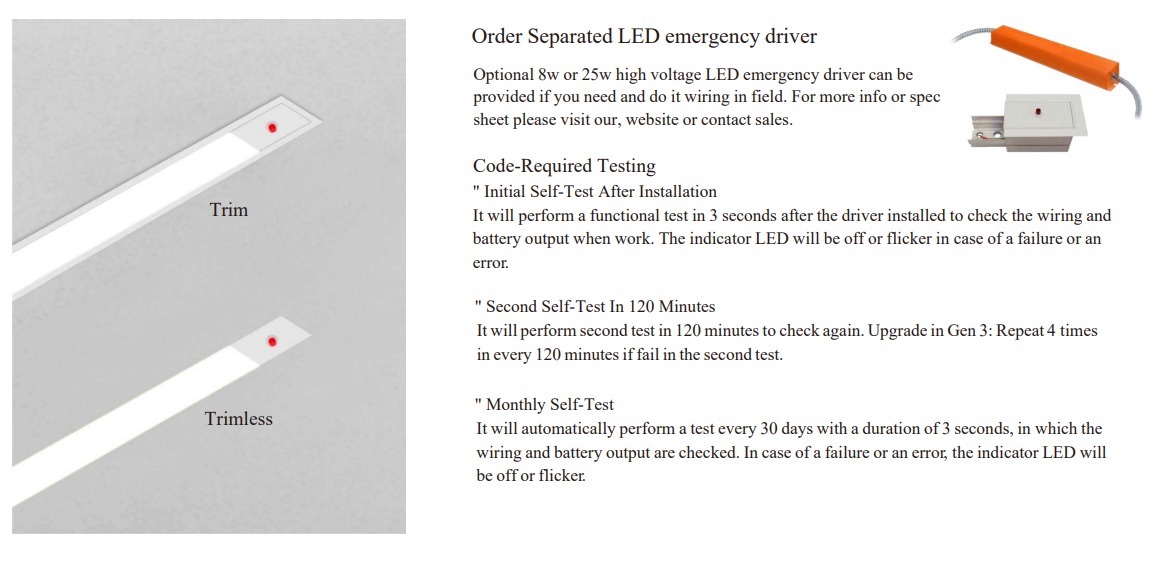

Emergency Option

IUS Lighting offers UL& CEC Listed LED emergency drivers. When AC power fails it, immediately switches to the emergency mode operating for lighting minimum 90 minutes. When AC power is restored it, automatically returns to the charging mode which meets critical life-safety lighting requirements.

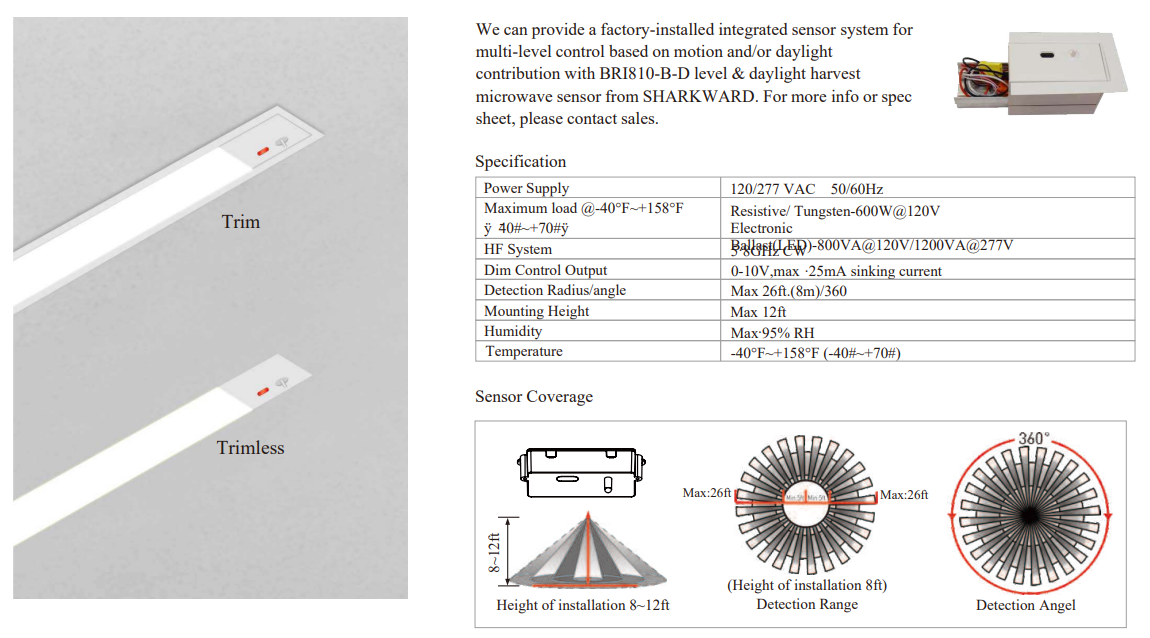

Occupancy Sensor*

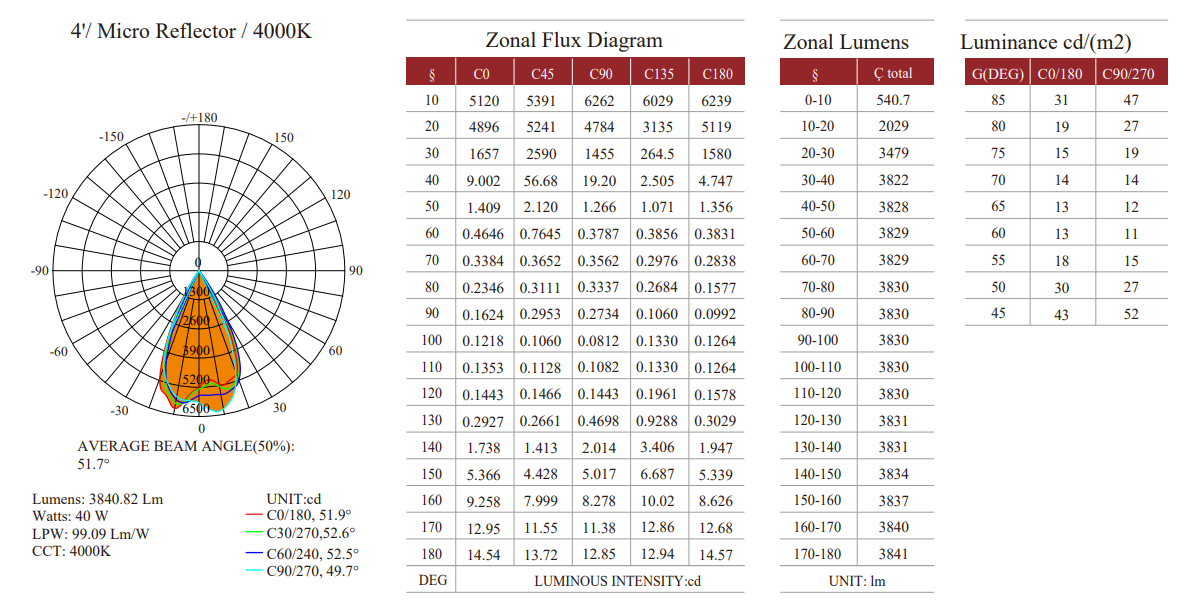

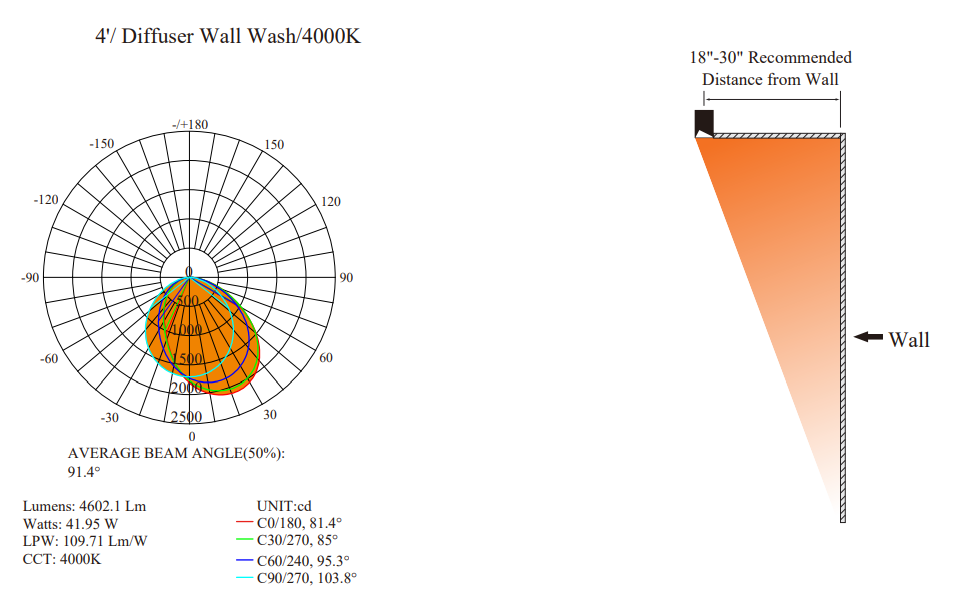

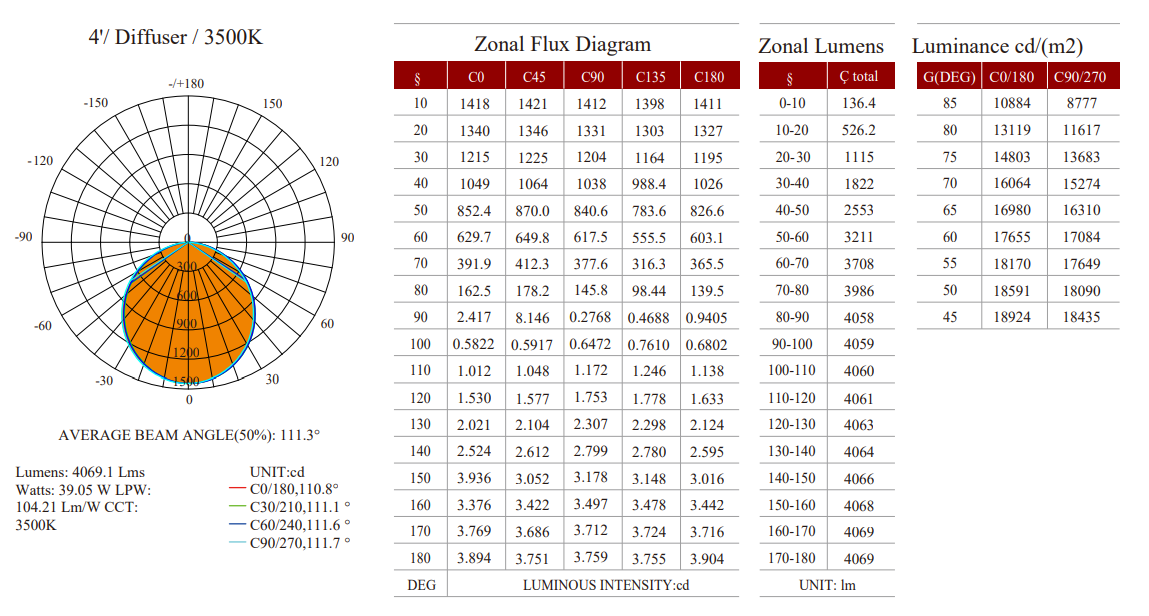

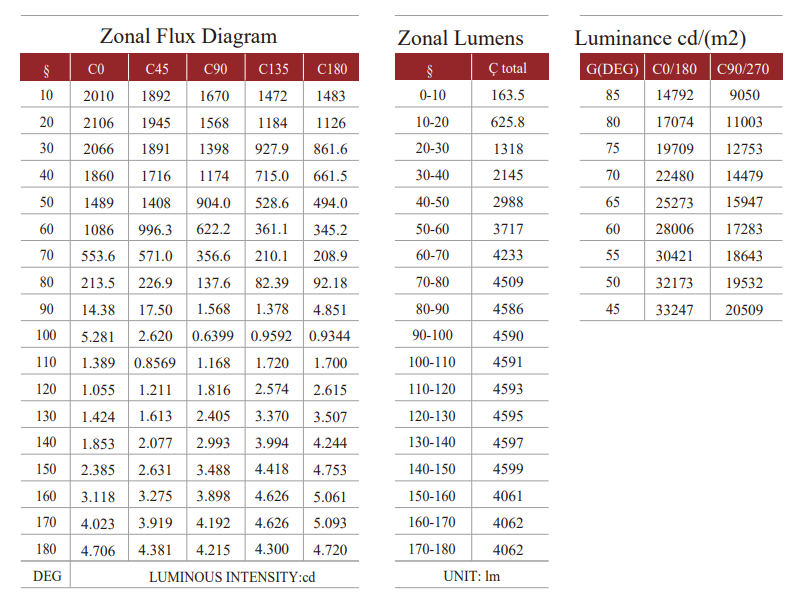

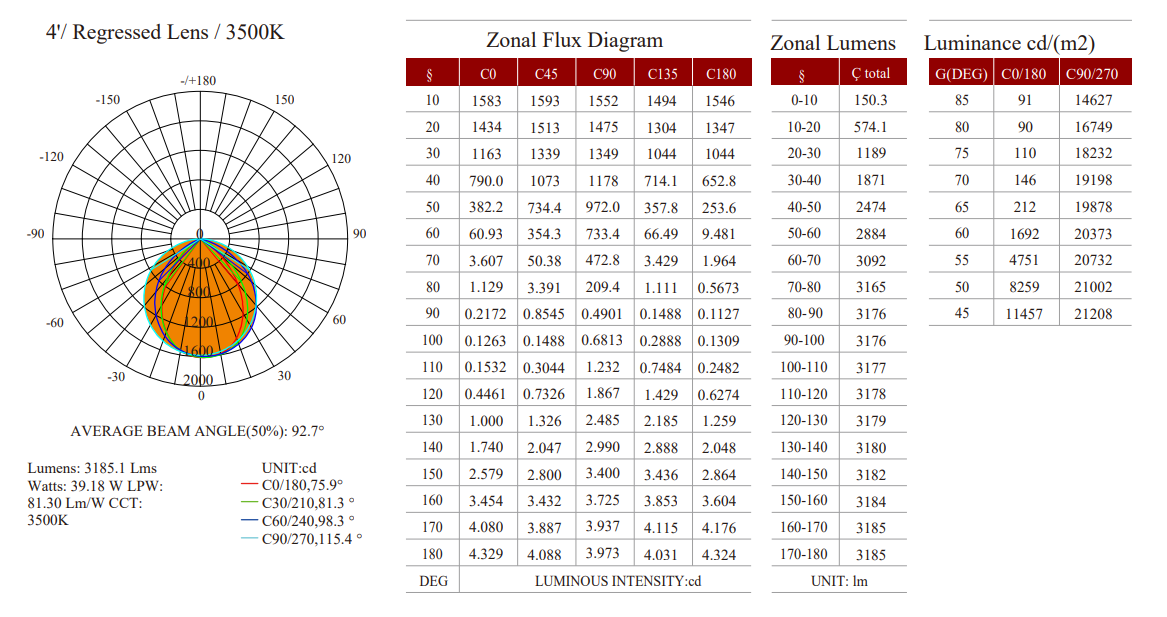

DISTRIBUTION DIAGRAM

2.3” Recessed Linear
