2’x 2’; 2’x 4’ High Lumen LED Troffers
Description:
2‘ x 2’ | 2’ x 4’
LED Troffer light
Wattage Selectable
CCT Selectable
130lm/W
0–10V Dimming
With Sensor Base
.PNG)
Construction
- Constructed of one-piece ribbed unitized housing and corners that interlock, preventing damage to luminaire. All sides and corners are turned in and hemmed, removing sharp edges for safe handling and installation
Electrical
- Luminaire is built with the highest quality driver that is Univ ersal Voltage(120V-277V), uses long lasting, highly-efficient LED packages.
DRIVER
- Driver is fixed on the back of the panel to prevent mis-handling during shipment.
OPTICAL SYSTEM
- Designed to reduce glare and improve light distribution through precision formed
DIMMING
- Continuous dimming (0-10V) comes standard.
ENERGY SAVINGS
LISTING
- ETL, DLC, FCC, RoHS
- ENERGY SAVINGS
WARRANTY
- 5 Years Limited Warranty, Rated for 50,000 hours (Refer to your warranty documentation for more information.)
Specs at a Glance
| Specs at a Glance | * Nominal Wattage (Switchable) | ||
|
Configuration |
IJ-T2-S40-3565[Blank,-S] |
IJ-T4-S50-3565[Blank,-S] |
IJ-T4-S72-3565[Blank,-S] |
|
CCT (K) |
3500K/4000K/5000K/ 5700K/6500K (Selectable) |
||
|
Wattage (W) |
15/20/25/30/40W |
24/30/35/40/50W |
30/40/50/60/72W |
|
Lumens (lm) |
1950-5000lm |
3250-6500lm |
3900-9000lm |
|
Efficacy (LPW) |
125-130lm/W |
||
|
CRI |
≥80 |
||
|
Input Voltage |
120-277V AC |
||
|
THD |
<=20% |
||
|
Certifications |
ETL DLC 5.1 Premium |
||
|
Dimming |
0-10V DC |
||
|
Sensor Base |
YES |
||
|
Lifetime |
50,000 hours |
||

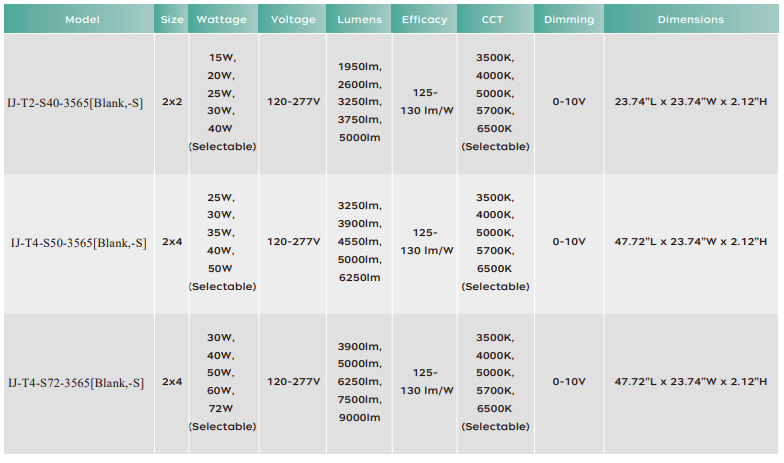

Ordering information
.PNG)

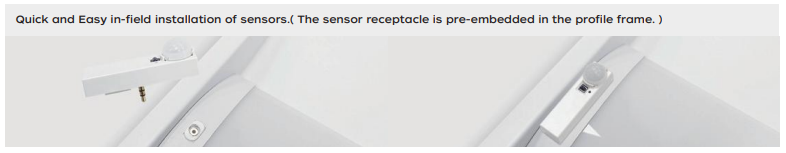

Multiple Sensor Solutions
.PNG)
Sensor
|
Model Number |
Sensor Type |
Connector |
Controller |
|
HD08VR-M-1B |
Microwave |
Audio Jack |
Remote Control HD06R |
|
HD08VR-MB-1B |
Microwave |
HAISEN BLUE APP |
|
|
HD08VR-PB-1B |
PIR |
Remote Control HD06R |
|
|
HD08VR-PB-1B |
PIR |
HAISEN BLUE APP |

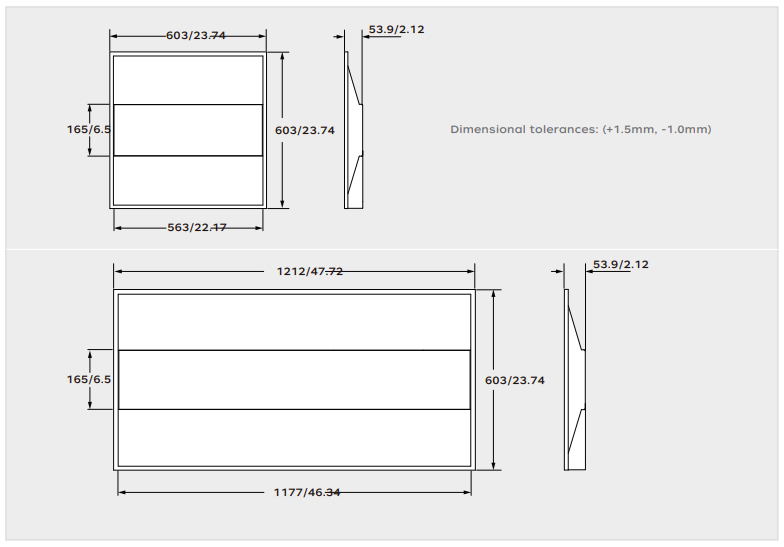

PHYSICAL SPECIFICATIONS
.PNG)

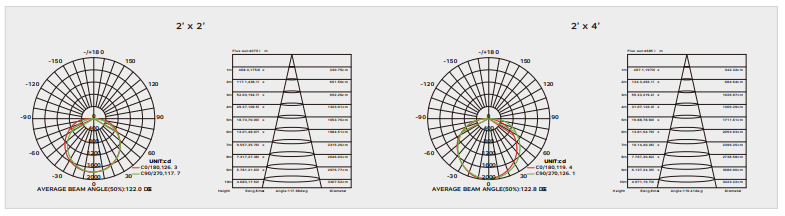

PHOTOMETRIC DATA
.PNG)
