2x4 3CCT & Wattage Adjustable Backlit Panel Fixture IMBLPL24
Description:
The IMBLPL24-WS3CCT back-lit panel light provides an excellent solution for commercial and industrial applications by offering even edge-to-edge lighting. Color temperature can be switched to 3500K neutral white, 4000K cool white, and 5000K daylight. The input wattage can be adjustable to 3 different levels which helps you to save energy costs. With the ultra-thin design, they are perfect for applications with shallow drop ceilings.
The IMBLPL24-WS-3CCT is DLC and UL-certified. It is popular in offices, warehouses, public areas, and other commercial areas.
TECHNICAL SUMMARY
|
LUMENS |
WATTS |
EFFICACY |
CRI |
VOLTAGE |
BEAM º |
CCT |
PF |
LIFE |
OPERATING TEMP. |
|
3300 |
30W |
|
|
120 to |
|
3500K |
|
|
|
|
110 lm/W |
80 |
277Vac 60Hz |
110 |
4000K 5000K |
>0.9 |
50,000 hrs |
-4ºF ~ 104ºF |
||
|
4400 5500 |
40W 50W |

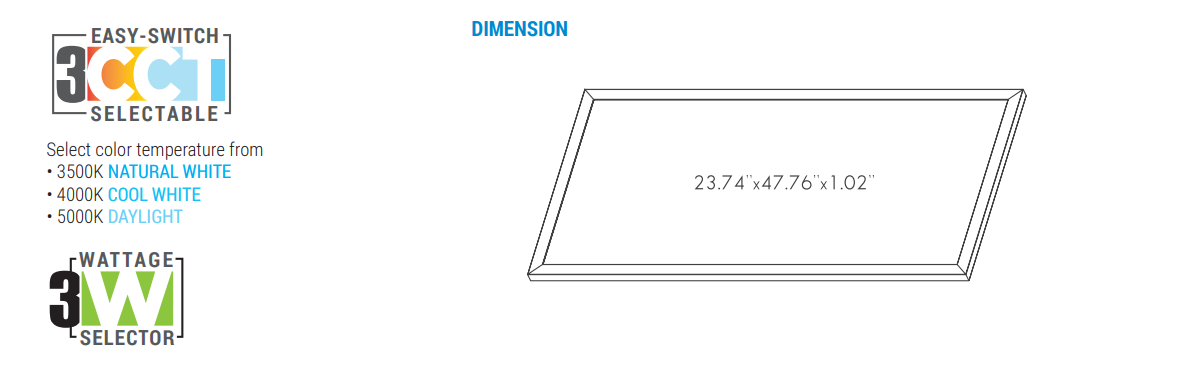

3 CCT
- Select color temperature from 3500K natural white, 4000K cool white, or 5000K daylight for your environment.
3 ADJUSTABLE INPUT WATTAGE
- Wattage can be switch to 30W, 40W and 50W to save energy cost.
CONSTRUCTION
- Unit includes aluminum frame, LED array, lens and mounting hooks.
- High quality PC lens.
- Efficiency LED array.
- Diffuse for uniform illumination.
DRIVER
- 120-277V universal input voltage.
- 0-10V smooth flicker free dimmable
MOUNTING
- Unit includes aluminum housing, LED array, lens and mounting hooks
- High quality PC lens.
- Efficiency LED array
- Diffuse for uniform illumination.
- CRI 80
LISTING
- DLC listed.
- UL Certified
- EMI/RFI emissions per FCC 47CFR Part 15B.
- RoHS compliant, contains no mercury or lead.
- Suitable for wet locations.
WARRANTY
- 5 years manufacturer warranty.
- Terms and conditions may apply.
*5 years limited LED luminaire warranty to the original purchaser that the luminaire shall be free from defects in materials and workmanship from date of shipment, when under properly installed at normal conditions of use. The warranty may not cover physical damage or abuse under certain conditions.

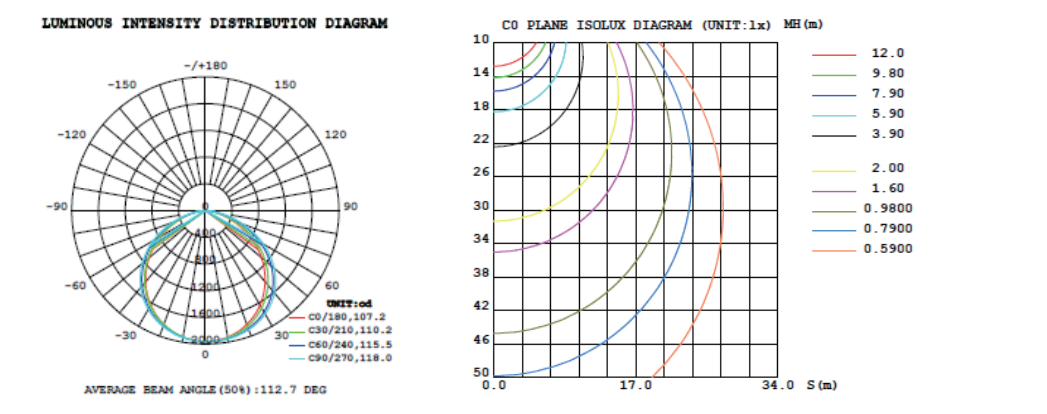

PHOTOMETRY
ACCESSORIES (SOLD SEPARATELY)
|
|
|
|
| MHV-8W-EM | MHV-25W-EM | MSK-5FT |
| Input Voltage 120-277V 8W Output Output Voltage 150-200Vdc |
Input Voltage 120-347V 25W Output Output Voltage ≤ 175Vdc |
5ft Durable steel cable Length adjustable Compatible with panel light on the market |
MOUNTING (SOLD SEPARATELY)
2x4 3CCT & Wattage Adjustable Backlit Panel Fixture IMBLPL24

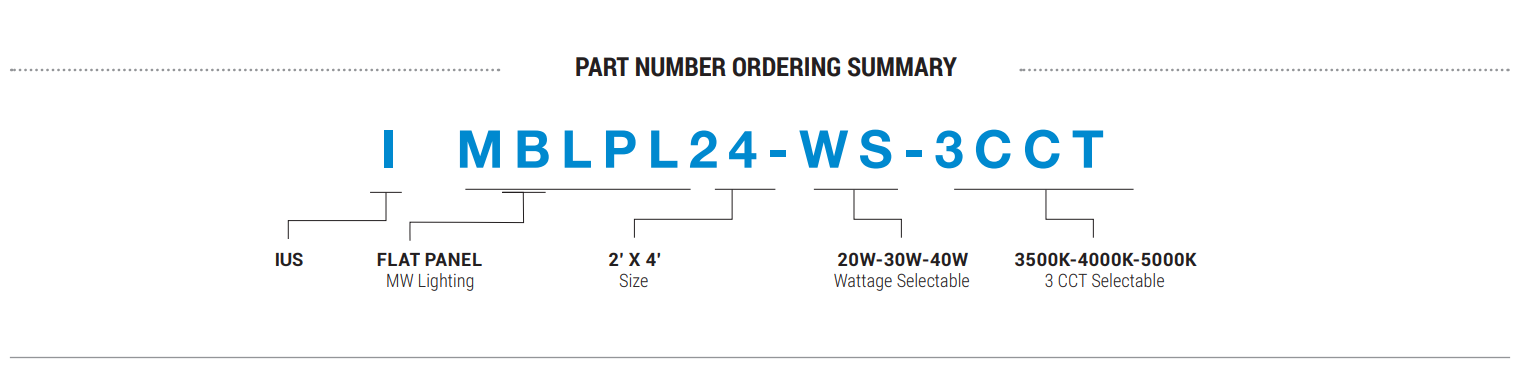

IMBLPL24-WS-3CCT
