3”; 4” & 6” Wall Sconces

Description:

 IMCL03 series, in one SKU, amazes with its versatility. It provides 3 color temps, 4 lumen levels, 3 beam angles and 3 light modes. Its sleek design fits places like luxury villas, clubs, museums, high-end hotels, and high-rise exteriors, corridors and lobbies, bringing sophistication and an elegant, peaceful space.

Contact Us

Construction

  • Rugged cast-aluminum housing with bronze polyester powder paint for outdoor applications.
  • Casting thermally conducts LED heat to optimize performance and long life.
  • The housing is completely sealed, providing excellent protection against moisture and environmental contaminants.

Optics

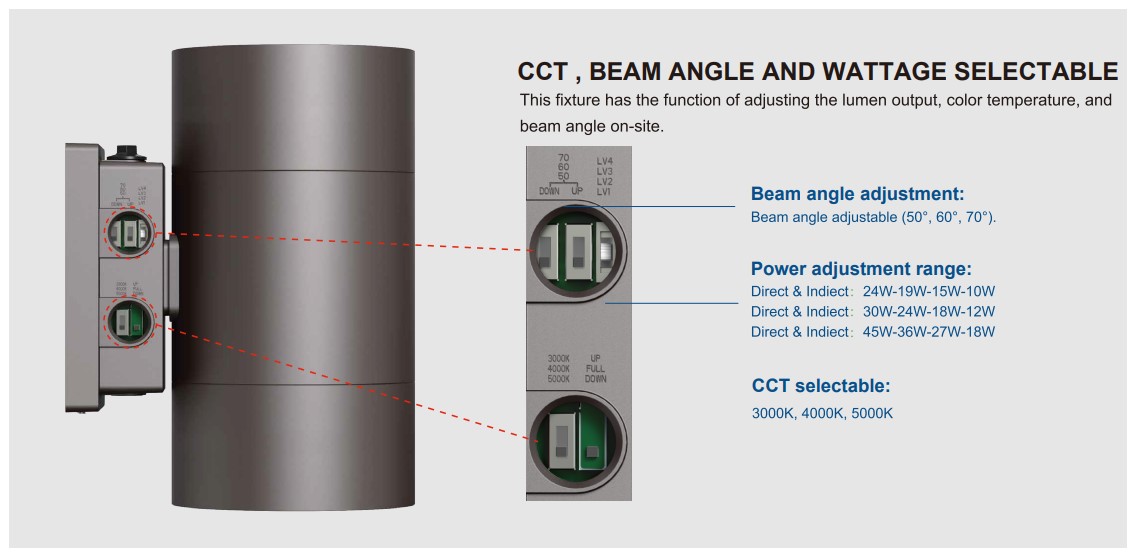

  • Light engines are available with adjustable CCT, and the CCT can be changed to 3000K/4000K/5000K (CR180).
  • Scalable Lumen Packages from 1,140 to 5,850 Lumens.
  • The professional prismatic design offers good light distribution control and guarantees uniformity.

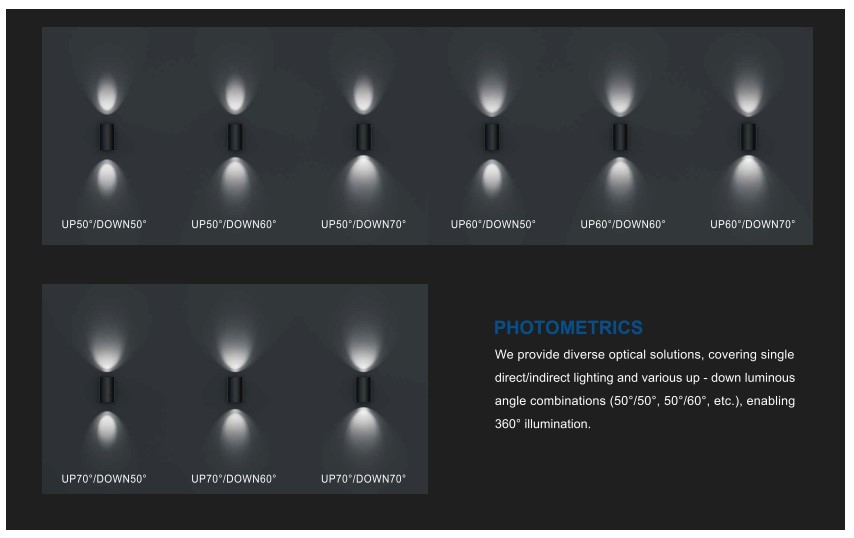

  • Optional for three beam angle adjustable (50°, 60°, 70°).

Electrical

  • Universal 120-277VAC input voltage.
  • Optional 0-10V dimming and dimming range from 10%-100%.
  • Four adjustable Wattage levels available for each model.
  • PF>90%, THD <20%.
  • Operating Temperature Range: -40°C to 50°C (-40°F - +122°F).

Lifespan

  • Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

Warranty

  • Five-year limited warranty.

Certifications

  • UL CUL wet location listed.

Note

  • Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(+/-5°C) specifications subject to change without notice.

ELECTRICAL DATA

Number Of Drivers

Driver Current(mA)

Nominal Power(W)

INPUT VOLTAGE(V)

CURRENT (Amps)







1







430

24

120

0.20

24

208

0.12

24

240

0.10

24

277

0.09







1







470

30

120

0.25

30

208

0.14

30

240

0.13

30

277

0.11







1







730

45

120

0.38

45

208

0.22

45

240

0.19

45

277

0.16

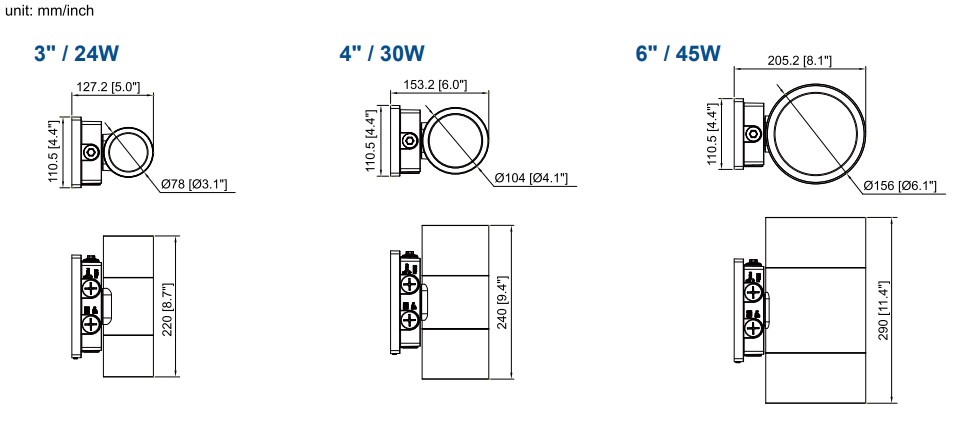

DIMENSION

PERFORMANCE DATA

lMCL03 @3" 24W (Full)



SETTING

SYSTEM WATTS

3000K (80CRI)

4000K (80CRI)

5000K (80CRI)

LUMENS

LPW

LUMENS

LPW

LUMENS

LPW

LV1

24W

2600 lm

108lm/W

2900 lm

121lm/W

2760 lm

115lm/W

LV2

19W

2080 lm

109lm/W

2350 lm

124lm/W

2230 lm

117lm/W

LV3

15W

1680 lm

112lm/W

1900 lm

126lm/W

1800 lm

119lm/W

LV4

10W

1140 lm

114lm/W

1280 lm

128lm/W

1220 lm

122lm/W



lMCL03 @4" 30W (Full)



SETTING

SYSTEM WATTS

3000K (80CRI)

4000K (80CRI)

5000K (80CRI)

LUMENS

LPW

LUMENS

LPW

LUMENS

LPW

LV1

30W

3150 lm

105lm/W

3660 lm

122lm/W

3400 lm

113lm/W

LV2

24W

2570 lm

107lm/W

2980 lm

124lm/W

2800 lm

116lm/W

LV3

18W

1980 lm

110lm/W

2270 lm

126lm/W

2100 lm

118lm/W

LV4

12W

1340 lm

112lm/W

1550 lm

129lm/W

1440 lm

120lm/W



lMCL03 @6" 45W (Full)



SETTING

SYSTEM WATTS

3000K (80CRI)

4000K (80CRI)

5000K (80CRI)

LUMENS

LPW

LUMENS

LPW

LUMENS

LPW

LV1

45W

4900 lm

109lm/W

5850 lm

130lm/W

5400 lm

120lm/W

LV2

36W

4030 lm

112lm/W

4790 lm

133lm/W

4430 lm

123lm/W

LV3

27W

3080 lm

114lm/W

3670 lm

136lm/W

3380 lm

125lm/W

LV4

18W

2100 lm

117lm/W

2480 lm

138lm/W

2300 lm

127lm/W
