3.8” Linear Surface

Description:

IUS 3.8" surface linear lighting is an integrated lighting solution that compliments the ceiling and entire space while providing comfortable general illumination. It is available in 2ft, 3ft, 4ft and 8ft, simply provide wide, powerful lighting to any atmosphere with seamless continuous runs or any pattern with Illuminated corner. Featured with THREE mounting options in ONE housing, The 3.8" offers numerous linear lighting options that complement our award- winning architectural lighting platform, while providing a consistent aesthetic.

Contact Us

Feature

  • Three mounting options in ONE housing - 2', 3', 4' and 8' length options
  • Seamless continuous runs or custom patterns with Illuminated corner CCT &
  • wattage adjustable, up to 1100lm/ft
  • Diffuser and regressed lens options
  • Easy maintenance

PERFORMANCE



Lens



Length

Wattage Selectable

100%DOWN



CCT Adjustable

Efficacy

Lumen Output





Diffuser

2'

20W/15W/10W





1100m/ft

Up to 2200LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 3300LM

4'

40W/30W/20W

Up to 4400LM

8'

80W/60W/40W

Up to 8800LM



Regressed Lens

2'

20W/15W/10W





900lm/ft

Up to 1800LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 2700LM

4'

40W/30W/20W

Up to 3600LM

8'

80W/60W/40W

Up to 7200LM

Remark: Lumens are subjuect to maximum wattage,4000K with white finish only.

Lumen output may vary ± 5% base on different CCT and wattage. Actual wattage may vary ± 5%.

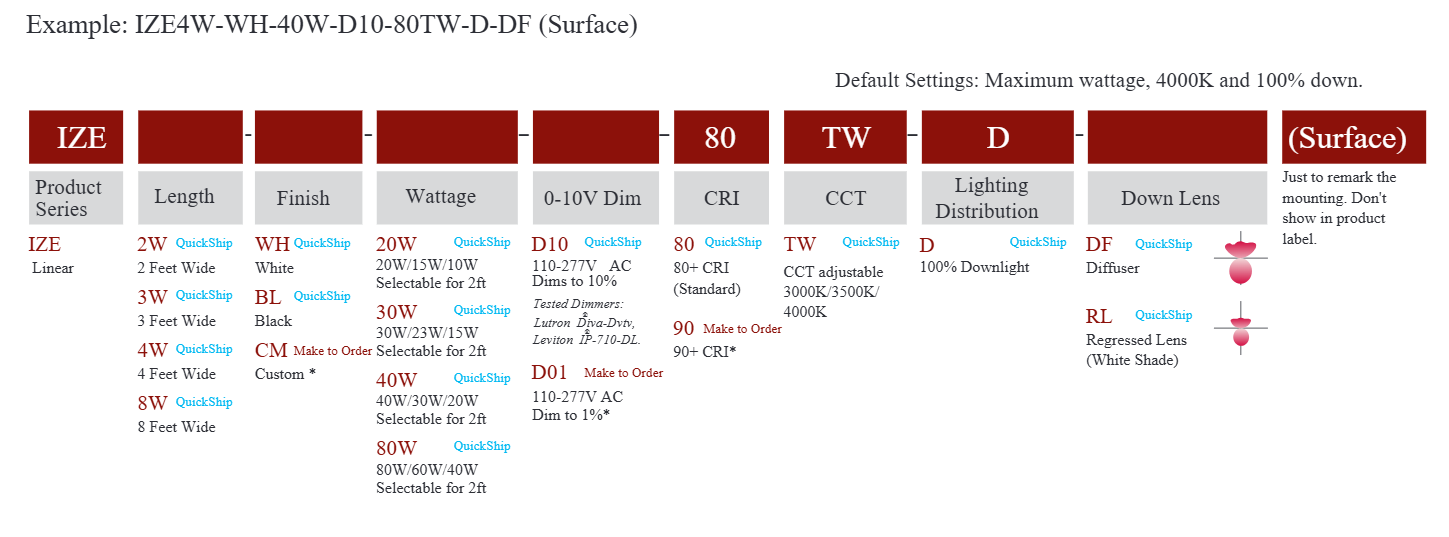

PRODUCT ORDERING GUIDE

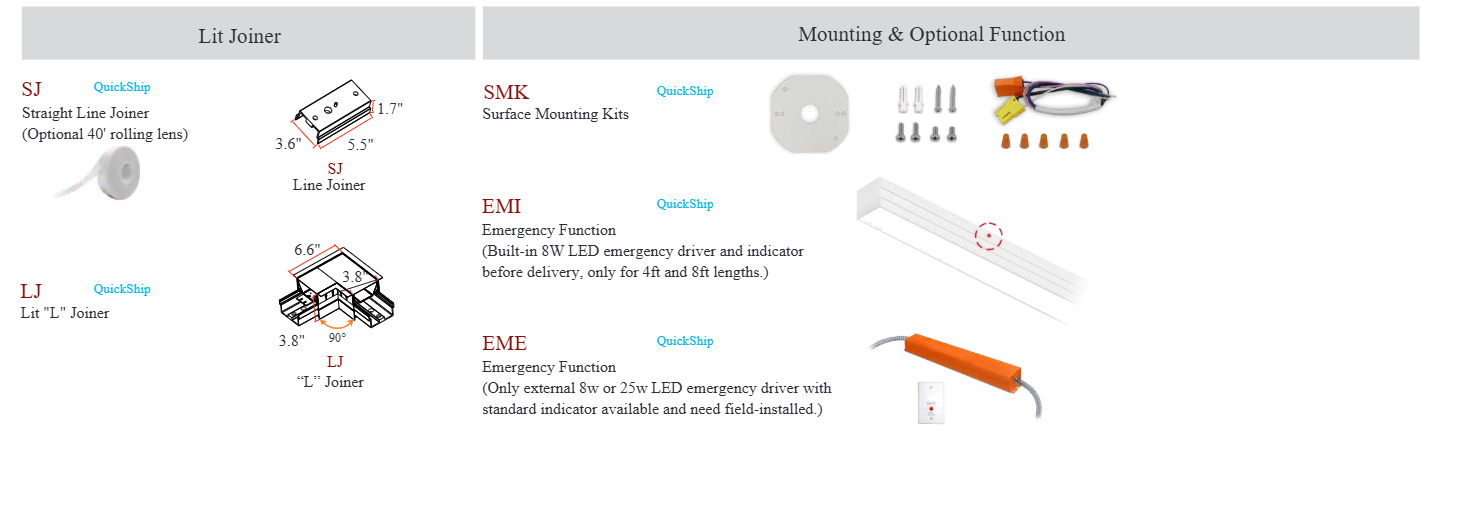

OPTIONAL ACCESSORY

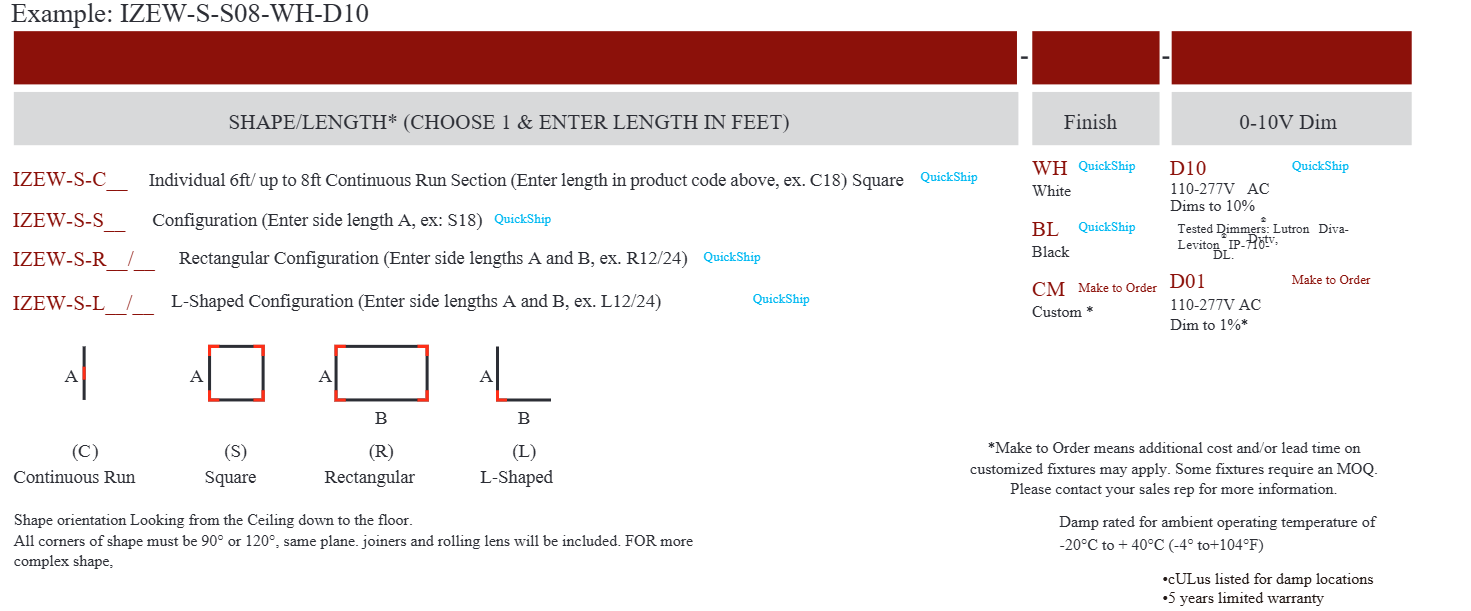

CUSTOM LINE OR SHAPE ORDERING GUIDE

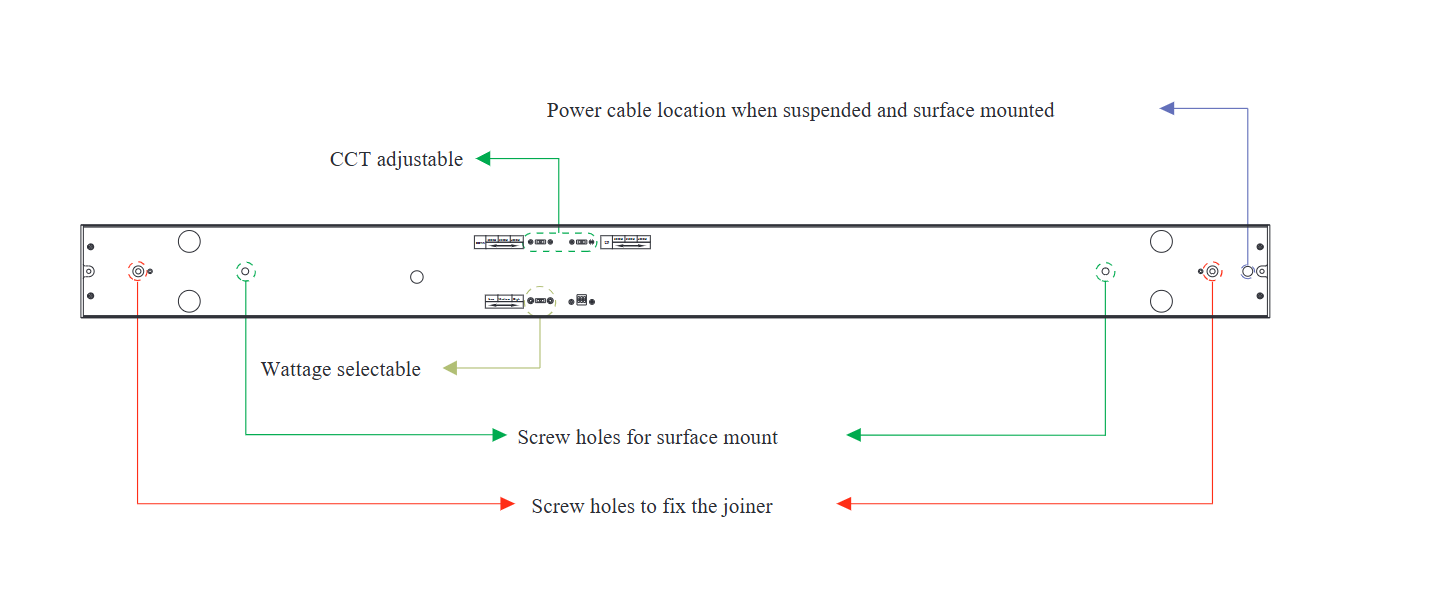

MOUNTING LOCATION

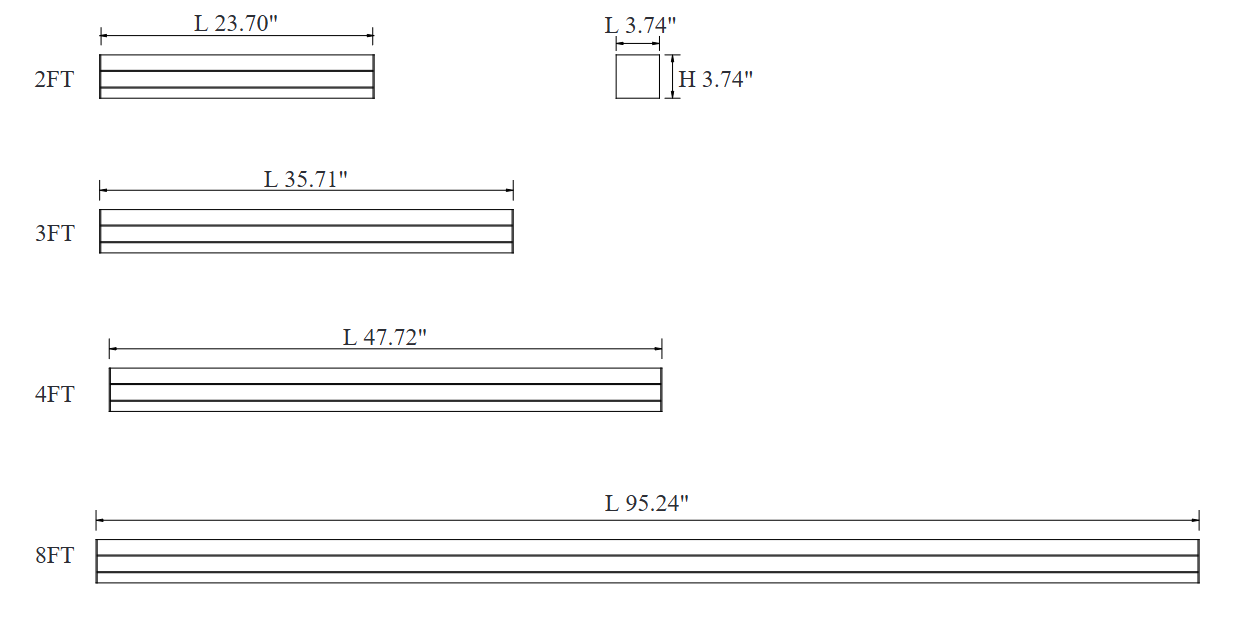

DIMENSIONS

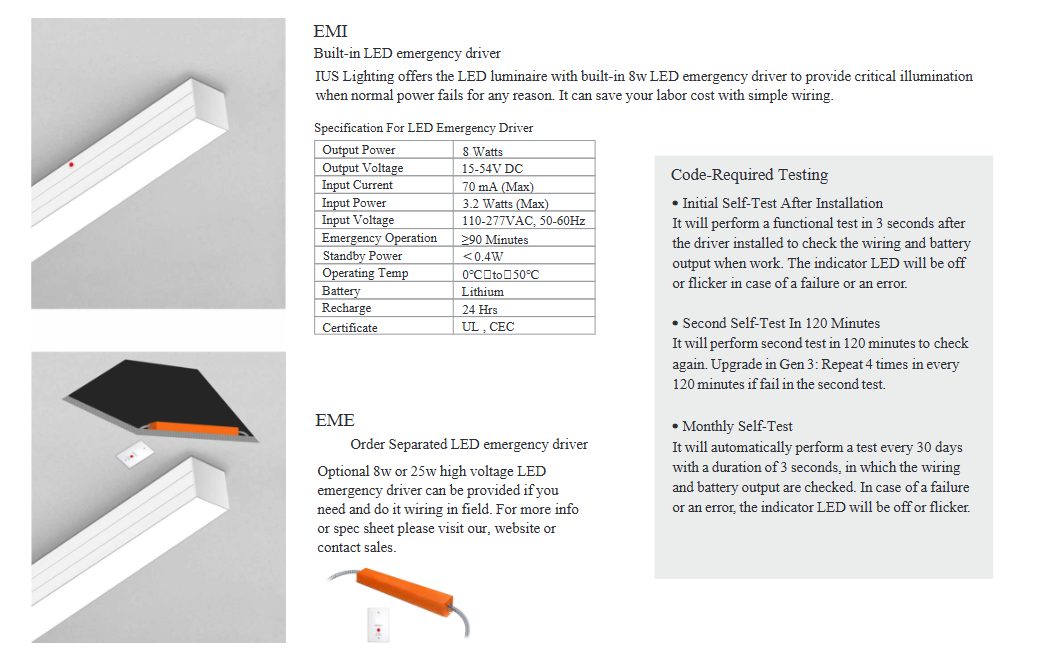

Emergency Option

IUS Lighting offers UL& CEC Listed LED emergency drivers. They could be factory installed or field installed. When AC power fails it, immediately switches to the emergency mode operating for lighting minimum 90 minutes. When AC power is restored it, automatically returns to the charging mode which meets critical life-safety lighting requirements.

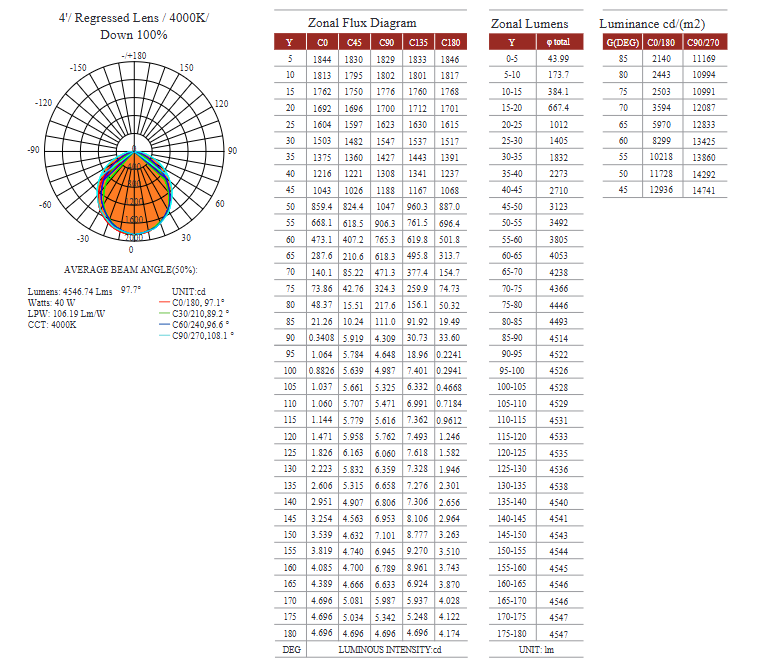

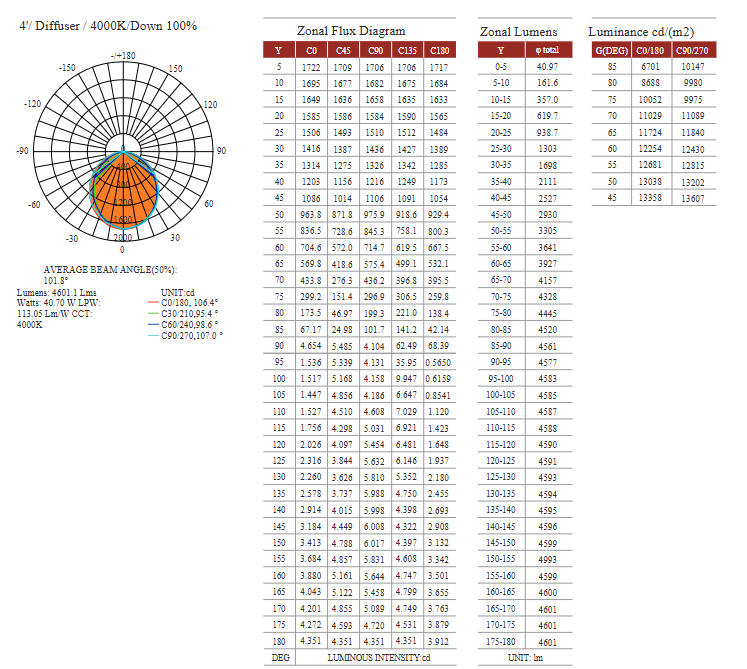

DISTRIBUTION DIAGRAM

3.8” Linear Surface

Coming Soon
