3.8” Linear Wall mount

Description:

IUS series 3.8" is available in a wall mount design, with a sleek low- profile sensibility optimal for architectural lighting applications, ideal for corridors, stairwells, and more. These linear luminaries are available in 2ft, 3ft, 4ft and 8ft, simply provide wide, powerful lighting to any atmosphere with seamless continuous runs. It can provide smooth uplight and downlight, allowing for wider spacing between fixtures and better ceiling light uniformity. With wattage and CCT adjustable function, It is also has the flexibility to illuminate many types of spaces.

Contact Us

Feature

  • 2', 3', 4' and 8' length options
  • Seamless continuous runs and custom pattern 7
  • Direct/Indirect lighting distributing options CCT &
  • wattage adjustable, up to 1200lm/ft Diffuser and
  • regressed lens options
  • Easy maintenance

PERFORMANCE



Lens



Length

Wattage Selectable

50% UP/50%DOWN

100%DOWN



CCT Adjustable

Efficacy

Lumen Output

Efficacy

Lumen Output





Diffuser

2'

20W/15W/10W





1200lm/ft

Up to 2400LM





1100m/ft

Up to 2200LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 3600LM

Up to 3300LM

4'

40W/30W/20W

Up to 4800LM

Up to 4400LM

8'

80W/60W/40W

Up to 9600LM

Up to 8800LM



Regressed Lens

2'

20W/15W/10W





1000lm/ft

Up to 2000LM





900lm/ft

Up to 1800LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 3000LM

Up to 2700LM

4'

40W/30W/20W

Up to 4000LM

Up to 3600LM

8'

80W/60W/40W

Up to 8000LM

Up to 7200LM

Remark: Lumens are subjuect to maximum wattage,4000K with white finish only.

Lumen output may vary ± 5% base on different CCT and wattage. Actual wattage may vary ± 5%.

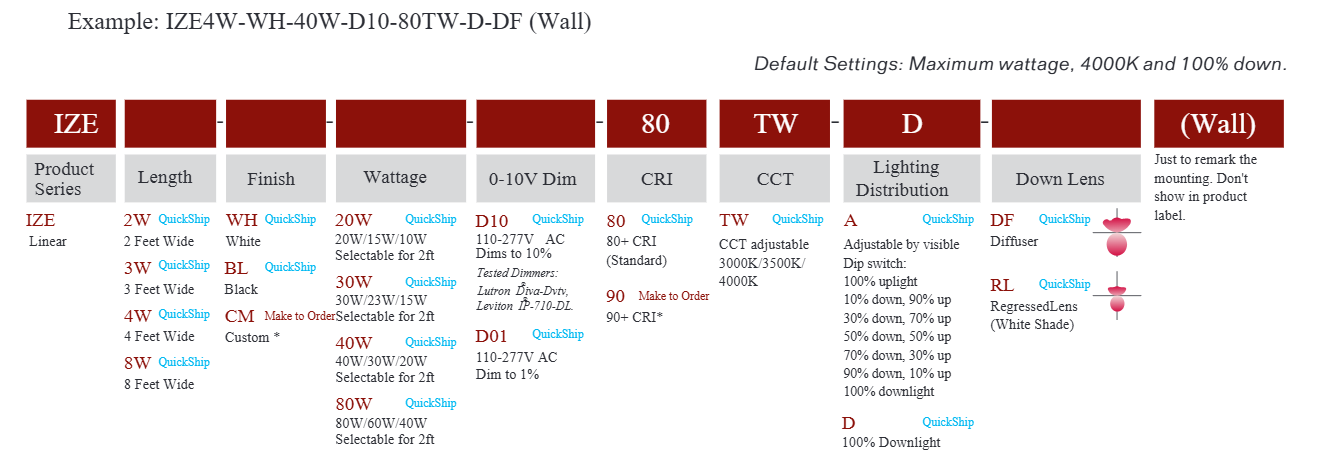

PRODUCT ORDERING GUIDE

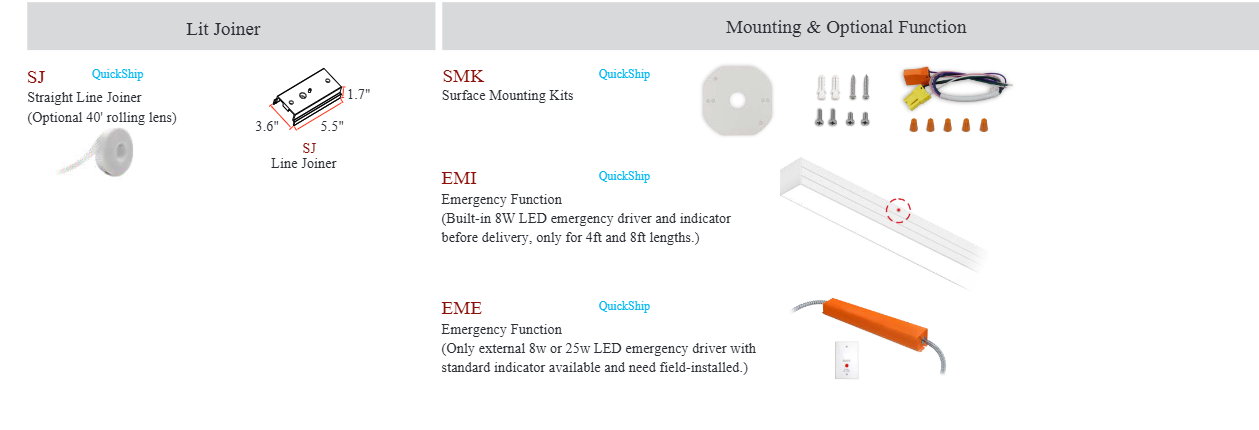

OPTIONAL ACCESSORY

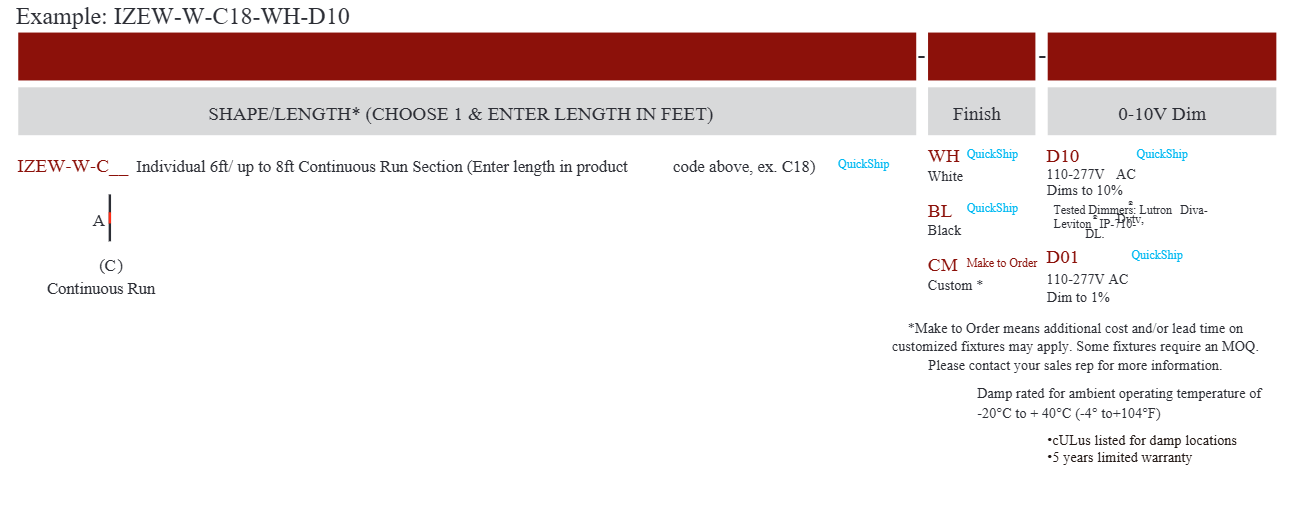

CUSTOM LINE OR SHAPE ORDERING GUIDE

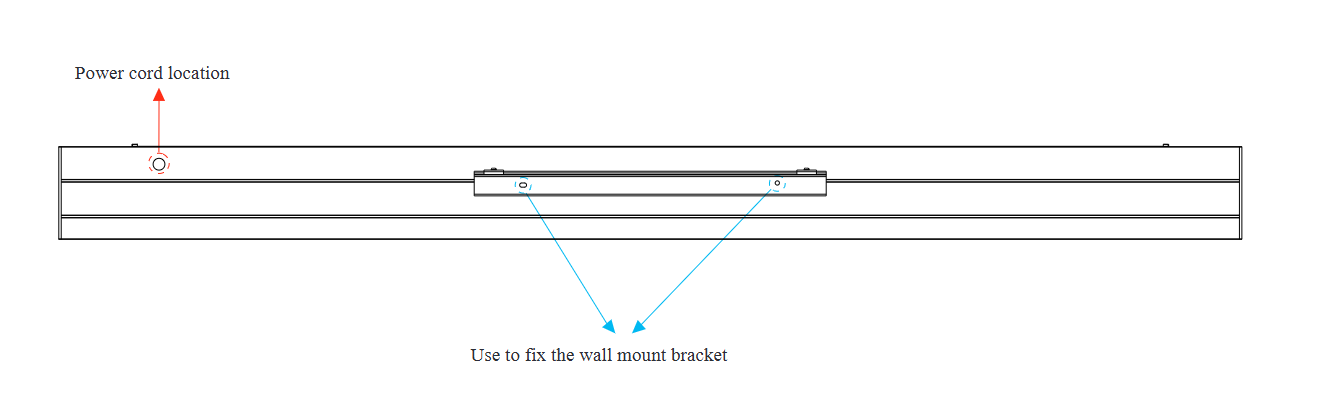

MOUNTING LOCATION

DIMENSIONS

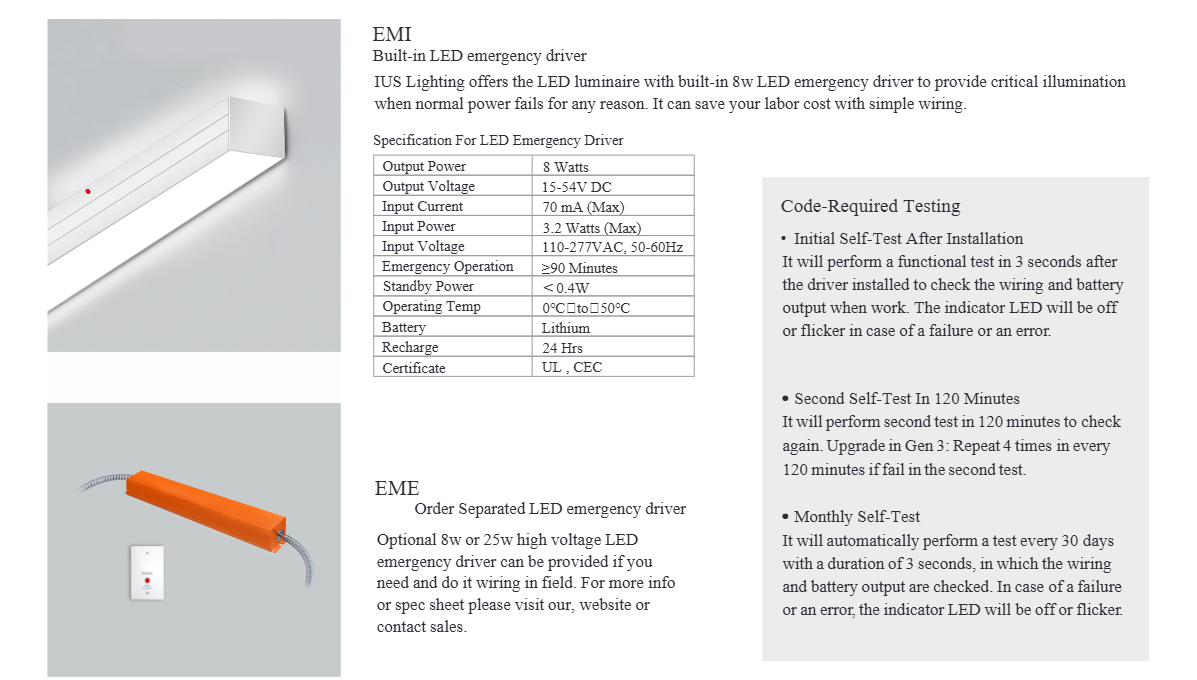

Emergency Option

IUS Lighting offers UL& CEC Listed LED emergency drivers. They could be factory installed or field installed. When AC power fails it, immediately switches to the emergency mode operating for lighting minimum 90 minutes. When AC power is restored it, automatically returns to the charging mode which meets critical life-safety lighting requirements.

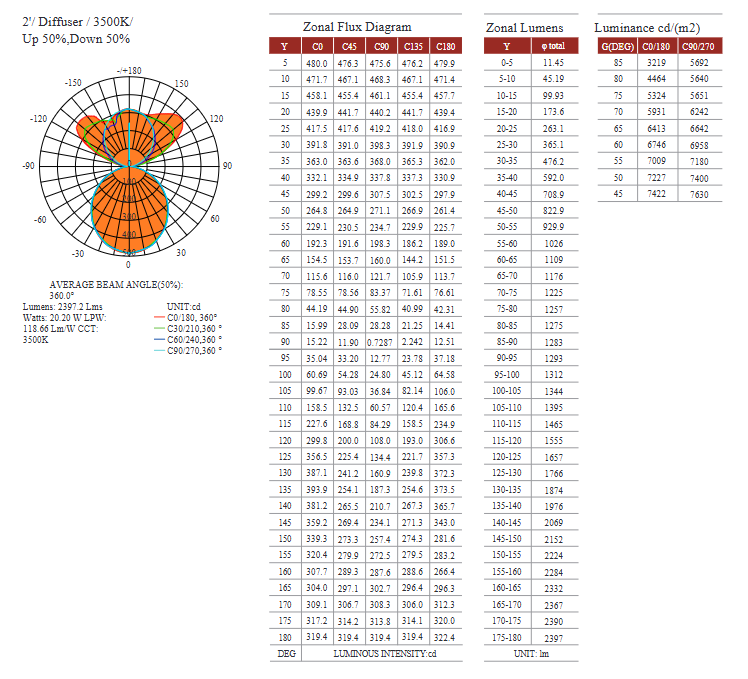

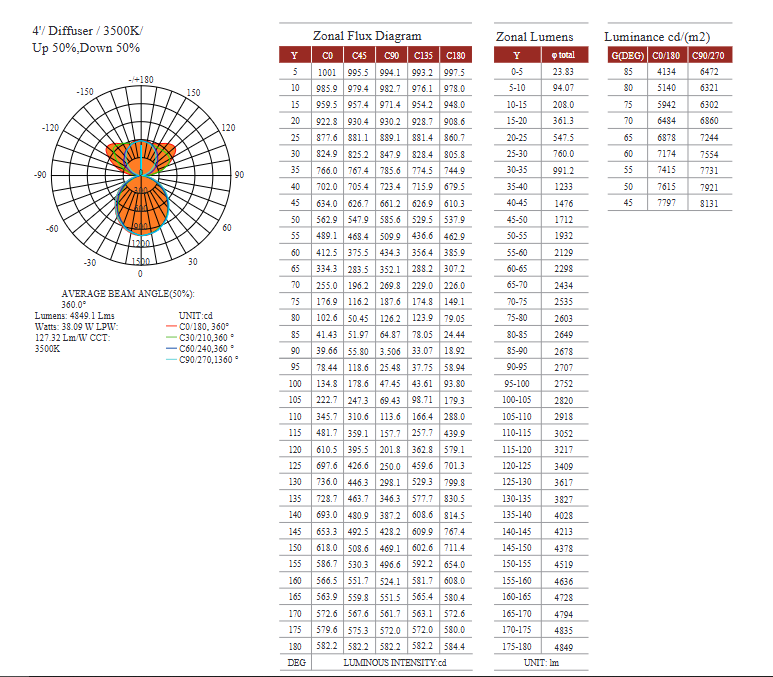

DISTRIBUTION DIAGRAM

3.8” Linear Wall mount

Coming Soon
