4' & 8' LED STRIP CCT IMLF03
Description:
Illuminating US IMLF03 series is one type of strip light that is lightweight and versatile. The meticulously designed optical system can effectively reduce glare and provide comfortable lighting effect. The installation is easy and convenient, and supports Continuous Row Mount. IMLF03 includes a total of seven power level adjustment options ranging from 20 to 68W; CCT supports three adjustable color temperatures of 3500K, 4000K and 5000K. Both options are operated with simple switches, which will greatly reduce the customer's SKU and be budget-friendly.
Contact UsConstruction
- Standard with 4ft, 8ft and can be extended by row connector and occlusion block.
- Fixture may be surface or suspension mounted with appropriate mounting options (see accessories).
- Easy to install included for continuous row mounting.
Optics
- Light engines are available in color selectable version, the CCT can be changed to three CCTs (3500K, 4000K, 5000K).
- Scalable Lumen Packages from 2,850 to 10,600 Lumens with efficacy up to 163lm/W.
- Features a low-glare diffuser lens is designed to shape the light uniformity and comfortable light.
Electrical
- Universal 120-277 VAC input voltage.

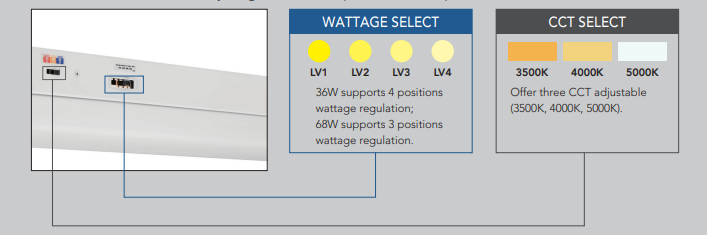

- Wattage adjustable: 68W, 56W, 44W; 36W,30W, 24W, 20W.
- 0-10V dimming standard for a dimming range of 100% to 10%.
- PF >90%, THD <20%.
- Operating Temperature Range: -25°C to 40°C (-13˚F - + 104˚F).
Note: Operating with emergency battery temperature range: 5°C to 40°C (+41˚F - + 104˚F).
Certifications
- UL cUL damp location listed.
- DesignLights ConsortiumTM Qualified
Installation
- V-Hook (default)
- Surface (default)
- Aircraft cable (sold separately)
- Chain mount (sold separately)
Lifespan
- Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
- Five-year limited warranty.
Applications
- Suitable for commercial, warehouses, parking lot, corridor, retail spaces.
Note
- Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(±5°C ) specifications subject to change without notice.
PERFORMANCE DATA
|
IMLF03 36W 4FT |
|||||||
|
SETTING |
SYSTEM WATTS |
3500K |
4000K |
5000K |
|||
|
LUMENS (80CRI) |
LPW (80CRI) |
LUMENS (80CRI) |
LPW (80CRI) |
LUMENS (80CRI) |
LPW (80CRI) |
||
|
LV1 |
36W |
4900lm |
136 lm/W |
5200lm |
144 lm/W |
5000lm |
139 lm/W |
|
LV2 |
30W |
4150lm |
138 lm/W |
4400lm |
147 lm/W |
4250lm |
142 lm/W |
|
LV3 |
24W |
3350lm |
140 lm/W |
3600lm |
150 lm/W |
3470lm |
145 lm/W |
|
LV4 |
20W |
2850lm |
143 lm/W |
3100lm |
155 lm/W |
2950lm |
148 lm/W |
|
IMLF03 68W 8FT |
|||||||
|
SETTING |
SYSTEM WATTS |
3500K |
4000K |
5000K |
|||
|
LUMENS (80CRI) |
LPW (80CRI) |
LUMENS (80CRI) |
LPW (80CRI) |
LUMENS (80CRI) |
LPW (80CRI) |
||
|
LV1 |
68W |
9350lm |
138 lm/W |
10600lm |
156 lm/W |
10100lm |
149 lm/W |
|
LV2 |
58W |
8150lm |
141 lm/W |
9200lm |
159 lm/W |
8800lm |
152 lm/W |
|
LV3 |
44W |
6300lm |
143 lm/W |
7150lm |
163 lm/W |
6800lm |
155 lm/W |
ACCESSORIES (Optional)
|
V-Hooks (Default) |
Mounting Plate (Default) |
Steel Wire Rope (Sold separately) |
|
PIR Sensor NO.: BRI819 Description: 120-277VAC input (Sold separately) |
Emergency Battery 8W 900lm 90min (Sold separately) |
Microwave Sensor NO.: HD027VCR Description: 12VDC input (Sold separately) |
|
Joiner Bracket Description: Aligner locks in place for easy continuous row mounting. (Sold separately) |
Chain (Sold separately) |
Wire Guard (Sold separately) |

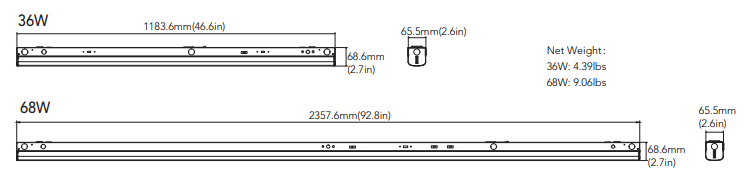

DIMENSION
|
ORDERING GUIDE Example: IMLF0336W27VDDKYYYY |
||||||||
|
IUS |
Fixture Type |
Power |
Voltage |
CCT |
Sensor (Option) |
Backup Battery (Option) |
Lens |
Internal Code |
|
I |
MLF03 Linear Fixture |
36W 68W |
27V 120-277V |
DDK Adjustable color temperature |
Blank Without Sensor M Motion Sensor |
B Emergency Battery Blank Without Emergency Battery |
F Frosted Diffuser |
Blank Alphanumeric |
DLC Model No.
|
SYSTEM WATTS |
VOLTAGE |
CCT |
LED NO. |
DLC NO. |
DLC CLASSIFICATION |
|
36W |
120-277 |
3500K / 4000K / 5000K |
2835 |
IMLF034F36W27VDDK[Blank,M][Blank,B]F[Blank,0-9,A-Z,a-z] |
Standard |
|
68W |
120-277 |
3500K / 4000K / 5000K |
2835 |
IMLF038F68W27VDDK[Blank,M][Blank,B]F[Blank,0-9,A-Z,a-z] |
Standard |
4' & 8' LED STRIP CCT IMLF03
