E1 LED Low Profile, Thermoplastic Emergency Light
Description:
Adjustable long lasting, efficient, ultra bright white LED lamp heads.
• One, 0.5W white LED per lamp head.
• Unique all-inclusive lamp, reflector and lens assembly.
Contact UsILLUMINATION
- Adjustable long lasting, efficient, ultra bright white LED lamp heads.
- One, 0.5W white LED per lamp head.
- Unique all-inclusive lamp, reflector and lens assembly.
ELECTRICAL
- Dual 120/277 voltage standard. Optional dual 120/230 voltage available.
- Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
- 3.6V long life, maintenance-free, rechargeable Ni-Cd battery.
- Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum
- 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
- Surface mount back plate fits most standard size junction boxes and snaps into place.
- Suitable for wall or ceiling mount.
HOUSING
- Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
OPTIONS
- SPV: UL Listed for special voltage option.
WARRANTY/LISTING
- One year warranty on all electronics and housing.
- UL Listed for damp locations (0°C – 30°C).
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.

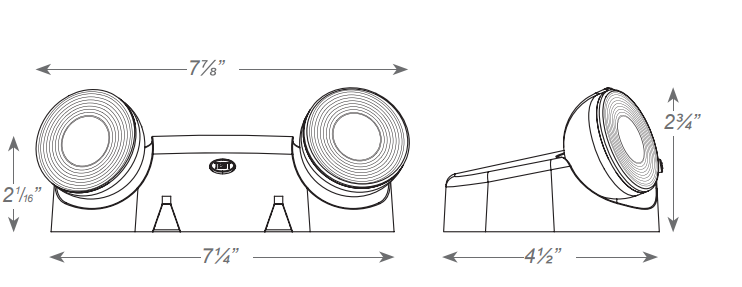

DIMENSIONS

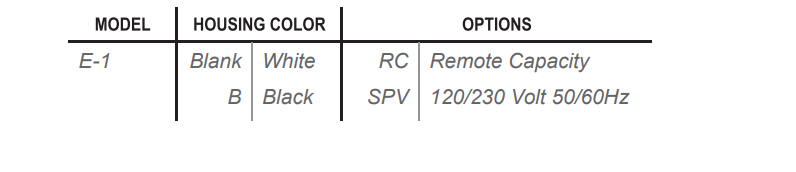

ORDERING INFORMATION
ELECTRICAL INFORMATION
|
CATALOG NUMBER
|
INPUT WATTS(W)
|
INPUT AMPS(A)
|
||||
|
120V |
230V |
277V |
120V |
230V |
277V |
|
|
E-1 |
0.33 |
0.33 |
0.37 |
0.046 |
0.044 |
0.052 |
|
E-1 RC |
0.52 |
0.52 |
0.60 |
0.068 |
0.068 |
0.070 |

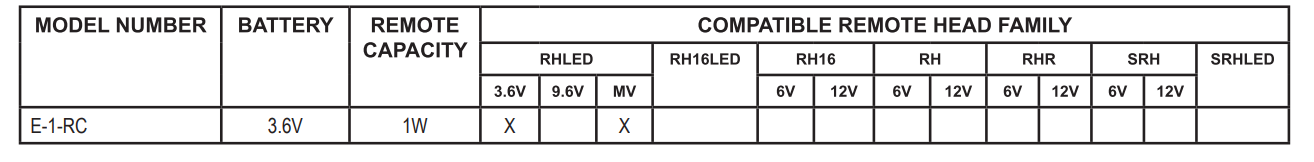

REMOTE LAMP COMPATIBILITY
