Hardscape Light RGBW 7W
Description:
The IMHSL Series features a die-cast aluminum housing with an epoxy powder-coated bronze (ORB) finish, a stainless steel mounting bracket, and an optional frosted lens. It is equipped with RGBW (2700K, 3000K, 4000K + RGB) lighting and allows for color temperature selection via a key switch. Designed for efficient installation and energy savings, this series operates on 12-24V AC/DC with a power range of 5W/7W. It utilizes SMD2835 LED technology, offers a Color Rendering Index (CRI) of >90Ra, and delivers luminous outputs of 200LM/280LM with a 120° beam angle. The MHSL Series has a lifespan of 50,000 hours and functions within a temperature range of -4°F to 104°F. Constructed with an aluminum body, a polycarbonate (PC) lens, and a copper cable.
.PNG)

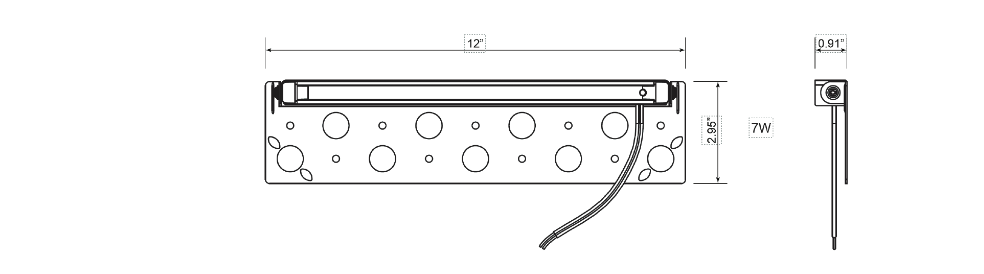

DIMENSION
.PNG)
TECHNICAL SUMMARY
| MODEL NO. | WATTS | LUMENS | CCT | VOLTAGE | DIMMING | CRI | CERTIFICATION |
|---|---|---|---|---|---|---|---|
| IMHSL7-5W-RGBW | 5W | 200LM | RGBW(27/30/40K) | 12-24V | N/A | N/A | ETL |
| IMHSL14-7W-RGBW | 7W | 280LM | RGBW(27/30/40K) | 12-24V | N/A | N/A | ETL |
.PNG)
CONSTRUCTION
- Unit includes heavy duty metal frame, LED array, heat sink, hanger, security cable and high quality LED tube.
MOUNTING
- Above Ceiling
- Ceiling Joists & drop ceiling installations
WARRANTY
- 5 years manufacturer warranty,
- Terms and conditions may apply.
HIGHLIGHT
.PNG)
Temperature Range
- Functions in temperatures from -4°F to 104°F
Durable Construction
- Die-cast aluminium housing with epoxy powder- coated bronze (COB) finish and stainless steel mounting bracket
