High Lumen 2’x2’; 2’x4’ Flat Panels
Description:
Integrative aluminum frame provides a durability structure
.PNG)
Construction
- Integrative aluminum frame provides a durability structure
- Sealed housing, prevents dust and without light leak

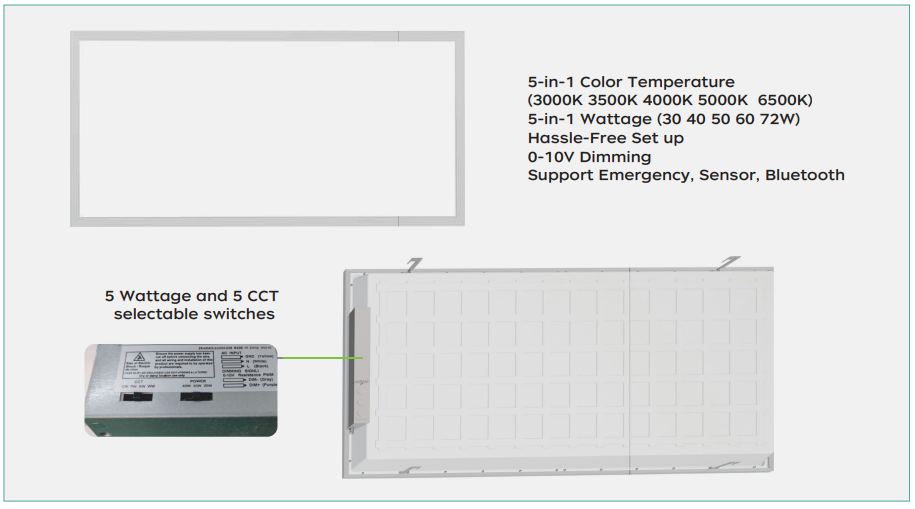

- 5 Wattage and 5 CCT selectable switches are integrated on the driver
- Minimize Stock, 1SKU can cover Max. of 25 Models
Electrical
- Input Voltage: 120-277Vac 50/60Hz 0-10V dimmable, THD≤10%, PF≥0.95
- Offices , Retail, Schools, restaurants ,and residential applications.
Installation
-
Fixture is suitable for recessed mounting with T-bar, and accessories for suspension and surface mounting are also available. Use in ambient temperatures ranging from -20°C to 45°C
Listing
- ETL listed, suitable for damp location.
- DesignLights Consortium ®(DLC)Premium.
Warranty
- 5-year limited warranty
Specs at a Glance
| Specs at a Glance | * Nominal Wattage (Switchable) | |
| Configuration | IJEN-B2-S40-3065 | IJEN-B4-S72-3065 |
| CCT(K) | 3000K-3500K-4000K-5000K-6500K (Switchable) | |
| Wattage (W)* | 20W/25W/30W/35W/40W Wattage Adjustable |
30W/40W/50W/60W/72W Wattage Adjustable |
| Lumens (lm) | 2,500 - 5,000 LM | 3,750 - 9,000 LM |
| Efficacy (LPW) | Up to 130 | |
| CRI | ≥ 80 | |
| Input Voltage | 120-277VAC, 50/60Hz, 0-10V Dimmable | |
| Operating Temp | -20°C to 45°C | |
| Certifications | ETL DLC 5.1 Premium | |
| Warranty | 5 Years | |
Ordering information
|
Model |
Description |
|
IJEN-B2-S40-3065 |
2' x 2' Backlit Panel, Power Switchable 20W/25W/30W/35W/40W, Color Switchable 3000K/3500K/4000K/5000K/6500K, 120-277VAC |
|
IJEN-B4-S72-3065 |
2' x 4' Backlit Panel, Power Switchable 30W/40W/50W/60W/72W, Color Switchable 3000K/3500K/4000K/5000K/6500K, 120-277VAC |

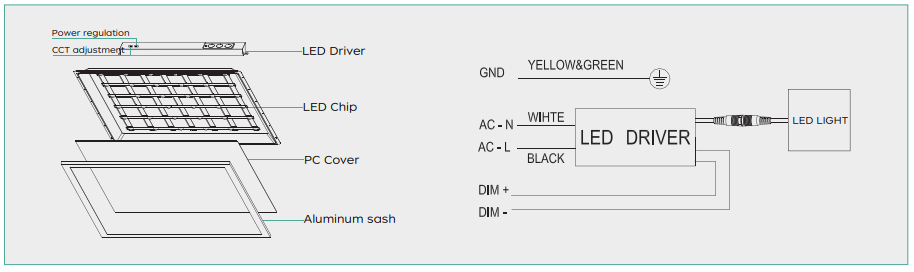

Detail
.PNG)

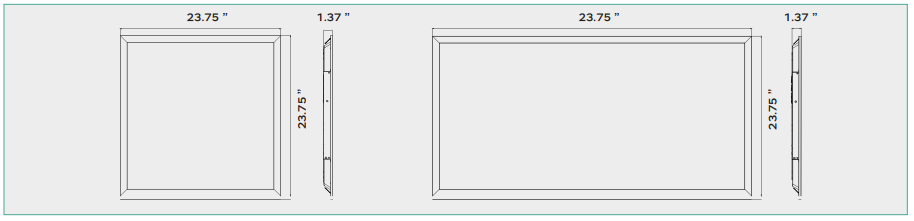

Dimensions
.PNG)

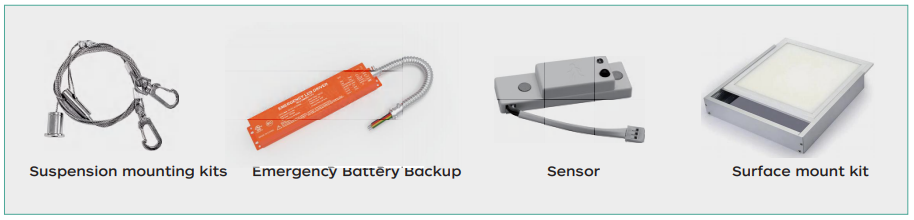

Accessories (Sold Separately)
.PNG)

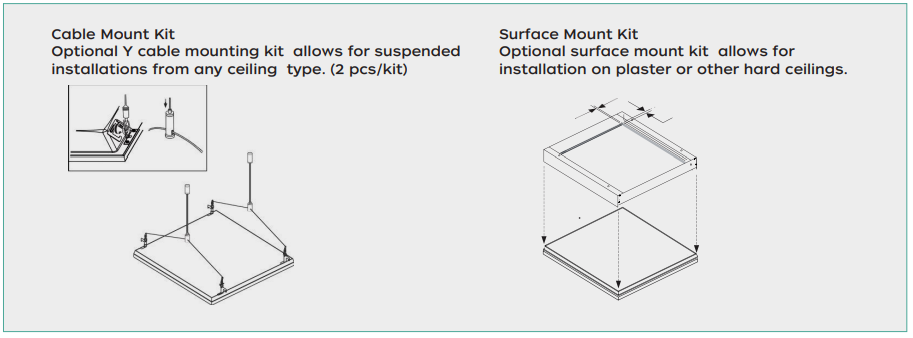

Flexible Installation Options
.PNG)
Wiring Diagram
.PNG)

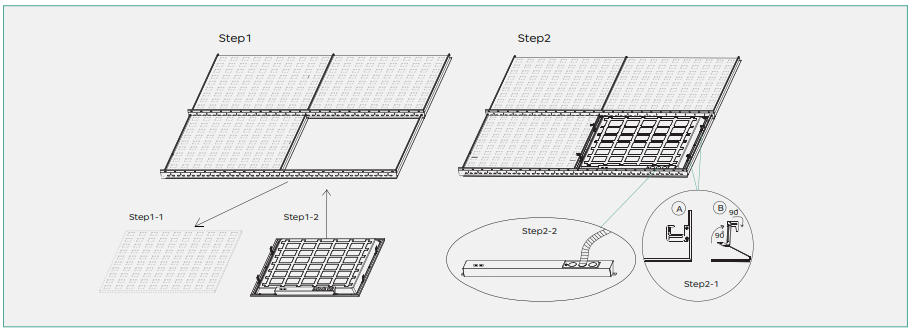

Installation Instruction
.PNG)
Packing/Weight
| Size/ft | L /inch | W /inch | H /inch | QTY/ctn | G.W./lbs | CTN QTY/pallet |
|---|---|---|---|---|---|---|
| 2x2' | 25.2 | 25.2 | 6.5 | 4 | 15.23 | 144pcs |
| 2x4' | 49.2 | 25.2 | 6.5 | 4 | 39.30 | 72pcs |

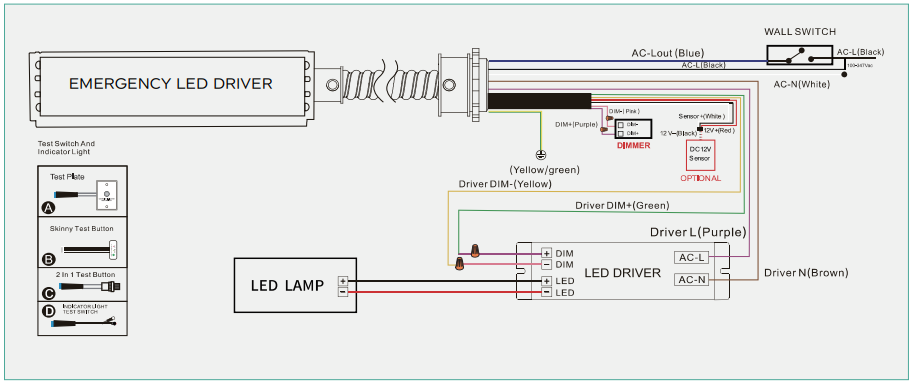

Emergency Backup
.PNG)
