ICP3 SERIES | Deep Regress Downlights

Description:

Small and powerful runs in this family of 3" aperture recessed downlight that offer up to 1700 delivered lumens. This mini downlight family is complete with high performance and an expansive range of options for optics, trim styles, trim configurations, beam spreads, housings, mounting, and more – offering the flexibility your projects require. They are available in an expansive assortment of configurations to provide options for nearly every design requirement. It is a designer's favorite that delivers superior light in every application.

Feature

Architectural Friendly: Up to 50,000 unique combinations
Adjustable Ring: 360° rotation and a maximum 30° tilt angle
2 in 1 Dimming: 0-10V (Dim to 1%) and TRIAC in one package
COB LED: 4 Fixed CCT 90+ CRI or Dim to Warm 95+ CRI options.
Beam Angle: 4 optics series with 15°~60° options

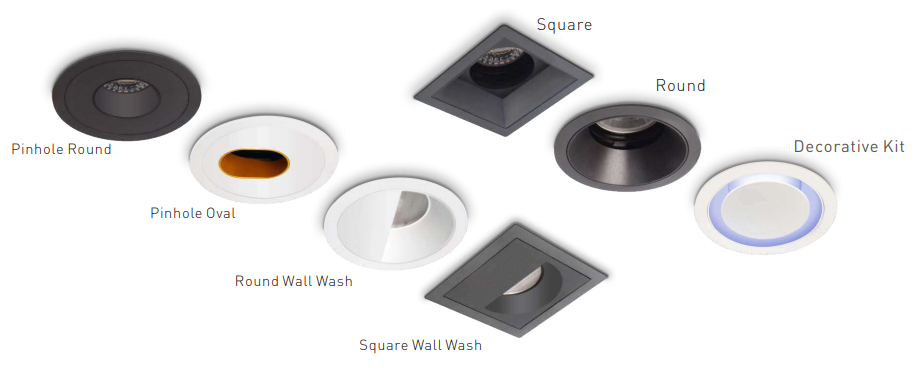

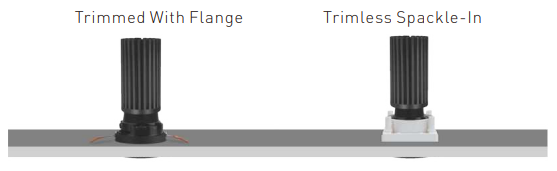

Trimmed, trimless with various shades options
New construction and remodel driver options for any site condition

PERFORMANCE

Wattage Selectable	Round, 24° Beam @ 3000K		Square 24° Beam @ 3000K		Dim to Warm 3000K~2000K 95+ CRI
Wattage Selectable	Efficacy	Delivered Lumens	Efficacy	Delivered Lumens	Dim to Warm 3000K~2000K 95+ CRI
5W	95LM/W	475LM	95LM/W	475LM	Up to13W 1200LM 95LM/W
8W	100LM/W	800LM	96LM/W	768LM
10W	99LM/W	990LM	95LM/W	950LM
13W	95LM/W	1235LM	91LM/W	1183LM
16W	91LM/W	1456LM	87LM/W	1390LM
19W	89LM/W	1690LM	85LM/W	1615LM

Remark: The lumens are subject to 3000K, 90+ CRI, 24° beam angle, white round trim with 360° horizontal adjustable holder. Lumen output may vary ± 5% base on different CCT, beam angle, adjustable holder, trim shape and shade.

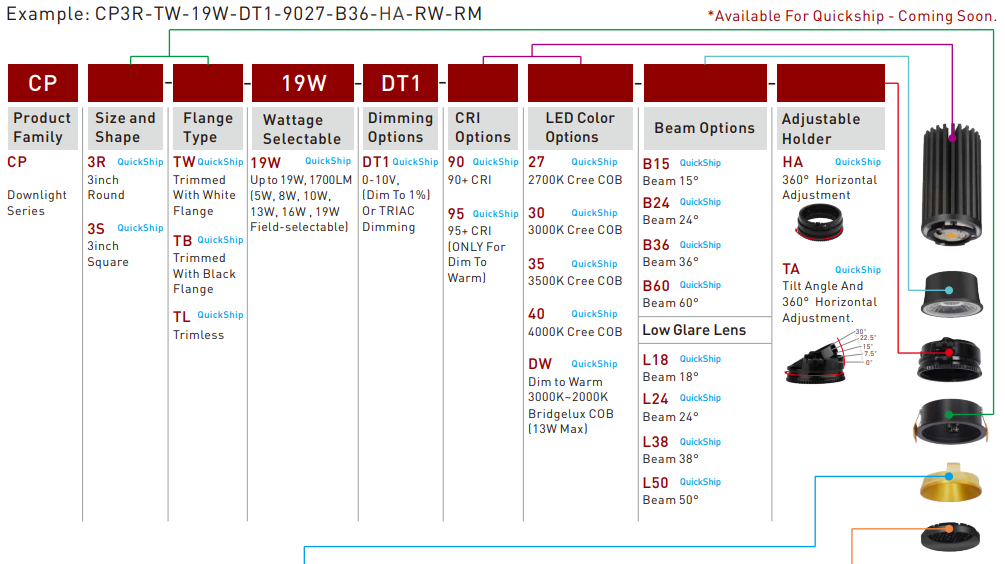

PRODUCT ORDERING GUIDE

LED System

LED	Powered by CREE or Bridgelux high efficiency COB LED chip.
CRI	90+ for fixed CCT or 95+ CRI for Dim to Warm, producing outstanding illumination at a tight chromaticity specification and color binning process.

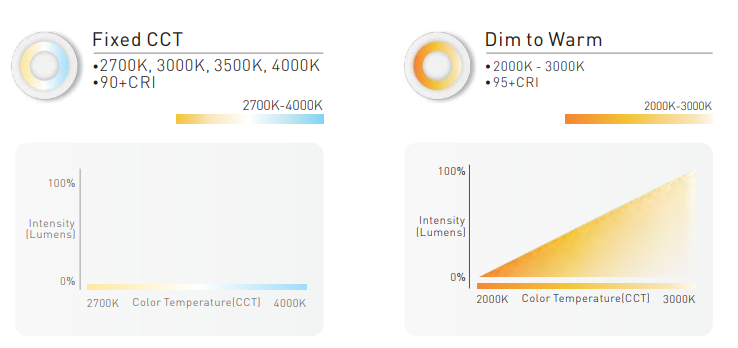

CCT	2700K,3000K, 3500K and 4000K fixed CCT with a great color consistency or Dim to Warm from 3000K to 2000K.
Light Engine Heatsink	Aluminum housing acting as the heat sink to maximize life. The temperature of all heatsinks are controlled at 60-70°C.

Lens

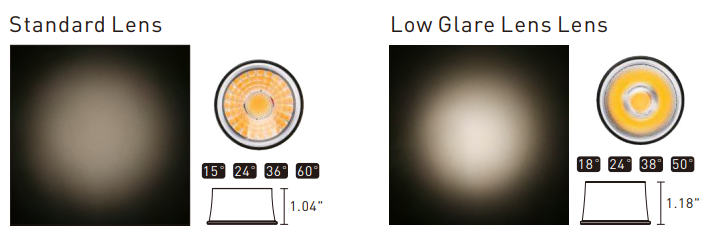

Classic reflector-like design provides high lighting transmittance. It effect in light control and anti-glare with side facula and fade-out facula. The MR16 standard size(diameter 1.96")design make them widely practical. Available in 15°~60° beam angles, beam spreads are interchangeable which can be easily swapped out in the field without tools.

Trim Finish / Shade

Powder coat white and black finishes offer uniform finish providing long term performance and superior aesthetic, compatible for multiple trim shades.

Electrical

LED Driver	It is powered by Class 2 high efficiency LED driver, with a standard 0-10V dimming which continuous dims to 1% or Triac dimming that works with many types of controls. Thermal overload protection shuts down the luminaire when system temperatures exceed designed operating conditions.
THD	<20%
Power Factor	>0.9
Input Voltage	Standard electronic drivers are cULus recognized and available for 110-277V AC.
Environment	Environment damp rated for ambient operating temperature of -20°C to +40°C (-4° to+104°F)

Installation

Twist & Lock feature for easy trim installation. Durable tension clips are allowing for fast and easy flush installation.

Listings

cULus listed for damp locations
Five-year warranty for parts and components. (Labor not included)

NOTES:

Ambient temperatures at fixture location should not exceed 40°C during normal operation.
For interior use only

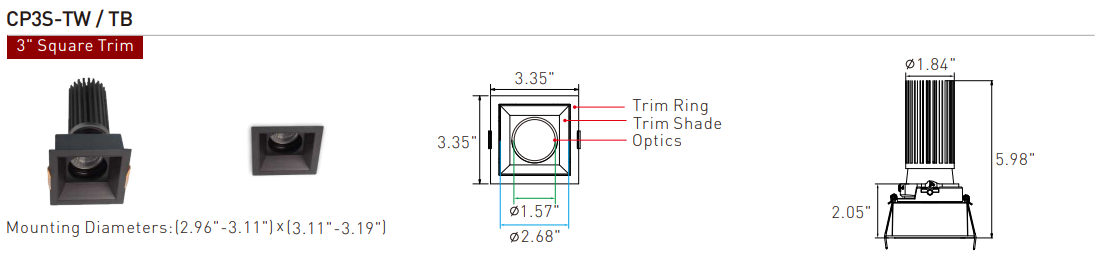

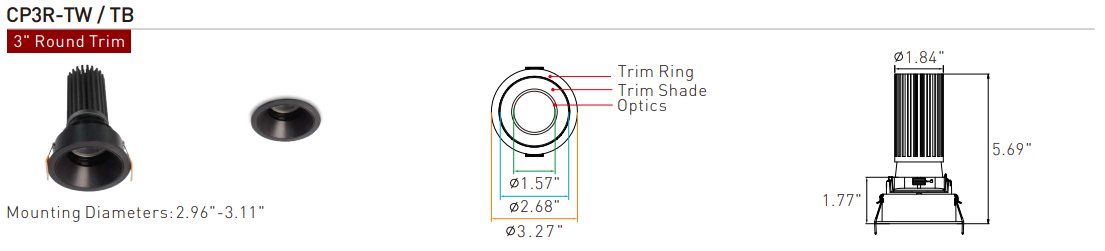

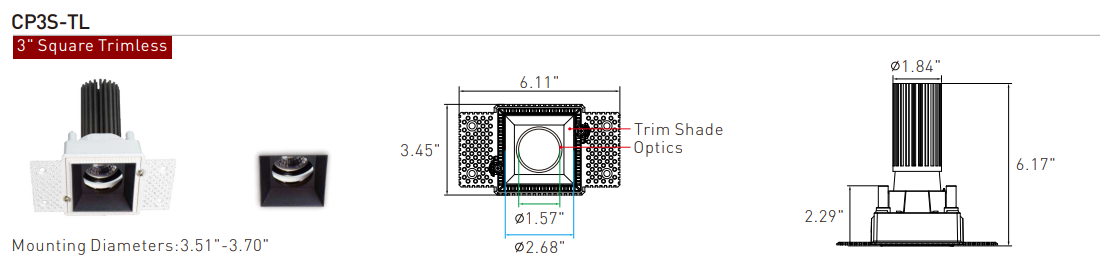

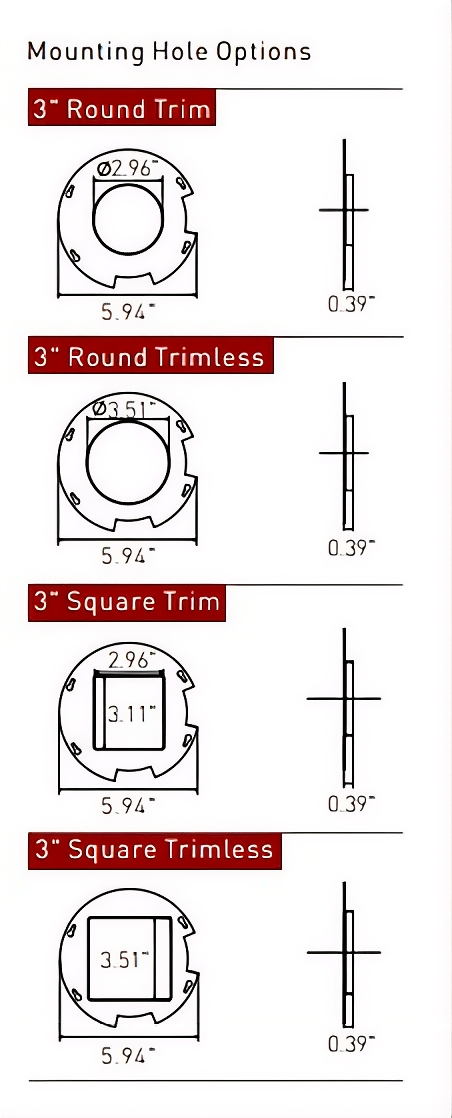

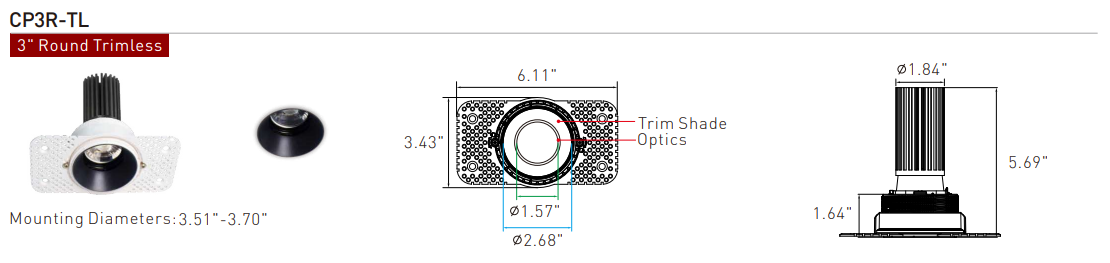

DIMENSIONS

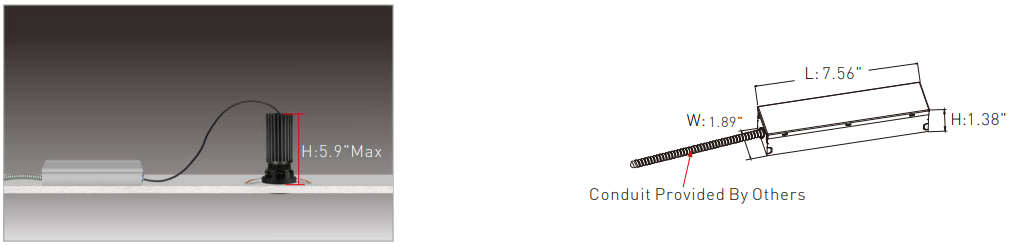

Remodel (NON-IC)- LED Driver Box

It can be installed in existing ceilings for remodel application. Simple cut a hole in existing drywall ceilings.

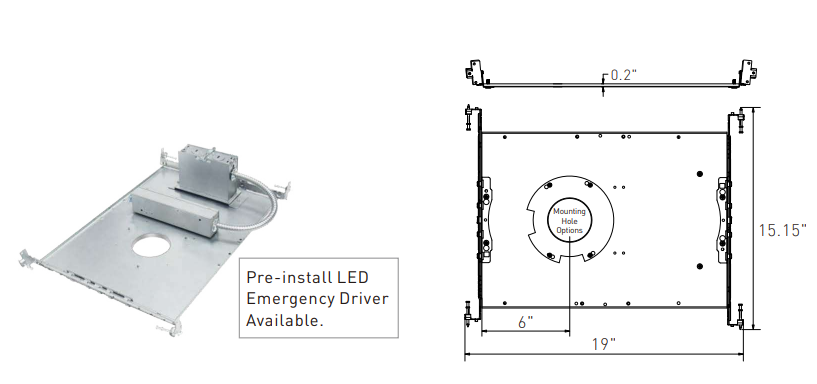

New Construction-Frame Kit (NON-IC)

A rough-in frame option is available for all new constructions and a variety of ceiling types. LED driver box rests on the frame kit by magnet when installed as shown below.

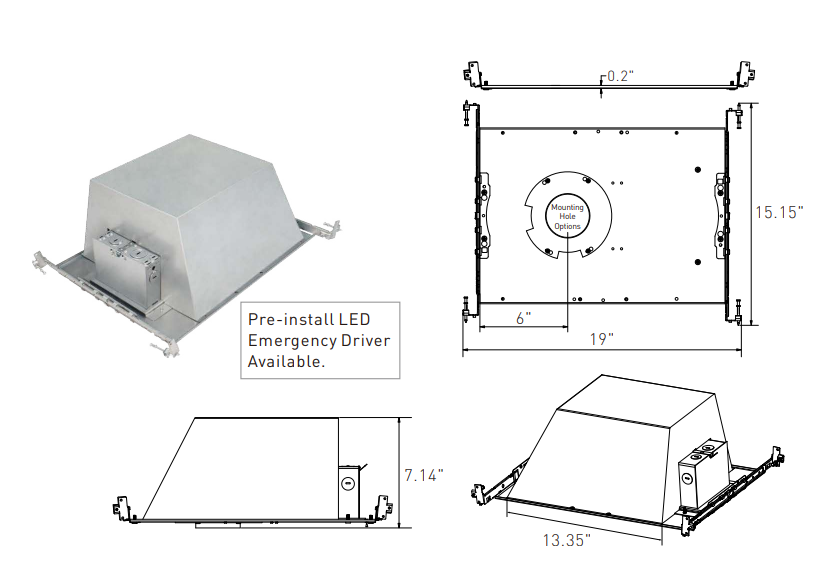

New Construction-Housing Insulation Kit (IC)

An IC-rated housing frame kit allows placement of 3inch LED downlight in direct contact with insulation.

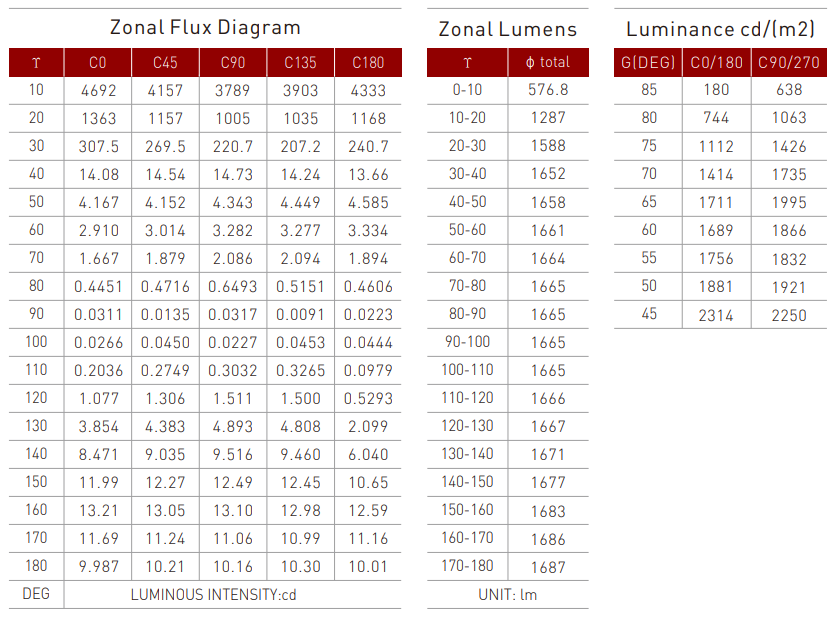

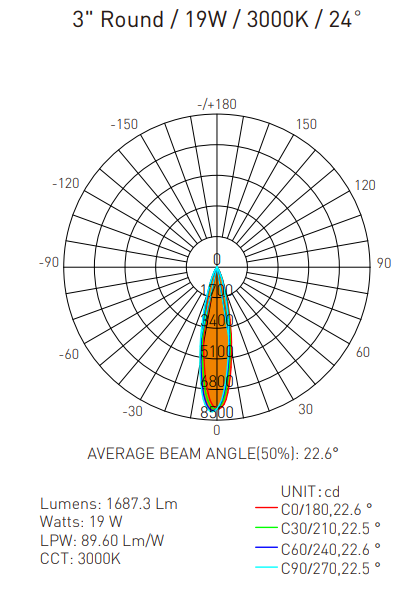

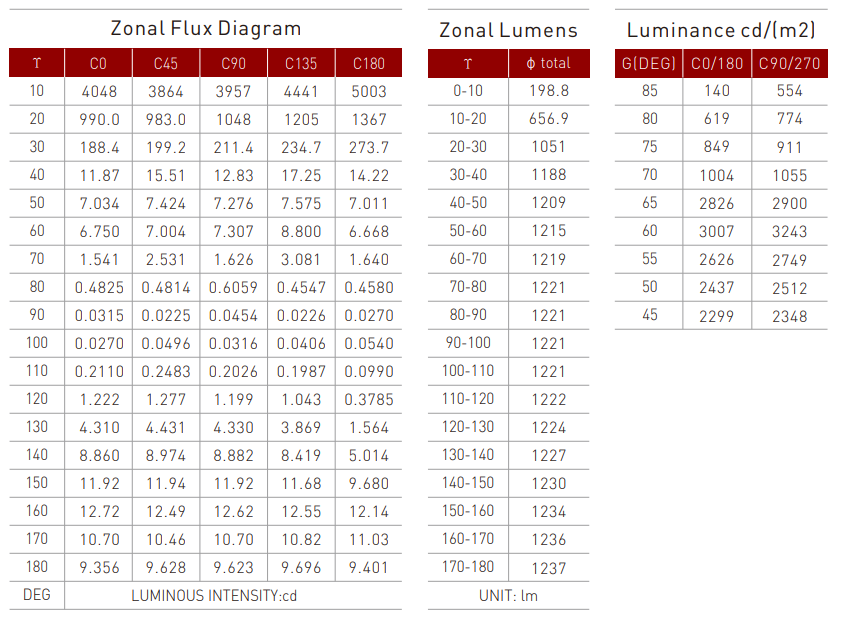

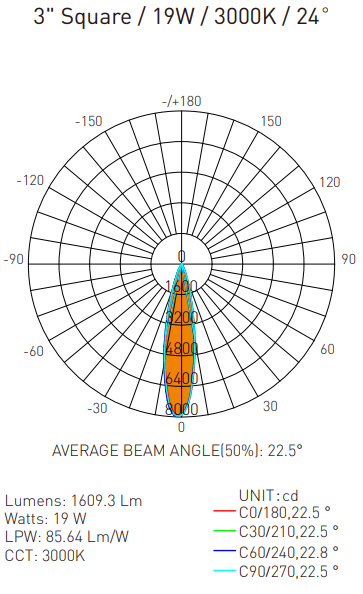

DISTRIBUTION DIAGRAM

ICP3 SERIES | Deep Regress Downlights

ICP3R-TW-5W-DT1-9030-B15-HA-RW-HB_IESNA2002

ICP3R-TW-5W-DT1-9030-B15-TA-RW-HB_IESNA2002

ICP3R-TW-5W-DT1-9030-B24-HA-RW-HB_IESNA2002

ICP3R-TW-5W-DT1-9030-B24-TA-RW-HB_IESNA2002

ICP3R-TW-5W-DT1-9030-B36-HA-RW-HB_IESNA2002

ICP3R-TW-5W-DT1-9030-B36-TA-RW-HB_IESNA2002

ICP3R-TW-5W-DT1-9030-B60-HA-RW-HB_IESNA2002

ICP3R-TW-5W-DT1-9030-B60-TA-RW-HB_IESNA2002

ICP3R-TW-8W-DT1-9030-B15-HA-RW-HB_IESNA2002

ICP3R-TW-8W-DT1-9030-B15-TA-RW-HB_IESNA2002

ICP3R-TW-8W-DT1-9030-B24-HA-RW-HB_IESNA2002

ICP3R-TW-8W-DT1-9030-B24-TA-RW-HB_IESNA2002

ICP3R-TW-8W-DT1-9030-B36-HA-RW-HB_IESNA2002

ICP3R-TW-8W-DT1-9030-B36-TA-RW-HB_IESNA2002

ICP3R-TW-8W-DT1-9030-B60-HA-RW-HB_IESNA2002

ICP3R-TW-8W-DT1-9030-B60-TA-RW-HB_IESNA2002

ICP3R-TW-10W-DT1-9030-B15-HA-RW-HB_IESNA2002

ICP3R-TW-10W-DT1-9030-B15-TA-RW-HB_IESNA2002

ICP3R-TW-10W-DT1-9030-B24-HA-RW-HB_IESNA2002

ICP3R-TW-10W-DT1-9030-B24-TA-RW-HB_IESNA2002

ICP3R-TW-10W-DT1-9030-B36-HA-RW-HB_IESNA2002

ICP3R-TW-10W-DT1-9030-B36-TA-RW-HB_IESNA2002

ICP3R-TW-10W-DT1-9030-B60-HA-RW-HB_IESNA2002

ICP3R-TW-10W-DT1-9030-B60-TA-RW-HB_IESNA2002

ICP3R-TW-13W-DT1-9030-B15-HA-RW-HB_IESNA2002

ICP3R-TW-13W-DT1-9030-B15-TA-RW-HB_IESNA2002

ICP3R-TW-13W-DT1-9030-B24-HA-RW-HB_IESNA2002

ICP3R-TW-13W-DT1-9030-B24-TA-RW-HB_IESNA2002

ICP3R-TW-13W-DT1-9030-B36-HA-RW-HB_IESNA2002

ICP3R-TW-13W-DT1-9030-B36-TA-RW-HB_IESNA2002

ICP3R-TW-13W-DT1-9030-B60-HA-RW-HB_IESNA2002

ICP3R-TW-13W-DT1-9030-B60-TA-RW-HB_IESNA2002

ICP3R-TW-16W-DT1-9030-B15-HA-RW-HB_IESNA2002

ICP3R-TW-16W-DT1-9030-B15-TA-RW-HB_IESNA2002

ICP3R-TW-16W-DT1-9030-B24-HA-RW-HB_IESNA2002

ICP3R-TW-16W-DT1-9030-B24-TA-RW-HB_IESNA2002

ICP3R-TW-16W-DT1-9030-B36-HA-RW-HB_IESNA2002

ICP3R-TW-16W-DT1-9030-B36-TA-RW-HB_IESNA2002

ICP3R-TW-16W-DT1-9030-B60-HA-RW-HB_IESNA2002

ICP3R-TW-16W-DT1-9030-B60-TA-RW-HB_IESNA2002

ICP3R-TW-19W-DT1-9030-B15-HA-RW-HB_IESNA2002

ICP3R-TW-19W-DT1-9030-B15-TA-RW-HB_IESNA2002

ICP3R-TW-19W-DT1-9030-B24-HA-RW-HB_IESNA2002

ICP3R-TW-19W-DT1-9030-B24-TA-RW-HB_IESNA2002

ICP3R-TW-19W-DT1-9030-B36-HA-RW-HB_IESNA2002

ICP3R-TW-19W-DT1-9030-B36-TA-RW-HB_IESNA2002

ICP3R-TW-19W-DT1-9030-B60-HA-RW-HB_IESNA2002

ICP3R-TW-19W-DT1-9030-B60-TA-RW-HB_IESNA2002

ICP3S-TW-5W-DT1-9030-B15-HA-SW_IESNA2002

ICP3S-TW-5W-DT1-9030-B24-HA-SW_IESNA2002

ICP3S-TW-8W-DT1-9030-B15-HA-SW_IESNA2002

ICP3S-TW-8W-DT1-9030-B24-HA-SW_IESNA2002

ICP3S-TW-10W-DT1-9027-B36-HA-SW

ICP3S-TW-10W-DT1-9030-B15-HA-SW_IESNA2002

ICP3S-TW-10W-DT1-9030-B24-HA-SW_IESNA2002

ICP3S-TW-13W-DT1-9030-B15-HA-SW_IESNA2002

ICP3S-TW-16W-DT1-9030-B15-HA-SW_IESNA2002

ICP3S-TW-19W-DT1-9030-B15-HA-SW_IESNA2002
