ICY Series Surface Mounted

Description:

IUS Lighting offers numerous cylinder lighting options that complement our suspended lighting platform, while providing a consistent aesthetic. Performance and beauty are both in play with our sleek architectural cylinders. These cylinders would greatly create possibilities in the whole commercial area which make light modular with multiple sizes, beam options , and high visual comfort COB LED as its standard configuration. It is now available in pendant and surface mount configurations which offers a beautiful and slender solution.

Contact Us

Feature

  • Modular design
  • COB LED chip: 80+ or 90+ CRI
  • Dimming: 0-10V(10% standard ,1% optional) or TRIAC Beam
  • Angle: 15°, 24°, 36°, 60° options Architectural form: 4", 6" and 8"
  • Mounting: Surface or Pendant
  • Wattage Selectable

PERFORMANCE

Size

Wattage Selectable

2700K

3000K

3500K

4000K

Ra＞80

Ra＞90

Ra＞80

Ra＞90

Ra＞80

Ra＞90

Ra＞80

Ra＞90

4"

25w/18w/12w

2250lm

90lm/w

1900lm

76lm/w

2375lm

95lm/w

2000lm

80lm/w

2450lm

98lm/w

2050lm

82lm/w

2500lm

100lm/w

2100lm

84lm/w

6"

40w/30w/20w

4000lm

100lm/w

3400lm

85lm/w

4200lm

105lm/w

3560lm

89lm/w

4320lm

108lm/w

3640lm

91lm/w

4400lm

110lm/w

3720lm

93lm/w

8"

58w/45w/30w

4930lm

85lm/w

4176lm

72lm/w

5220lm

90lm/w

4408lm

76lm/w

5394lm

93lm/w

4524lm

78lm/w

5510lm

95lm/w

4640lm

80lm/w



Correlated Trim Color Multiplier

Black Trim

Gold Trim

Chrome Trim

Multiplier for Lumen Output

0.92

0.97

0.94

Apply to maximum wattage with white trim and 60° beam angle only in table above to approximate output at other trim colors.

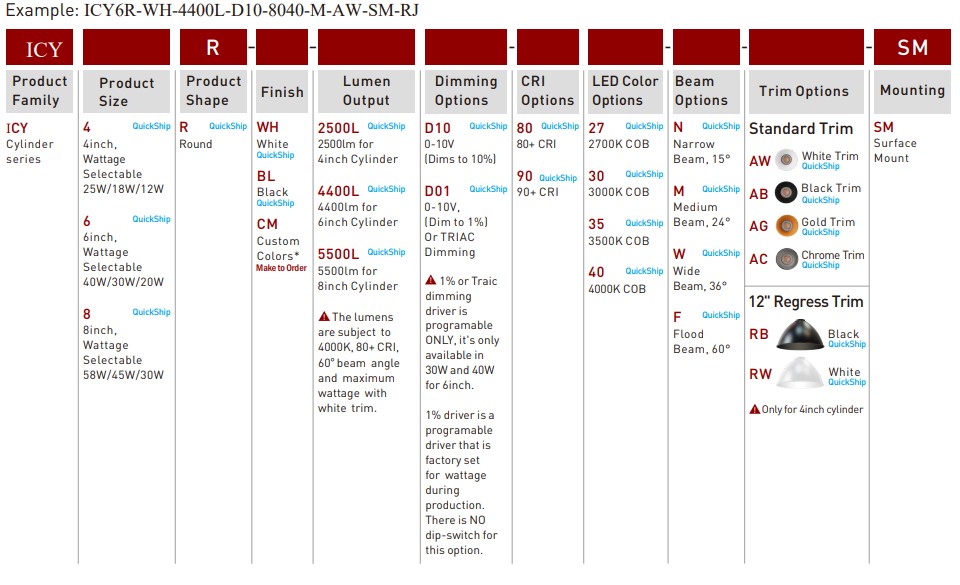

PRODUCT ORDERING GUIDE

Optics

  • It was powered by high efficiency COB LED chip. 15° / 24° / 36°/ 60° fixed beam spread options. Cylinder beamspreads are interchangeable which can be easily swapped out in the field without tools.

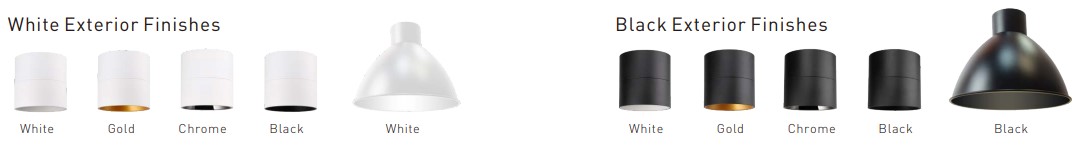

Finish

  • Constructed of rigid die cast aluminum. Powder coated polyester paint that comes standard in white and black.

Electrical

LED Driver It is powered by Class 2 high efficiency LED driver, with a standard 0-10V dimming which dims to 10%. Dim to 1% and TRIAC dimming are available.
THD <20%
Power Factor >0.9
Input Voltage Standard electronic drivers are cULus recognized and available for 120-277V AC.
Environment

Environment damp rated for ambient operating temperature of -20°C to +40°C (-4° to+104°F)



LED System

CRI

COB LED with a 80+ or 90+ CRI .
CCT

2700K,3000K, 3500K and 4000K with a great color consistency.
Thermal Management

Aluminum housing acting as the heat sink to maximize life.



Listings

  • cULus listed for damp locations
  • Five-year warranty for parts and components. (Labor not included)

Notes:

  • Ambient temperatures at fixture location should not exceed 40°C during normal operation.
  • For interior use only

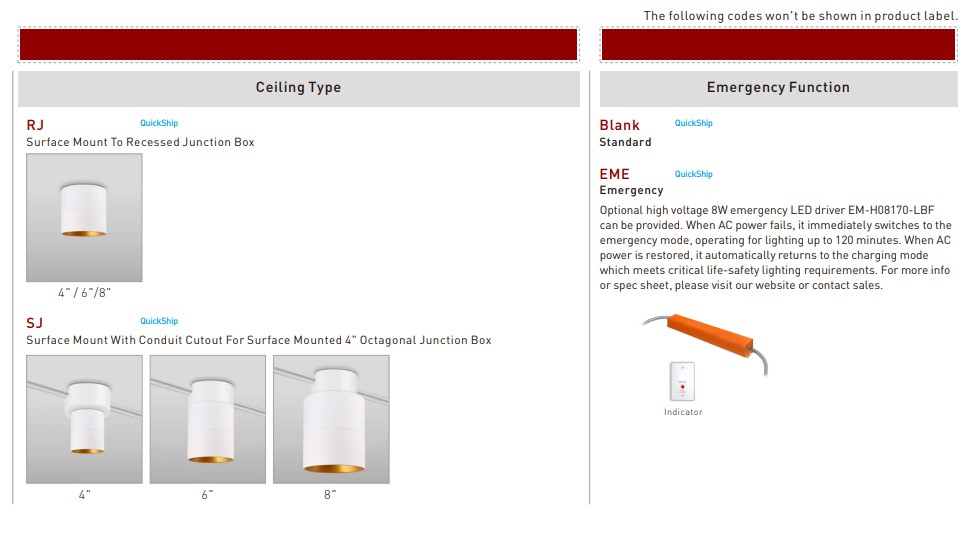

Mounting Options

For Recessed J-box

  • If recessed J-box is existing (3" octagon, 4" octagon and 4" round) , the cylinder can be mounted directly to recessed mounted junction box.

For Surface Mount J-box

  • If standard 4" octagonal J-box is surface mounted, a Ø5.97" round x 2.38" deep canopy with conduit cutout is provided for mounting. Conduit cutout canopy has 4 key slots, one in each side, and can be configured to accommodate any ceiling layout using ½" or ⅜" conduit. Conduit cutout canopy is provided white and black powder coat painted finish.

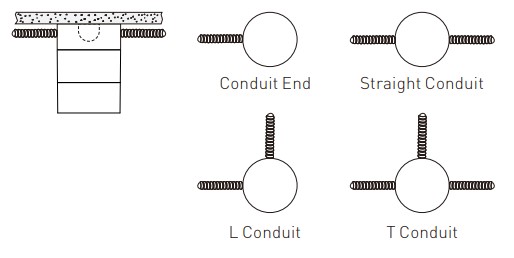

Conduit cutout mounting example

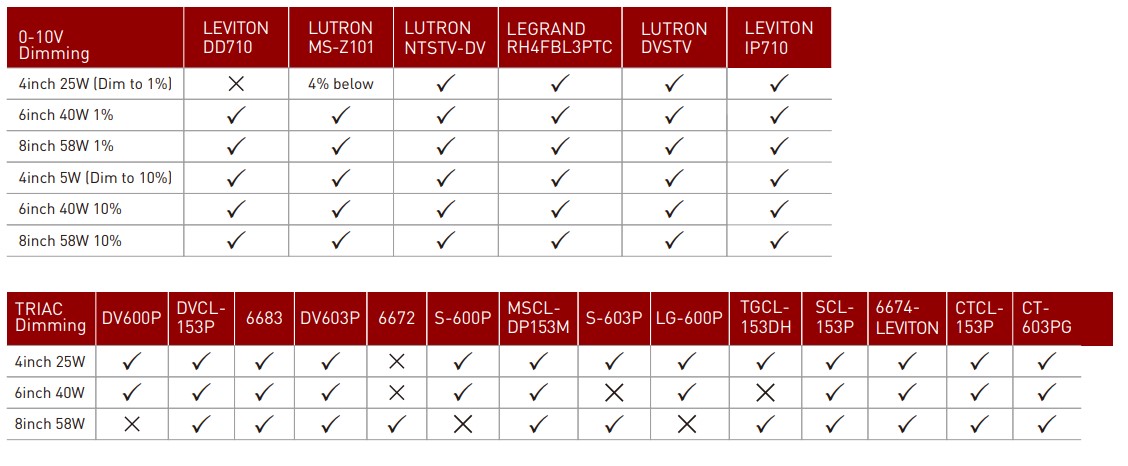

Dimmer Compatible

CONFIGURATION

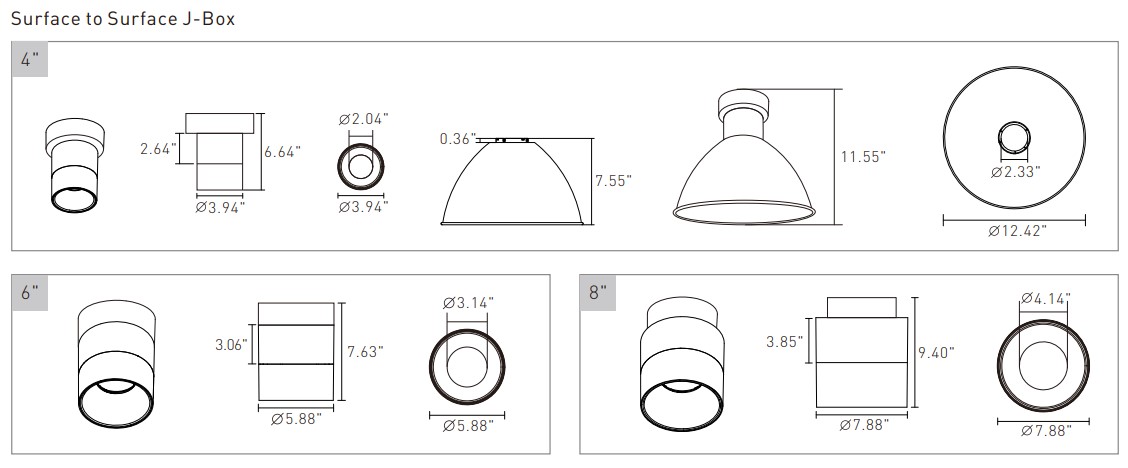

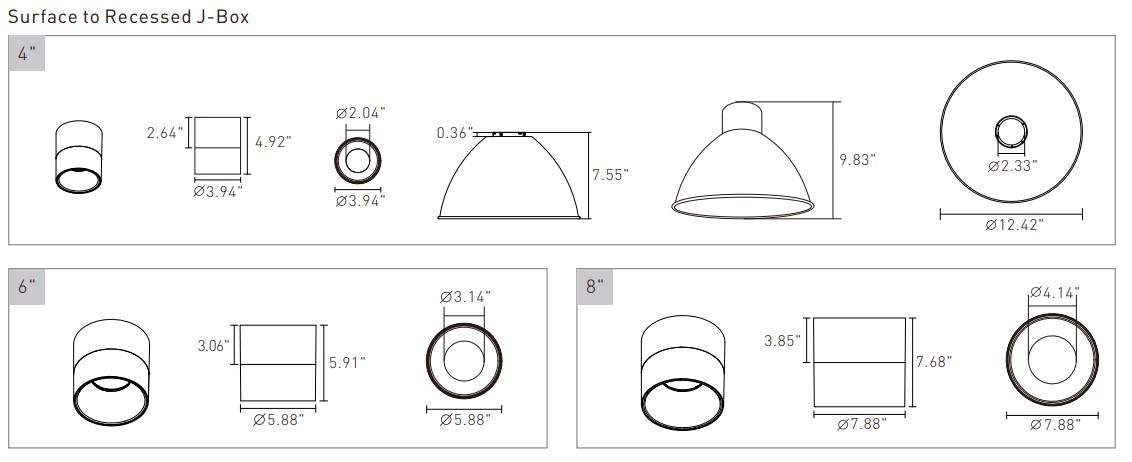

DIMENSIONS

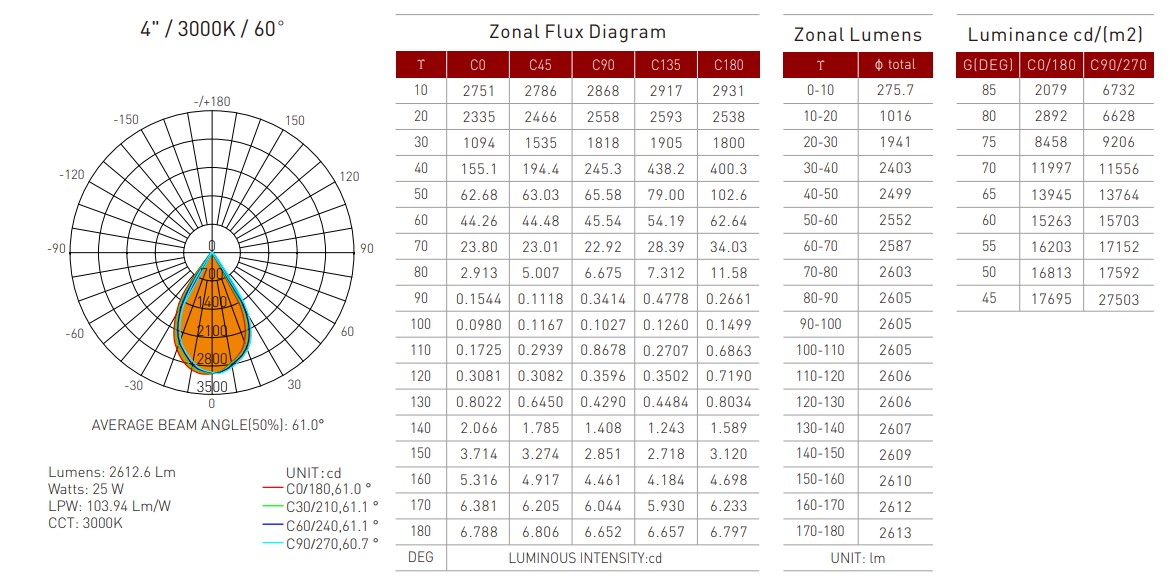

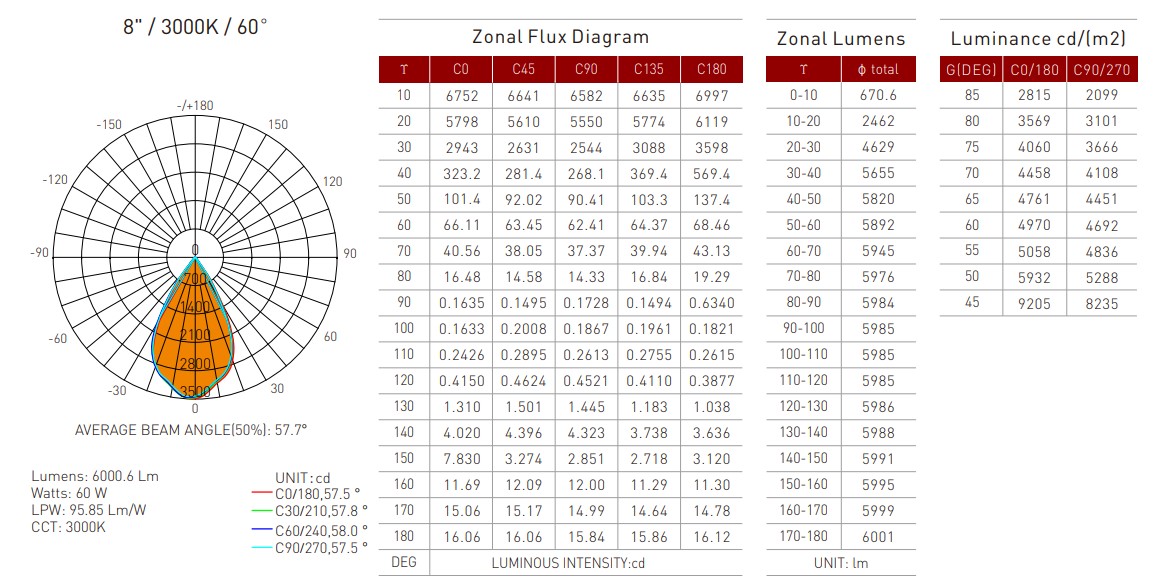

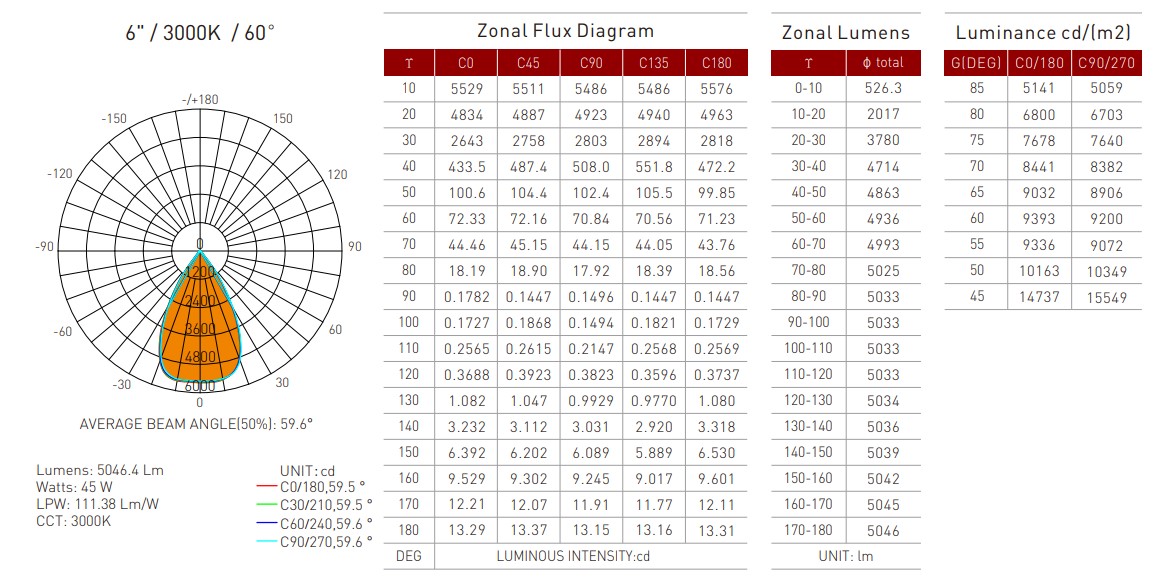

DISTRIBUTION DIAGRAM

ICY Series Surface Mounted

Coming Soon
