IJ-F2F4

Description:

Contact Us

Construction

  • Frame comes in 2x2 and 2x4 options, offering a sleek,modern look with top-notch functionality

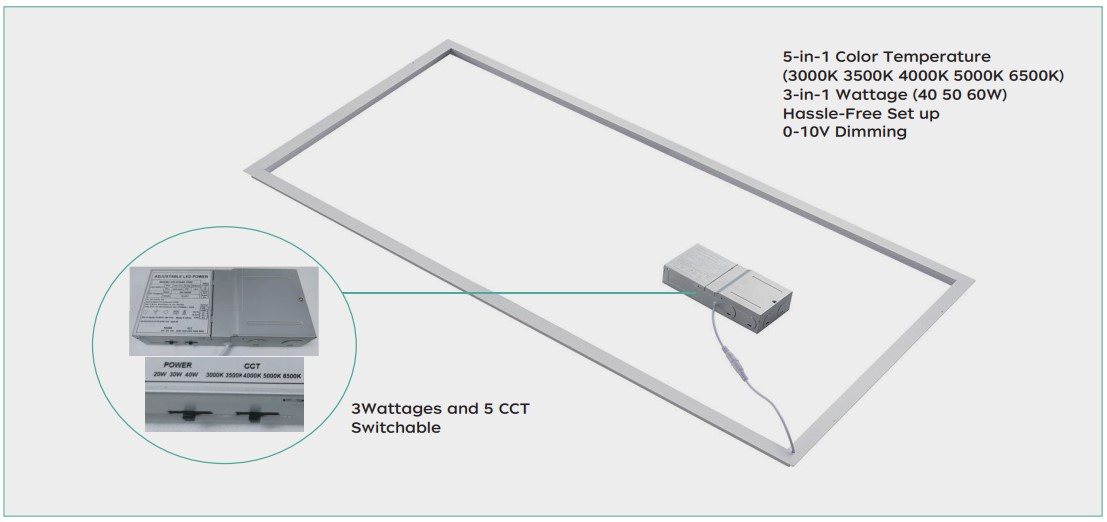

  • Wattage and CCT selectable reduce your stock SKU
  • Cutting-edge optical tech, it matches the lighting specs of traditional LED panels

Electrical

  • Input voltage:120-277V
  • Operating frequency: 50/60Hz
  • Power factor:>0.95
  • Ambient temperature range: -20°C ~+45°C
  • Color Temp:3000/3500/4000/5000/6500K
  • Dimmable:0-10V dimming
  • THD:<10%
  • IP Rating:IP40
  • CRI: >80
  • Beam angle:120°

Applications

  • Offices , retail ,schools, restaurants, residential

Installation

  • Fixture is suitable for recessed mounting with T-bar
  • Suspended installation

Listing

  • ETL listed, suitable for damp location.
  • DesignLights Consortium ®(DLC)Premium

Warranty

  • 5-year limited warranty

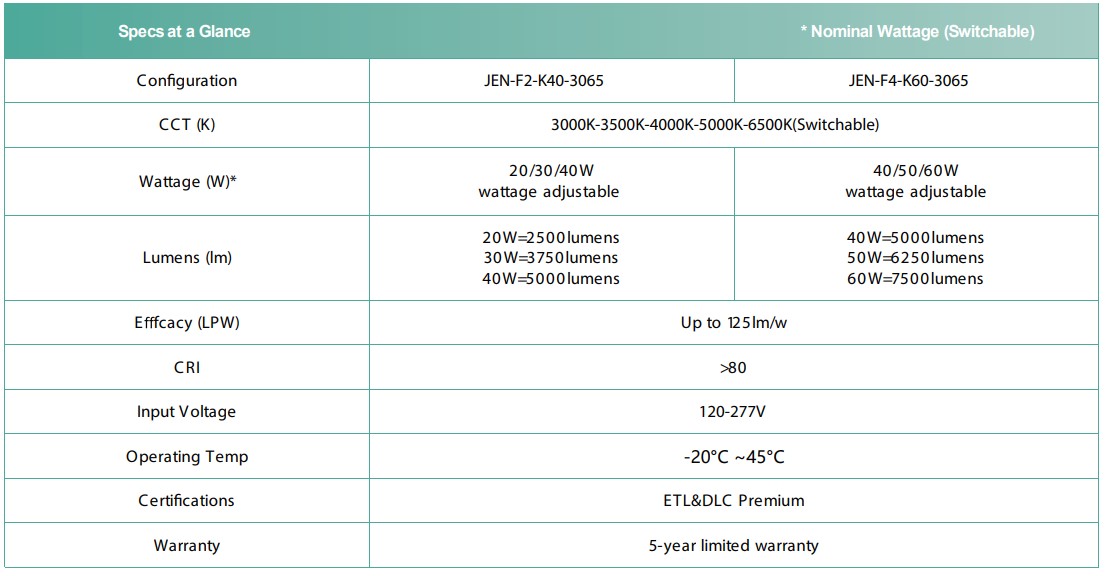

Specs at a Glance

Ordering information

Model

Description

JEN-F2-K40-3065

2' x 2' LED frame Light, Power Switchable 20W/30W/40W, Color Switchable 3000K/3500K/4000K/5000K/6500K, 120-277VAC

JEN-F4-K60-3065

2' x 4' LED frame Light, Power Switchable 40W/50W/60W, Color Switchable 3000K/3500K/4000K/5000K/6500K, 120-277VAC

Detail

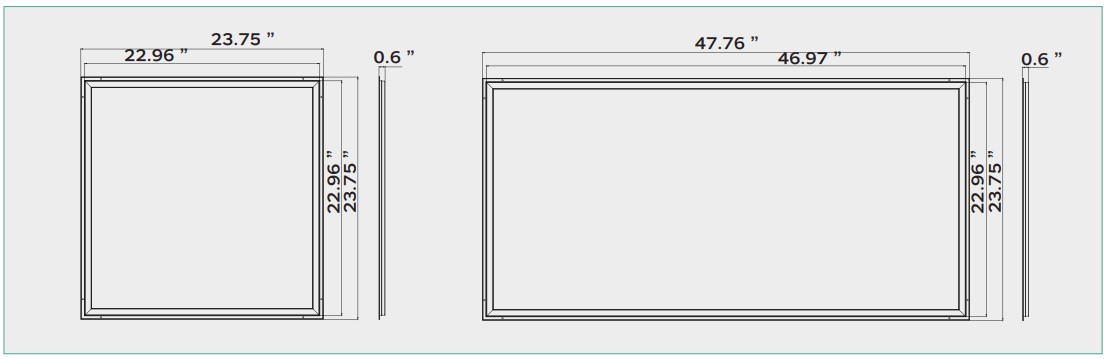

Dimensions

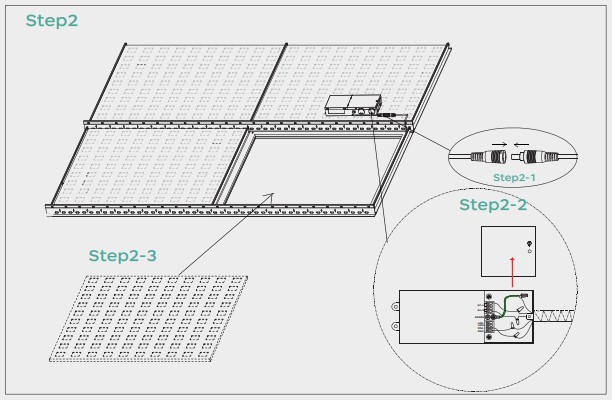

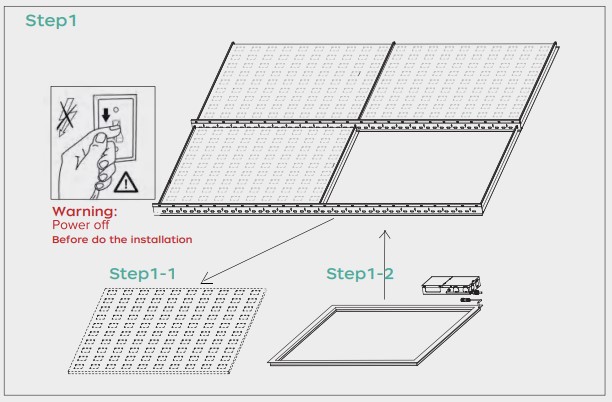

Recessed Mounting

Suspended mounting

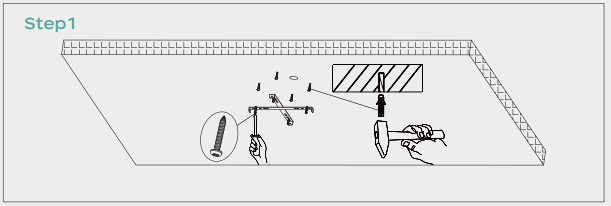

Step 1: Fix the bracket of the canopy to the ceiling;

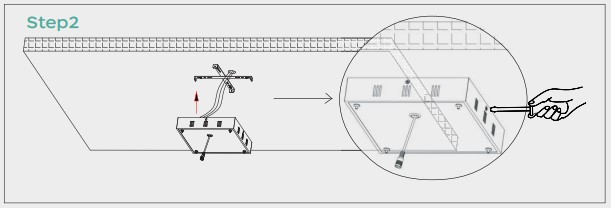

Step 2: Put the driver into the canopy and connect the AC input wire, then dimming wire; align the canopy horizontally upwards with the 4 holes of the bracket and screw tightly.

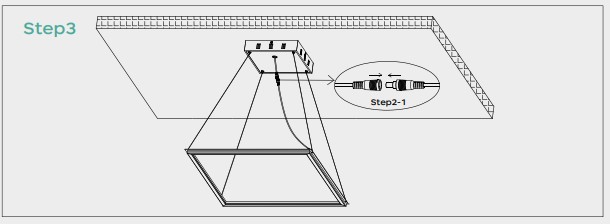

Step 3: Fasten the 4 lifting ropes to the 4 holes at the light fixture and then to the 4 holes at the canopy,latch on;then plug in the male-female connector of the driver and light fixture, installation complete!

Warning:

Make sure all the power is off before installation. All the installations are required to be done by professionals.

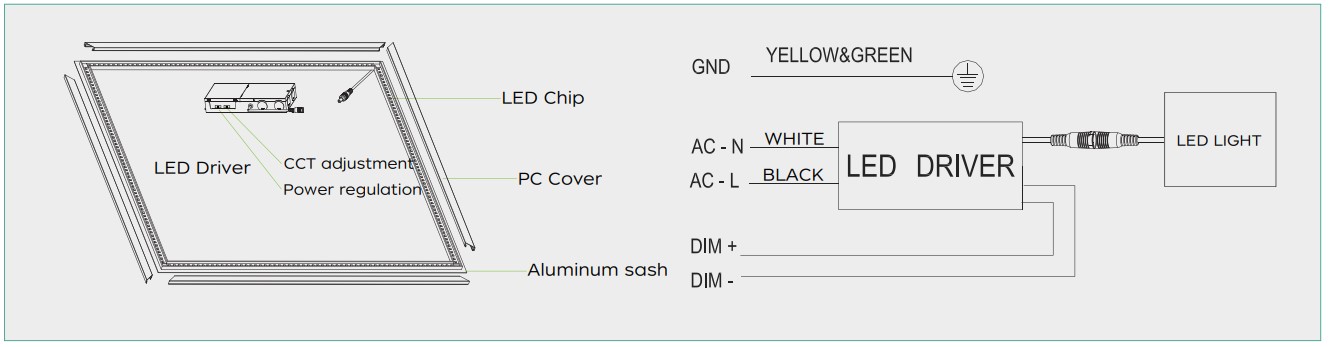

Wiring Diagram

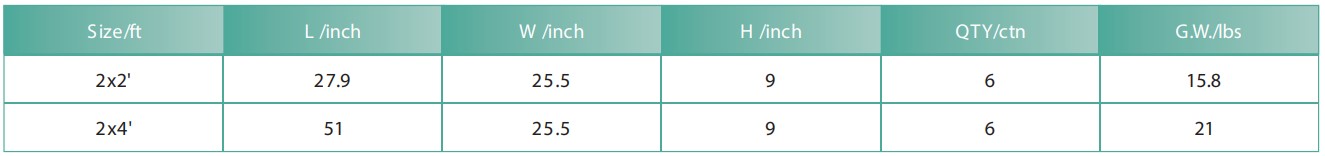

Packing Information

IJ-F2F4
