IMFP01 1’x4’ ; 2’x2’; 2’x4’ Flat Panels

Description:

The IMFP01 Flat panel features optimal light dispersion and uniform surface brightness using new backlit technology. Light engines are available in adjustable color temperature (3000K/;4000K/5000K) configurations Scalable lumen package from 2,200 to 6,000 lumens replaces up to 4 units T8 Fluorescent.

Construction

Aluminum frame strikes the perfect balance between lightweight design and uncompromising strength.
One piece shell play as heat sink maximum prolong the life of the light engine.
Standard T bar design ensure the fixture easily locks onto the grid ceiling

Optics

New backlit technology features optimal light dispersion and uniform surface brightness.
Light engines are available in adjustable color temperature (3500K/4000K/5000K) configurations
Scalable Lumen Packages from 2,200 to 6000 Lumens replaces up to 4 units T8 Fluorescent.

Electrical

Universal 120-277VAC input voltage.
Optional 0-10V dimming and dimming range from 10%-100%.
Three adjustable Wattage levels available for each model.
Both drivers have a power factor >90%, THD <20%.
Flicker Percent <5%.
Operating Temperature Range: -17°C to 45°C (-1.4˚F - + 113˚F).

Applications

Suitable for commercial,retail,and institutional applications including office,schools and hospitals.

Controls

Optional Occupancy sensor, Microwave sensor, Multifunction Sensor or daylight sensor.
Optional Bluetooth sensor or Bluetooth controller.
Silvair Luminaire Level Lighting Control (LLLC) optional
Sharkward Luminaire Level Lighting Control (LLLC) optional.
Haisen Luminaire Level Lighting Control (LLLC) optional.
Also compatible with 3rd party smart network control system.
Compatible with high end trim.
Sensor receptacle option.

Installation

Surface Mount (default).
Recessed Mount (option).
Suspended mount (option).

Certifications

UL cUL damp location listed.
DesignLights ConsortiumTM Qualified.

Note: Please refer to the DLC website for specific product qualifications at www.designlights.org.

Lifespan

Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

Warranty

Five-year limited warranty.

Note

Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25ºC (±5ºC) specifications subject to change without notice.

CCT AND WATTAGE ADJUSTABLE

IMFP0140W
SWITCH SETTING	SYSTEM WATTS	VOLTAGE	CRI	Beam angle	CCT SELECTABLE	LUMENS	LPW
LV1	40W	120-277V	>80	120°	3500K / 4000K / 5000K	4700lm	118 lm/W
LV2	30W	120-277V	>80	120°	3500K / 4000K / 5000K	3600lm	120 lm/W
LV3	20W	120-277V	>80	120°	3500K / 4000K / 5000K	2500lm	125 lm/W

IMFP0150W
SWITCH SETTING	SYSTEM WATTS	VOLTAGE	CRI	Beam angle	CCT SELECTABLE	LUMENS	LPW
LV1	50W	120-277V	>80	120°	3500K / 4000K / 5000K	6100lm	122 lm/W
LV2	40W	120-277V	>80	120°	3500K / 4000K / 5000K	4900lm	123 lm/W
LV3	30W	120-277V	>80	120°	3500K / 4000K / 5000K	3800lm	127 lm/W

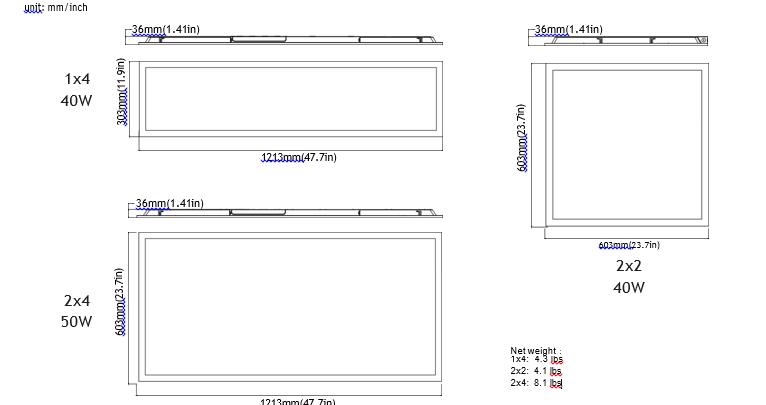

DIMENSION

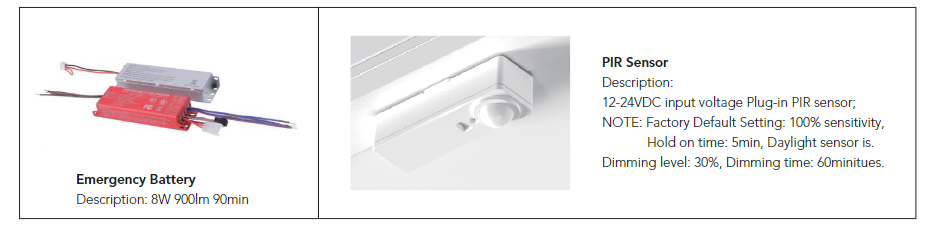

ACCESSORIES (Optional)

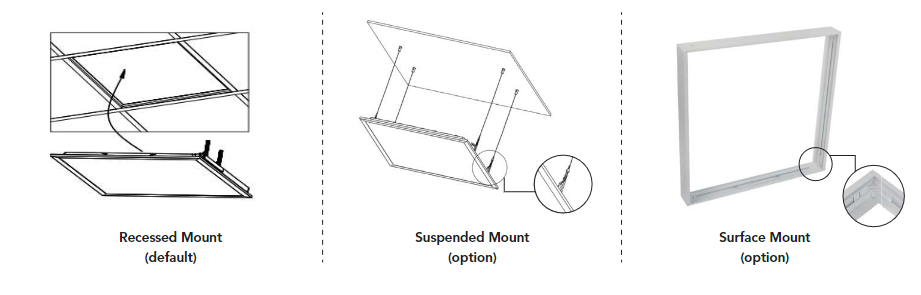

MOUNTING OPTIONS

ORDERING GUIDE

IUS	Fixture Type	Size	Wattage	Voltage	CCT	Finish	Sensor (Option)	Emergency Battery (Option)	Power Adjustable	Internal Code


I	MFP01 Flat Panel Series	24F 2x4’	50W	27V 120-277V	DDK Adjustable color temperature	W White	M With Sensor Blank Without Sensor	B With Emergency Battery Blank Without Emergency Battery	AD Power Adjustable	Blank Alphanumeric
		22F 2x2’	40W
		14F 1x4’	40W

DLC Model No.

S YS TEM WATTS	Product ID	CCT	DLC NO.	DLC Classification
40W	S-8PM799	3500K/4000K/5000K	IMFP 012240W27VDDKW[Blank,M][Blank,B]AD[Blank,A-Z,a-z,0-9]	S tandard
40W	S-C12J9P	3500K/4000K/5000K	IMFP 011440W27VDDKW[Blank,M][Blank,B]AD[Blank,A-Z,a-z,0-9]	S tandard
50W	S-RXY8VP	3500K/4000K/5000K	IMFP 012450W27VDDKW[Blank,M][Blank,B]AD[Blank,A-Z,a-z,0-9]	Premium
