IMJ-22 Combo LED Exit Universal Dual Head
Description:

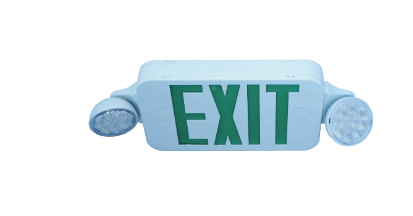

This combo COB/SMD LED exit emergency light features an exit sign with optional red or green lettering and dual adjustable heads that rotate 180 degrees. Designed for both quality and reliability, it’s built from flame-retardant, impact-resistant thermoplastic, making it ideal for use in humid environments. UL listed, this light provides up to 90 minutes of emergency illumination after a full 24-hour charge.
DIMENSION
.PNG)
Technical Summary
|
MODEL NO. |
WATTS |
LUMENS |
CCT |
VOLTAGE |
BATTERY |
CRI |
LED CHIPS |
|
MJ-22 |
3W |
150LM |
50K |
AC120-277V |
built-in 9.6V |
80+ |
12 |
.PNG)
OPTICS
- Diffuse for uniform illumination.
- CRI 80
DRIVER
- Built-in 9.6V 700mAH rechargeable Ni-СD battery for minimum 90 minutes emergency operation
- 20/277V voltage operation. Optional multi-tap voltage available.
- Maximum 24 hours for full recharge time.
- Test switch and charge indicator.
MOUNTING
- Univeral pattern on back plate for wall mount
LISTING
- cUL and UL listed for damp location
- UL 8750 LED equipment in Lighting Products
WARRANTY
- 5 years manufacturer warranty,
- Terms and conditions may apply.
5 years limited LED luminaire warranty to the original purchaser that the luminaire shall be free from defects in mate-rials and workmanship from date of shipment, when under properly installed at normal conditions of use. The warranty may not cover physical damage or abuse under certain conditions.
HIGHLIGHT
.PNG)
Universal Design

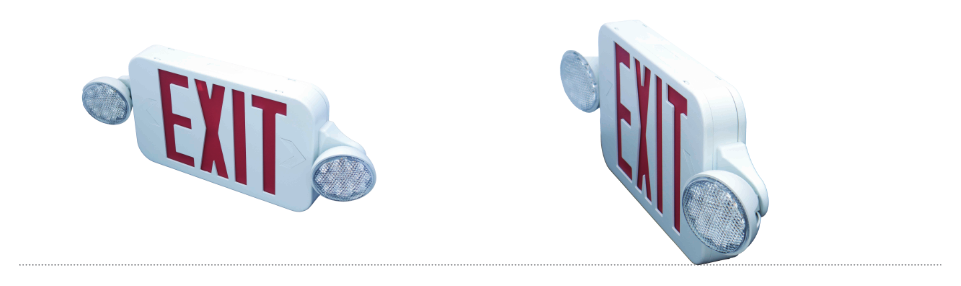

- Single or double face and optional RED/GREEN letters .
Durable Design
- Flame-retardant, impact-resistant thermoplastic and suitable for for use in humid environment
IMJ-22 Combo LED Exit Universal Dual Head
