IMLAS 2’;4’;8’ Architectural Linear Light
Description:
The IMLAS series offers LED fixtures in three sizes: 2ft, 4ft, and 8ft. The 2ft model is available in 15, 20, and 25-watt options, the 4ft model in 30, 40, and 50 watts, and the 8ft model in 60, 80, and 100 watts. Each fixture has selectable color temperatures of 3000K,3500K, 4000K, 5000K, and 6500K and operates within a voltage range of 120-277V. With a CRI of 80+ and UL listed, it ensures both safety and efficiency for a wide range of applications.

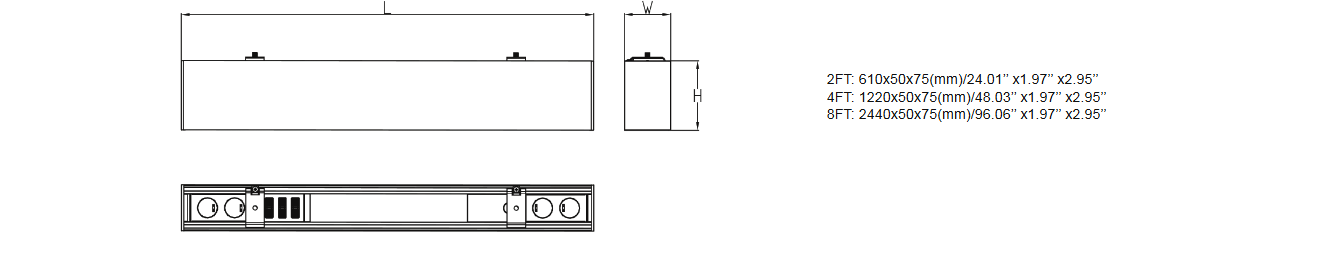

DIMENSION
TECHNICAL SUMMARY
|
MODEL NO. |
WATTAGE |
LUMENS |
CCT |
VOLTAGE |
DIMMING |
CRI |
CERTIFICATION |
|
IMLAS2FT-15/20/25W-5CCT |
15/20/25W |
1725/2300/2875LM |
30/35/40/50/65K |
120-277V |
0-10V |
80+ |
UL |
|
IMLAS4FT-30/40/50W-5CCT |
30/40/50W |
3450/4600/5750LM |
|||||
|
IMLAS8FT-60/80/100W-5CCT |
60/80/100W |
5750/7360/11500LM |
|||||
|
IMLAS2FT-15/20/25W-5CCT-BK |
15/20/25W |
1725/2300/2875LM |
|||||
|
IMLAS4FT-30/40/50W-5CCT-BK |
30/40/50W |
3450/4600/5750LM |
|||||
|
IMLAS8FT-60/80/100W-5CCT-BK |
60/80/100W |
5750/7360/11500LM |
CONSTRUCTION
- Unit includes heavy duty metal frame, LED array, heat sink, hanger, security cable and high quality PC lens.
OPTICS
- Diffuse for uniform illumination.
- CRI 80
DRIVER
- 120 - 277V 60Hz universal input voltage.
- 0 - 10V smooth flicker free dimming down to 5%.
MOUNTING
- Mount to the ceiling, wall, etc.
LISTING
- UL 8750 LED equipment in Lighting Products
WARRANTY
- 5 years manufacturer warranty
- Terms and conditions may apply.
5 years limited LED luminaire warranty to the original purchaser that the luminaire shall be free from defects in mate-rials and workmanship from date of shipment, when under properly installed at normal conditions of use. The warranty may not cover physical damage or abuse under certain conditions.
HIGHLIGHT
Versatile Wattage & Size Option
- The MLAS series offers LED fixtures in 2ft, 4ft, and 8ft sizes with multiple wattage choices, ensuring flexibilty for different lighting needs.
Selectable Color Temperature
- Each fixture allows users to choose from 3000K, 3500K, 4000K, 5000K, and 6500K color temperature.

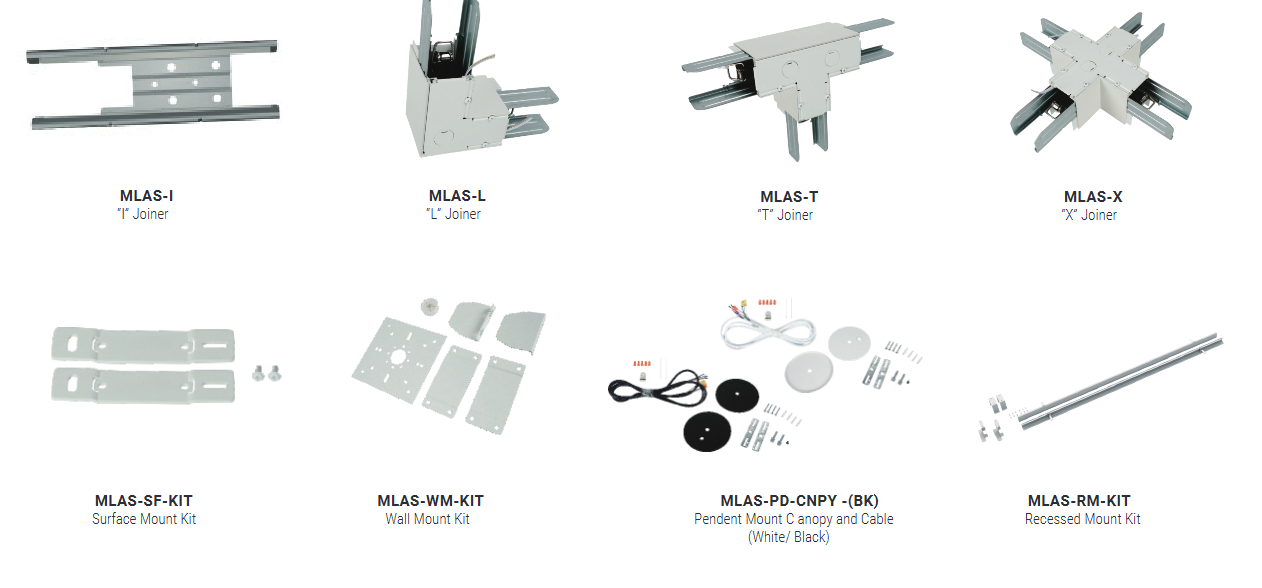

ACCESSORIES
