IMLH07-CCT AND WATTAGE ADJUSTABLE
Description:
New generation of Linear high bay series IMLH07, while ensuring high energy efficiency, excellent light uniformity and long lifespan, aims to reduce the contractor's budget, making it an ideal choice for retrofit or new project installation. The compact structure design makes the installation of the fixture easier and faster. Each model supports CCT & Wattage Selectable, which improves the flexibility and convenience of on-site installation and significantly reduces stocking SKUs.
Contact UsCONSTRUCTION
- The rugged, one-piece die-cast aluminum housing features a rock-solid quality and performance.
- The LED module and driver are I-separated and extend service life through convection cooling, thermal management.
- The compact design saves labor cost and improves installation efficiency.
- Innovative contractor-friendly packaging makes installation faster.
OPTICS
- Light engines are available in color selectable version, the CCT can be changed to two CCTs (4000K, 5000K).
- Scalable Lumen Packages from 5,100 to 60,600 Lumens.
- Prismatic translucent lens is designed to shape the light uniformity and controls the glare light.
ELECTRICAL
- Universal 120-277VAC or 347-480VAC input voltage.
- Wattage adjustable: 100%, 80%, 60%, 40%.
- 0-10V dimming standard for a dimming range of 100% to 10%.
- PF >90%, THD <20%, 6KV surge protection.
- Operating Temperature Range: -40°C to 50°C (-40˚F - + 122˚F). Note: Operating with emergency battery temperature range: 5°C to 50°C (+41˚F - + 122˚F).
APPLICATION
- Suitable for commercial, retail and institutional applications including gymnasiums, factories and warehouses.
Controls
- Optional PIR Sensor or Bluetooth Smart Control Sensor available for further energy-saving.
- The standard sensor receptacle can quickly install sensors on site.
INSTALLATION

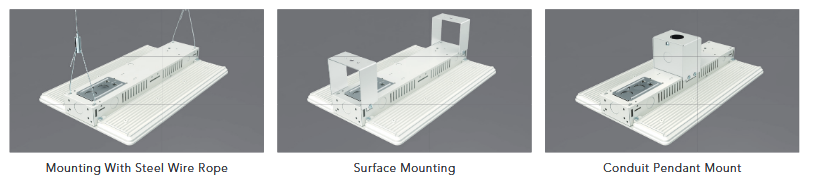

- Steel wire rope mount (default).
- Surface mount (option).
- Conduit pendant mount (option).
LIFESPAN
- Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
WARRANTY
- Five-year limited warranty.
CERTIFICATIONS
- UL cUL damp location listed.
- DesignLights Consortium™ Qualified.
Note: Please refer to the DLC website for specific product
qualifications at www.designlights.org.
NOTE
- Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(±5°C ) specifications subject to change without notice.
PERFORMANCE DATA
| IMLH07 130W | |||||
|---|---|---|---|---|---|
| SETTING | SYSTEM WATTS | 4000K (80CRI) | 5000K (80CRI) | ||
| LUMENS | LPW | LUMENS | LPW | ||
| 100% | 130W | 18500lm | 142 lm/W | 18500lm | 142 lm/W |
| 80% | 104W | 15200lm | 146 lm/W | 15200lm | 146 lm/W |
| 60% | 78W | 12100lm | 155 lm/W | 12100lm | 155 lm/W |
| 40% | 52W | 8200lm | 158 lm/W | 8200lm | 158 lm/W |
| IMLH07 160W | |||||
|---|---|---|---|---|---|
| SETTING | SYSTEM WATTS | 4000K (80CRI) | 5000K (80CRI) | ||
| LUMENS | LPW | LUMENS | LPW | ||
| 100% | 160W | 24100lm | 151 lm/W | 24100lm | 151 lm/W |
| 80% | 128W | 20000lm | 156 lm/W | 20000lm | 156 lm/W |
| 60% | 96W | 15500lm | 161 lm/W | 15500lm | 161 lm/W |
| 40% | 64W | 10600lm | 166 lm/W | 10600lm | 166 lm/W |
| IMLH07 205W | |||||
|---|---|---|---|---|---|
| SETTING | SYSTEM WATTS | 4000K (80CRI) | 5000K (80CRI) | ||
| LUMENS | LPW | LUMENS | LPW | ||
| 100% | 205W | 30500lm | 149 lm/W | 30500lm | 149 lm/W |
| 80% | 164W | 25000lm | 152 lm/W | 25000lm | 152 lm/W |
| 60% | 123W | 19500lm | 159 lm/W | 19500lm | 159 lm/W |
| 40% | 82W | 14000lm | 171 lm/W | 14000lm | 171 lm/W |
| IMLH07 250W | |||||
|---|---|---|---|---|---|
| SETTING | SYSTEM WATTS | 4000K (80CRI) | 5000K (80CRI) | ||
| LUMENS | LPW | LUMENS | LPW | ||
| 100% | 250W | 36100lm | 144 lm/W | 36100lm | 144 lm/W |
| 80% | 200W | 30200lm | 151 lm/W | 30200lm | 151 lm/W |
| 60% | 150W | 24000lm | 160 lm/W | 24000lm | 160 lm/W |
| 40% | 100W | 16400lm | 164 lm/W | 16400lm | 164 lm/W |
| IMLH07 300W | |||||
|---|---|---|---|---|---|
| SETTING | SYSTEM WATTS | 4000K (80CRI) | 5000K (80CRI) | ||
| LUMENS | LPW | LUMENS | LPW | ||
| 100% | 300W | 42000lm | 140 lm/W | 42000lm | 140 lm/W |
| 80% | 240W | 36000lm | 150 lm/W | 36000lm | 150 lm/W |
| 60% | 180W | 28000lm | 156 lm/W | 28000lm | 156 lm/W |
| 40% | 120W | 20000lm | 167 lm/W | 20000lm | 167 lm/W |
| IMLH07 410W | |||||
|---|---|---|---|---|---|
| SETTING | SYSTEM WATTS | 4000K (80CRI) | 5000K (80CRI) | ||
| LUMENS | LPW | LUMENS | LPW | ||
| 100% | 410W | 60600lm | 148 lm/W | 60600lm | 148 lm/W |
| 80% | 328W | 50000lm | 152 lm/W | 50000lm | 152 lm/W |
| 60% | 246W | 38400lm | 156 lm/W | 38400lm | 156 lm/W |
| 40% | 164W | 28000lm | 171 lm/W | 28000lm | 171 lm/W |
