IMSL03 Sports Light 500W to 1200W
Description:
The MSL03 series is a powerful stadium light designed with Remote Power System. This Remote Power System not only makes the fixture easy to install, greatly improves the flexibility of on-site installation, but also simplifies the driver maintenance operation steps to the greatest extent, eliminating the cost to take the bucket or crane basket equipment for maintenance. Precision engineered optics provide excellent high output and high efficiency, making them ideal solutions for municipal, school and semi-professional outdoor sports lighting.
.png)
Construction
- Sealed die-casting profile for outdoor applications
- Low profile, compact design minimizes wind load requirements.
- Housing is completely sealed against moisture and environmental contaminants (IP65).
Optics

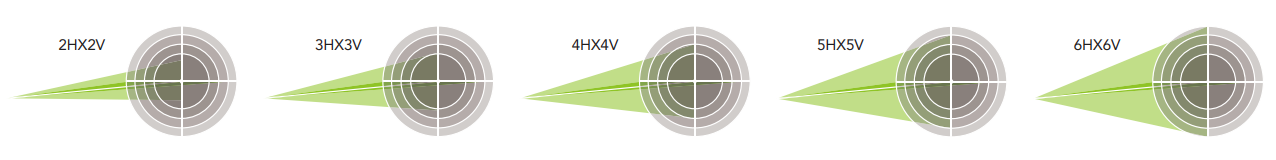

- Available in NEMA 2Hx2V, 3HX3V, 4Hx4V,5HX5V,6HX6V distributions.
- Light engines are available in standard 4000 K, 5000K and 5700 K (70/80/90 CRI) configurations.
- Scalable Lumen Packages from 72,000 to 160,000 Lumens.
- Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
Electrical
- Ultra-wide input voltage: 200-480VAC or 120-277V or 347-480V.
- Standard with 0-10V dimming driver(s)
- Built in surge suppression with max 40KV.
- THD: ≤20%
- Power Factor: >90%
Controls
- Luminaire Level Lighting Control
- High End Trim
- Energy Monitoring
- 2.4GHz Wireless
Ambient Temperature
- Ambient operating temperature -40°C to 50°C (-40 F to 122 F).
Lifespan
- Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Certifications
- UL cUL wet location listed.
Note
- Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 C(+5C) specifications subject to change without notice.
.png)

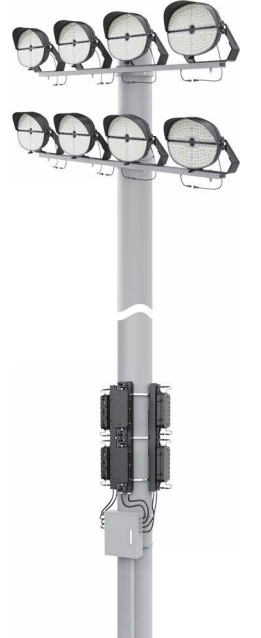

REMOTE POWER BOX (OPTIONAL)
The MSL03 supports remote instalation of the drive power - simple installation, access and maintenance of the equipment can be met by placing the drive power of the fixture at the bottom of the pole by using a fixture and extension power cord (sold separately)
.png)

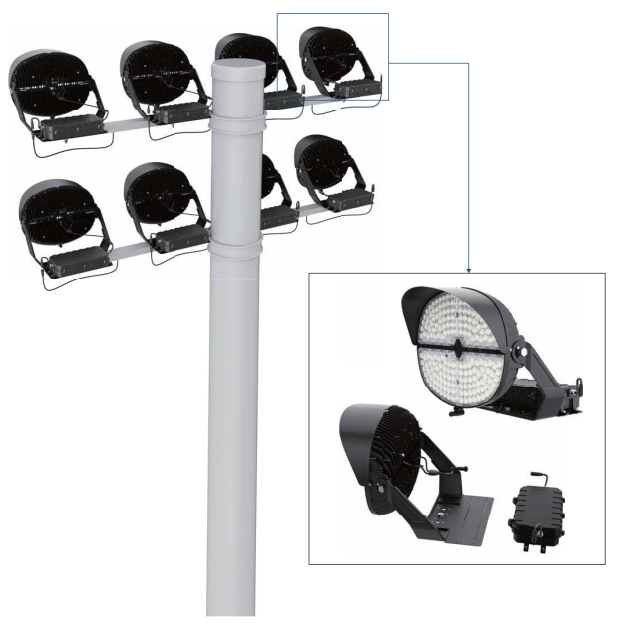

POWER BOX ATTACHED (OPTIONAL)
The fixture with separate power can be installed on the top of the light pole as a whole unit, which is simple and fast way, without additional labor costs to install the driver. It is also beneficial to reduce the power consumption of fixtures caused by remote wiring, save energy and improve efficiency.
.png)

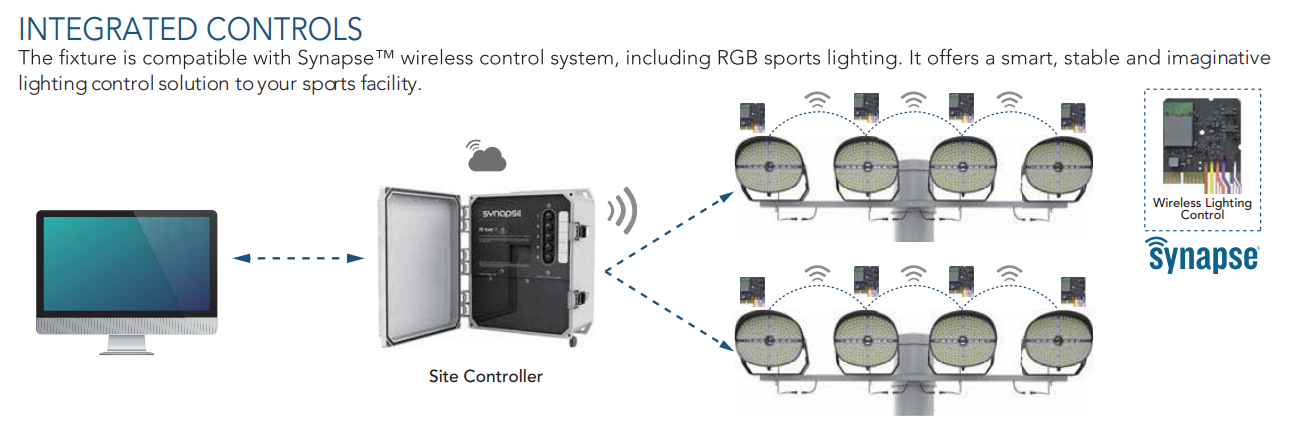

INTEGRATED CONTROLS
.png)
PERFORMANCE DATA
|
SIZE |
SYSTEM WATTS |
VOLTAGE |
NEMA |
EPA |
CRI |
LUMENS (4000K) |
LPW (4000K) |
LUMENS (5000K) |
LPW (5000K) |
LUMENS (5700K) |
LPW (5700K) |
|
Small Size |
500W |
120-277V 347-480V |
4Hx4V |
1.8911 |
70 |
72000lm |
144 lm/W |
72000lm |
144 lm/W |
72000lm |
144 lm/W |
|
3Hx3V |
1.8911 |
70 |
72000lm |
144 lm/W |
72000lm |
144 lm/W |
72000lm |
144 lm/W |
|||
|
Small Size |
600W |
200-480V |
4Hx4V |
1.8911 |
70 |
91000lm |
152 lm/W |
91000lm |
152 lm/W |
91000lm |
152 lm/W |
|
3Hx3V |
1.8911 |
70 |
91000lm |
152 lm/W |
91000lm |
152 lm/W |
91000lm |
152 lm/W |
|||
|
Large Size |
850W |
200-480V |
4Hx4V |
2.5471 |
70 |
120000lm |
141 lm/W |
120000lm |
141 lm/W |
120000lm |
141 lm/W |
|
3Hx3V |
2.5471 |
70 |
120000lm |
141 lm/W |
120000lm |
141 lm/W |
120000lm |
141 lm/W |
|||
|
Large Size |
1200W |
200-480V |
3Hx3V |
2.5471 |
70 |
160000lm |
133 lm/W |
160000lm |
133 lm/W |
160000lm |
133 lm/W |
|
2Hx2V |
2.5471 |
70 |
160000lm |
133 lm/W |
160000lm |
133 lm/W |
160000lm |
133 lm/W |
|||
|
4Hx4V |
2.5471 |
70 |
160000lm |
133 lm/W |
160000lm |
133 lm/W |
160000lm |
133 lm/W |
ELECTRICAL DATA
|
Number Of Drivers |
Driver Current (mA) |
Nominal Power (W) |
INPUT VOLTAGE (V) |
CURRENT (Amps) |
|
1 |
1350 |
500 |
120 |
4.17 |
|
500 |
208 |
2.40 |
||
|
500 |
240 |
2.08 |
||
|
500 |
277 |
1.81 |
||
|
500 |
347 |
1.44 |
||
|
500 |
480 |
1.04 |
||
|
1 |
1250 |
600 |
208 |
2.88 |
|
600 |
240 |
2.50 |
||
|
600 |
277 |
2.17 |
||
|
600 |
347 |
1.73 |
||
|
600 |
480 |
1.25 |
||
|
1 |
2750 |
850 |
208 |
4.09 |
|
850 |
240 |
3.54 |
||
|
850 |
277 |
3.07 |
||
|
850 |
347 |
2.45 |
||
|
850 |
480 |
1.77 |
||
|
1 |
4000 |
1200 |
208 |
5.77 |
|
1200 |
240 |
5.00 |
||
|
1200 |
277 |
4.33 |
||
|
1200 |
347 |
3.46 |
||
|
1200 |
480 |
2.50 |

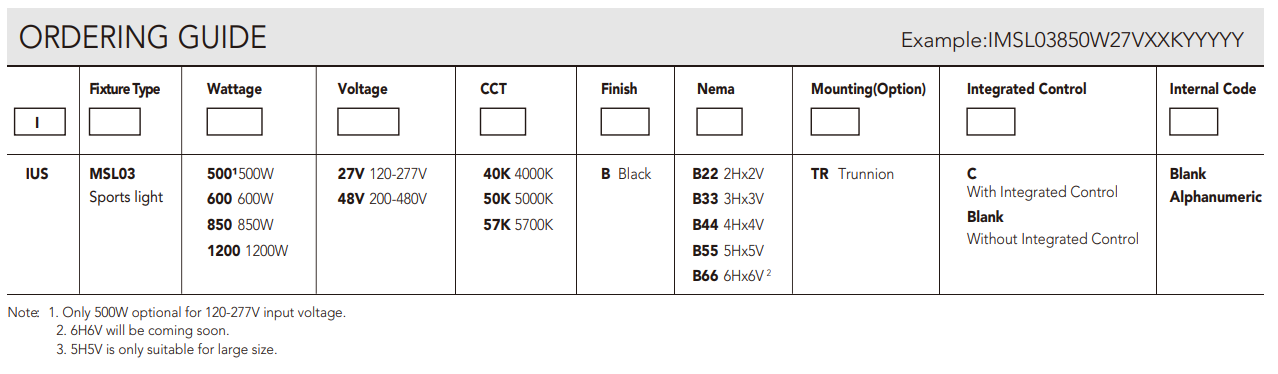

ORDERING GUIDE
.png)

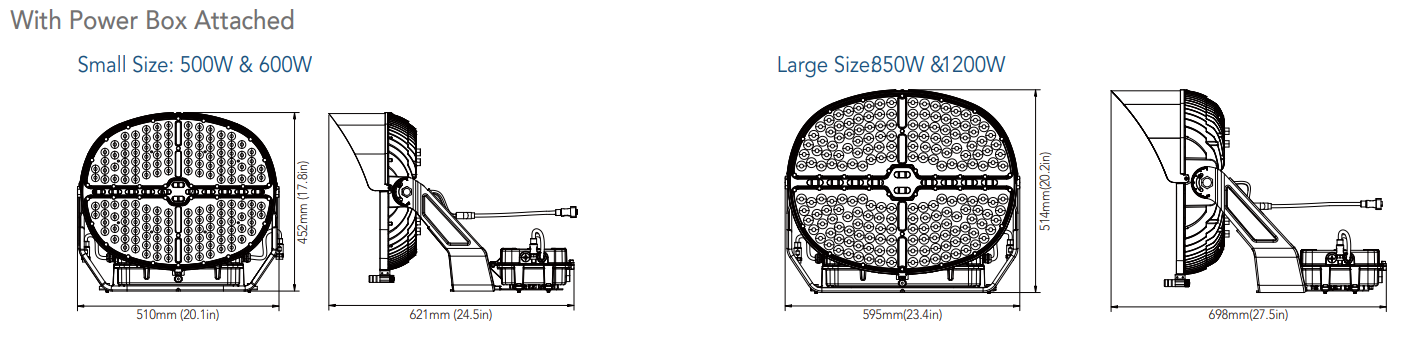

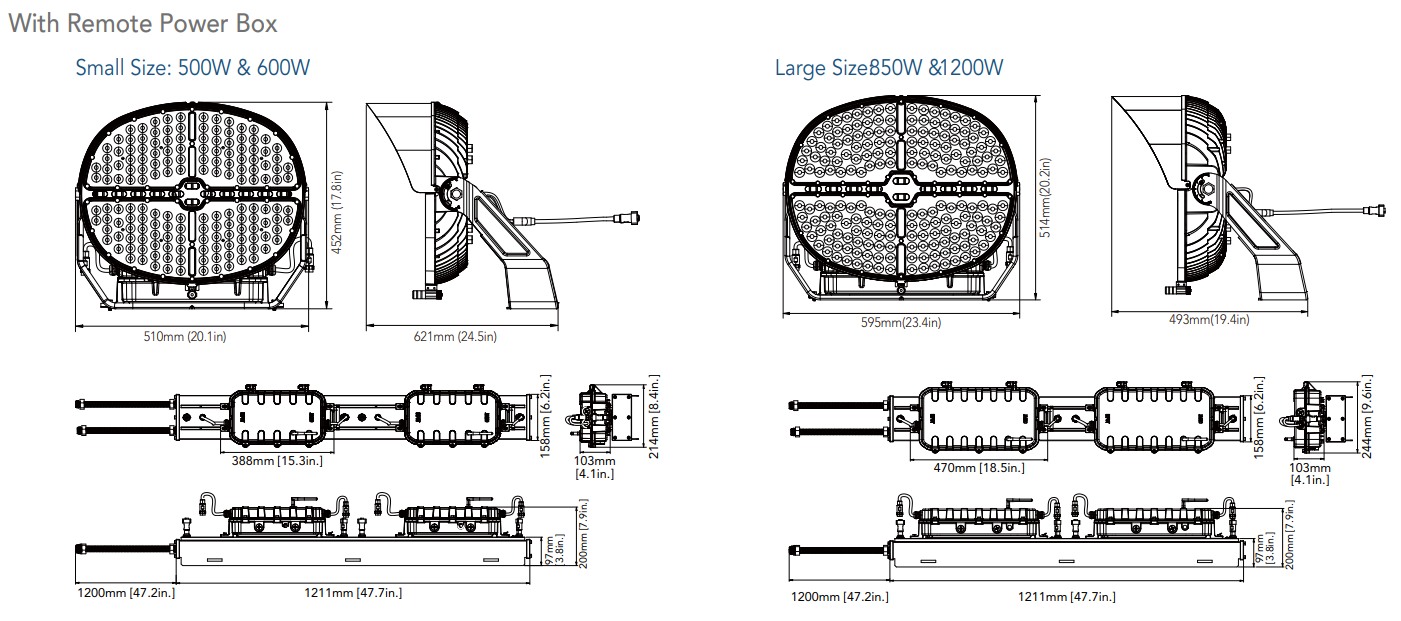

DIMENSIONAL
