IMWP04 Wall Pack Semi Cut-off 27W to 115W
Description:
As versatile as it is efficient, WP04 is designed to replace up to 400W metal halide while saving up to 87% in energy costs. The brand new WP04 series provides enhanced end-user experiences and unmatched energy savings. The long life LEDs and driver make this fixture nearly maintenance-free. The classic architectural shape of the WP04 series was designed for applications such as roadway lighting, building entrances, schools, tunnels, factories and loading docks.
Construction
- Rugged cast-aluminum housing with bronze polyester powder paint for outdoor applications.
- Casting thermally conducts LED heat to optimize performance and long life.
- Ultra-Compact Design saves freight and space on lifts and racks during installation.
Optics
- Single CCT 4000K and 5000K are available for standard version
- Scalable Lumen Packages from 3,450 to 14,500 Lumens.
- UV stabilized polycarbonate and glass are both available for the optic lens, the professional prismatic design offers a good light distribution control and guarantees the uniformity.
Electrical
- Universal 120-277 or 347-480 VAC input voltage.
- Optional 0-10V dimming and dimming range from 10%-100%.
- Both drivers have a power factor >90%, THD <20%.
- Operating Temperature Range: -40°C to 40°C (-40˚F - + 104˚F).
Note: Operating with emergency battery temperature range: 10°C to 40°C (+50˚F - + 104˚F).
Lifespan
- Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Warranty
- Five-year limited warranty.
Certifications
- UL cUL wet location listed.
Note：DesignLights Consortium™ Qualified and classified for DLC Standard (all lumen packages), refer to www.designlights.org for details.
Note
- Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(±5°C ) specifications subject to change without notice.
PHOTOMETRICS

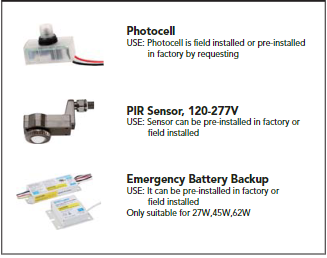

ACCESSORIES
PERFORMANCE DATA
|
SYSTEM WATTS |
VOLTAGE |
Diffuser |
CRI |
LUMENS (4000K) |
LPW (4000K) |
LUMENS (5000K) |
LPW (5000K) |
|
27W |
120-277VAC |
Plastic Diffuser |
70 |
3450lm |
128 lm/W |
3450lm |
128 lm/W |
|
120-277VAC |
Glass Diffuser |
70 |
3400lm |
126 lm/W |
3400lm |
126 lm/W |
|
|
45W |
120-277VAC/347-480VAC |
Plastic Diffuser |
70 |
5600lm |
124 lm/W |
5600lm |
124 lm/W |
|
120-277VAC/347-480VAC |
Glass Diffuser |
70 |
5500lm |
122 lm/W |
5500lm |
122 lm/W |
|
|
62W |
120-277VAC/347-480VAC |
Plastic Diffuser |
70 |
7800lm |
126 lm/W |
7800lm |
126 lm/W |
|
120-277VAC/347-480VAC |
Glass Diffuser |
70 |
7700lm |
124 lm/W |
7700lm |
124 lm/W |
|
|
90W |
120-277VAC/347-480VAC |
Plastic Diffuser |
70 |
11000m |
122 lm/W |
11000m |
122 lm/W |
|
120-277VAC/347-480VAC |
Glass Diffuser |
70 |
10800m |
120 lm/W |
10800m |
120 lm/W |
|
|
115W |
120-277VAC/347-480VAC |
Plastic Diffuser |
70 |
14500m |
126 lm/W |
14500m |
126 lm/W |
|
120-277VAC/347-480VAC |
Glass Diffuser |
70 |
14300m |
124 lm/W |
14300m |
124 lm/W |
Order Guide
|
ORDERING GUIDE Example: IMWP04 45W 27V 50K Y Y Y Y Y Y Y |
|||||||||||
|
IUS |
Fixture Type |
Wattage |
Voltage |
CCT |
Finish |
Dimming |
Diffuser (Option) |
Photocell (Option) |
Sensor (Option) |
Emergency Battery (Option) |
Internal Code |
|
I |
IMWP04 Wall Pack Series |
27 27W 45 45W 62 62W 90 90W 115 115W |
27V 120-277V 48V 347-480V |
30K 3000K 40K 4000K 50K 5000K |
D Dark Bronze B Black W White |
D DIM |
C Plastic Diffuser G Glass Diffuser |
P0 With Photocell Blank Without Photocell |
M With Sensor Blank Without Sensor |
B Emergency Battery Blank Without Emergency Battery |
Blank Alphanumeric |
Note:
-
Only 27W, 45W, 62W have Emergency battery option, and emergency battery only suitable for 120-277V voltage.
-
27W is limited to 120-277V input only.

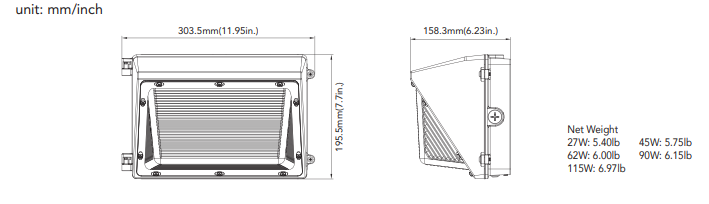

DIMENSIONS
MOUNTING
|
|
The external portable mounting plate makes installation super easy and simple.There's no need to openfixture housing, nor drill on housing, which greatly minimize the risk of water ingression. |
IMWP04 Wall Pack Semi Cut-off 27W to 115W
