ITB T-Grid Architectural LED Linear
Description:
IUS T-Grid LED Linear is a new generation green lighting solution that integrated into T-Grid suspended ceilings, allowing to be fully and integrated into 9/16" flat, 9/16" slot, 9/16" interlude or 15/16" flat T-grid. It can replace selected cross tees of the suspended grid ceiling system where light is desired. The innovative separable design of led module and T-grid bracket makes it more flexible. One T-grid bracket allows for integration of multiple LED modules with different CCT with easy and tool-free installation. This innovative produce design brings both performance and aesthetics to any design applications.
Contact UsFeature
- US Patent, UL, cUL, DLC
- Available in 2' and 4' with remote driver
- Flexible separable design of LED module and T-grid bracket
- Continuous runs and custom pattern
- Plenum rated cable, emergency option available
- CCEA option available
- Fit most ceiling types
PERFORMANCE
|
Grid Type |
Length |
Wattage |
Efficacy |
Lumen |
LED Remote Driver |
|
9/16" |
2FT |
10W |
130lm/w, 650lm/ft |
1300lm |
1pc 30w driver for 3pcs lights |
|
4FT |
20W |
130lm/w, 650lm/ft |
2600lm |
1pc 60w driver for 3pcs lights |
|
|
15/16" |
2FT |
10W |
110lm/w, 550lm/ft |
1100lm |
1pc 30w driver for 3pcs lights |
|
4FT |
20W |
120lm/w, 600lm/ft |
2400lm |
1pc 60w driver for 3pcs lights |
It is subject to 3500K. All efficacy is ±5% base on different CCT. Check the IES file to gain the accurate data .

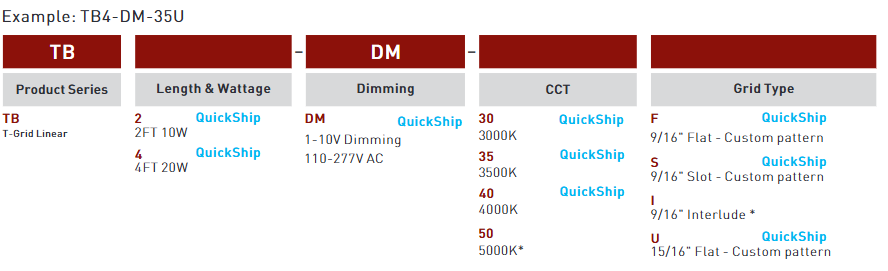

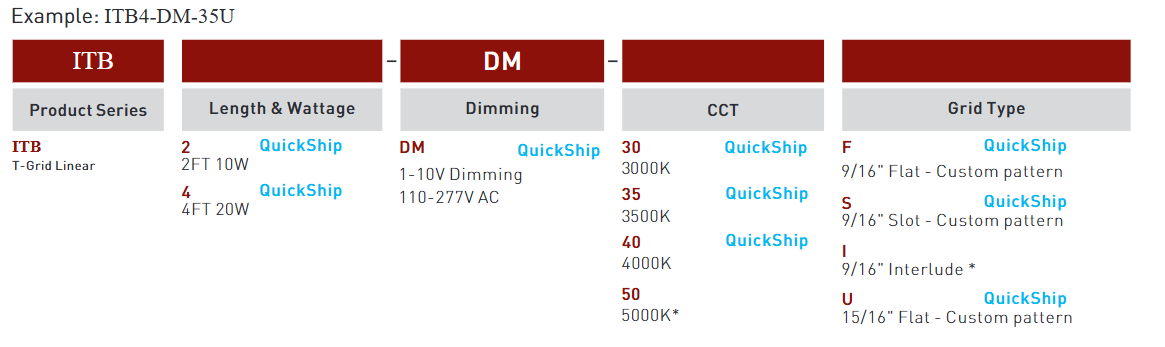

PRODUCT ORDERING GUIDE

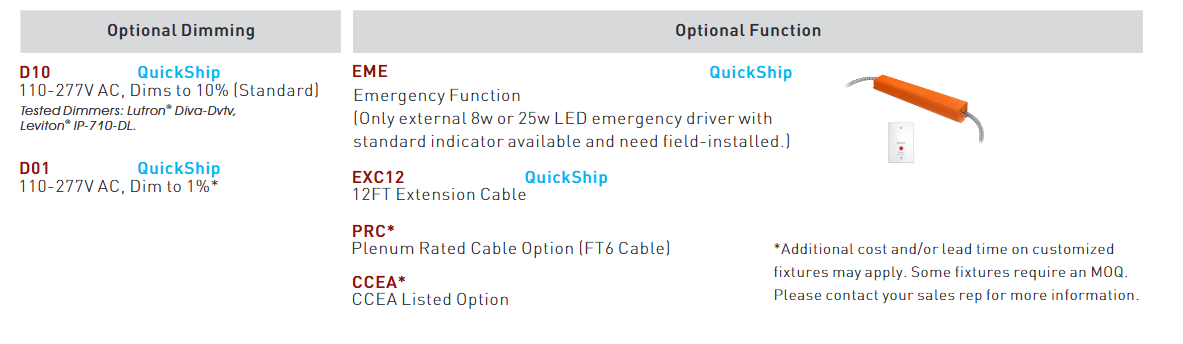

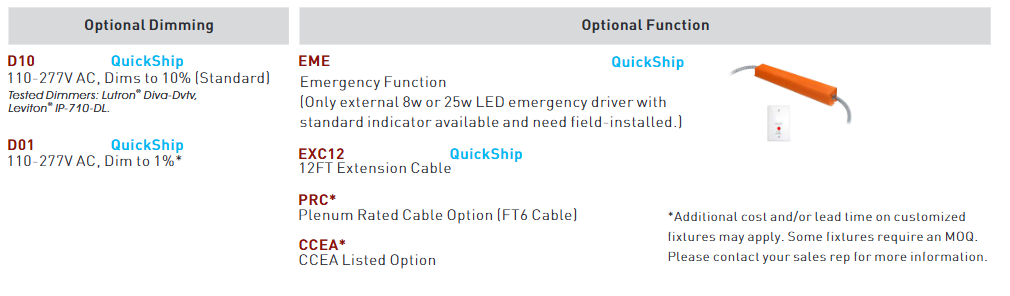

OPTIONAL FUNCTIONS

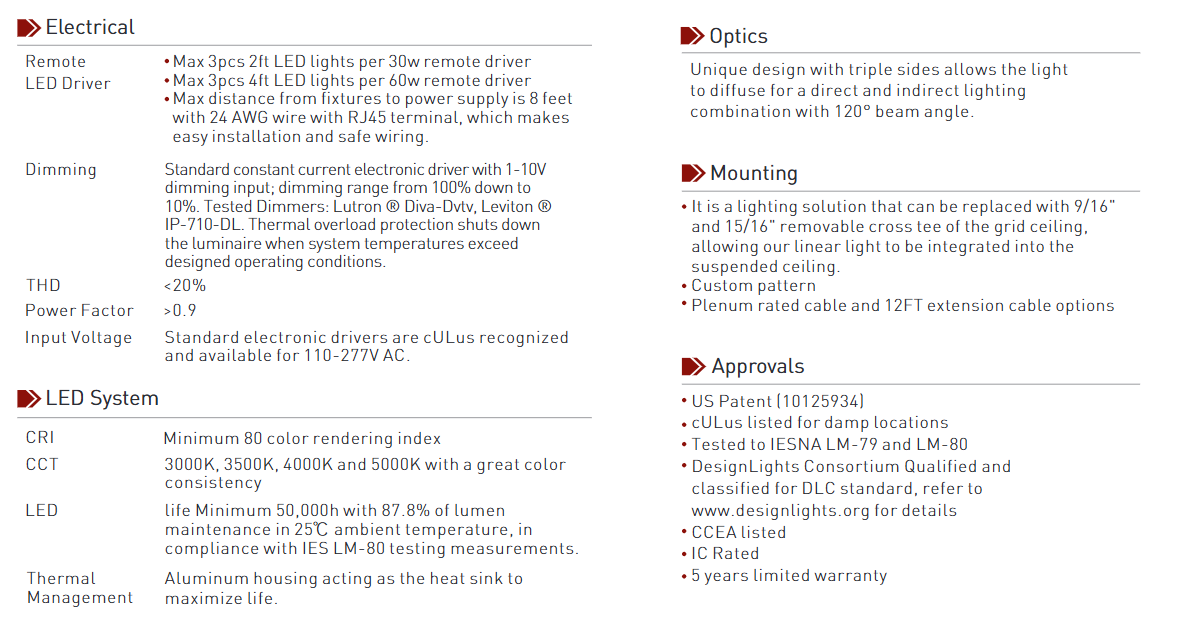

Electrical
| Remote LED Driver |
|
| Dimming | Standard constant current electronic driver with 1-10V dimming input; dimming range from 100% down to 10%. Tested Dimmers: Lutron ® Diva-Dvt, Leviton ® IP-710-DL. Thermal overload protection shuts down the luminaire when system temperatures exceed designed operating conditions. |
| THD | < 20% |
| Power Factor | > 0.9 |
| Input Voltage | Standard electronic drivers are cULus recognized and available for 110-277V AC. |
LED System
| CRI | Minimum 80 color rendering index |
| CCT | 3000K, 3500K, 4000K, and 5000K with great color consistency |
| LED Life | Minimum 50,000h with 87.8% of lumen maintenance in 25°C ambient temperature, in compliance with IES LM-80 testing measurements. |
| Thermal Management | Aluminum housing acting as the heat sink to maximize life. |
Optics
- Unique design with triple sides allows the light to diffuse for a direct and indirect lighting combination with 120° beam angle.
Mounting
- It is a lighting solution that can be replaced with 9/16" and 15/16" removable cross tee of the grid ceiling, allowing our linear light to be integrated into the suspended ceiling.
- Custom pattern
- Plenum rated cable and 12FT extension cable options
Approvals
- US Patent (10125934)
- cULus listed for damp locations
- Tested to IESNA LM-79 and LM-80
- DesignLights Consortium Qualified and classified for DLC standard, refer to www.designlights.org for details
- CCEA listed
- IC Rated
- 5 years limited warranty

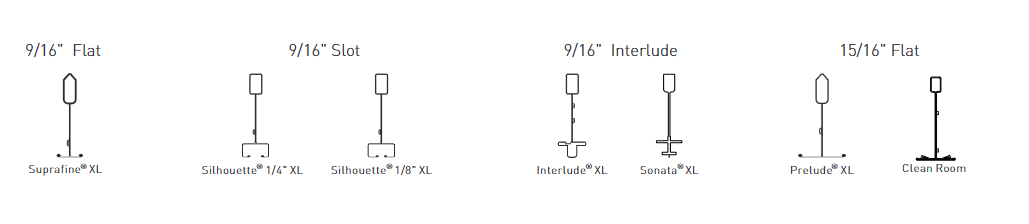

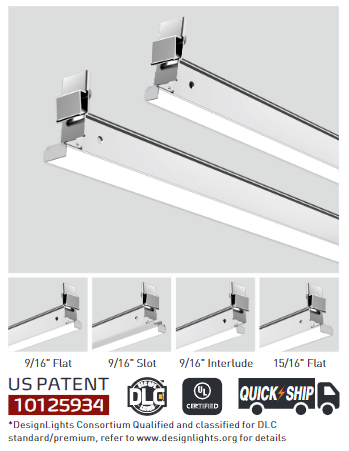

T-GRIDS CEILING COMPATIBILITY

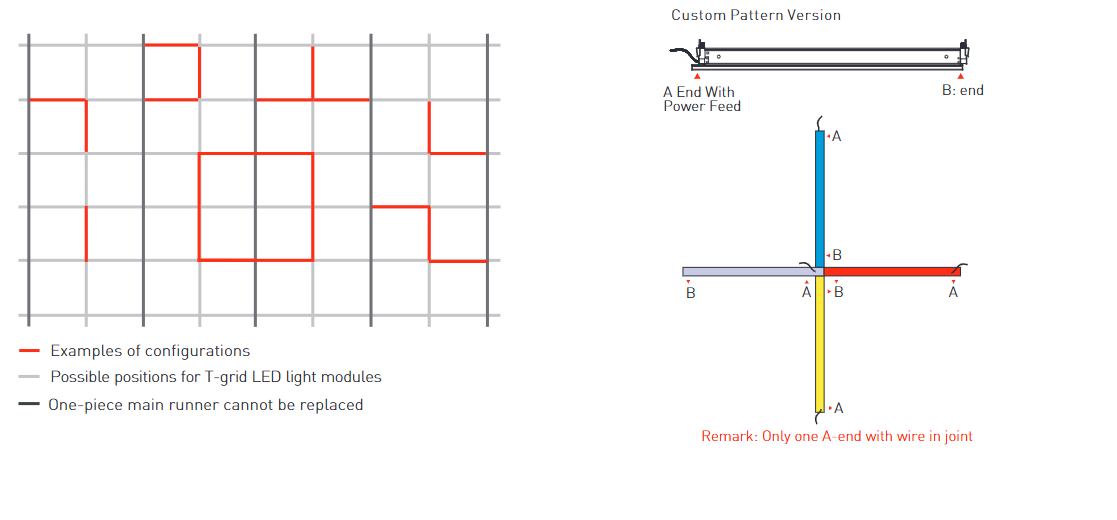

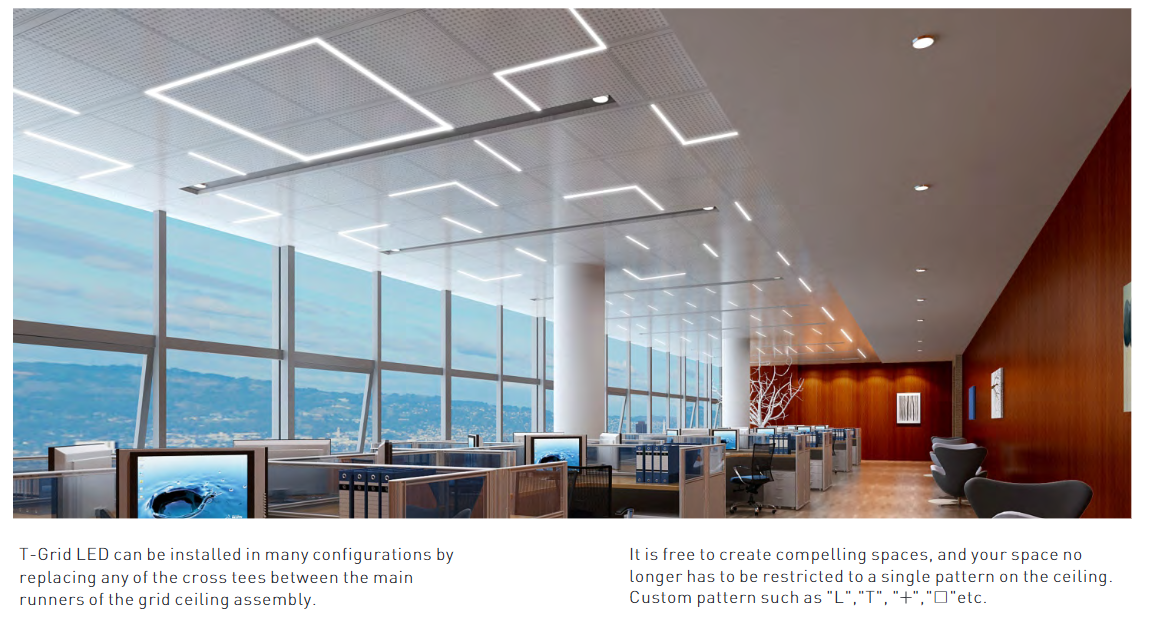

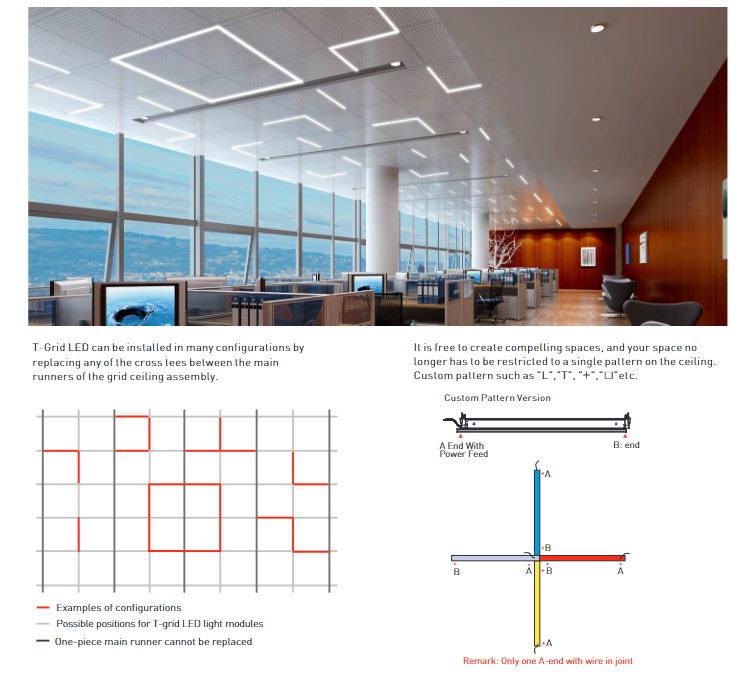

CUSTOM PATTERN

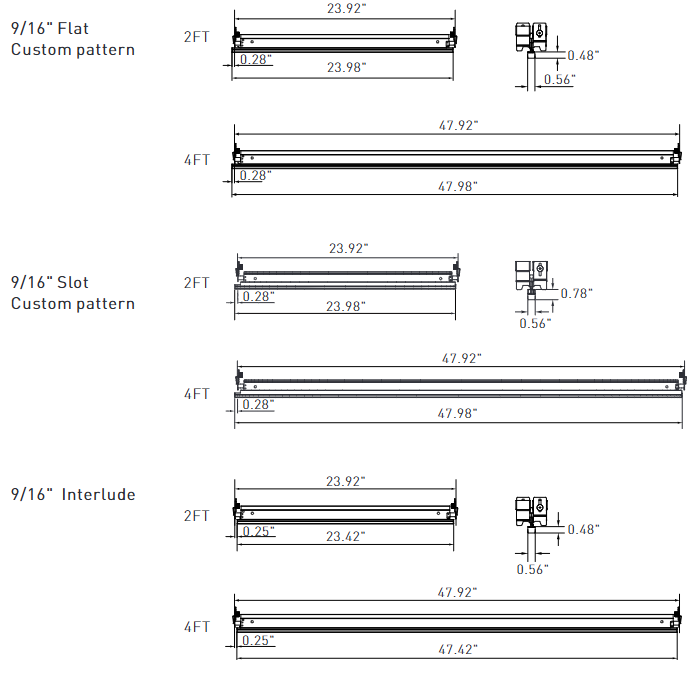

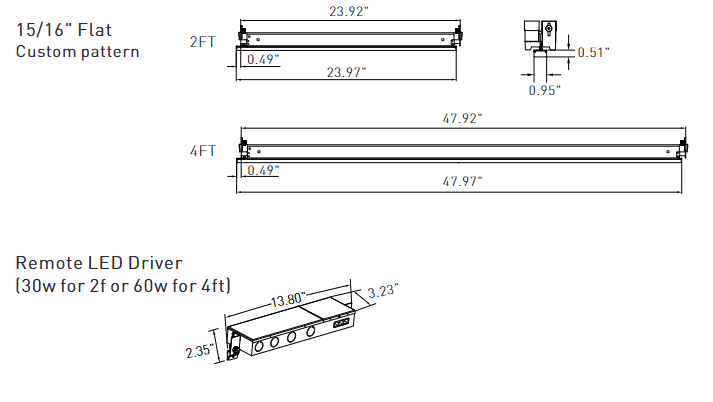

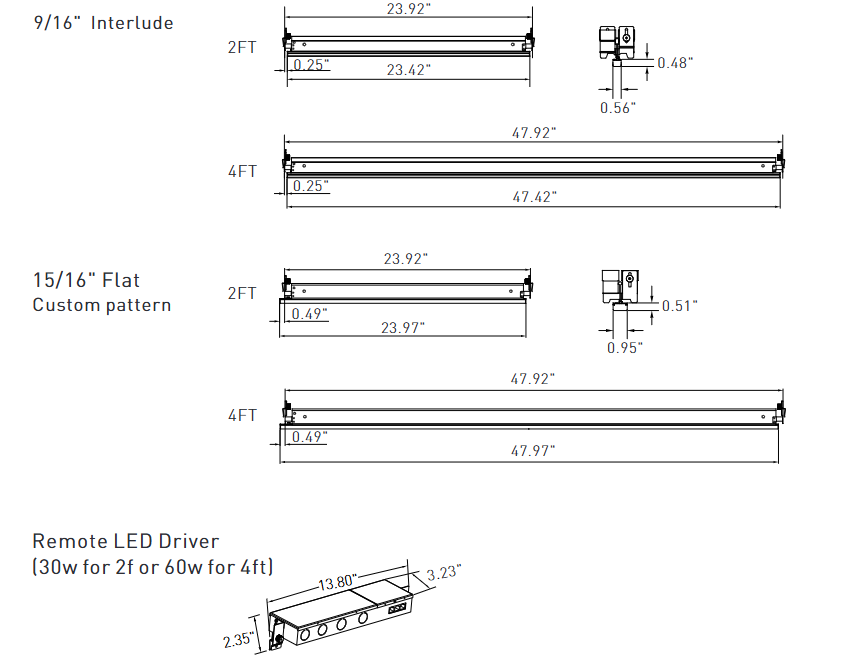

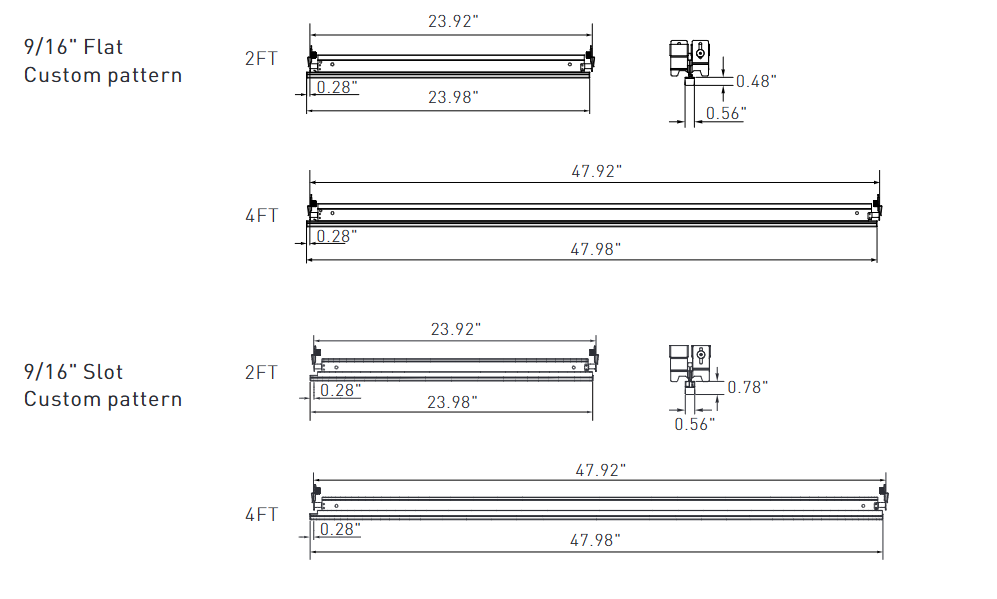

DIMENSION

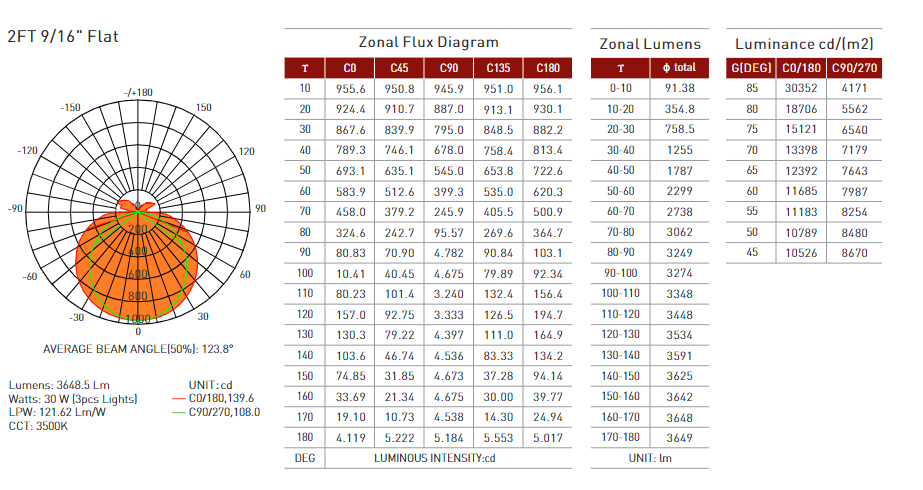

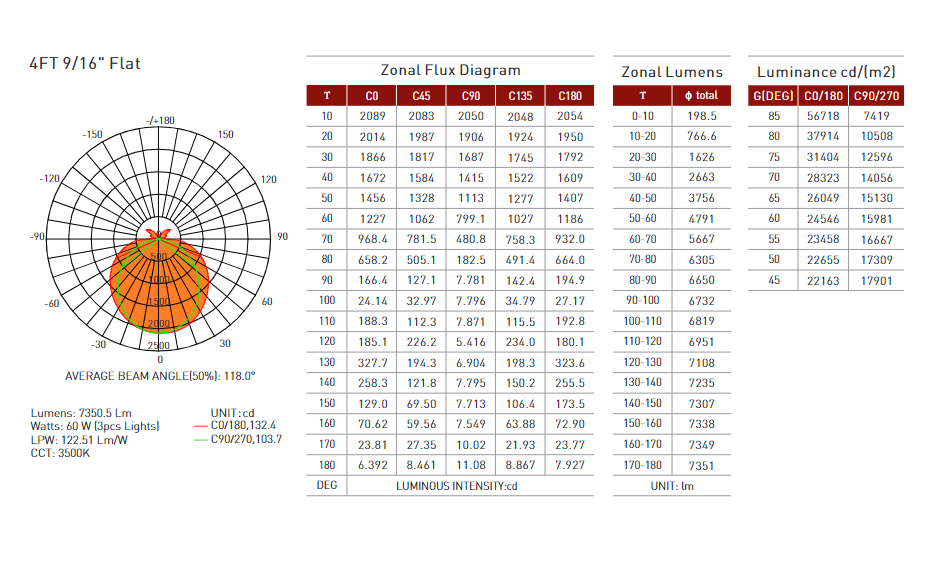

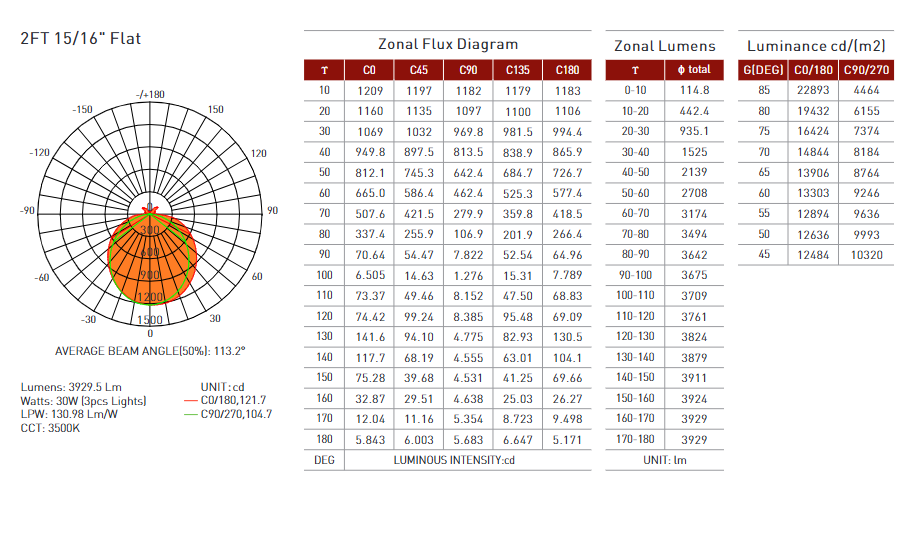

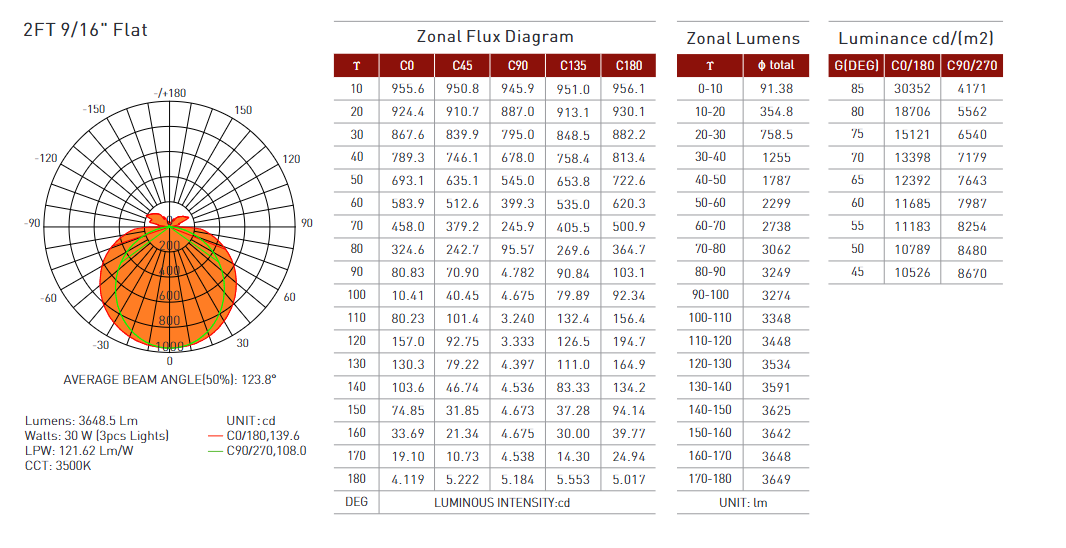

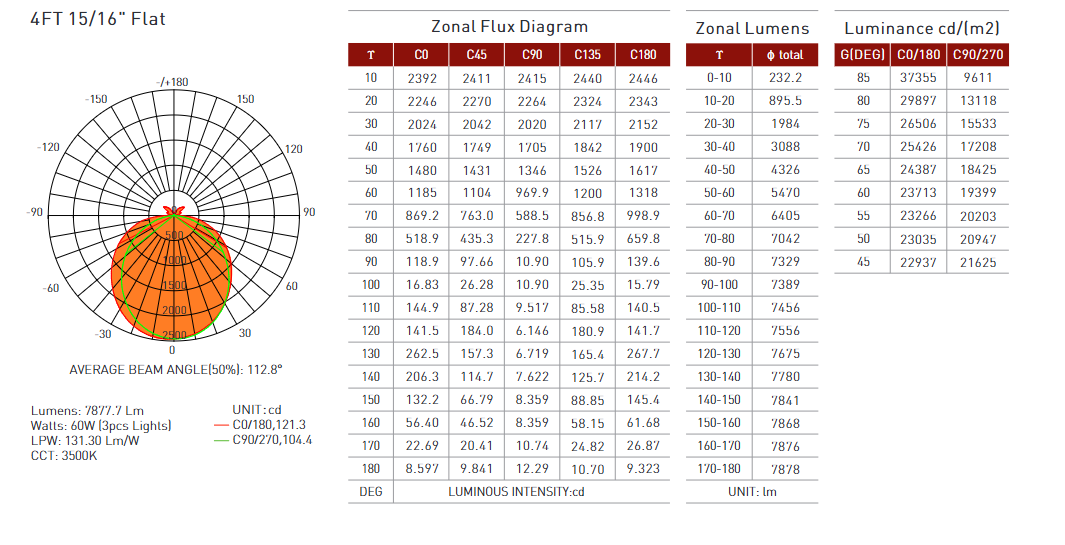

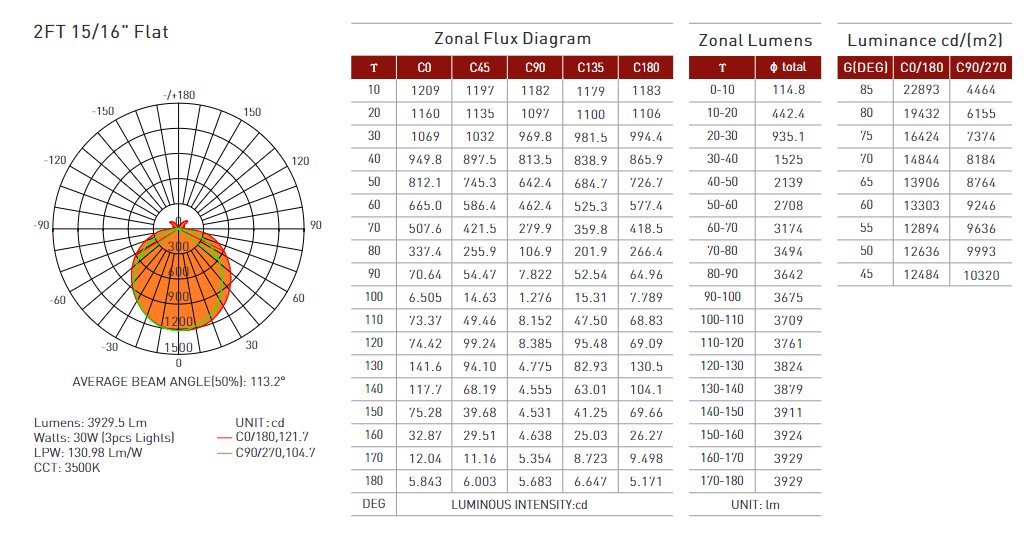

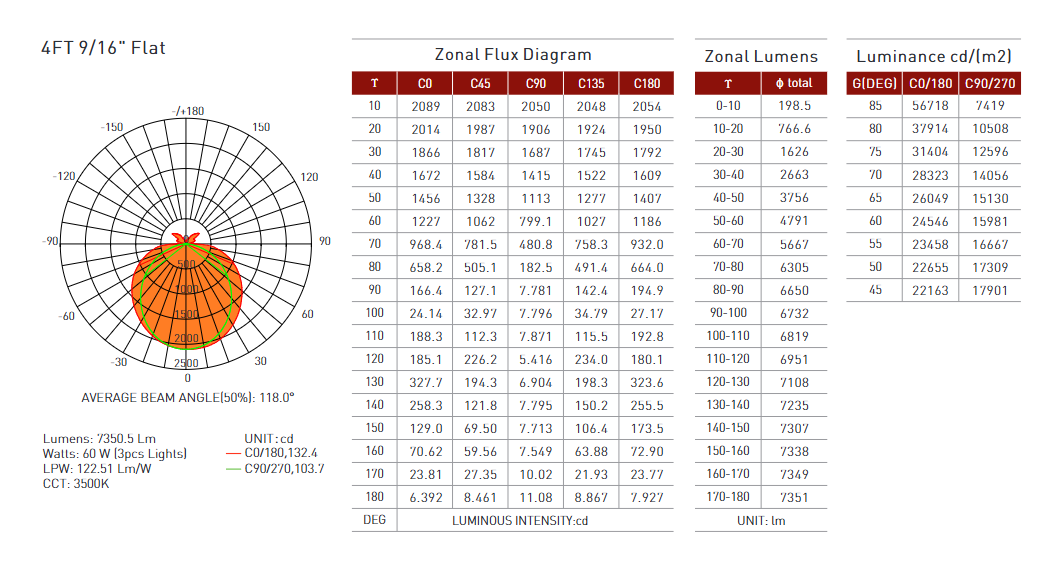

DISTRIBUTION DIAGRAM
ITB T-Grid Architectural LED Linear
