LED EM Drivers
Description:
The Run Bison (RBHV Series) LED Emergency Driver is a rechargeable battery backup solution designed for commercial and industrial lighting fixtures, specifically engineered to work with strip lights, high bay lights, and troffer lights. These drivers are designed to provide uninterrupted illumination during power outages.
.PNG)
Applications
- UL Listed for damp locations.
- Suit for 10-300W lamp with 0-10v dimming function.
- Suit for 10-32W below lamp with or without 0-10v dimming function.
- DC120-190V Output.
- Initial functional self-check.
- Built-in high power AC relay to control normal led driver operation.
- Used with Lithium iron battery.
- Over-charging/discharging protection
- Rest mode
- >90 minutes emergency time.
- Ta:5..50℃(41°F..122°F)
- Initial functional self-check
- IP20
Initial functional self-check
Emergency pack will make a initial functional self-check automatically and red light slow flash. Checking points as below:
- Compatibility with lamp
- Lamp starting current
- Lamp starting time
- Dimming starting voltage
- Dimming slope
After passing the test, emergency pack goes to operate normally andred light stable.
It will never start this test again afterward, unless it goes into rest modeor battery is disconnected.
Protections:
- Input over current protection.
- Output over voltage protection.
- Output under current protection.
- Output short circuit protection.
.PNG)
.PNG)
.PNG)

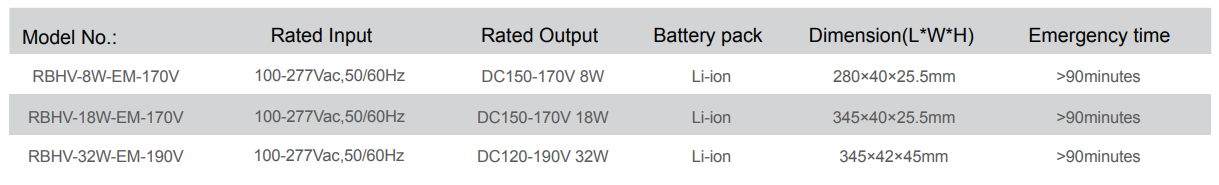

Ordering data
.PNG)

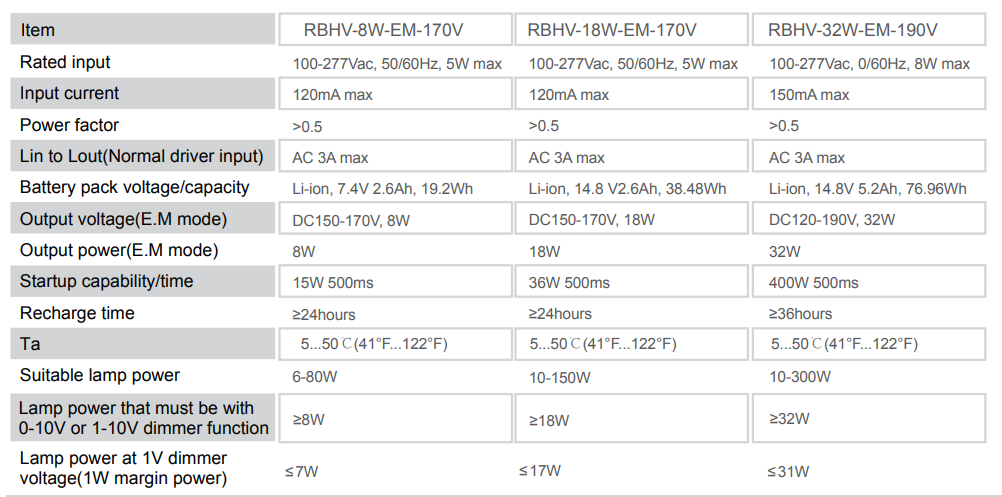

Technical data
.PNG)
