LED Landscape Well Light Open Flat Top
Description:
The IMLWL series features a die-cast aluminum lighting body with a frosted PC lens, designed for standard United States junction pipes. Available in black or ORB body finishes, it is suitable for wet locations and ensures easy installation. Operating efficiently on 12-24V AC/DC, it functions within a temperature range of -4°F to 104°F. With a power consumption of 6W, a CRI of >90Ra, and a copper cable material, it delivers 450-520 lumens with a 5CCT color temperature. The fixture has a lifespan of 50,000 hours and utilizes SMD2835 LEDs with a 52° beam angle. Rated IP65, it is ideal for low-voltage landscape lighting applications, including pathways, driveways, decks, and gardens.

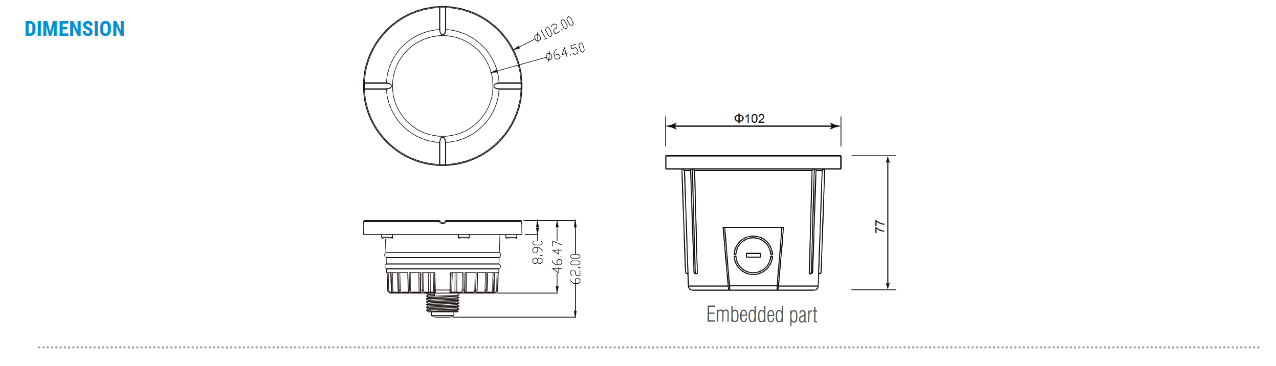

DIMENSION
TECHNICAL SUMMARY
| MODEL NO. | TOP | WATTS | LUMENS | CCT | VOLTAGE | DIMMING | CRI | CERTIFICATION |
|---|---|---|---|---|---|---|---|---|
| IMLWL-6W-30K-FLAT | Open Flat Top | 6W | 520LM | 27/30/35/40/50K | 12-24V | N/A | N/A | ETL |
| IMLWL-6W-30K-LVER | Louver Top | 6W | 520LM | 27/30/35/40/50K | 12-245V | N/A | N/A | ETL |
| IMLWL-6W-30K-SHLD | Shielded Top | 6W | 520LM | 27/30/35/40/50K | 12-24V | N/A | N/A | ETL |
CONSTRUCTION
- Unit includes heavy duty metal frame, LED array, heat sink, hanger, security cable and high quality LED tube.
MOUNTING
WARRANTY
- 5 years manufacturer warranty,
- Terms and conditions may apply.
HIGHLIGHT
Durable Construction
- Made from die-cast aluminum, ensuring long-lasting durability and resistance to harsh outdoor conditon
Easy Installation
- Designed for standard U.S. junction pipes, allowing for quick and hassle-free setup.
