LED Landscape Well Light Shielded Top
Description:
The IMLWL-SHLD series features a die-cast aluminum body with a frosted PC lens, designed for standard U.S. junction pipes. Available in black or ORB finishes, it is ideal for wet locations and offers easy installation. Operating efficiently on 12-24V AC/DC, it functions within a temperature range of -4°F to 104°F. Consuming only 6W of power, it boasts a CRI of over 90Ra and utilizes copper cable material, delivering 450-520 lumens with a 5CCT color temperature. The optical lens and shield design help minimize glare while focusing the light. Rated IP65, this fixture is perfect for low-voltage landscape lighting applications such as pathways, driveways, decks, and gardens.

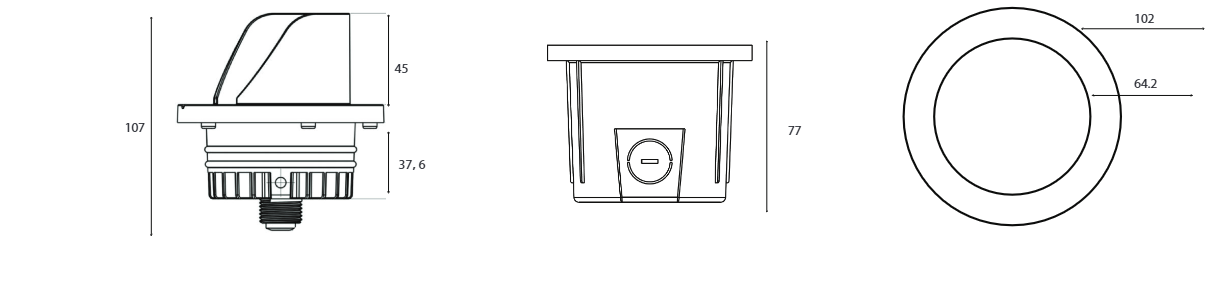

DIMENSION
TECHNICAL SUMMARY
| MODEL NO. | TOP | WATTS | LUMENS | CCT | VOLTAGE | DIMMING | CRI | CERTIFICATION |
|---|---|---|---|---|---|---|---|---|
| IMLWL-6W-30K-FLAT | Open Flat Top | 6W | 520LM | 27/30/35/40/50K | 12-24V | N/A | N/A | ETL |
| IMLWL-6W-30K-LVER | Louver Top | 6W | 520LM | 27/30/35/40/50K | 12-245V | N/A | N/A | ETL |
| IMLWL-6W-30K-SHLD | Shielded Top | 6W | 520LM | 27/30/35/40/50K | 12-24V | N/A | N/A | ETL |
CONSTRUCTION
- Unit includes heavy duty metal frame, LED array, heat sink, hanger, security cable and high quality LED tube.
MOUNTING
WARRANTY
- 5 years manufacturer warranty,
- Terms and conditions may apply.
HIGHLIGHT
Durable Construction
- Made from die-cast aluminum, ensuring long-lasting durability and resistance to harsh outdoor conditon
Easy Installation
- Designed for standard U.S. junction pipes, allowing for quick and hassle-free setup.
LED Landscape Well Light Shielded Top
