Illuminating

CLPU LED lightpipe emergency light combo unit.

Universal single and double face
Ultra bright, energy eff icient white LED emergency lighting.
4.5 watt (36 LEDs x 0.125 watts) per light pipe.
Adjustable high performance, smooth, chrome-plated, metallized ref lector and acrylic, UV-stabilized "Light Pipe” lens for optimal light distribution.
Long life, energy efficient Red or Green LED EXIT sign illumination.
Dual 120V/277 voltage. Charge rate/power "ON” LED indicator light and push-to-test switch for mandated code compliance testing.
4.8V long life, maintenance-free, rechargeable NiCd battery.

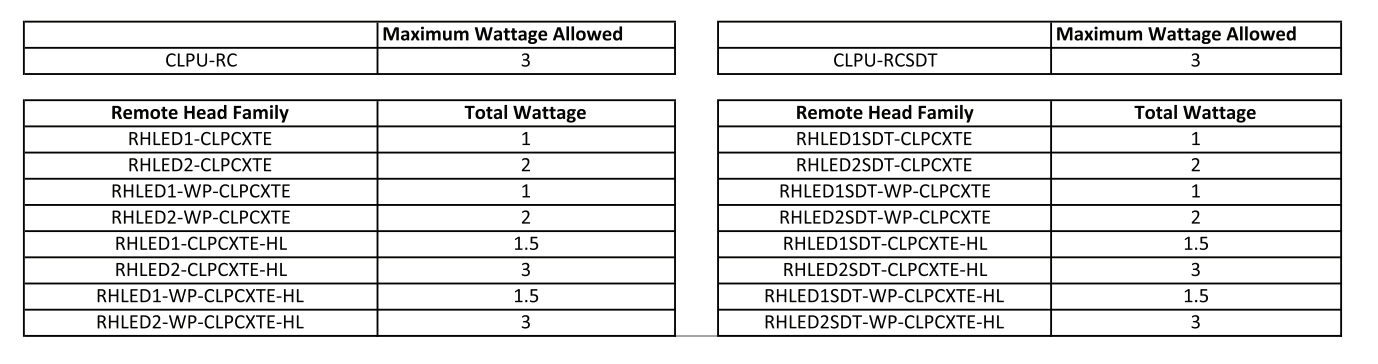

Remote capacity of 3.0 watts standard.
Internal solid-state transfer switch automatically connects the internal battery to LED board and LED lamp heads for minimum 90-minute emergency illumination.
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
EZ-snap mounting canopy included for top or end mount.
Universal knockout pattern on back plate for wall mount.

Ultra-bright, energy efficient white LED emergency lighting.
4.5W (36 LEDs x 0.125 watts) per light pipe
Adjustable high-performance, smooth, chrome-plated, metallized reflector and acrylic, UV-stabilized "light pipe" lens for optimal light distribution.
Long-life, energy efficient Red or Green LED exit sign illumination.

Dual 120/277 voltage.
Charge rate/power "ON" LED indicator light and push-to-test switch for mandated code compliance testing.
4.8V long-life, maintenance-free, rechargeable NiCd battery.
Internal solid-state transfer switch automatically connects the internal battery to LED board/light pipe for minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Remote capable standard.

Injection-molded, engineering-grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finishes.
EZ snap out Chevron directional indicators.

SDT: Self-diagnostic test feature performs monthly. biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.

Five year warranty on all electronics and housing. Battery pro-rated for five years.
Meets UL924, NFPA 101 Life Safety Code. NEC. OSHA. Local and State Codes.
UL listed for damp locations. (0°C — 50°C)
