Linear HB SINGLE CCT AND WATTAGE SELECTABLE IMLH06

Description:

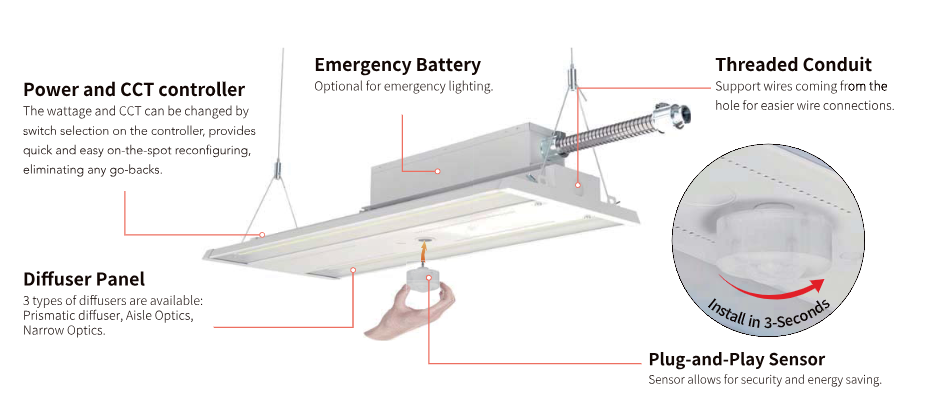

The IMLH06 series is a simple linear design of fixture, showing high energy efficiency and high performance on a low budget. Compared to traditional light sources, it can save more than 60 percent of energy costs and significantly improve lighting performance. The perfect combination of optics and design makes it a fixture that is both beautiful and practical. It also comes with a colored temperature adjustment function that allows it to capture the unique atmosphere of the scene, and an excellent thermal management system effectively extends the service life of the fixture, making it ideal for warehousing, large indoor spaces, retail and commercial applications.

Contact Us

Construction

  • Rugged cold-rolled steel plate corrosion-resistant housing.
  • Ultra-Compact, Sturdy Design saves freight and space on lifts and racks during installation.
  • Visual comfortable light comes from a simple contour.

Optics

  • Scalable Lumen Packages from 3,980 to 70,000 Lumens.
  • Prismatic diffuser for least glare light.
  • Aisle optics are designed for lighting long strips.
  • Narrow optics are suitable for places with high requirements for lighting accuracy and illumination.

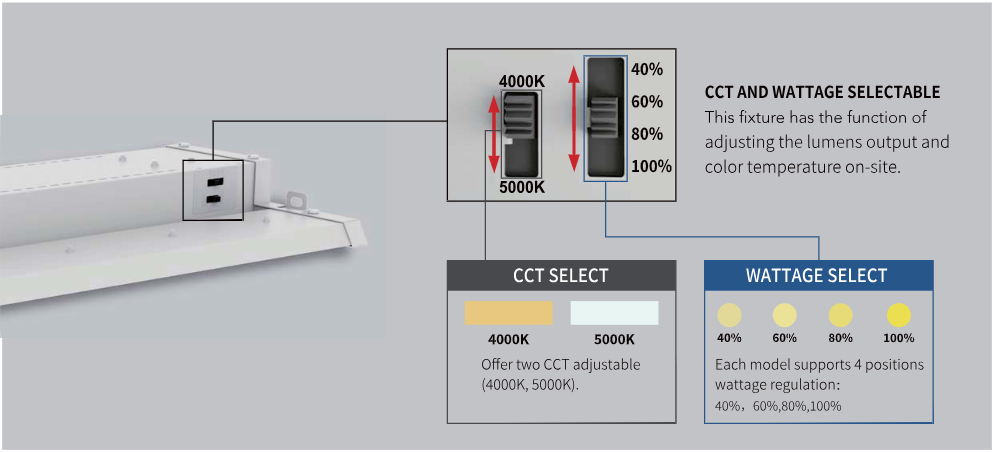

  • This fixture has the function of adjusting the lumens output and color temperature on-site.

LED Module

  • Light engine has color adjustable version, CCT can be adjusted to 4000K/5000K.
  • Light engines of 330W and 400W are available in standard color temperature (4000K/5000K) configurations.

Electrical

  • Universal 120-277VAC or 347-480VAC input voltage.
  • 0-10V dimming driver standard for 10% to 100% dimming.
  • 6KV surge protection.
  • Both drivers have a power factor >90%, THD <20%
  • Each model can be adjusted four watts :100%, 80%, 60%, 40%
  • Operating temperature is -40°C to 50°C (-40°F to 122°F).

Note: Operating with emergency battery temperature range: 0°C to 50°C (+32°F-+122°F).

Control

  • Optional Occupancy sensor, Microwave sensor, Multifunction Sensor or daylight sensor.
  • Optional Bluetooth sensor or Bluetooth controller.
  • Silvair Luminaire Level Lighting Control (LLLC) optional
  • Sharkward Luminaire Level Lighting Control (LLLC) optional.
  • Haisen Luminaire Level Lighting Control (LLLC) optional.
  • Also compatible with 3rd party smart network control system.
  • Compatible with high end trim.

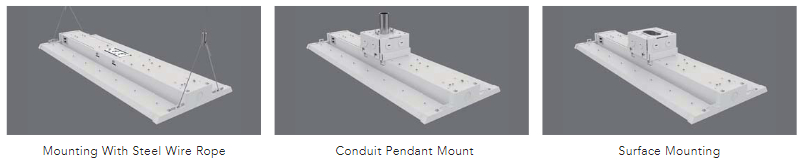

Installation

  • Steel wire rope mount (default).
  • Pendant mount (option).
  • Surface mount (option).

Lifespan

  • Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

Warranty

  • Five-year limited warranty.

Certifications

  • UL cUL damp location listed.

Note

  • Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(±5°C) specifications subject to change without notice.

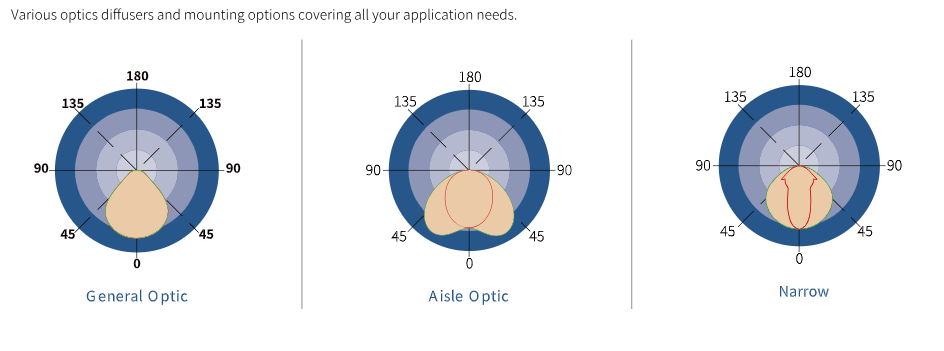

PHOTOMETRY

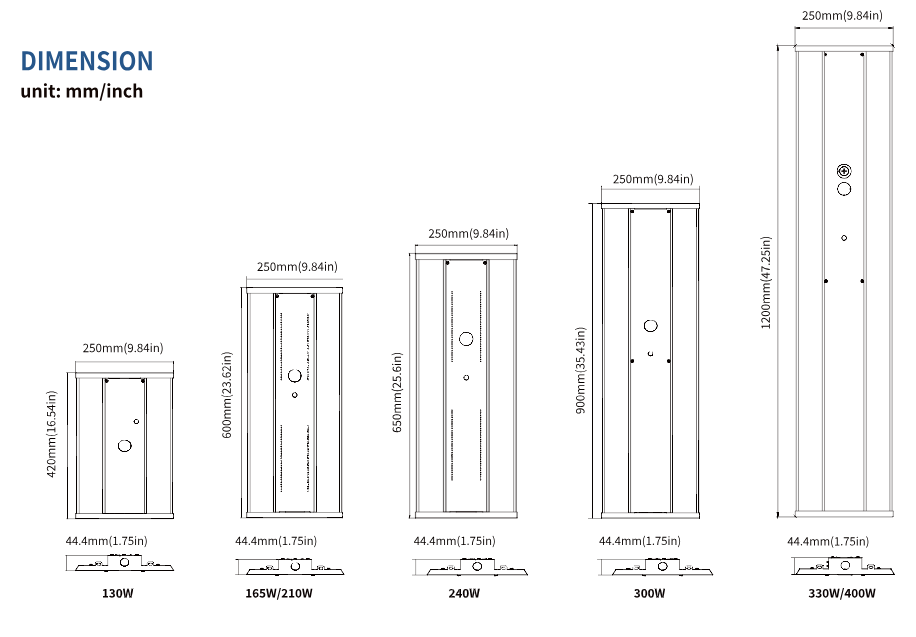

DIMENSION

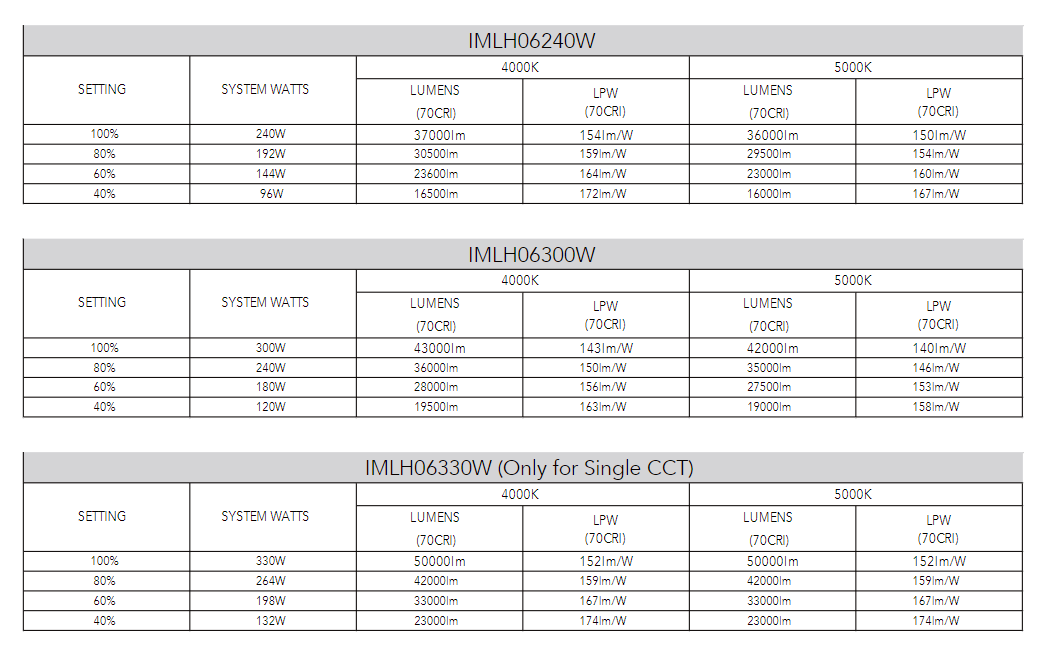

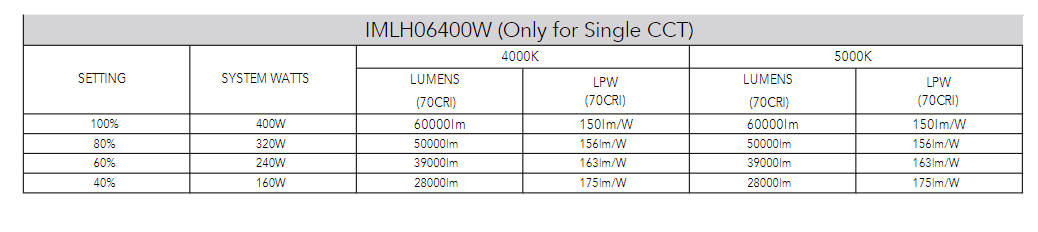

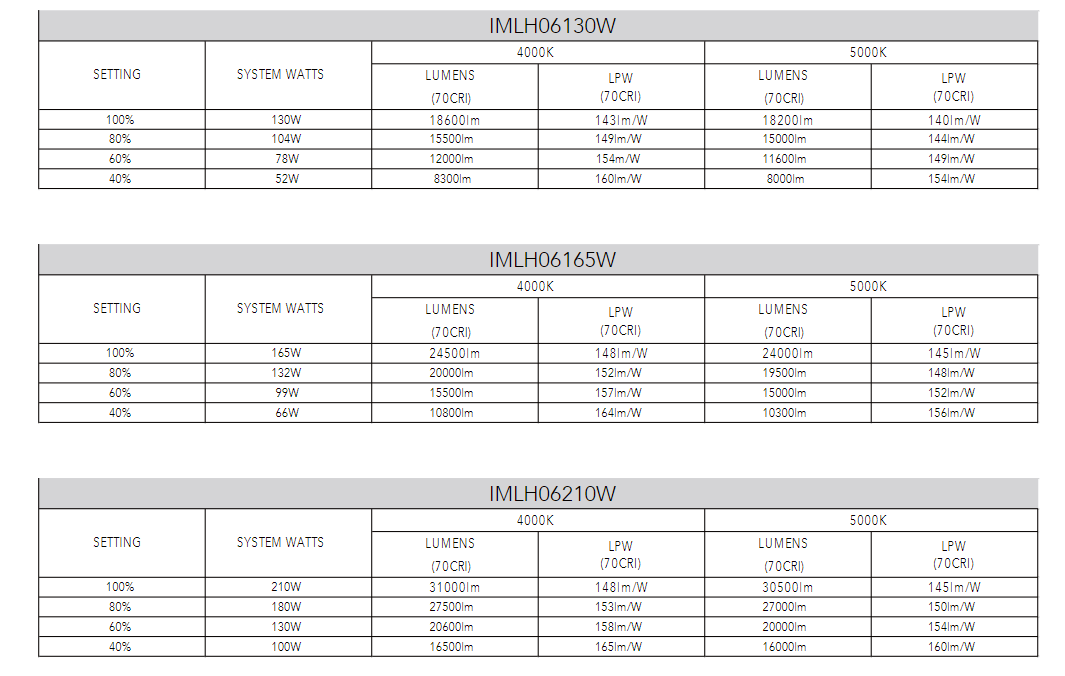

PERFORMANCE DATA

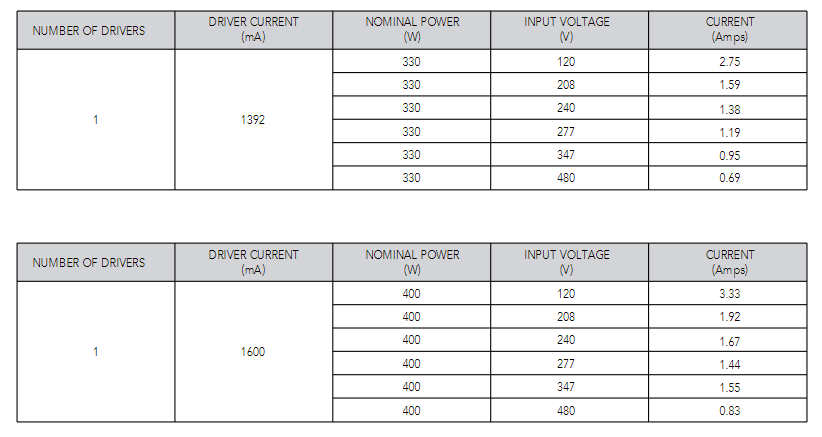

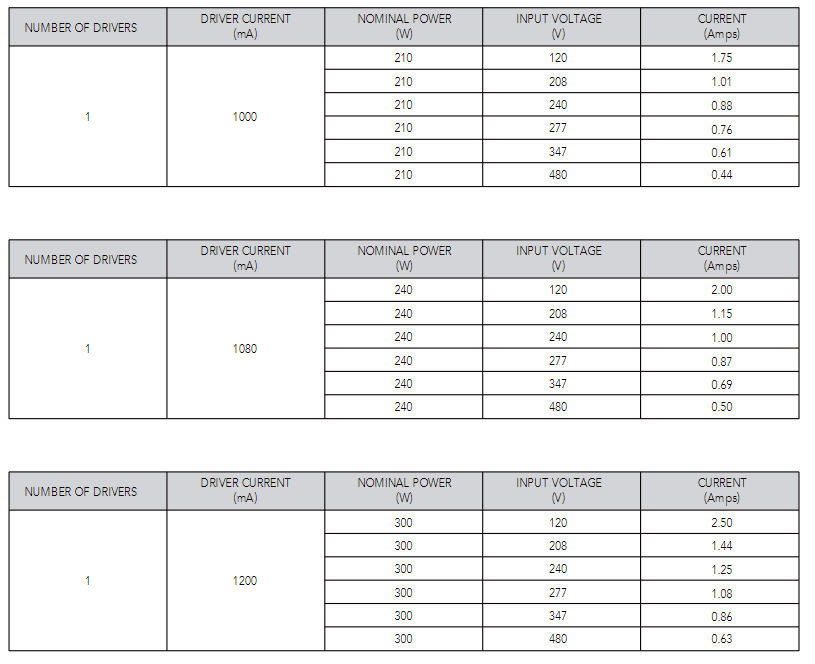

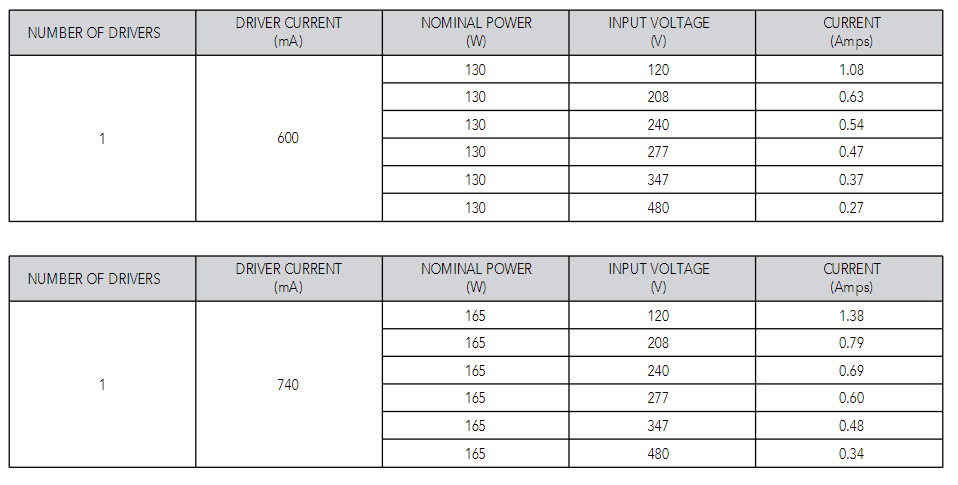

ELECTRICAL DATA

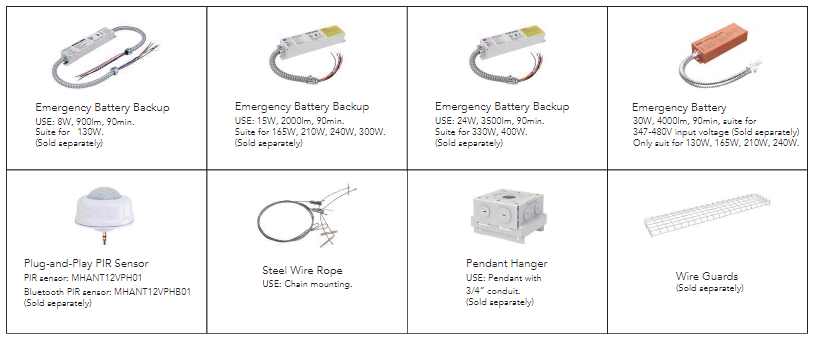

ACCESSORIES (Optional)

MOUNTING

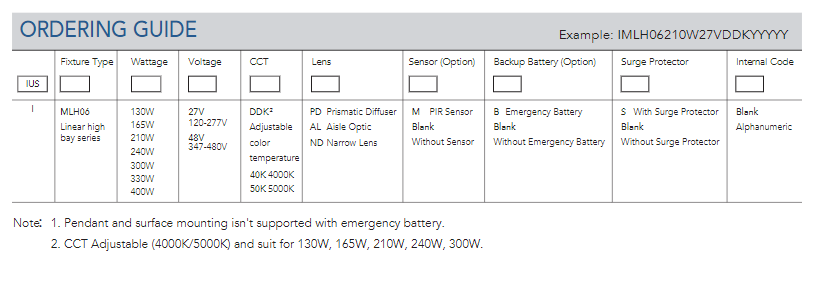

ORDERING GUIDE

Linear HB SINGLE CCT AND WATTAGE SELECTABLE IMLH06

IMLH06 – Single Wattage
