• The durable aluminum heat sink can effectively conduct the heat away from the LED module, thereby improving optical performance and extending service life.

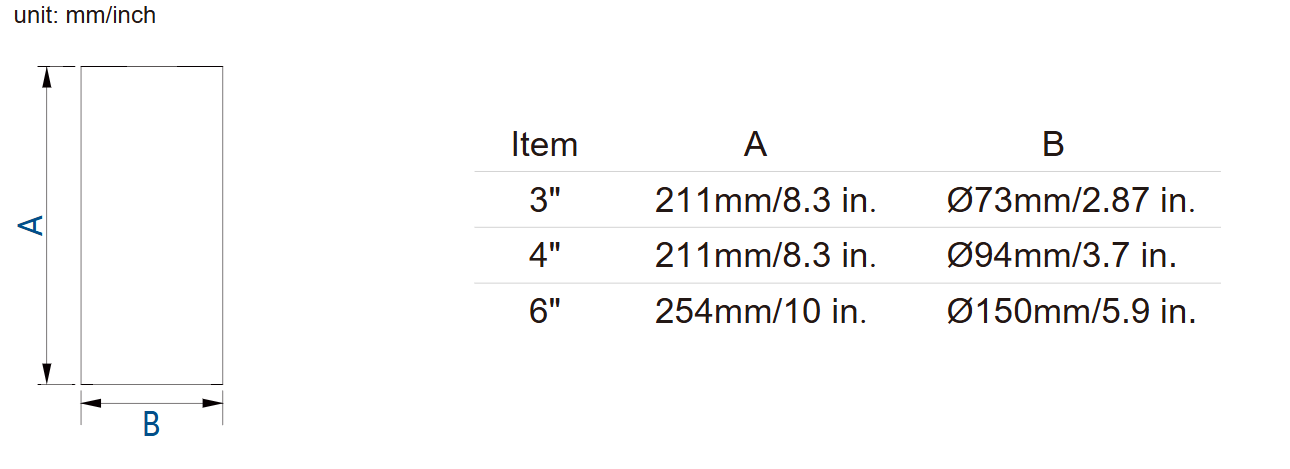

• Offered in three sizes, 3", 4" and 6" diameters, and available in a textured Black and in a White finish, as well as any custom specified RAL finish.
• Seamless cylinder body with a clean appearance, and offering field interchangeable parts makes installations exceptionally simple.

• Light engines are available in CCT adjustable, the CCT can be changed to 2700K/3000K/3500K/4000K/5000K(80CRI or 90CRI).

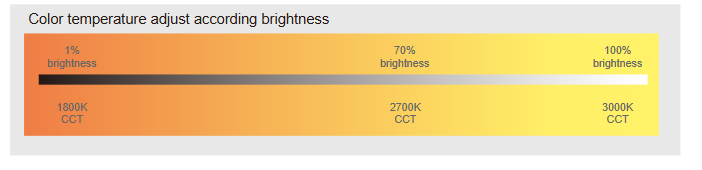

• Dim to warm option 1800-3000K.
• Scalable Lumen Packages from 1430 to 4,000 Lumens.

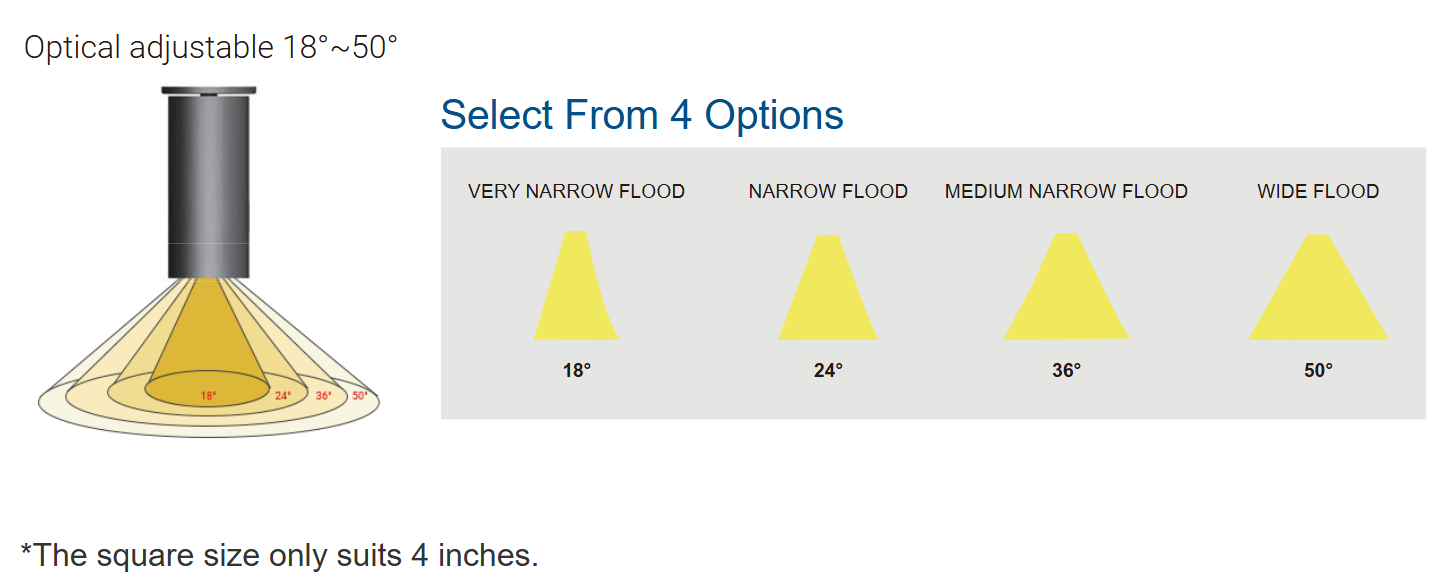

• Beam angle is adjustable continuously from 18° to 50°, with preset stops at 18°, 24°, 36°, and 50°.
• Offering three types of baffles: vortex baffle, cross baffle, and wall wash baffle.
• Lens accessories are available in : Linear spread, Hex louver, Softening optics.

• Universal 120-277VAC input voltage.
• Compatible With Leading-edge/Trailing-edge Dimmer/0-10V.
• Three adjustable Wattage levels available for each model: 50% / 75% / 100%.
• Driver power factor >0.9, THD <20%.
• Operating Temperature Range: -20°C to 40°C (-4°F -+ 104°F).

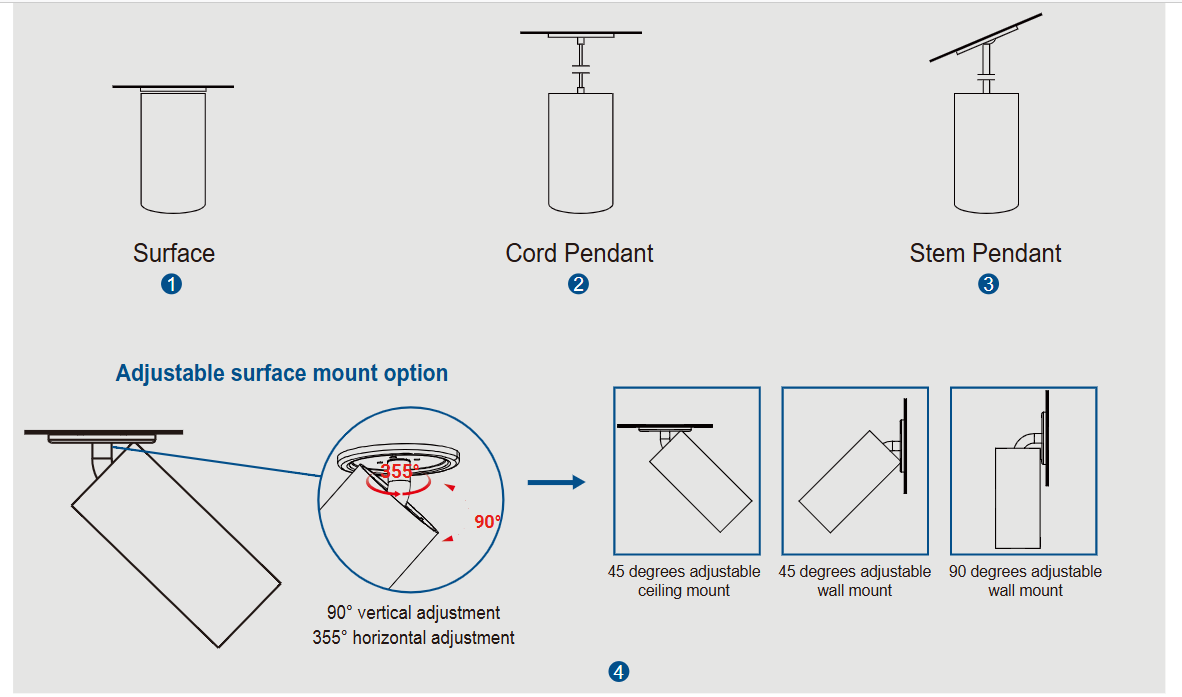

• Surface Mount
• Adjustable Surface Mount
• Cord Pendant Mount
• Stem Pendant Mount

• Estimated 50,000-hour LED lifespan based on lES LM-80 results and TM-21 calculations.

• Five-year limited warranty.

• Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25℃(+5℃) specifications subjects to change without notice.

The brightness and color temperature of the light can be flexibly adjusted according to different scenes and needs, providing a richer visual experience. The specific advantages are as follows:

Create a comfortable atmosphere and provide a better visual experience.Be highly energy-efficient and effec- tively reduce heat emissions.Be compatible with intelli- gent control systems and adapt to various application scenarios.

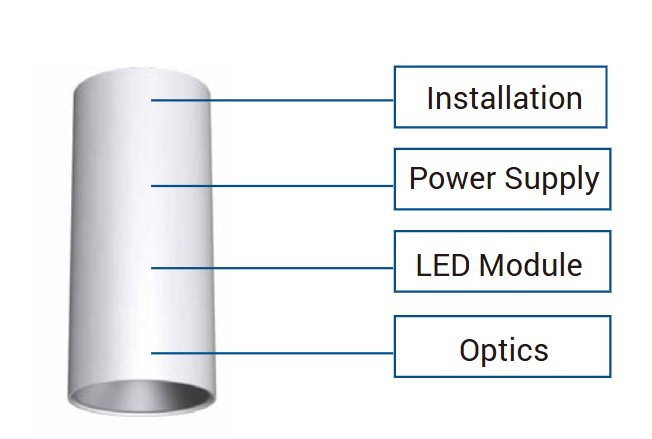

Concept of modular design lies in facilitating users to conduct rapid assembly and adjustment operations by themselves according to their own needs. For Example, they can change the installation method, replace optical modules, or alter the color of the shell, etc.

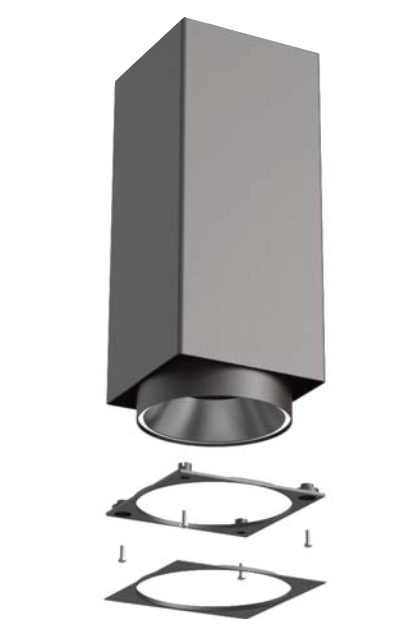

An innovative design uses shell accessories fitting on or over existing fixtures to change their aesthetics

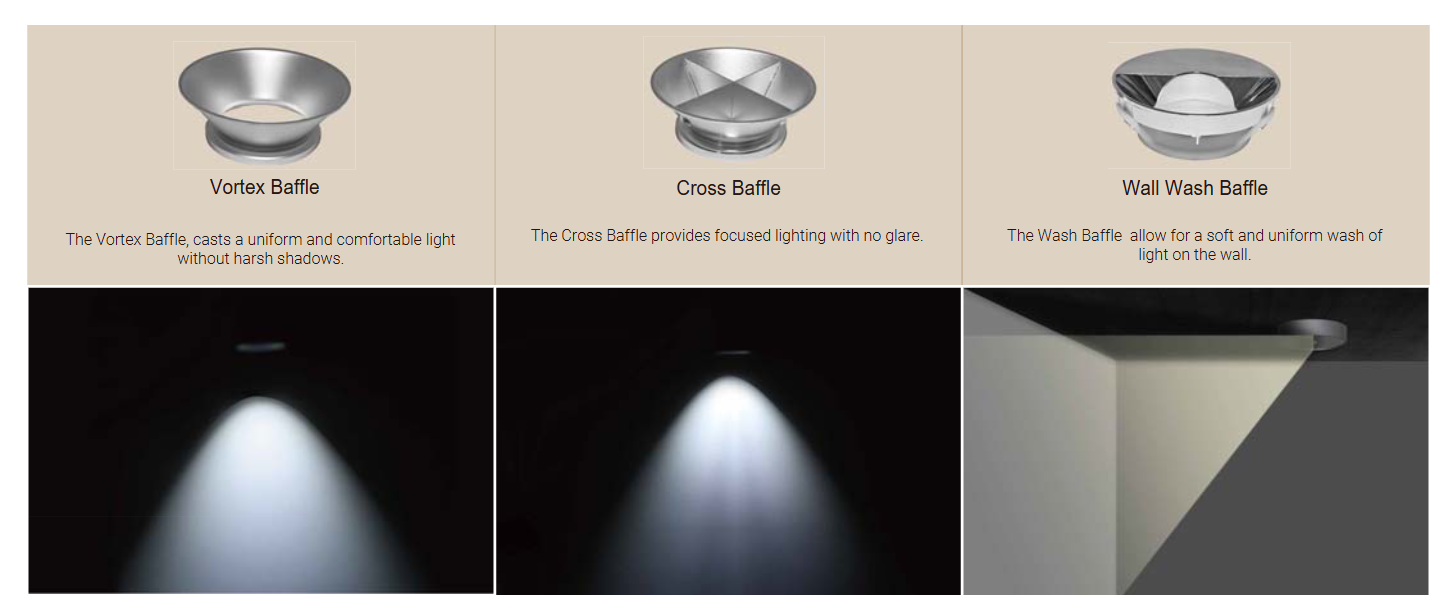

The cylinder features a universal housing that allows for the addition of different baffles to achieve various light distributions.

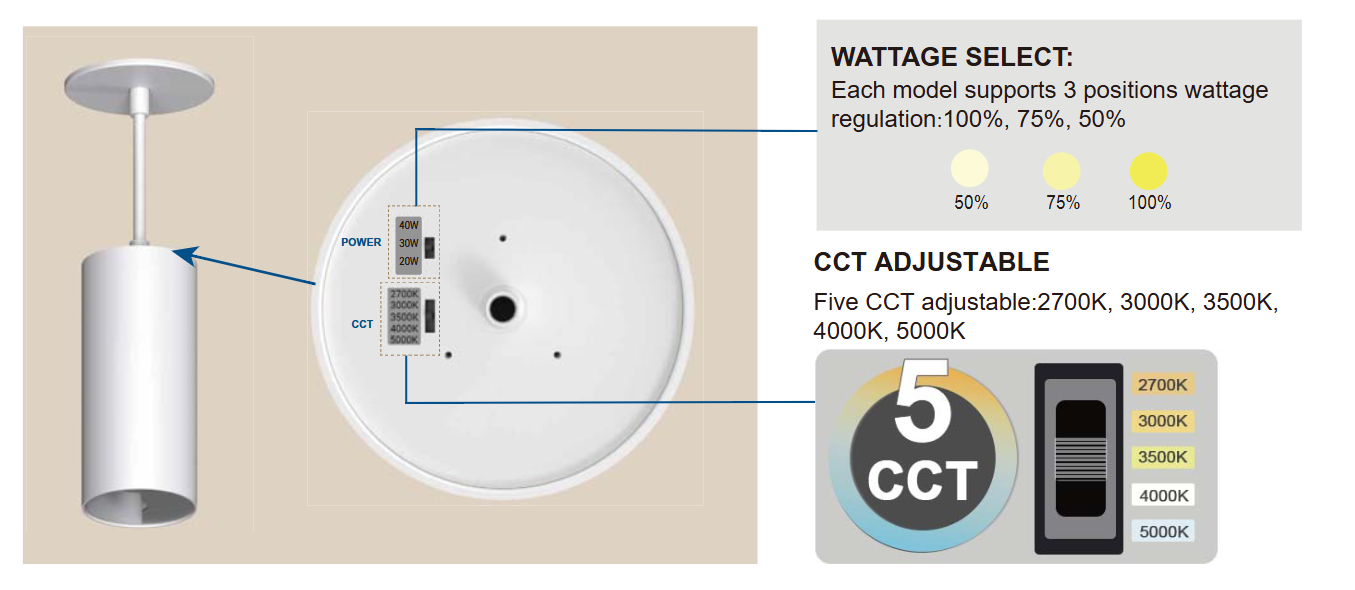

This Cylinder Light allows for on-site adjustment of lumen output and color temperature, supporting adjustments for 3 lumen outputs and 5 color temperatures.

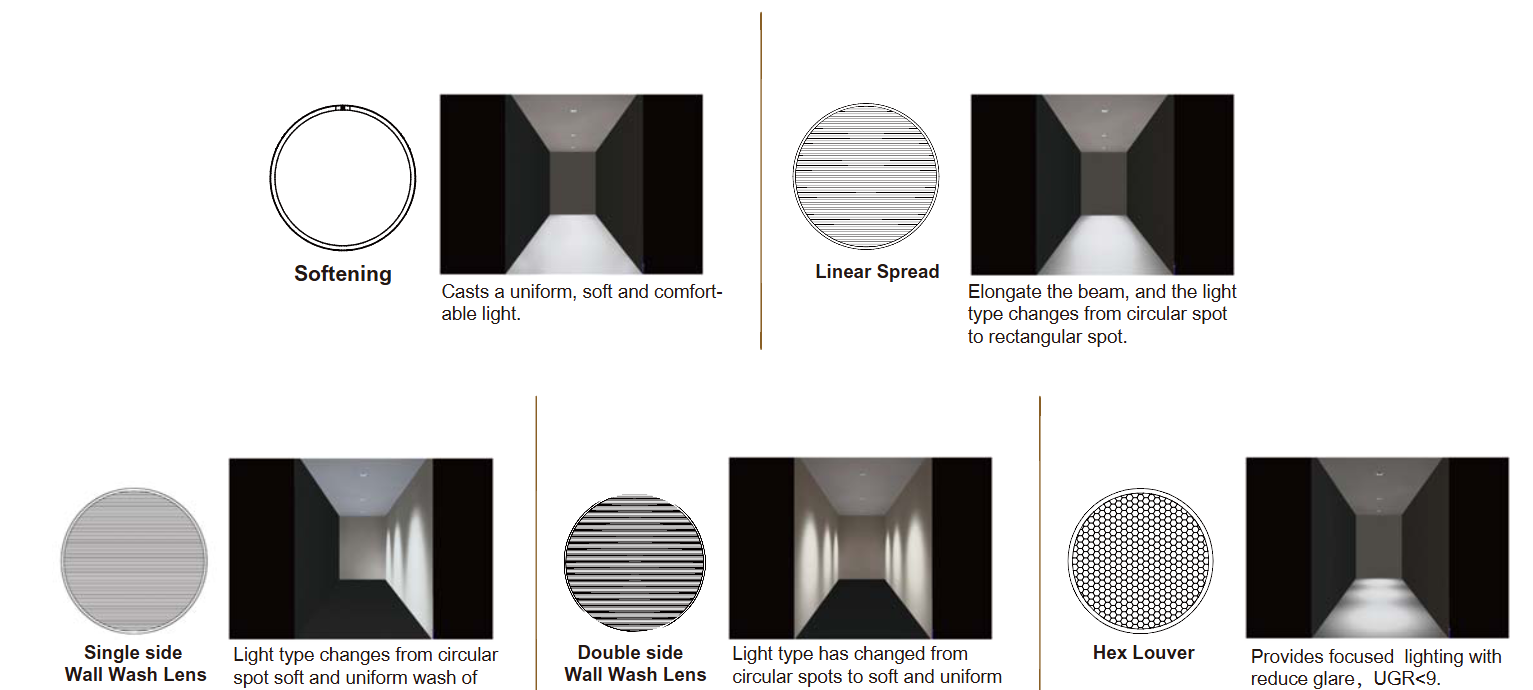

By changing different optical lenses, the Cylinder Light can achieve various lighting effects.

Pairing the fixture with the perfect lens accessory, such as a Linear Lense for elongating the beam to throw light on a wall, a Hexcell Lens for further glare reduction, or a Softening Lens for light diffusion, can enhance its performance
