SCONCE WING
Description:
Combining superior esthetics and quality performance, IUSSconce Wing offers new opportunities to capture the beauty and benefits of architectural linear lighting. It offers three sizes with wattage and CCT adjustable for scalability. The sleek profile is designed to blend into clean, minimalist architectural spaces. Reaching 100 lumen / watt with 90+ CRI, we strive to challenge the highest visual comfort standard by offering ultra-thin semi- transparent vertical optics. Easy install in the field which is perfect for applications that include corridor, open offices, hospital, anywhere you want to make a statement.
It can be wall or surface mounted and adds a layer of light on the walls that feels less institutional, to soften facility ambiance and enable interior design cohesiveness. This innovative produce design brings both performance and aesthetics to any design applications.
.png)
Feature
- Ultra-thin semi-transparent optics
- 12",18" and 24" options, Shallow depth 2"
- Maximum 20W, Wattage selectable (50%/75%/100%)
- Up to 100lm/w, 90+ CRI
- CCT adjustable from 3000K, 3500K,4000K
- 0-10V dim, 10% standard, 1% optional
- Wall mount or surface
- White finish or custom*
PERFORMANCE
|
Length |
Wattage Selectable |
Lumen@4000K |
Efficacy@4000K |
|
12" |
20W/15W/10W |
1800LM |
90LM/W |
|
18" |
20W/15W/10W |
1900LM |
95LM/W |
|
24" |
20W/15W/10W |
2000LM |
100LM/W |
All efficacy is ±5% base different CCT. Check the IES file to gain the accurate data.

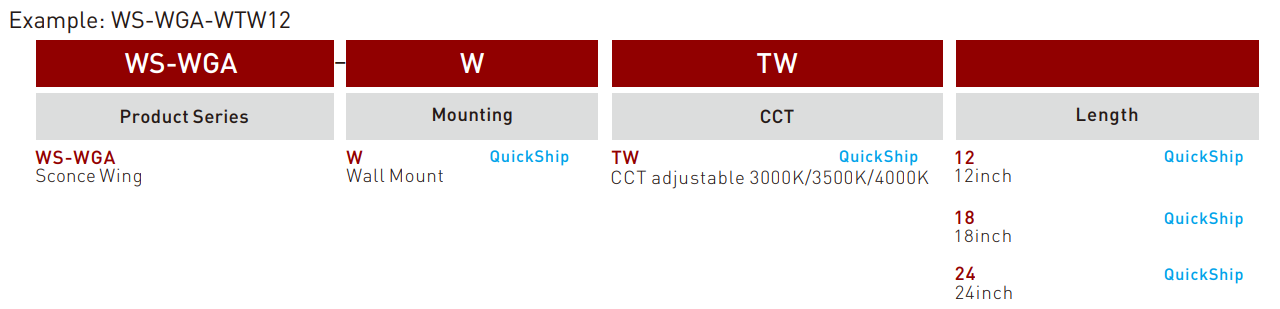

PRODUCT ORDERING GUIDE
.png)

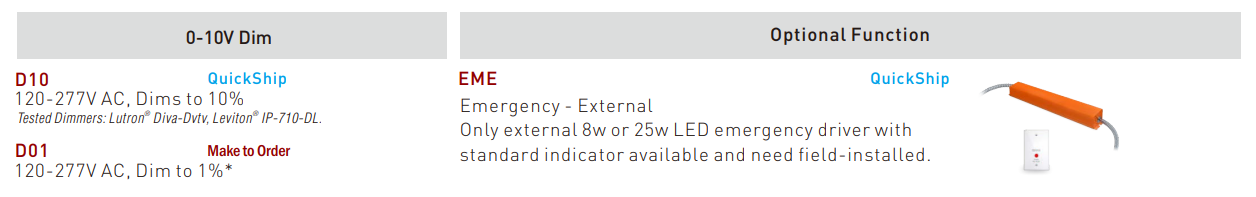

OPTIONAL FUNCTIONS
.png)
Light Guide
- Ultra-thin semi-transparent light guide made of PMMA material, allows distribution of controlled light in all 3-dimensions to put light on both vertical and horizontal planes within the space.
Construction
- Housing: Extruded aluminum
- End Cap: Die cast aluminum
- Smooth Lens: Uniform acrylic lens
- Finish: Powder coat white or custom*.
Electrical
| Min Internal LED Driver | It is powered by Class 2 high efficiency LED driver, with a standard 0-10V dimming that works with many types of controls. Continuous dims to 10% (standard), 1% (optional) . Tested Dimmers: LEVITON DD710, LUTRON NTSTV-DV, LEGRAND RH4FBL3PTC, LUTRON DVSTV, LEVITON IP710. |
| THD | <20% |
| Power Factor | >0.9 |
| Input Voltage | Standard electronic drivers are UL recognized and available for 120-277V AC input voltage. |
LED System
| CRI | Minimum 90 color rendering index |
| CCT | CCT adjustable from 3000K, 3500K, 4000K with a great color consistency. |
| LED | Minimum 50,000h with 87.8% of lumen maintenance in 25°C ambient temperature, in compliance with IES LM-80 testing measurements. |
| Thermal Management | Aluminum housing acting as the heat sink to maximize life. |
| Environment |
Damp rated for ambient operating temperature of -20°C to +40°C (-4° to+104°F) |
Mounting
- Horizontal or vertical orientation. Wall mount or surface.
Approvals
- cULus listed-Pending
- Suitable for damp locations
- Designed for indoor use only
- 5-year limited warranty for parts and components (Labor not included)

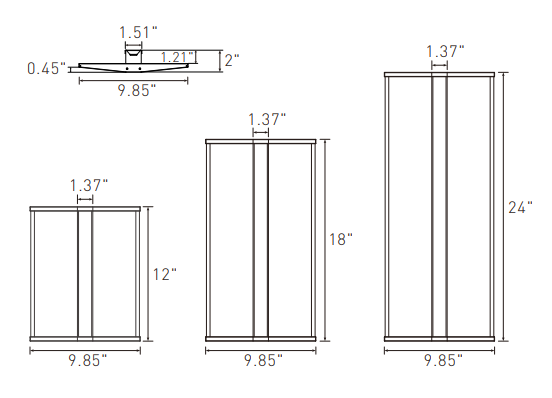

DIMENSIONS
.png)
*Additional cost and/or lead time on customized fixtures may apply. Some fixtures require an MOQ. Please contact your Environment damp rated for ambient operating temperature of -20°C to +40°C (-4° to+104°F) sales rep for more information.

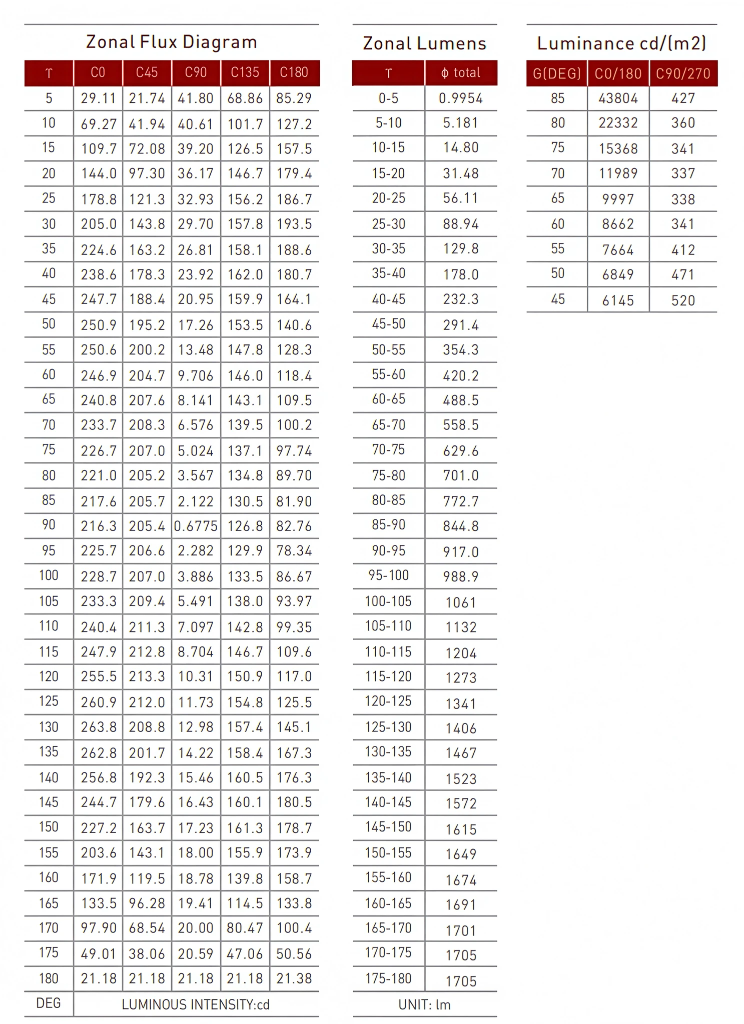

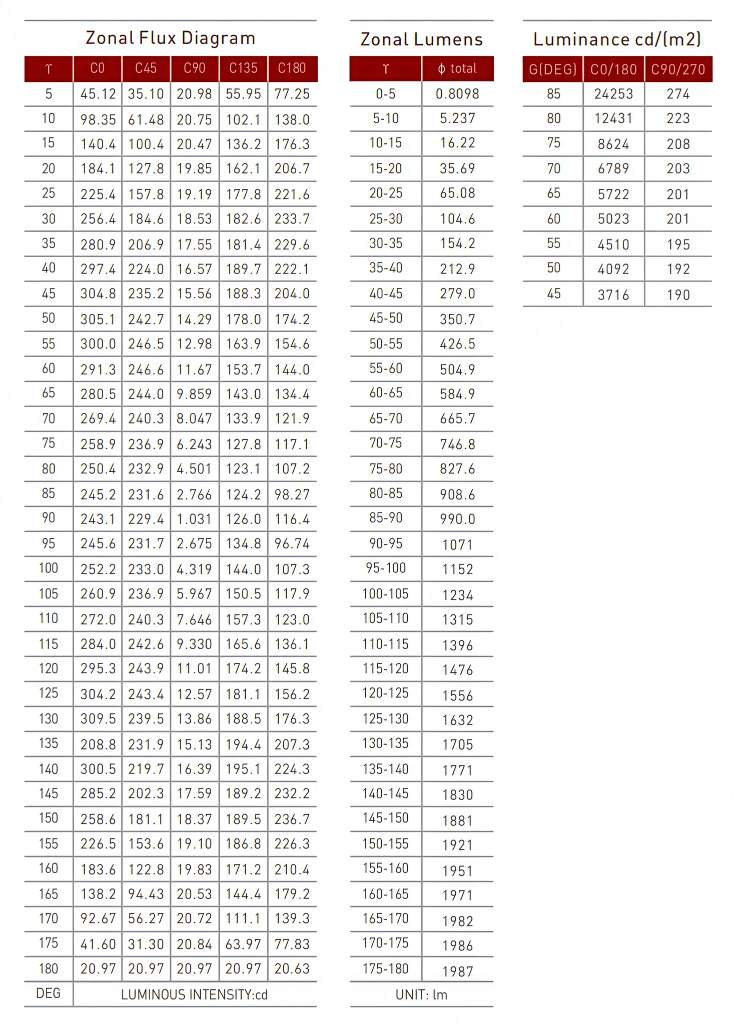

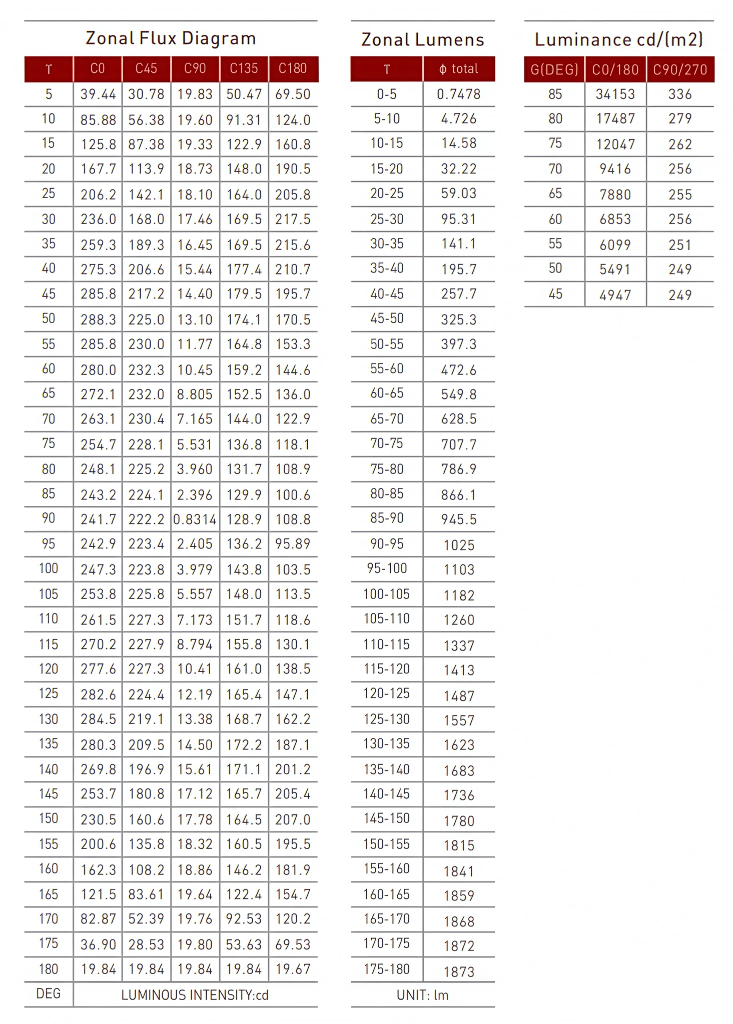

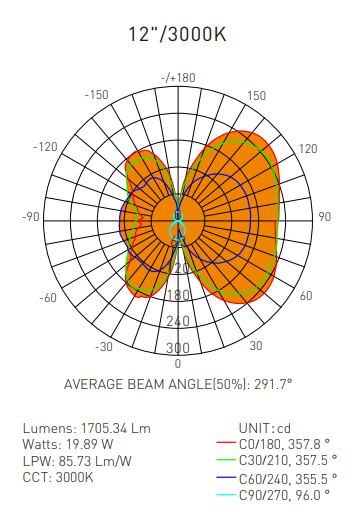

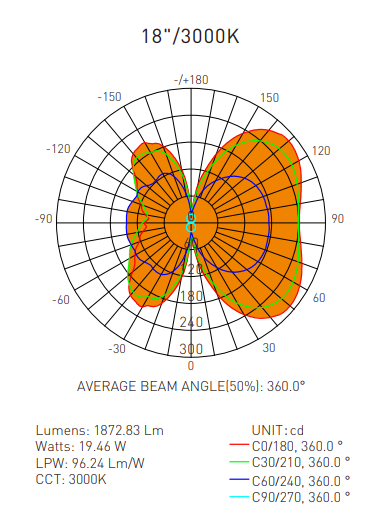

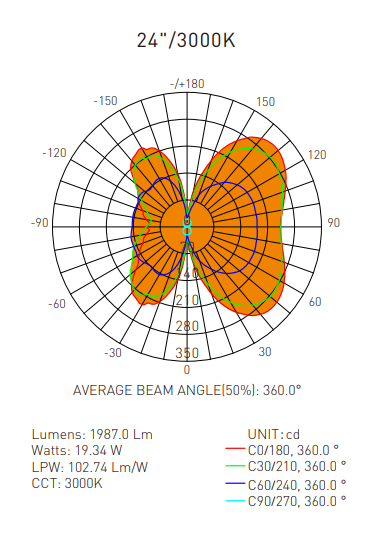

DISTRIBUTION DIAGRAM
.png)
.png)
.png)
.png)
.png)
.png)
