Description:

The remote control Wireless IR Configuration Tool is a handheld tool for remote configuration of IR-enabled fixture integrated sensors. The tool enables device to modify via pushbutton without ladders or tools, and stores up to four sensor parameter modes to speed configuration of multiple sensors.

The remote control uses bidirectional IR communication to send and receive sensor settings at mounting height up to 50 feet. The device can display previously established sensor parameters, copy parameters and send new parameters or store parameter profiles. For projects where identical settings may be desired across a large number of areas or spaces, this capability provides a streamlined method of configuration. Settings can be copied throughout a site, or in different sites.

Contact Us

SPECIFICATIONS

Power supply 2 x AAA 1.5V battery, Alkaline preferred
Carrying case RC-100 in carrying case
Communication 940 nm Infrared Tx & Rx
Upload range Up to 15 m (50 ft.)
Op. temperature 0°C~50°C (32°F~122°F)
Dimensions 123 x 70 x 20.3 mm (4. 84" x 2.76" x 0.8")

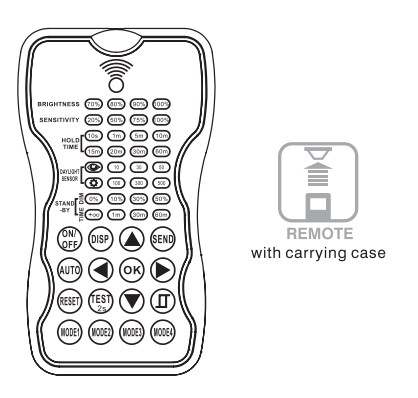

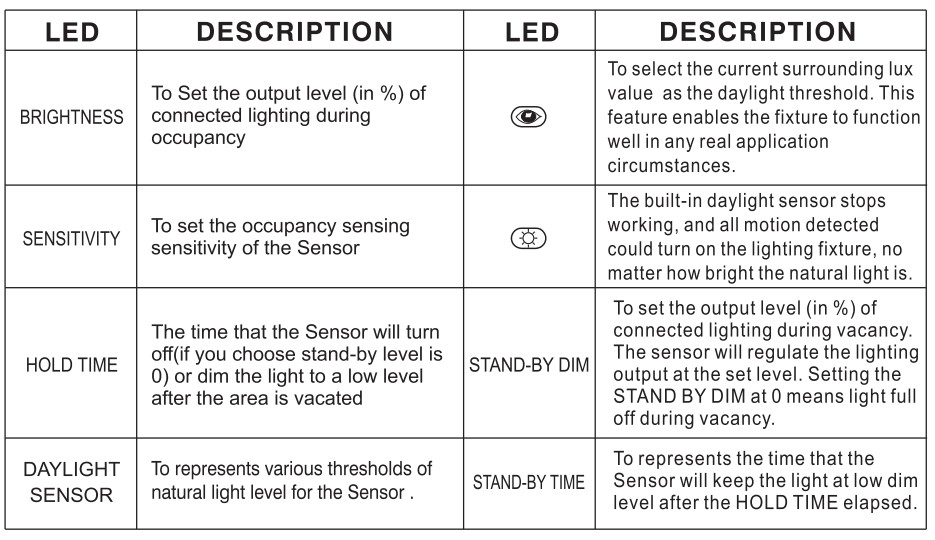

LED INDICATORS

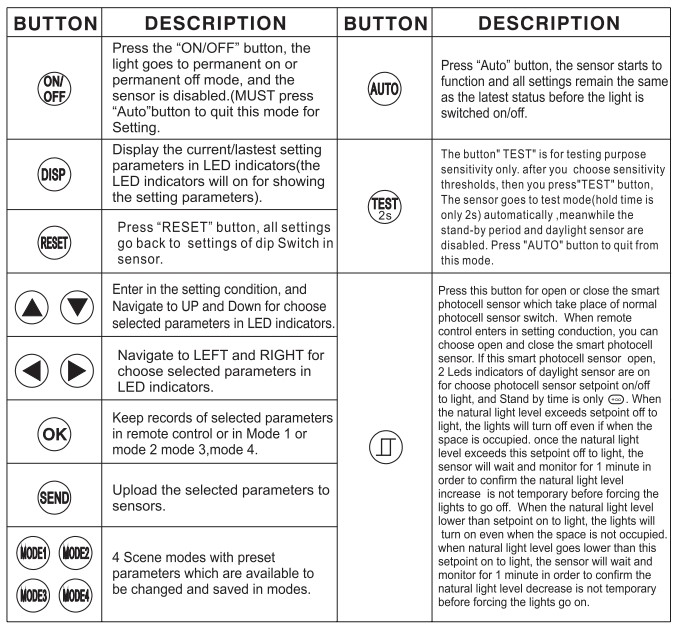

BUTTON OPERATION

SETTING

The SETTING Content contains all available settings and parameters for remote sensors. It allows you to change the available control, parameters, and operation of the sensor from factory default or current parameters.

NOTE:the setting works only in Auto mode.

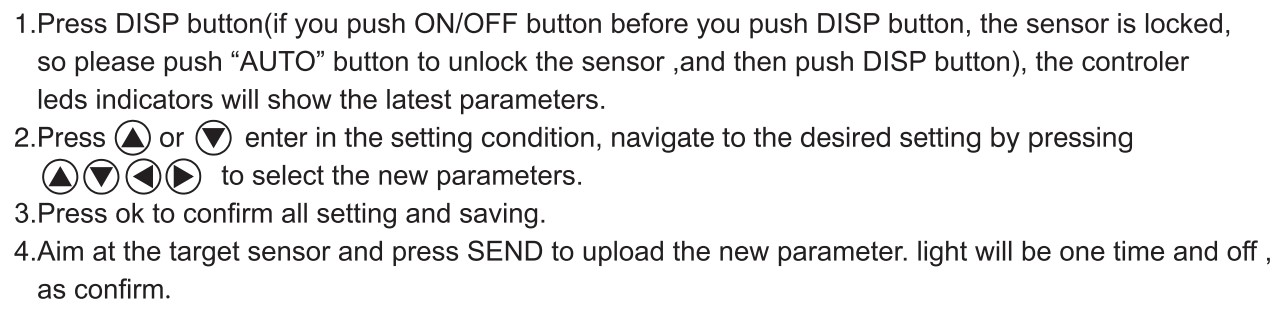

Change multiple setting of sensor(s)

NOTE:

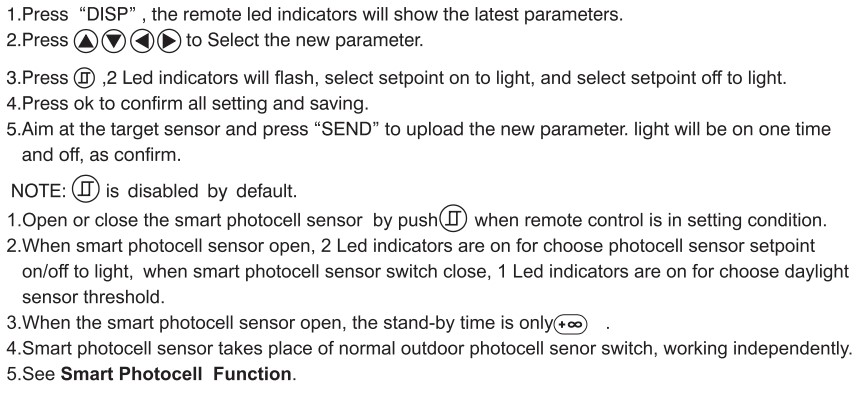

  1. If you press DISP button, the remote led indicators will show the latest parameters which were sent.
  2. See Corridor function.

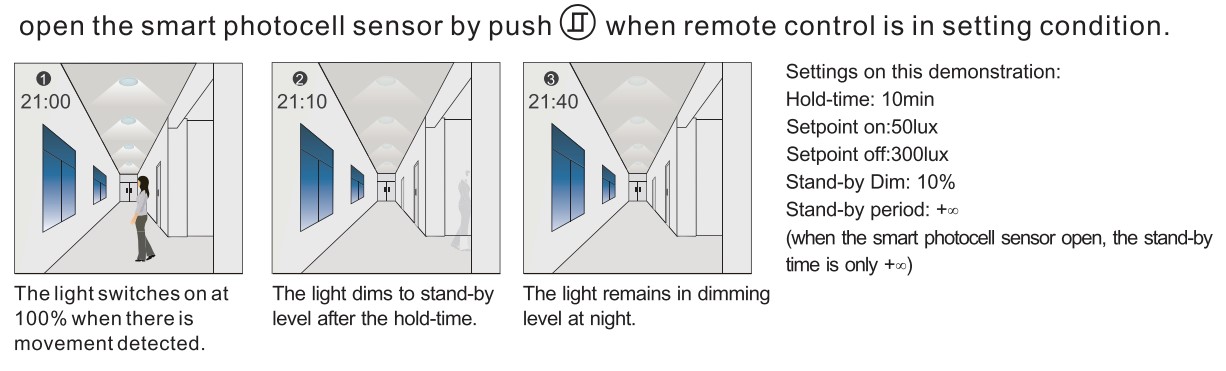

Change multiple setting of sensors with smart photocell sensor Open

Corridor Function

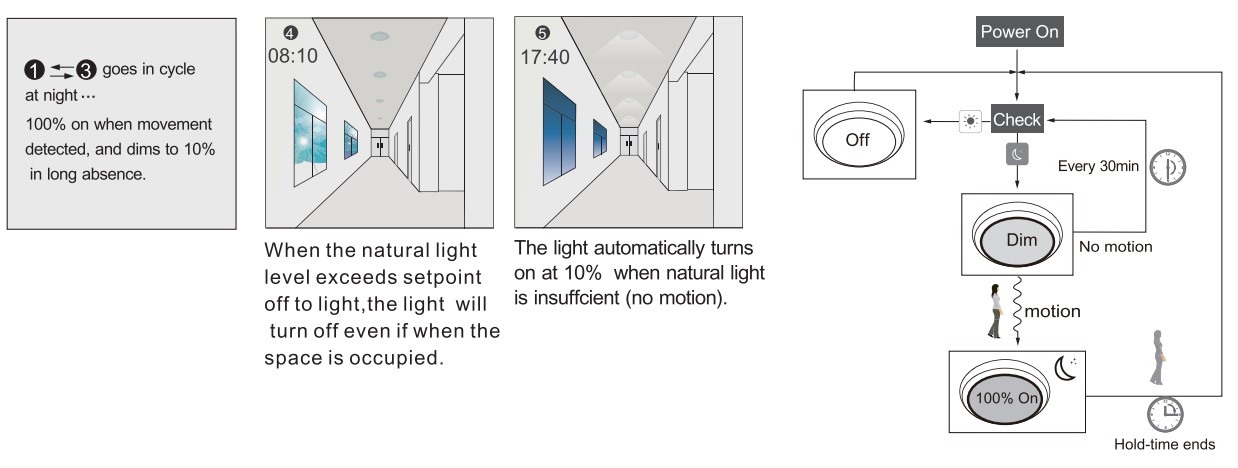

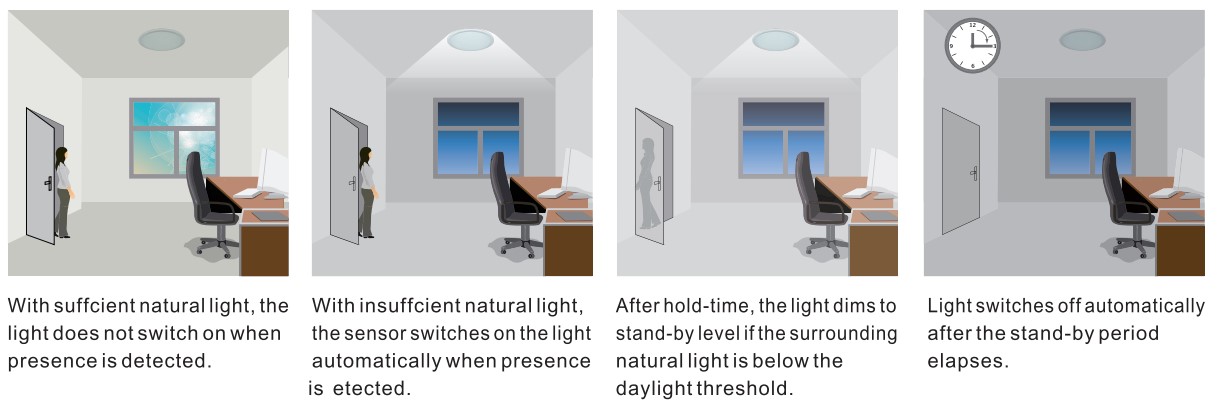

This function inside the motion sensor to achieve tri-level control, for some areas which require a light change notice before switch-off. The sensor offers 3 levels of light: 100%-->dimmed light (natural light is insufficient) -->off; and 2 periods of selectable waiting time: motion hold-time and stand-by period; Selectable daylight threshold and freedom of detection area.

Note: if you choose STAND-BY DIM is 0, the stand-by period is 0, it is ON/OFF function.

Smart Photocell Function

Difference between Corridor Function and Smart Photocell Function.

  1. In corridor function, the daylight sensor as threshold to assist motion sensor, in Photocell function, the daylight sensor works independently to motion sensor.
  2. Turn On light by detect motion when natural light is insufficient for corridor function, turn on light by natural light level exceeds setpoint on to light, do need to detect motion, for smart photocell function.
  3. Turn off light by stand-by time for corridor function, Turn off light by natural light level lower than setpoint off of light for smart photocell function.
About RESET and MODE(1,2,3,4)

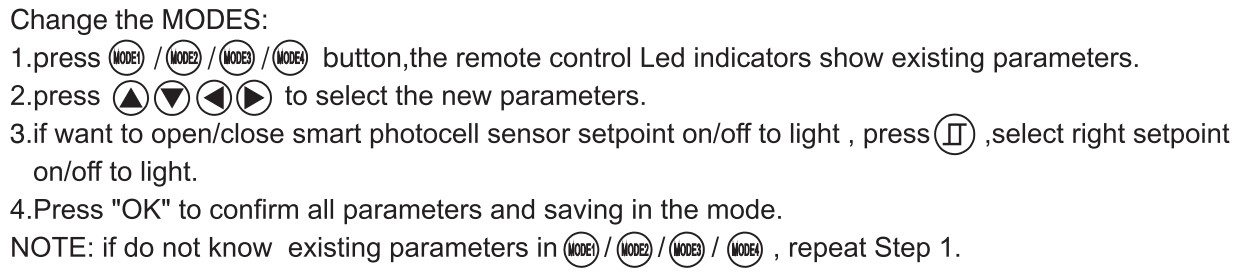

The Remote control comes with 4 Scene MODES which are not default. You may make desired parameters and save as the new MODE(1,2,3,4) to configure the installed sensors.

RESET: all settings go back to settings of dip Switch in sensor.

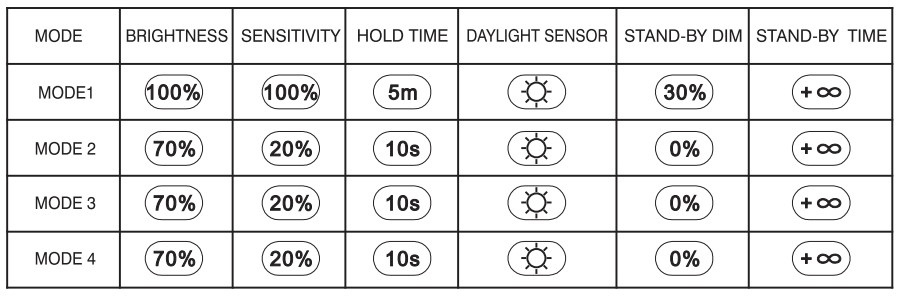

SCENE MODES(1 2 3 4)

UPLOAD

The upload function allows you to configure the sensor with all parameters in one operation. You may select CURRENT SETTING parameters or the MODE for uploading. Current setting parameters or the MODE are displayed in Remote control.

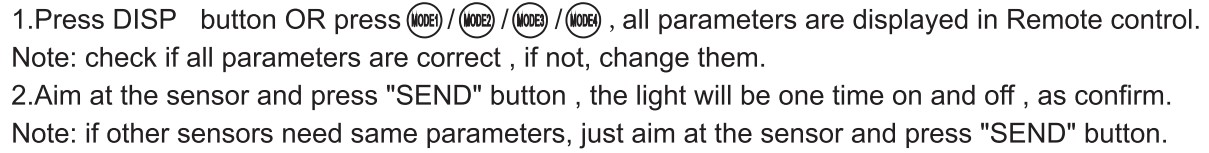

Upload the current parameters to sensor(s), and duplicate the sensor parameters form one to anther
