Stairwell Light with motion sensor
Description:
The 4FT 3CCT & 3 Wattage Selectable LED Stairwell Light with
Motion Sensor is ideal for basements, stairwells, hallways, public
toilets, warehouses, underground parking lots, and tunnels. It offers
3CCT selectability with color temperatures ranging from 3500K to
5000K and wattage options of 35W, 45W, and 55W, allowing for
various brightness levels with lumen outputs of 4200, 5400, and
6600 lumens. Operating on 120-277V with a continuous 0-10V
dimming driver, it is UL 1598 certified, suitable for damp locations,
and requires a minimum of 90°C-rated supply conductors. This
fixture also includes a 5-year warranty.

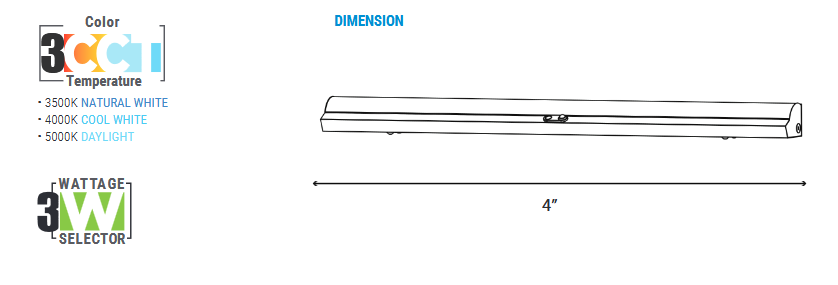

DIMENSION
TECHNICAL SUMMARY

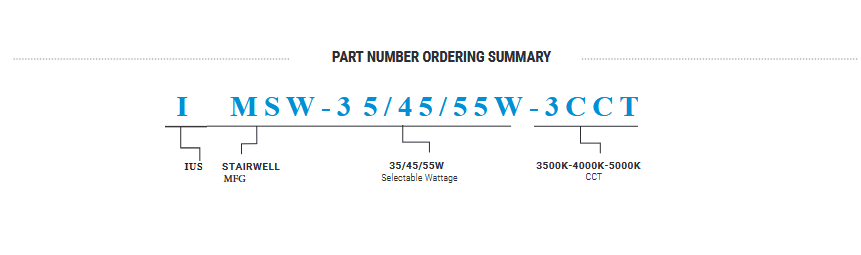

| MODEL NO. | WATTS | LUMENS | CCT | VOLTAGE | DIMMING | CRI | CERTIFICATION |
|---|---|---|---|---|---|---|---|
| IMSW-35/45/55W-3CCT | 35/45/55W | 4200/5400/8800L | 35/40/50K | AC120-277V | 0-10V | 80+ | UL/ FCC |
CONSTRUCTION
- Unit includes heavy duty metal frame, LED array, heat sink, hanger, security cable and high quality PC lens.
OPTICS
- Diffuse for uniform illumination.
- CRI 80+
DRIVER
- 120 - 277V 50-60Hz universal input voltage.
- 0-10V smooth flicker free dimming down to 5%.
MOUNTING
- Pendant mount to the ceiling
LISTING
- UL Listed
- FCC certified
WARRANTY
- 5 years manufacturer warranty
- Terms and conditions may apply.
5 years limited LED luminaire warranty to the original purchaser that the luminaire shall be free from defects in mate-rials and workmanship from date of shipment, when under properly installed at normal conditions of use. The warranty may not cover physical damage or abuse under certain conditions.

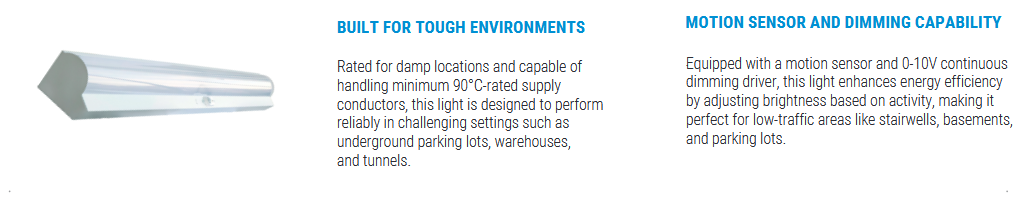

HIGHLIGHT
Stairwell Light with motion sensor
