Standard Commercial 1X4
Description:
The IMTF14-18-30-40W-3CCT series The IMTF14-18/30/40W-3CCT troffer fixture adopts the latest in optical and LED technology for use in many commercial applications. It provides a single pleasant volumetric soft light that fills any interior space, giving it a larger, brighter, and more productive ambiance. Color temperature can be switch to 3500K neutral white, 4000K cool white and 5000K daylight. The input wattage can be adjustable to 3 different level that helps you to save energy cost. The IMTF24-34/38/45W-3CCT is DLC and UL certified. It is popular in office, warehouse, public area and other commercial area.

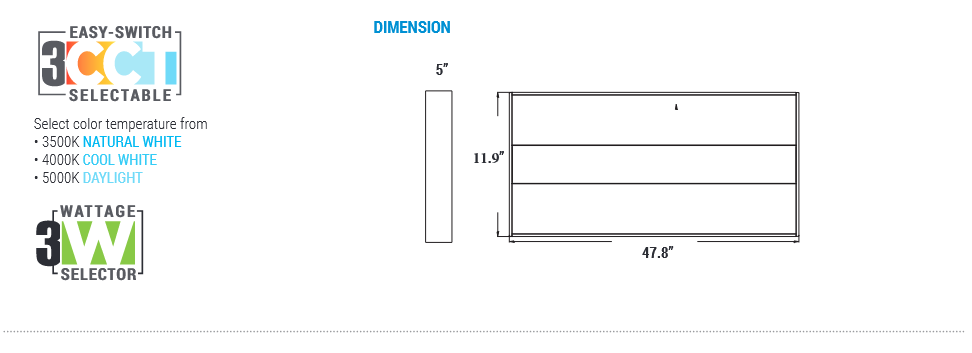

DIMENSION
TECHNICAL SUMMARY
|
LUMENS |
WATTS |
EFFICACY |
CRI |
VOLTAGE |
BEAM º |
CCT |
PF |
LIFE |
OPERATING TEMP. |
|
2286 3810 5080 |
18W 30W 40W |
125 lm/W |
80 |
120 to 277Vac 60Hz |
110 |
3500K 4000K 5000K |
>0.9 |
50,000 hrs |
-4ºF ~ 104ºF
|
3 CCT
- Select color temperature from 3500K natural white, 4000K cool white, or 5000K daylight for your environment.
3 ADJUSTABLE INPUT WATTAGE
- Wattage can be switch to 34W, 38W and 45W to save energy cost.
CONSTRUCTION
- Unit includes metal housing, LED array, lens and mounting hooks
OPTICS
- High quality PC lens.
- Efficiency LED array.
- Diffuse for uniform illumination.
- CRI 80
DRIVER
- 120-277V universal input voltage.
- 0-10V smooth flicker free dimmable.
MOUNTING
- Designed for mounting directly on the drop ceiling
LISTING
- DLC listed.
- UL certified.
- EMI/RFI emissions per FCC 47CFR Part 15B.
- RoHS compliant, contains no mercury or lead.
- Suitable for damp locations.
WARRANTY
-
5 years manufacturer warranty,
* Terms and conditions may apply.
*5 years limited LED luminaire warranty to the original purchaser that the luminaire shall be free from defects in mate-rials and workmanship from date of shipment, when under properly installed at normal conditions of use. The warranty may not cover physical damage or abuse under certain conditions.

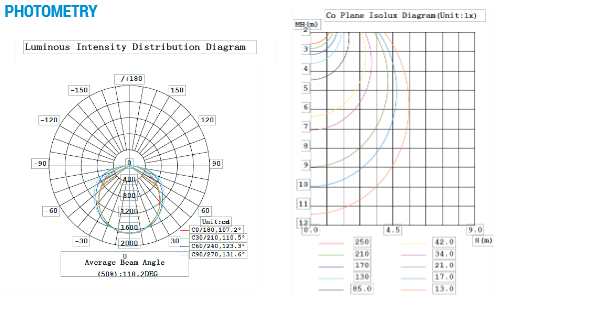

PHOTOMETRY
Standard Commercial 1X4
IMTF14-18-30-40W-3CCT
