Up/Down Square LED Pendant
Description:

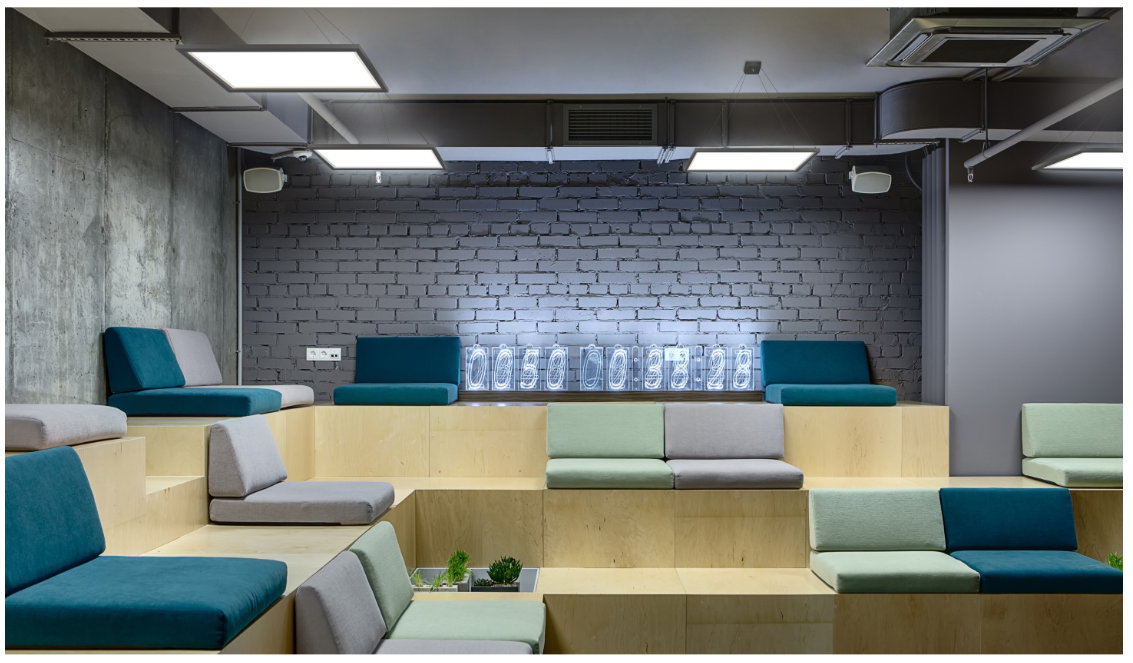

Our Up/down square LED pendant delivers an aesthetic, stylish architectural solution which creates stunning forms only 21mm high. It combines clean lines and thin, square forms to enhance the decor. The unique design is nearly transparent luminaire when off and excellent uniformity and efficiency when on, reaching 55% downlighting and 45% uplighting distribution, making the illusion of the light floating in mid-air. It is perfect for applications that include conference rooms, open offices, retail settings, anywhere you want to make a statement.
Features
- Semi-transparent optics
- CCT adjustable 3000K/ 3500K/ 4000K
- Wattage selectable, 100lm/w, 24"x24"
- 55% downlight and 45% uplight distribution
- External driver with 0-10V dim, dim to 1%
PERFORMANCE
|
Model# |
Dimension |
Wattage Selectable |
Efficacy |
Lumens |
|
IUDS-TW24 |
24"x24" |
50W/40W/30W |
100lm/w |
Up to 5000lm |
All efficacy is ±5% base on different CCT. Check the IES file to gain the accurate data.
OPTICS
- High precision light guide made of PMMA material, allows distribution of controlled light to create 45% uplight, 55% downlight light distribution.
FINISH
- Extruded aluminum housing. Powder coat black or white finish.
Electrical
| Driver | External, class 2, high efficiency LED driver. |
| Dimming | Standard constant current electronic driver with 0-10V dimming, dim to 1% . Tested Dimmers : LEVITON DD710, LUTRON NTSTV-DV, LEGRAND RH4FBL3PTC, LUTRON DVSTV, LEVITON IP710. |
| THD | < 20% |
| Power Factor | > 0.9 |
| Input Voltage | 120-277V Standard .120-347V * optional |
LED System
| CRI | Minimum 80 color rendering index |
| CCT | CCT adjustable from 3000K, 3500K, and 4000K with a great color consistency. |
| LED | Life minimum 50,000h with 87.8% of lumen maintenance in 25°C ambient temperature, in compliance with IES LM-80 testing measurements. |
| Thermal Management | Aluminum housing acting as the heat sink to maximize life. |
| Environment | Damp rated in operating ambient temperatures of -20~40℃. |
Approvals
- cULus listed for damp locations
- 5 years limited warranty

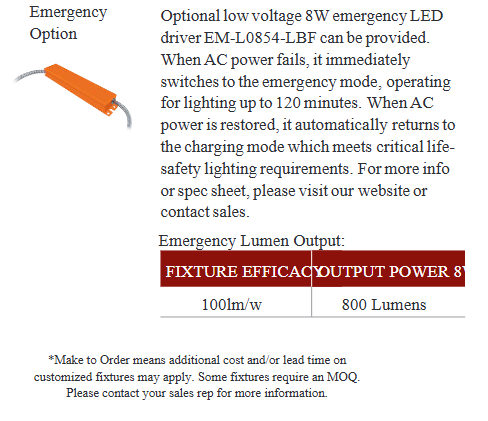

Optional Function

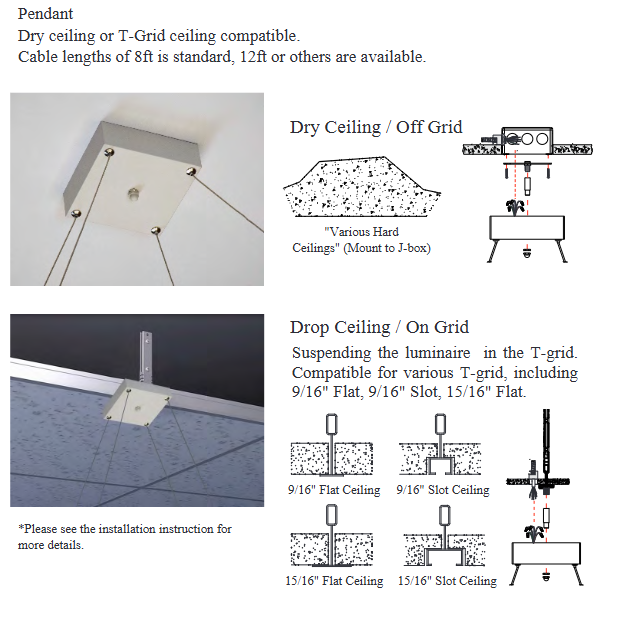

Mounting

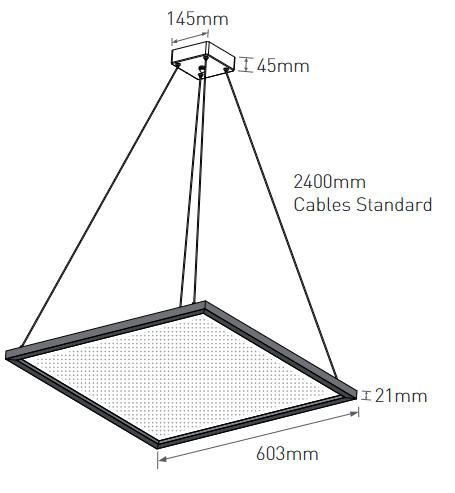

DIMENSIONS

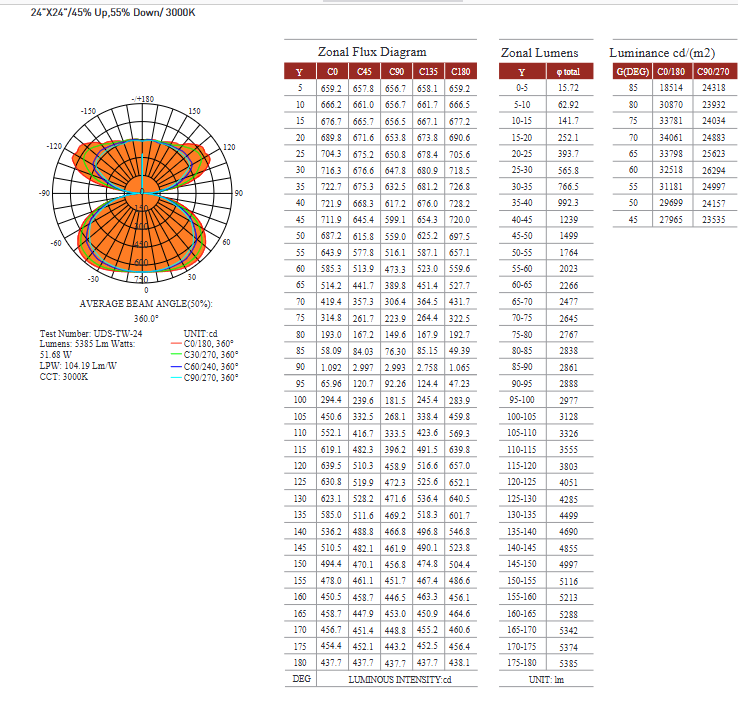

DISTRIBUTION DIAGRAM
