Wall Sconce

Description:

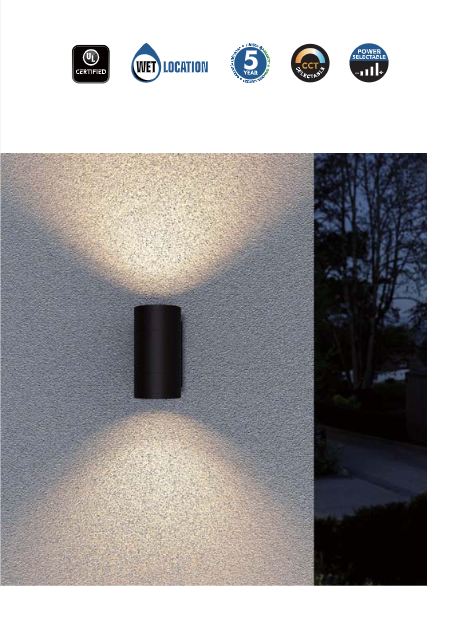

Wall Sconce Light is designed to complement the environment without being obtrusive, providing a softer outer appearance.The MCL01 has a powerful feature, it supports on-site adjustment of three color temperatures (3000K/4000K/ 5000K) and four output lumen values, which greatly improves the flexibility of product installation and stocking.Ideal for applications such as lighting walkways and stairways for safety and security，and as accent lighting around entrance doors in commercial, multi-family and single family residential settings.

Contact Us

Construction

  • Rugged cast-aluminum housing with bronze polyester powder paint for outdoor applications.
  • Casting thermally conducts LED heat to optimize performance and long life.
  • The housing is completely sealed, providing excellent protection against moisture and environmental contaminants.

Optics

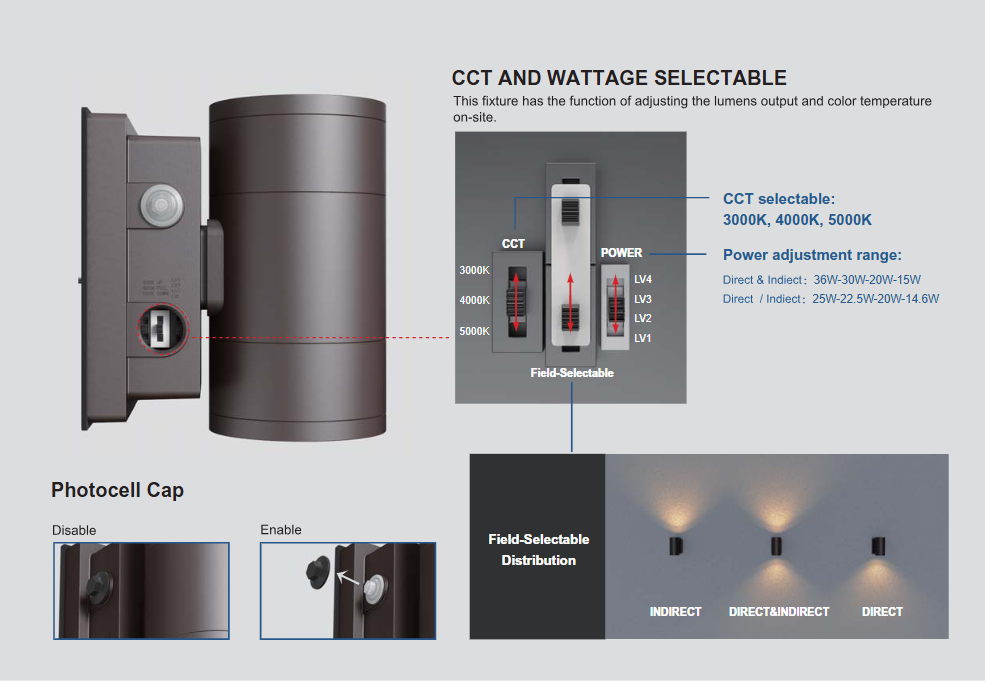

  • Light engines are available in CCT adjustable, the CCT can be changed to 3000K/4000K/5000K (CRI80).
  • Scalable Lumen Packages from 1,900 to 4,150 Lumens.
  • The professional prismatic design offers a good light distribution control and guarantees the uniformity.
  • Available in beam angle:16°/ 25°/ 32°/ 50°/ 60°/ 70°

Electrical

  • Universal 120-277VAC input voltage.
  • Optional 0-10V dimming and dimming range from 10%-100%.
  • Four adjustable Wattage levels available for each model.
  • Both drivers have a power factor >90%, THD <15%.
  • Operating Temperature Range: -30°C to 50°C (-22°F-+122°F).

Lifespan

  • Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

Warranty

  • Five-year limited warranty.

Note

  • Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(±5°C ) specifications subject to change without notice.

INTERCHANGEABLE LENS SYSTEM

Customers possess the capacity to execute elementary lens modification protocols in accordance with particular applications, thereby attaining the accommodation of diverse light-emitting angles. Two lenses can seamlessly switch among 16°/25°/32°, 50°/60°/70° by just adding or removing spacers.

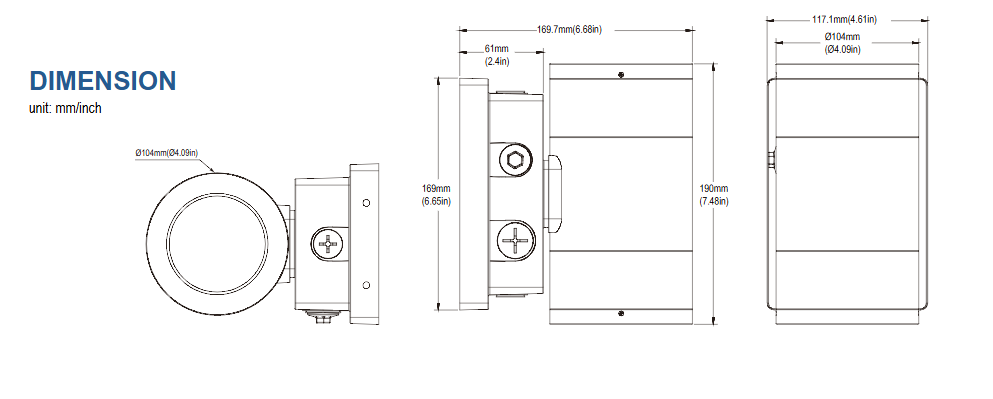

DIMENSION

PERFORMANCE DATA

CL01 25W @16° (Up only/Down only)
SETTING SYSTEM WATTS 3000K 4000K 5000K
LUMENS (80CRI) LPW (80CRI) LUMENS (80CRI) LPW (80CRI) LUMENS (80CRI) LPW (80CRI)
Level 1 25W 2400lm 96 lm/W 2550lm 102 lm/W 2460lm 98 lm/W
Level 2 22.5W 2190lm 97 lm/W 2348lm 104 lm/W 2260lm 100 lm/W
Level 3 20W 1970lm 99 lm/W 2150lm 108 lm/W 2020lm 101 lm/W
Level 4 14.6W 1480lm 101 lm/W 1630lm 112 lm/W 1540lm 105 lm/W



CL01 25W @25° (Up only/Down only)
SETTING SYSTEM WATTS 3000K 4000K 5000K
LUMENS (80CRI) LPW (80CRI) LUMENS (80CRI) LPW (80CRI) LUMENS (80CRI) LPW (80CRI)
Level 1 25W 1950lm 78 lm/W 2200lm 88 lm/W 2100lm 84 lm/W
Level 2 22.5W 1770lm 79 lm/W 2000lm 89 lm/W 1920lm 85 lm/W
Level 3 20W 1660lm 80 lm/W 1810lm 91 lm/W 1730lm 87 lm/W
Level 4 14.6W 1230lm 84 lm/W 1370lm 94 lm/W 1300lm 89 lm/W





CL01 25W @32° (Up only/Down only)
SETTING SYSTEM WATTS 3000K 4000K 5000K
LUMENS (80CRI) LPW (80CRI) LUMENS (80CRI) LPW (80CRI) LUMENS (80CRI) LPW (80CRI)
Level 1 25W 1880lm 75 lm/W 2080lm 83 lm/W 1970lm 79 lm/W
Level 2 22.5W 1750lm 78 lm/W 1920lm 85 lm/W 1800lm 80 lm/W
Level 3 20W 1560lm 78 lm/W 1750lm 88 lm/W 1660lm 83 lm/W
Level 4 14.6W 1180lm 81 lm/W 1340lm 92 lm/W 1260lm 86 lm/W





CL01 25W @50° (Up only/Down only)
SETTING SYSTEM WATTS 3000K 4000K 5000K
LUMENS (80CRI) LPW (80CRI) LUMENS (80CRI) LPW (80CRI) LUMENS (80CRI) LPW (80CRI)
Level 1 25W 1720lm 69 lm/W 1860lm 74 lm/W 1750lm 70 lm/W
Level 2 22.5W 1570lm 70 lm/W 1680lm 75 lm/W 1620lm 72 lm/W
Level 3 20W 1420lm 71 lm/W 1540lm 77 lm/W 1450lm 73 lm/W
Level 4 14.6W 1080lm 74 lm/W 1170lm 80 lm/W 1100lm 75 lm/W





CL01 25W @60° (Up only/Down only)
SETTING SYSTEM WATTS 3000K 4000K 5000K
LUMENS (80CRI) LPW (80CRI) LUMENS (80CRI) LPW (80CRI) LUMENS (80CRI) LPW (80CRI)
Level 1 25W 2050lm 82 lm/W 2200lm 88 lm/W 2130lm 85 lm/W
Level 2 22.5W 1860lm 83 lm/W 2030lm 90 lm/W 1940lm 86 lm/W
Level 3 20W 1670lm 84 lm/W 1820lm 91 lm/W 1740lm 87 lm/W
Level 4 14.6W 1270lm 87 lm/W 1350lm 92 lm/W 1320lm 90 lm/W





CL01 25W @70° (Up only/Down only)
SETTING SYSTEM WATTS 3000K 4000K 5000K
LUMENS (80CRI) LPW (80CRI) LUMENS (80CRI) LPW (80CRI) LUMENS (80CRI) LPW (80CRI)
Level 1 25W 2240lm 90 lm/W 2440lm 98 lm/W 2360lm 94 lm/W
Level 2 22.5W 2060lm 92 lm/W 2240lm 100 lm/W 2160lm 96 lm/W
Level 3 20W 1860lm 93 lm/W 2030lm 102 lm/W 1940lm 97 lm/W
Level 4 14.6W 1400lm 96 lm/W 1550lm 106 lm/W 1480lm 101 lm/W





CL01 36W @16° (full)
SETTING SYSTEM WATTS 3000K 4000K 5000K
LUMENS (90CRI) LPW (90CRI) LUMENS (90CRI) LPW (90CRI) LUMENS (90CRI) LPW (90CRI)
Level 1 36W 3380lm 94 lm/W 4050lm 113 lm/W 3550lm 99 lm/W
Level 2 30W 2870lm 96 lm/W 3420lm 114 lm/W 3010lm 100 lm/W
Level 3 22W 2130lm 97 lm/W 2530lm 115 lm/W 2280lm 104 lm/W
Level 4 15W 1520lm 101 lm/W 1750lm 117 lm/W 1630lm 109 lm/W





CL01 36W @25° (full)
SETTING SYSTEM WATTS 3000K 4000K 5000K
LUMENS (90CRI) LPW (90CRI) LUMENS (90CRI) LPW (90CRI) LUMENS (90CRI) LPW (90CRI)
Level 1 36W 3000lm 83 lm/W 3530lm 98 lm/W 3300lm 92 lm/W
Level 2 30W 2560lm 85 lm/W 2970lm 99 lm/W 2820lm 94 lm/W
Level 3 22W 1960lm 89 lm/W 2230lm 101 lm/W 2120lm 96 lm/W
Level 4 15W 1400lm 93 lm/W 1570lm 105 lm/W 1480lm 99 lm/W





CL01 36W @32° (full)
SETTING SYSTEM WATTS 3000K 4000K 5000K
LUMENS (90CRI) LPW (90CRI) LUMENS (90CRI) LPW (90CRI) LUMENS (90CRI) LPW (90CRI)
Level 1 36W 2680lm 74 lm/W 3030lm 84 lm/W 2850lm 79 lm/W
Level 2 30W 2260lm 75 lm/W 2540lm 85 lm/W 2410lm 80 lm/W
Level 3 22W 1720lm 78 lm/W 1910lm 87 lm/W 1800lm 82 lm/W
Level 4 15W 1200lm 80 lm/W 1350lm 90 lm/W 1280lm 85 lm/W





CL01 36W @50° (Full)
SETTING SYSTEM WATTS 3000K 4000K 5000K
LUMENS (90CRI) LPW (90CRI) LUMENS (90CRI) LPW (90CRI) LUMENS (90CRI) LPW (90CRI)
Level 1 36W 2380lm 66 lm/W 2530lm 70 lm/W 2450lm 68 lm/W
Level 2 30W 2030lm 68 lm/W 2160lm 72 lm/W 2080lm 69 lm/W
Level 3 22W 1540lm 70 lm/W 1640lm 75 lm/W 1580lm 72 lm/W
Level 4 15W 1100lm 73 lm/W 1190lm 79 lm/W 1130lm 75 lm/W





CL01 36W @60° (Full)
SETTING SYSTEM WATTS 3000K 4000K 5000K
LUMENS (90CRI) LPW (90CRI) LUMENS (90CRI) LPW (90CRI) LUMENS (90CRI) LPW (90CRI)
Level 1 36W 2870lm 80 lm/W 3040lm 84 lm/W 2960lm 82 lm/W
Level 2 30W 2420lm 81 lm/W 2560lm 85 lm/W 2520lm 84 lm/W
Level 3 22W 1830lm 83 lm/W 1910lm 87 lm/W 1880lm 85 lm/W
Level 4 15W 1300lm 87 lm/W 1380lm 92 lm/W 1350lm 90 lm/W





CL01 36W @70° (Full)
SETTING SYSTEM WATTS 3000K 4000K 5000K
LUMENS (90CRI) LPW (90CRI) LUMENS (90CRI) LPW (90CRI) LUMENS (90CRI) LPW (90CRI)
Level 1 36W 3130lm 87 lm/W 3460lm 96 lm/W 3280lm 91 lm/W
Level 2 30W 2640lm 88 lm/W 2930lm 98 lm/W 2750lm 92 lm/W
Level 3 22W 1970lm 90 lm/W 2200lm 100 lm/W 2080lm 95 lm/W
Level 4 15W 1440lm 96 lm/W 1600lm 107 lm/W 1520lm 101 lm/W

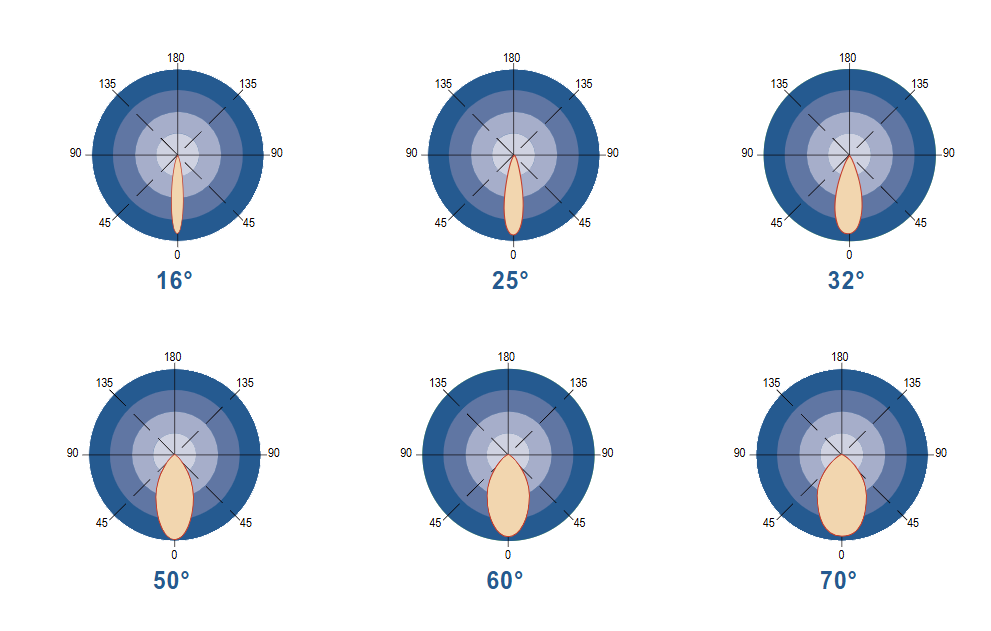

PHOTOMETRICS

Six beam angles are specifically designed to meet almost all of your application requirements.

ORDERING GUIDE

ORDERING GUIDE                                                                           Example: IMCL01 36W 27V DDK Y Y Y Y Y





IUS

Fixture Type

Wattage

Voltage

CCT

Finish

Photocell (Optiona)

CCT and Power Adjustable

Beam Angle

Internal Code

I

MCL01

Wall Sconce Series

25W 25Watts

(Up only/Down only)

36W 36Watts (Full)

27V 120-277V

DDK Adjustable color temperature

D Dark Bronze

B Black

W White

P With Photocell

AD With Adjustment Dial

16 16 degree

25 25 degree

32 32 degree

50 50 degree

60 60 degree

70 70 degree

Blank Alphanumeric
