WATTAGE AND CCT SELECTABLE LED TROFFER LIGHT

Description:

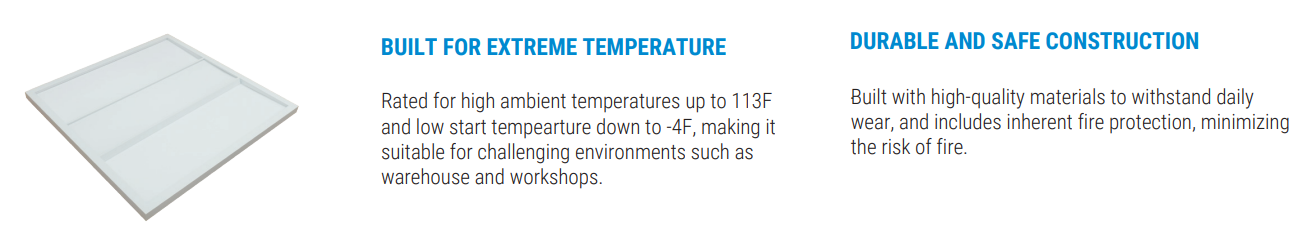

The IMTFE series is ideal for supermarkets, shops, warehouses, workshops, or barns, this lighting solution offers 3CCT selectability with color temperatures ranging from 3500K to 4000K to 5000K. The wattage is selectable at 20W, 30W, or 40W, allowing various brightness levels with lumen outputs of 2200LM, 3300LM, 4400LM, or 5500LM. Designed for versatility, it operates on 120-277V with a continuous 0-10-volt dimming driver and is rated for high ambient temperatures up to 113°F, with a low start temperature of -4°F. This fixture is ETL suitable for damp locations.

Contact Us

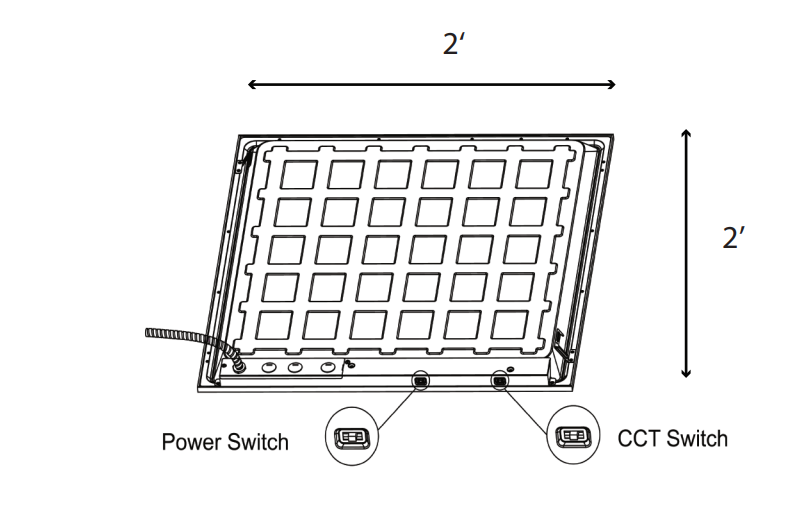

DIMENSION

TECHNICAL SUMMARY

MODEL NO.

WATTS

LUMENS

CCT

VOLTAGE

DIMMING

CRI

CERTIFICATION

IMTFE22-20/30/40W-3CCT

20/30/40W

2200/3300/4400LM

35/40/50K

AC120-277V

0-10V

80+

ETL/ FCC

IMTFE24-30/40/50W-3CCT

30/40/50W

3300/4400/5500LM

35/40/50K

AC120-277V

0-10V

80+

ETL/ FCC

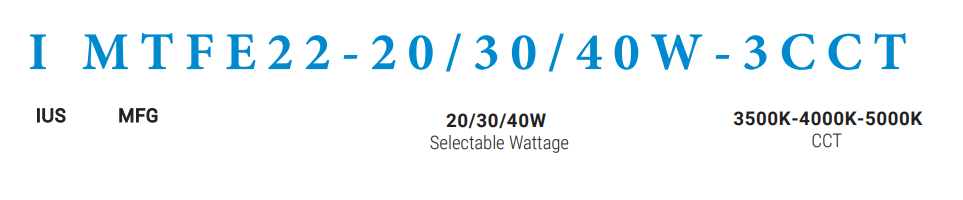

PART NUMBER ORDERING SUMMARY

CONSTRUCTION

  • Unit includes heavy duty metal frame, LED array, heat sink, hanger, security cable and high quality PC lens.

OPTICS

  • Diffuse for uniform illumination.
  • CRI 80+

DRIVER

  • 120 - 277V 60Hz universal input voltage
  • 0-10v smooth flicker free dimming down to 5%

MOUNTING

Pendant mount to the ceiling

LISTING

  • ETL Listed
  • FCC certified

WARRANTY

5 years manufacturer warranty, consult for more details.

* Terms and conditions may apply.

*5 years limited LED luminaire warranty to the original purchaser that the luminaire shall be free from defects in mate-rials and workmanship from date of shipment, when under properly installed at normal conditions of use. The warranty may not cover physical damage or abuse under certain conditions.
