WLEZXTEU Compact Wet Location LED Exit Sign
Description:
Special voltage SALIDA face plate options available. Check with your Best Lighting Representative.
1 Available only with EM units.
2 Available only with AC units
Contact UsILLUMINATION
- Ultra bright, energy efficient, long life Red or Green LED.
ELECTRICAL
- Dual 120/277 voltage.
- Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
- 4.8V long life, maintenance-free, rechargeable NiCd battery.
- Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
- Polycarbonate mounting canopy included for top or end mount.
- Universal K/O pattern on back plate for wall mount.
HOUSING
- 5VA ame retardant, UV-stabilized polycarbonate in white, black or gray nish.
- High-impact resistant, UV-stabilized polycarbonate clear lens.
- Corrosion-resistant enclosure with engineering grade silicone gasket.
- Top and side K/O’s provided for conduit feed applications.
- EZ snap-out chevron directional indicators.
OPTIONS
- SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
- 2C: Dual circuit option on the AC-only unit enables it to be connected to two different (one acting as a back-up to the other) supplies at the same time.
- TP: Tamper-proof hardware helps prevent unauthorized access to the unit.
- Custom: Signs available with requested “special” wording.
WARRANTY/LISTING
- Five year warranty on all electronics and housing. Battery pro rated for five years.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- UL Listed for wet locations (-20°C – 50°C).

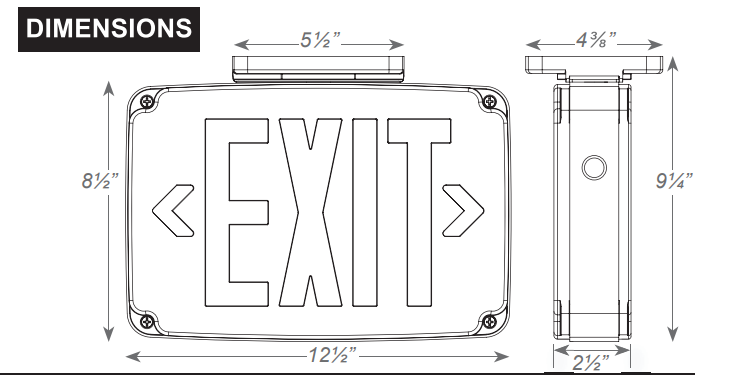

DIMENSIONS

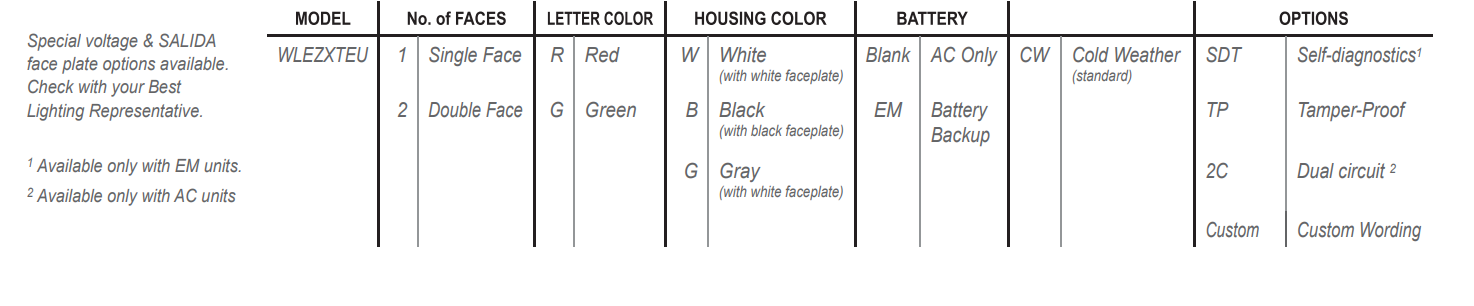

ORDERING INFORMATION
ELECTRICAL INFORMATION
|
CATALOG NUMBER
|
INPUT WATTS(W)
|
INPUT AMPS (A)
|
||
|
120V |
277V |
120V |
277V |
|
|
WLEZXTEU-RED/GREEN |
2.7 |
2.7 |
0.025 |
0.011 |
|
WLEZXTEU-RED/GREEN/EM/SDT |
3.3 |
3.4 |
0.030 |
0.014 |
|
WLEZXTEU-RED/GREEN-2C |
2.4 |
2.4 |
0.023 |
0.011 |
