115W Linear Highbay
Description:
The IMHBS23-115W-50K series These Single panel LED linear high bay light fixtures are excellent for perfect solution for commercial lighting needs in garages, warehouses and other commercial spaces. They are designed to replace your existing fluorescent or halogen high bays for more modern, efficient, and safe lighting. These fixtures are UL certified.

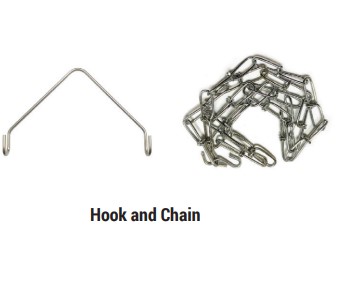

Contact UsMOUNTING ( INCLUDED)
.jpg)

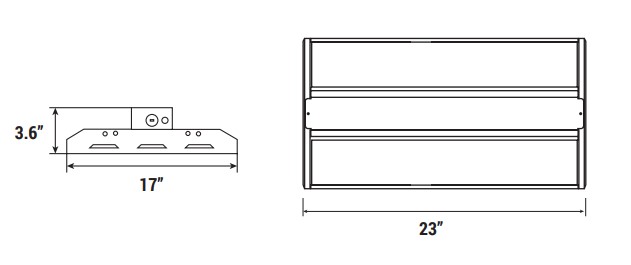

DIMENSION
.jpg)
TECHNICAL SUMMARY
|
LUMENS |
WATTS |
EFFICACY |
CRI |
VOLTAGE |
BEAM º |
CCT |
PF |
LIFE |
OPERATING TEMP. |
|
18000 |
115W |
135 lm/W |
80 |
120V 277V |
120 |
5000K |
>0.9 |
50,000 hrs |
-40ºF ~ 104ºF |
.jpg)
CONSTRUCTION
- Unit includes heavy duty metal frame, LED array, heat sink, and lens.
- High quality frosted PC lens.
- Efficiency LED array.
- Diffuse for uniform illumination.
- CRI 80+
DRIVER
- 120-277V universal input voltage.
- 0-10V smooth flicker free dimmable.
MOUNTING
- Ceiling mounting
- Pendant Mount
LISTING
- UL 8750 LED equipment in Lighting Products
WARRANTY
- 5 years manufacturer warranty, consult www.mwfor more details.
- * Terms and conditions may apply.
*5 years limited LED luminaire warranty to the original purchaser that the luminaire shall be free from defects in mate-rials and workmanship from date of shipment, when under properly installed at normal conditions of use. The warranty may not cover physical damage or abuse under certain conditions.

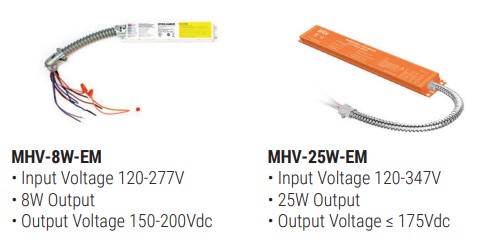

ACCESSORIES (SOLD SEPARATELY)
.jpg)

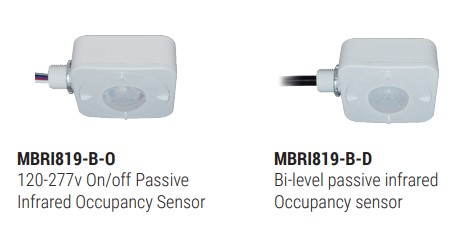

OCCUPANCY SENSORS (SOLD SEPARATELY)
.jpg)
115W Linear Highbay
IMHBS23-115W-50K
