2.3” Linear Pendant

Description:

IUS series 2.3" linear pendant lighting is a unique linear series that brings any space to the center stage. These timeless, streamlined forms blend well with contemporary decors and modern workplaces. These linear luminaries is available in 2ft, 3ft, 4ft and 8ft, simply provide wide, powerful lighting to any atmosphere with continuous runs. It can provide smooth uplight and downlight, allowing for wider spacing between fixtures and better ceiling light uniformity. Unleash lighting design flexibility with different shapes and patterns, it adds fun factor into each room. These creations will let you suggest rhythm, communicate meaning and showcase element of life.

Contact Us

Feature

  • Wattage selectable (50%/75%/100%)
  • CCT adjustable from 3000K, 3500K, 4000K
  • Individual units or continuous runs

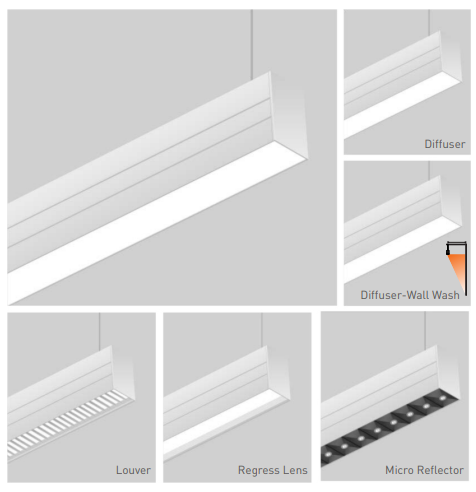

  • Available in diffuser, micro reflector, louver and regressed lens

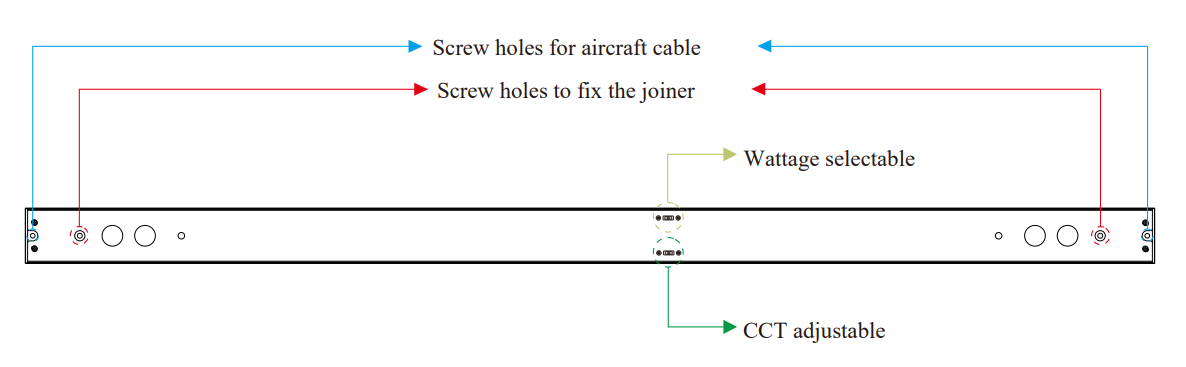

  • Custom pattern with optional Line and Illuminated L joiners
  • Available in 2ft, 3ft, 4ft and 8ft, up to 1000lm/ft

PERFORMANCE



Lens



Length

Wattage Selectable

100%DOWN



CCT Adjustable

Efficacy

Lumen Output





Diffuser

2'

20W/15W/10W





1050m/ft

Up to 2100LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 3150LM

4'

40W/30W/20W

Up to 4200LM

8'

80W/60W/40W

Up to 8400LM



Regressed Lens

2'

20W/15W/10W





900lm/ft

Up to 1800LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 2700LM

4'

40W/30W/20W

Up to 3600LM

8'

80W/60W/40W

Up to 7200LM





Louver

2'

20W/15W/10W





650m/ft

Up to 1300LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 1950LM

4'

40W/30W/20W

Up to 2600LM

8'

80W/60W/40W

Up to 5200LM



Micro Reflector

2'

20W/15W/10W





900lm/ft

Up to 1800LM





3000K/3500K/4000K

3'

30W/23W/15W

Up to 2700LM

4'

40W/30W/20W

Up to 3600LM

8'

80W/60W/40W

Up to 7200LM



Remark:

Lumens are subjuect to maximum wattage,4000K with white finish only.

Lumen output may vary ± 5% base on different CCT and wattage. Actual wattage may vary ± 5%.

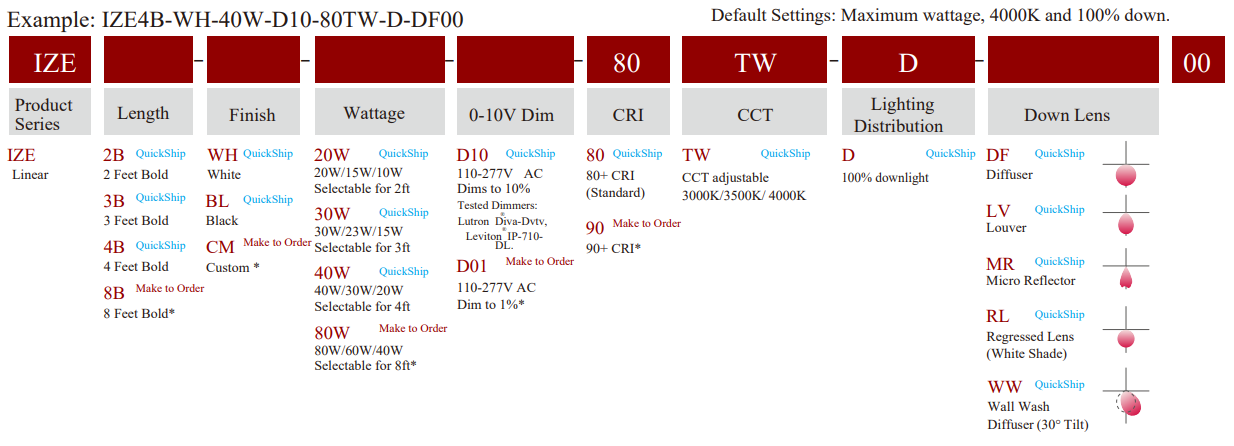

PRODUCT ORDERING GUIDE

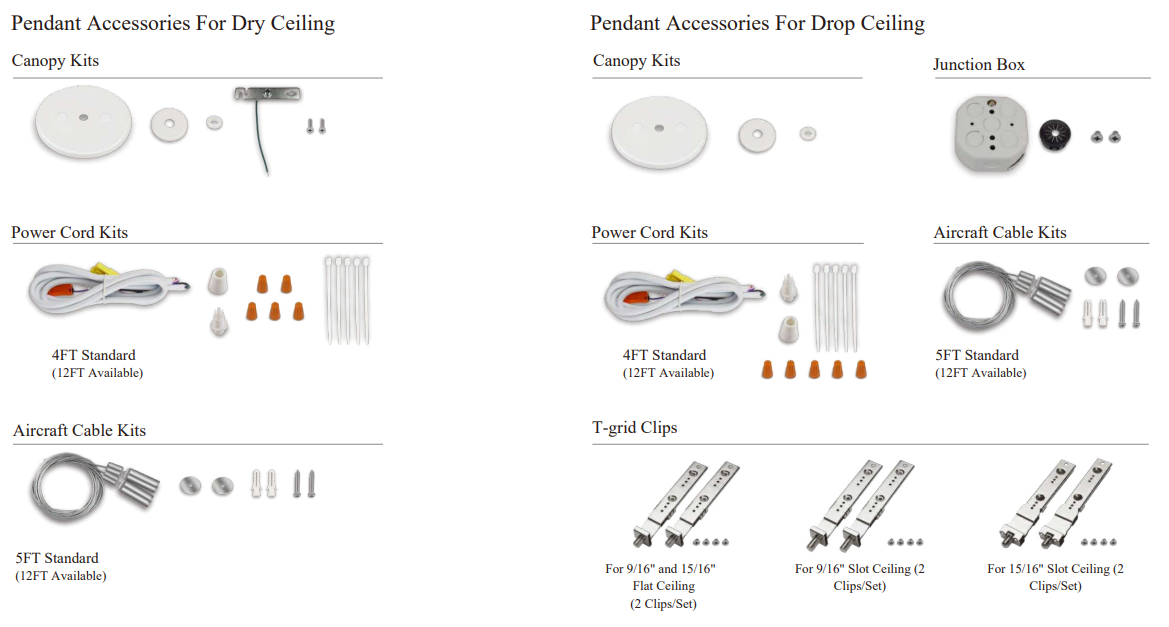

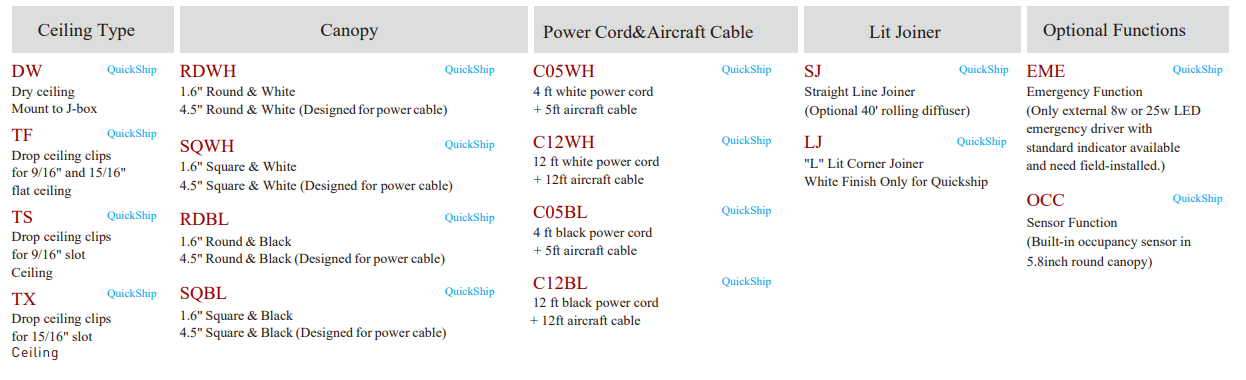

OPTIONAL PENDANT ACCESSORY

CUSTOM LINE OR SHAPE ORDERING GUIDE

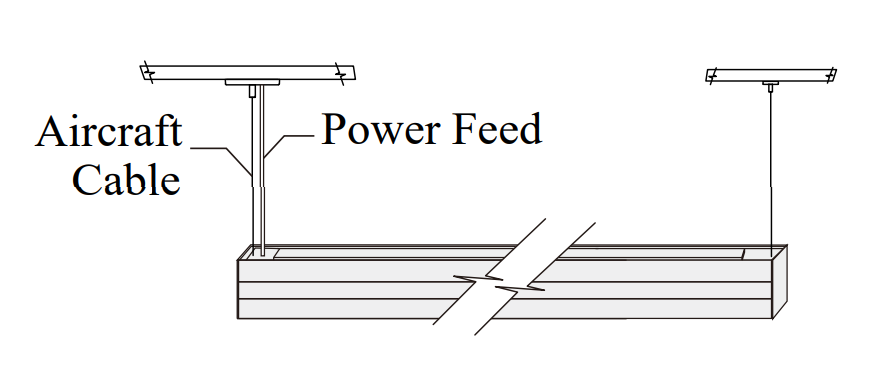

MOUNTING

Standard Line Runs In 120V

Luminaire Run Length (ft)

Run Configuration

Line Joiner

5' Power Cable

5' Aircraft Cable

Canopy

2

2'

-

1

2

2

4

4'

-

1

2

2

6

4'+2'

1

1

3

3

8

8'

-

1

2

2

10

8'+2'

1

1

3

3

12

8'+4'

1

1

3

3

14

8'+4'+2'

2

1

4

4

16

8'+8'

1

1

3

3

18

8'+8'+2'

2

1

4

4

20

8'+8'+4'

2

1

4

4

22

8'+8'+4'+2'

3

1

5

5

24

8'+8'+8'

2

1

4

4

26

8'+8'+8'+2'

3

1

5

5

28

8'+8'+8'+4'

3

1

5

5

30

8'+8'+8'+4'+2'

4

1

6

6

32

8'+8'+8'+8'

3

1

5

5

34

8'+8'+8'+8'+2'

4

1

6

6

36

8'+8'+8'+8'+4'

4

1

6

6

38

8'+8'+8'+8'+4'+2'

5

1

7

7

40

8'+8'+8'+8'+8'

4

1

6

6

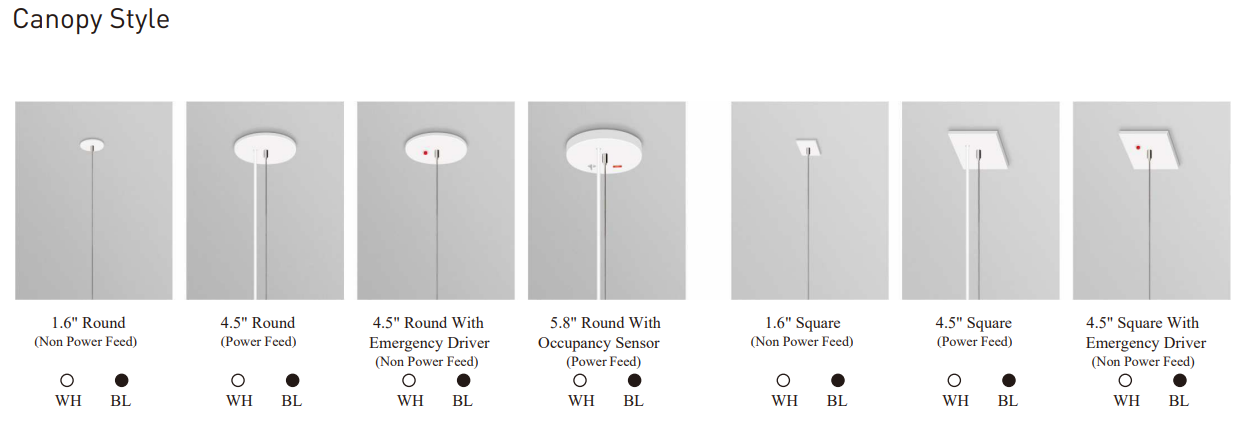

Note:4.5" canopy is designed for power cable

Individual

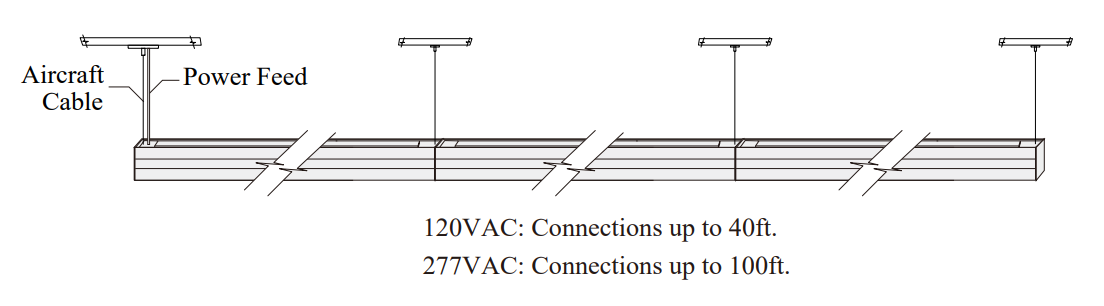

Continuous Run

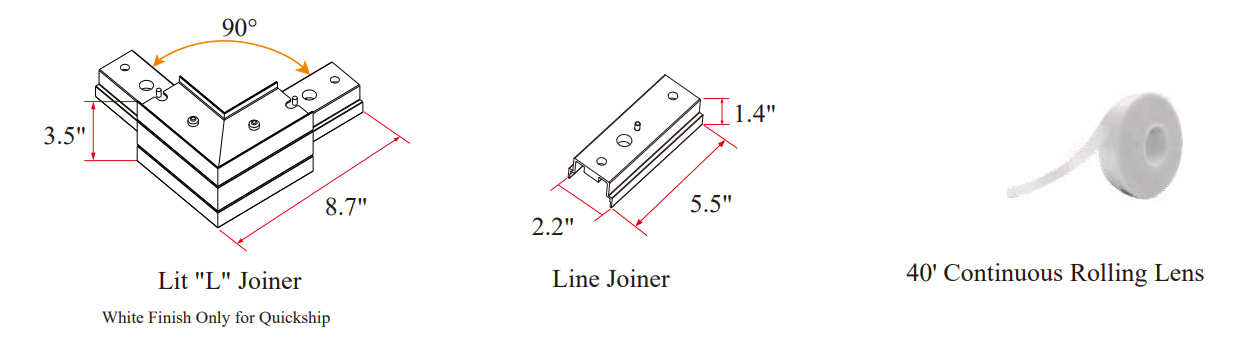

Joiner Options

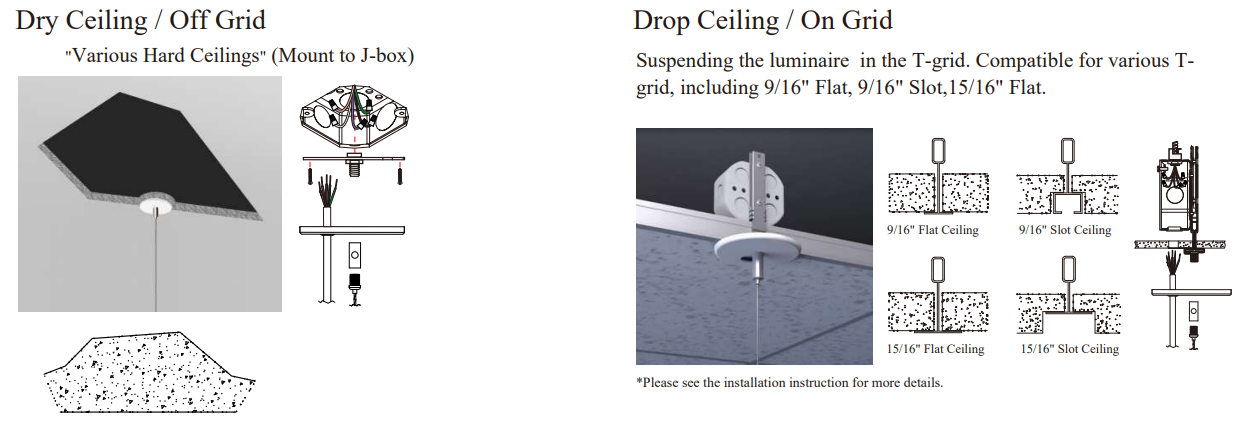

MOUNTING LOCATION

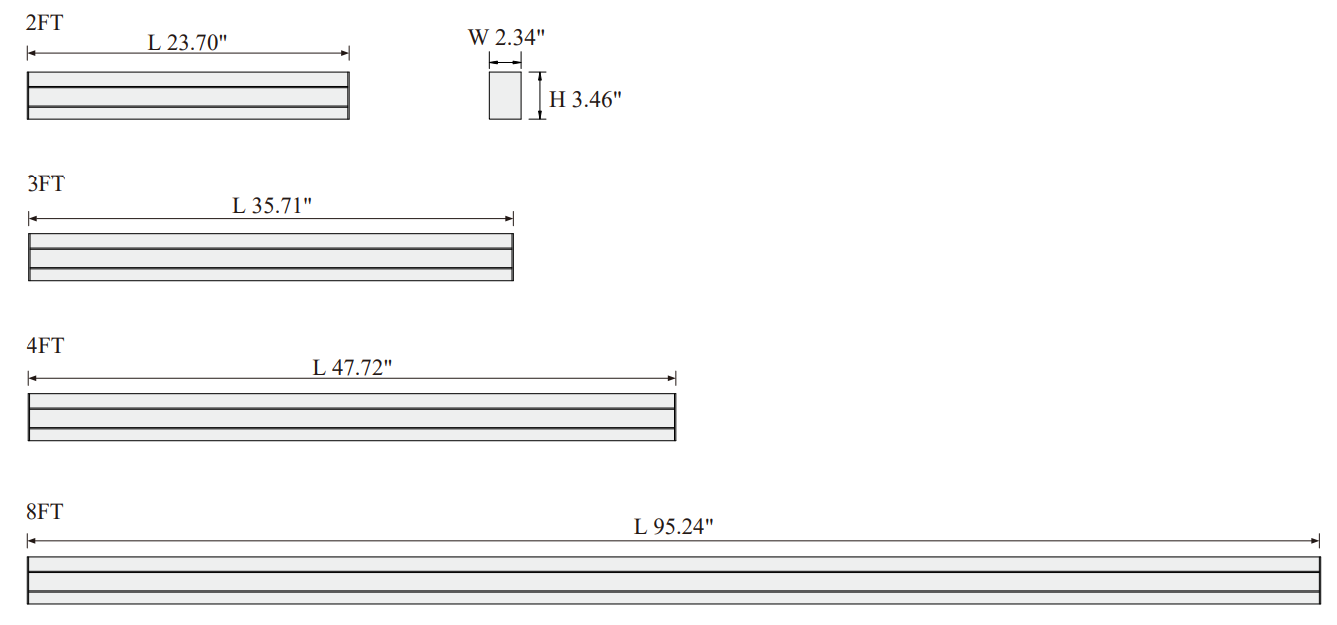

DIMENSIONS

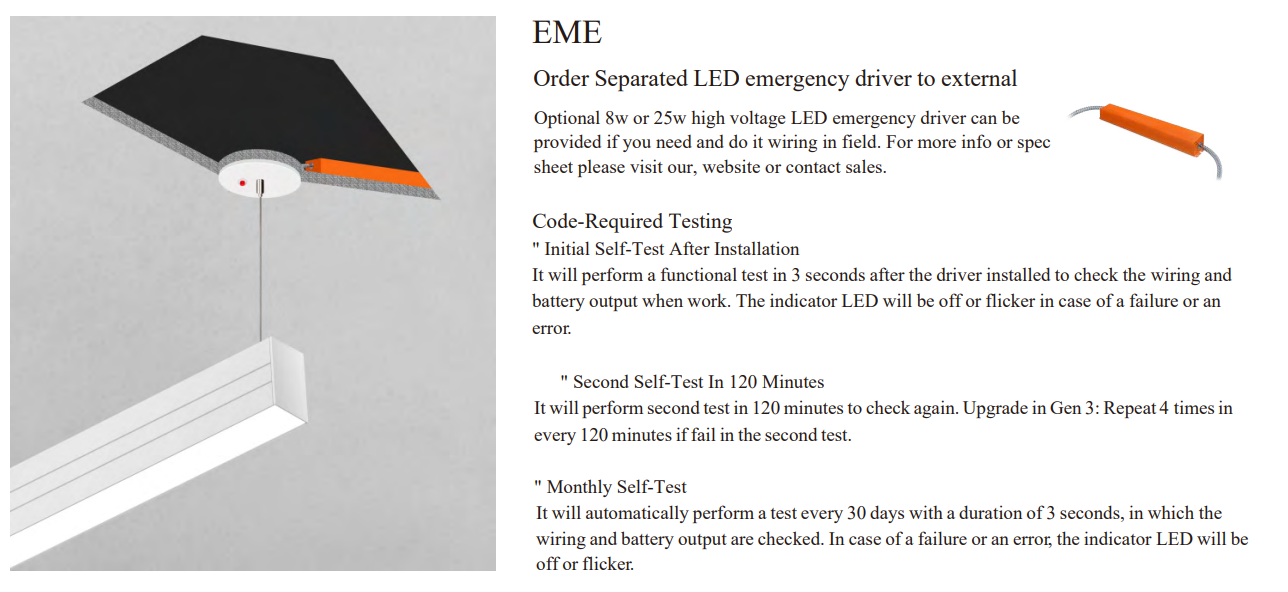

Emergency Option

IUS Lighting offers UL& CEC Listed LED emergency drivers. When AC power fails it, immediately switches to the emergency mode operating for lighting minimum 90 minutes. When AC power is restored it, automatically returns to the charging mode which meets critical life-safety lighting requirements.

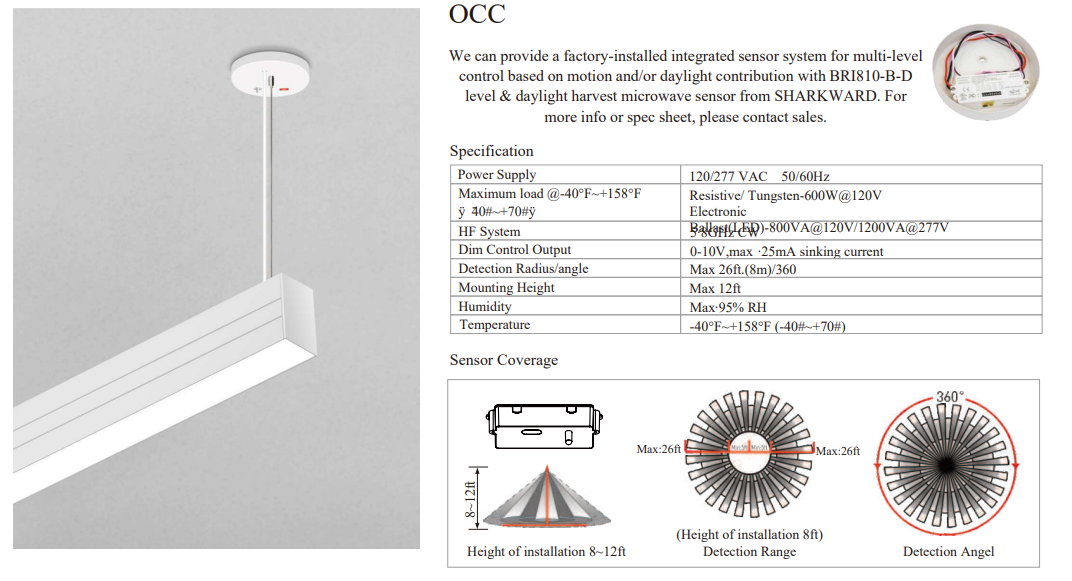

Occupancy Sensor

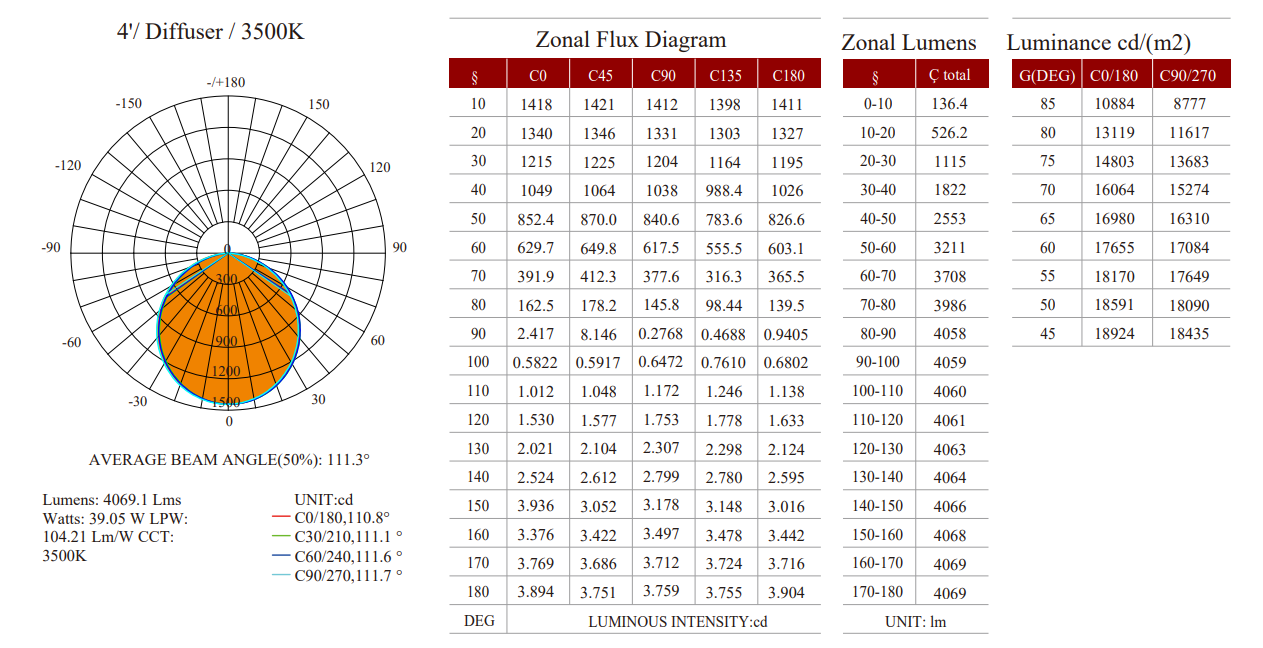

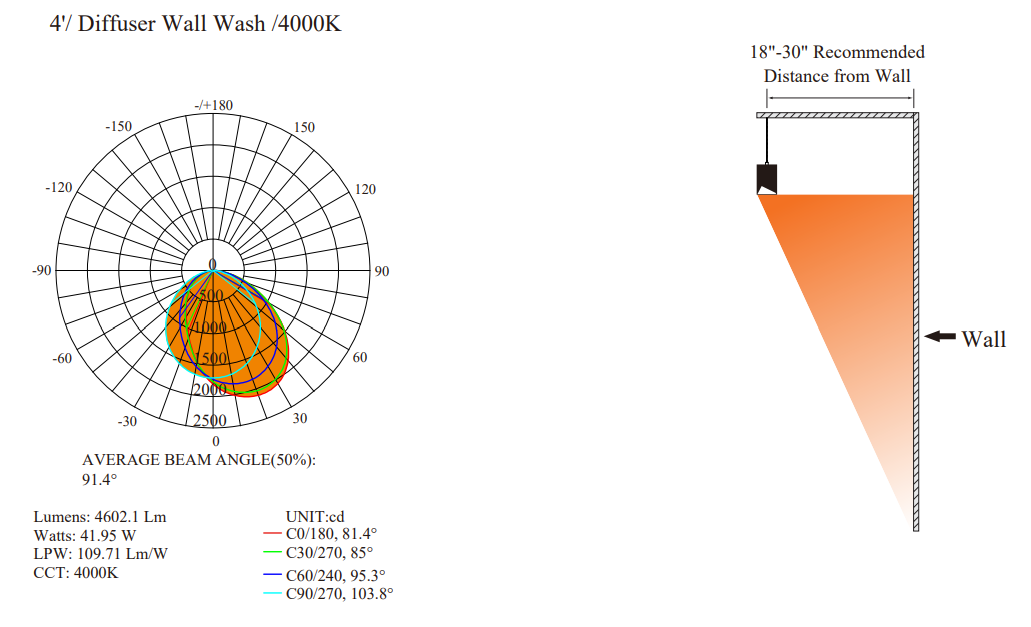

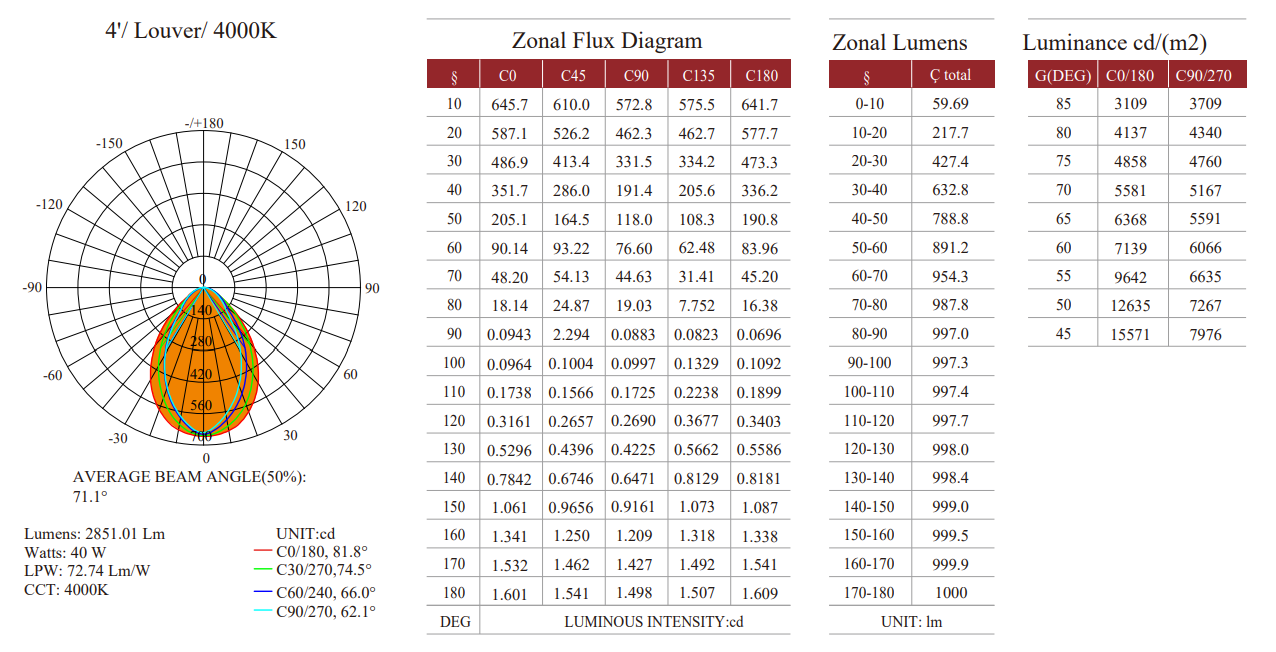

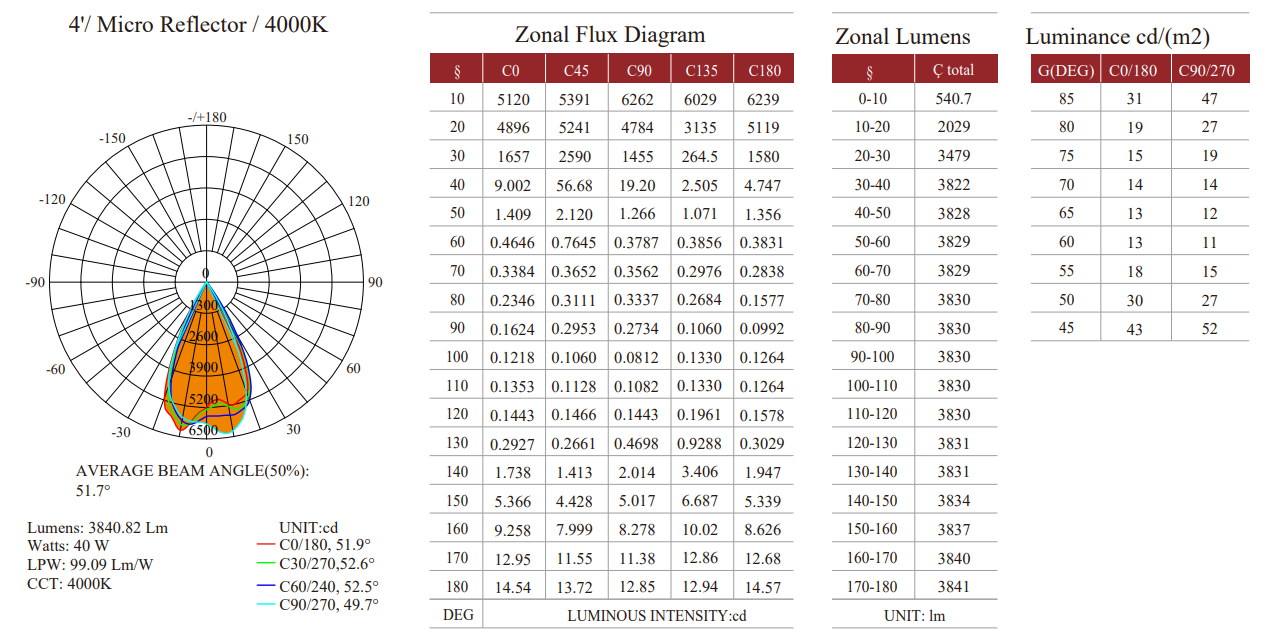

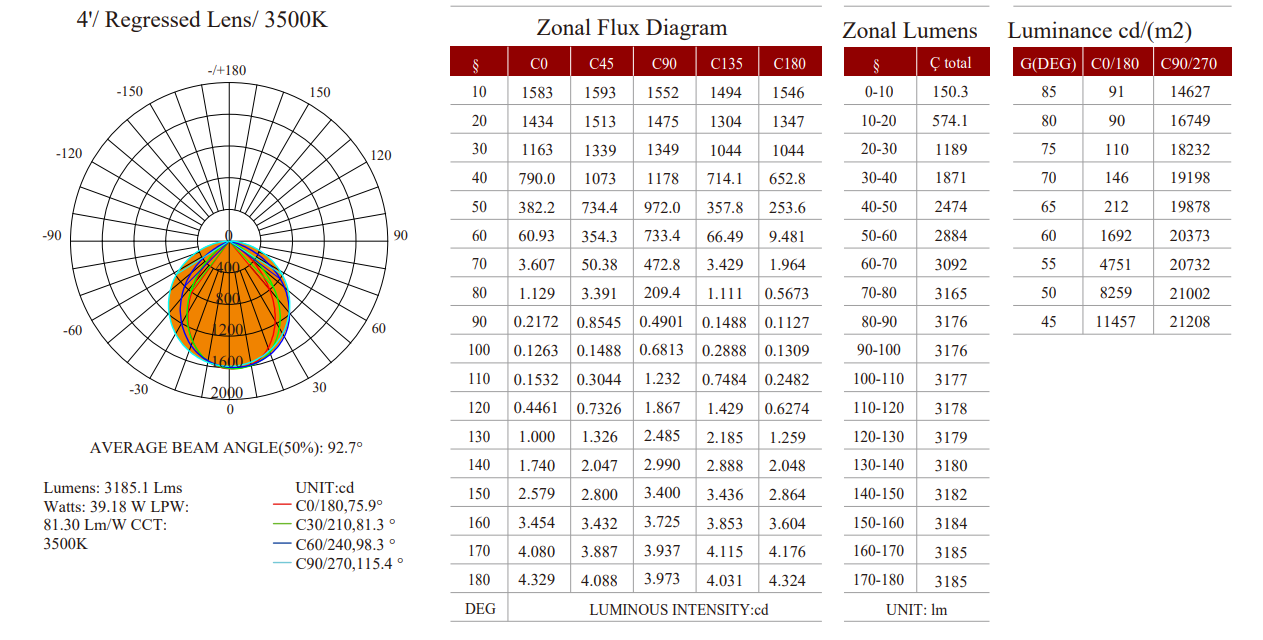

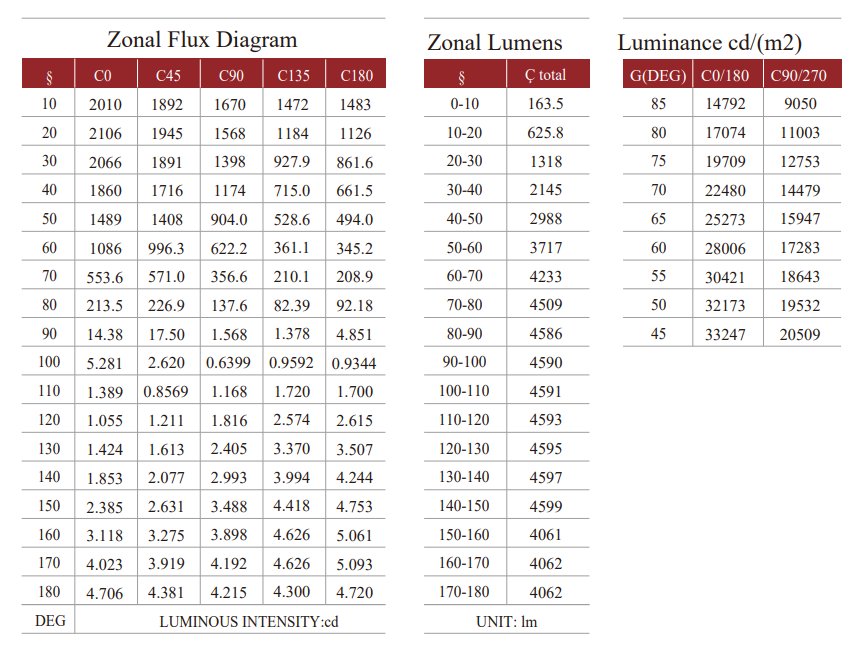

DISTRIBUTION DIAGRAM

2.3” Linear Pendant

Coming Soon
