Specification
|
Model No. |
TB-DM -XXF |
TB-DM-XXS |
TB-DM-XXI |
TB-DM-XXU |
|
Lengths | Wattages|Lumen |
2ft 10w 1150 lm 4ft 20w 2300 lm |
2ft 10w 1150 lm 4ft 20w 2300 lm |
2ft 10w 1150 lm 4ft 20w 2300 lm |
2ft 10w 1300 lm 4ft 20w 2600 lm |
|
Efficacy |
115 lm/w |
115 lm/w |
115 lm/w |
130 lm/w |
|
12 0 °Beam Angle |
|
|
|
|
|
100-277VAC Input |
|
|
|
|
|
24V DC Option |
|
|
|
|
|
Custom Pattern |
|
|
|
|
|
Plenum Ra ted Cable Op tion |
|
|
|
|
|
Eme rgency Option |
|
|
|
|
|
CCEA Optio n |
|
|
|
|
|
UL/CUL |
|
|
|
|
|
DLC |
|
|
|
|
Optics
Unique design with triple sides allows the light to diffuse for a direct and indirect lighting combination with 120° beam angle.
Electrical
| LED Driver | It can be parallel connected up to 6’ (2’ fixture) and 12’ (4’ fixture) max per power supply. Max distance from fixtures to power supply is 8 feet with 24 AWG wire with RJ45 terminal, which makes easy installation and safe wiring. |
| THD | <20% |
| Power Factor | >0.9 |
| Input Voltage | Standard electronic drivers are cULus recognized and available for 100-277V AC or 24VDC |
Optional Function
| Emergency Option | Optional low voltage 100-277V emergency LED driver for lighting up to 120 minutes in event of power failure, that meets critical life-safety lighting requirements. |
Warranty
5-year limited warranty on LED and driver.
LED System
| CRI | Minimum 80 color rendering index |
| CCT | 3000K, 3500K, 4000K and 5000K with a great color consistency |
| LED | life Minimum 50,000h with 87.8% of lumen maintenance in 25 ambient temperature, in compliance with IES LM-80 testing measurements. |
| Thermal Management | Aluminum housing acting as the heat sink to maximize life. |
Mounting

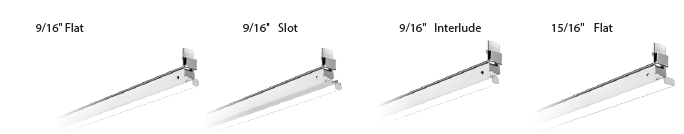

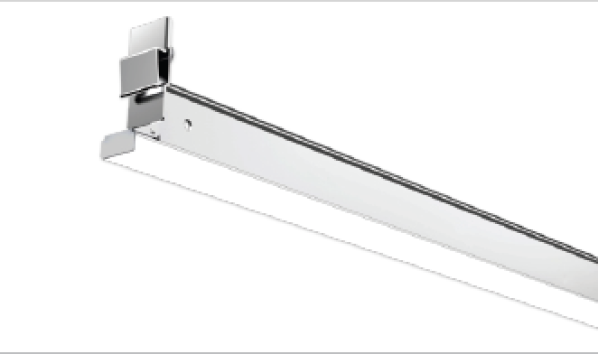

It is a lighting solution that can be replaced with 9/16" and 15/16" removable cross tee of the grid ceiling, allowing our linear light to be seamlessly integrated into the suspended ceiling.
Approvals
- US Patent (10125934)
- cULus listed for damp locations
- Tested to IESNA LM-79 and LM-80
- DesignLights Consortium Qualified and classified for DLC standard, refer to www.designlights.org for details
- CCEA listed
- IC Rated
T-grids Ceiling Compatibility
Custom Pattern
|
|

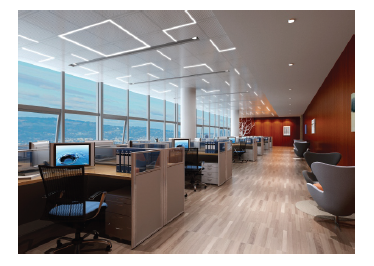

T-Grid LED can be installed in many configurations by replacing any of the cross tees between the main runners of the grid ceiling assembly. It is free to create compelling spaces, and your space no longer has to be restricted to a single pattern on the ceiling. Custom pattern such as "L","T", "+", etc.
|
|
|
|

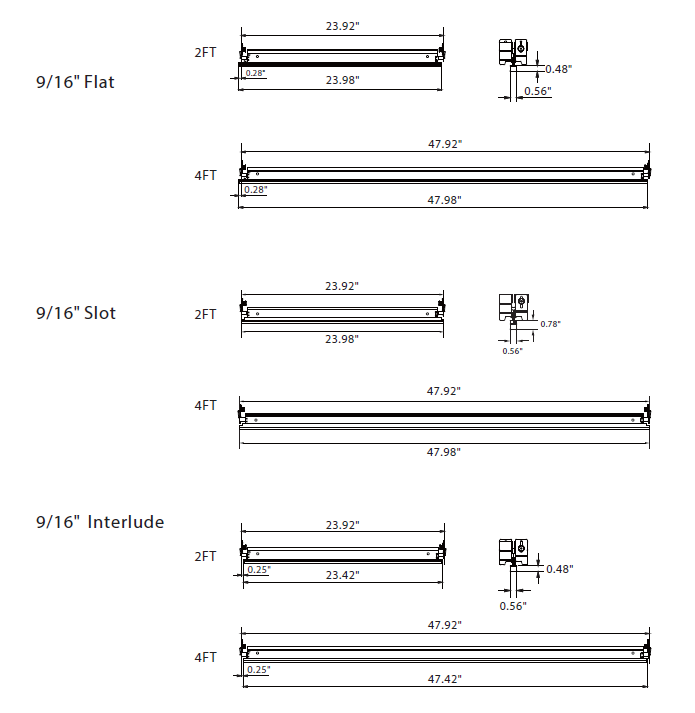

Dimension

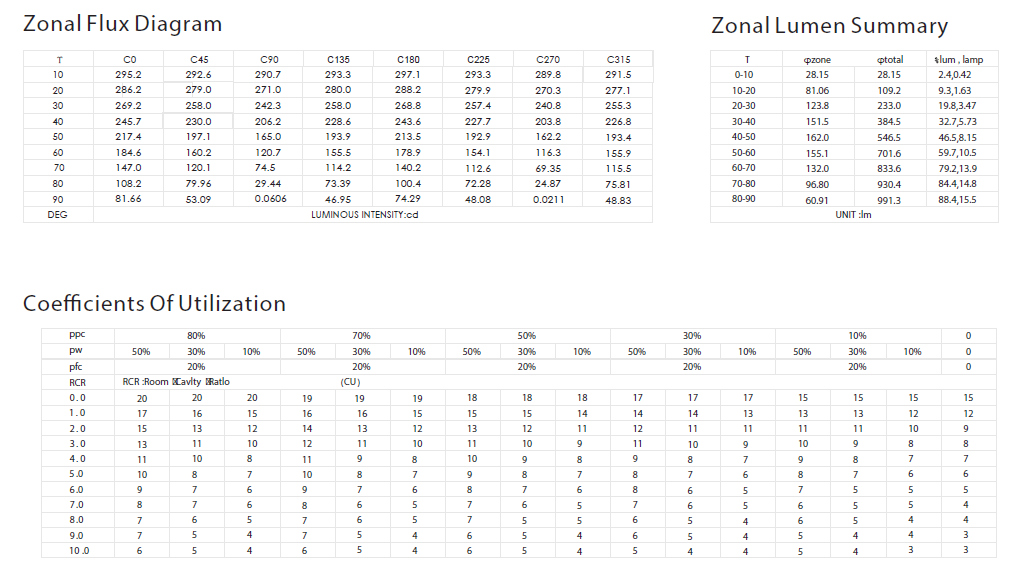

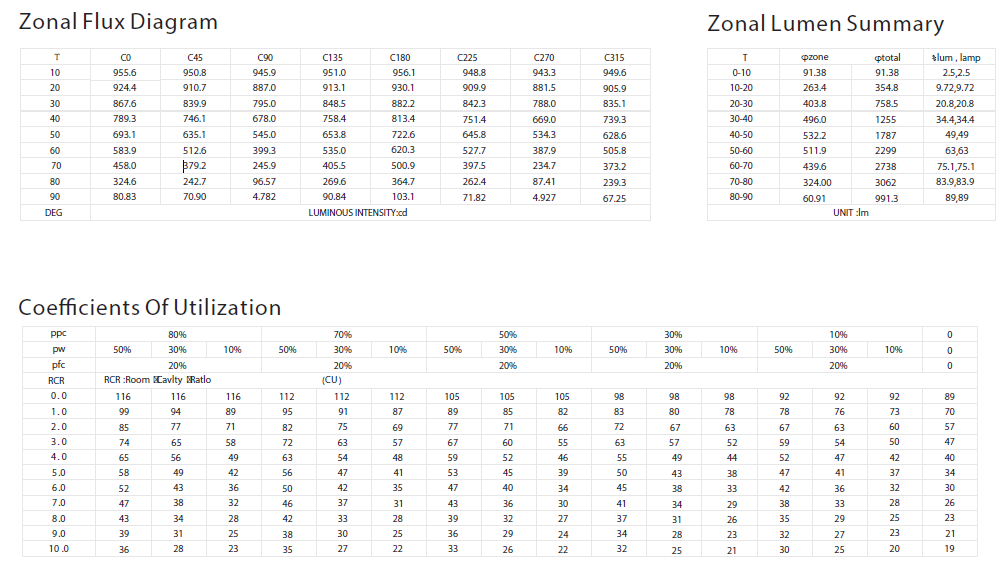

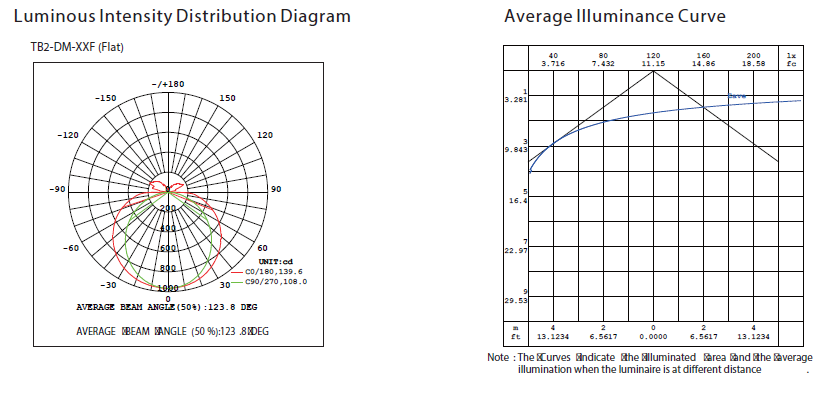

Photometry
Fixture photometry has been conducted accredited testing laboratory in accordance with IESNA LM-79-08. IESNA LM-79-08 specices the entire luminaire as the source resulting in a fixture efficiency of 100%. Result may vary per actual order.

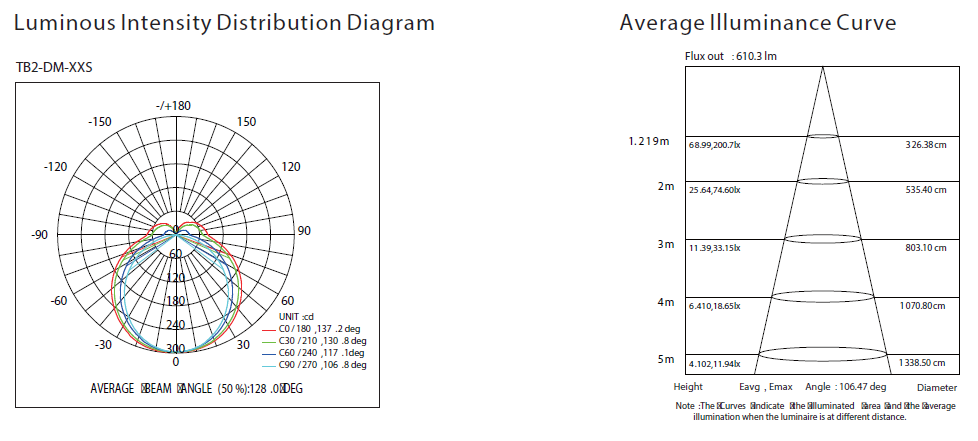

Photometry
Fixture photometry has been conducted accredited testing laboratory in accordance with IESNA LM-79-08. IESNA LM-79-08 specifies the entire luminaire as the source resulting in a fixture efficiency of 100%. Result may vary per actual order.

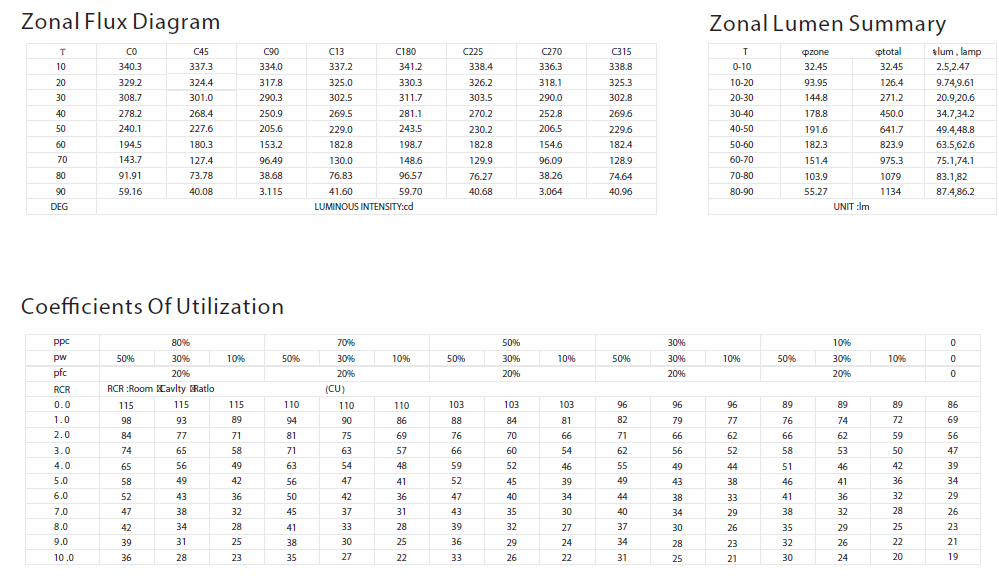

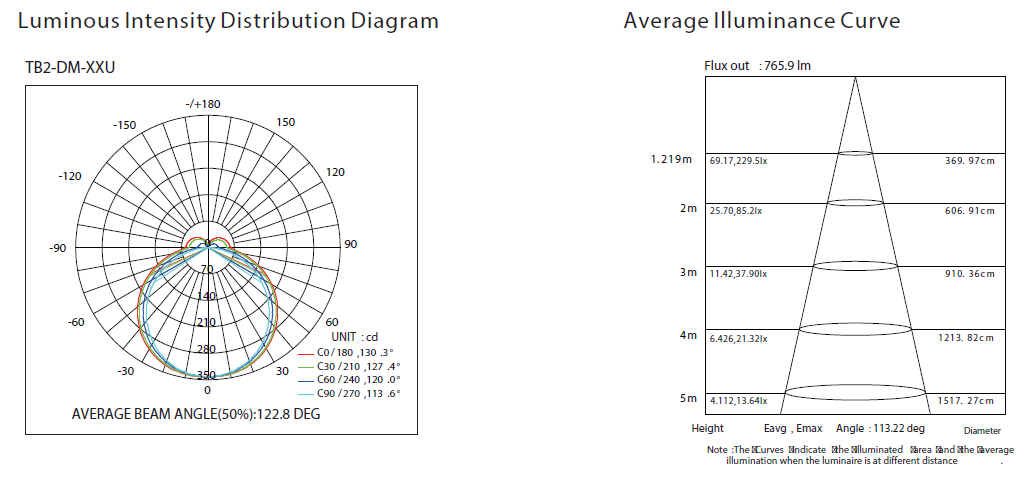

Photometry
Fixture photometry has been conducted accredited testing laboratory in accordance with IESNA LM-79-08. IESNA LM-79-08 specifies the entire luminaire as the source resulting in a fixture efficiency of 100%. Result may vary per actual order.
2'/4' TB Series recessed
