IMCP03 Round LED Canopy CCT & wattage selectable

Description:

IMCP03 series is a commercial grade LED canopy luminaire that utilizes high powered LEDs with precise efficient optical control and on board wattage and lumen choices. It provides excellent uniformity, energy efficiency and control for surface mount applications. The versatile and functional features:
Energy-efficient LED system, rugged design, pendant or junction box mounting options, multiple lumen packages and optical distributions.

Contact Us

Construction

  • Sealed die-casting profile for indoor and outdoor applications.
  • Casting thermally conducts LED heat to optimize performance and long life.
  • With corrosion-resistant powder coating that provides protection and architectural appearance while adapting well to the environment in the garage.

Optics

  • Lumen output from 3500-7700lm with efficacy up to 164lm/W.
  • Switchable color temperature 4000K/5000K.

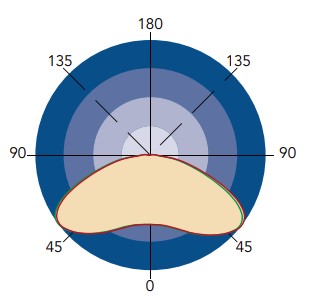

  • Parking Garage photometry.
  • Replacing 100W MH and 175W MH.

Electrical

  • Universal 120-277VAC input voltage.
  • Standard 0-10V dimming.

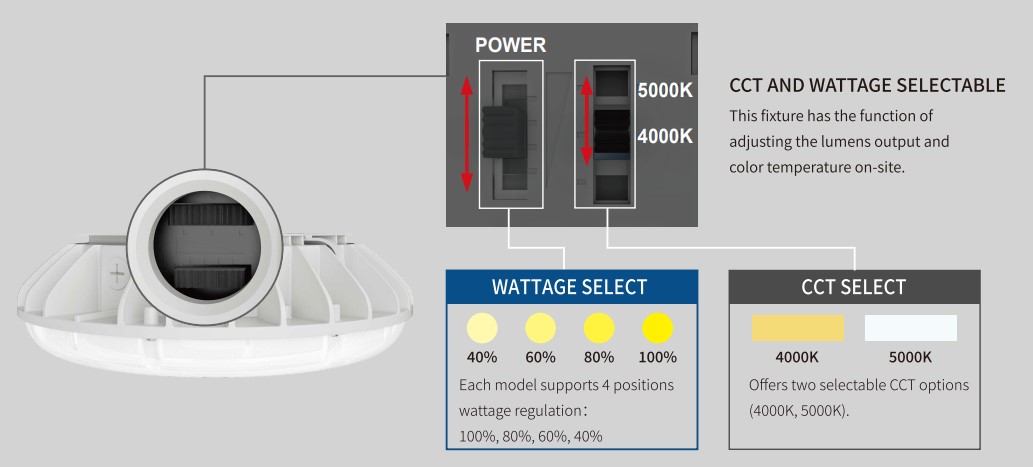

  • Wattage adjustable: 100%, 80%, 60%, 40%.
  • Both drivers have a power factor >90%, THD <20%.
  • Operating temperature is -40°C to 45°C(-40˚F to 113˚F).

Note: Operating with emergency battery temperature range: 5°C to 45°C (+41˚F - + 113˚F).

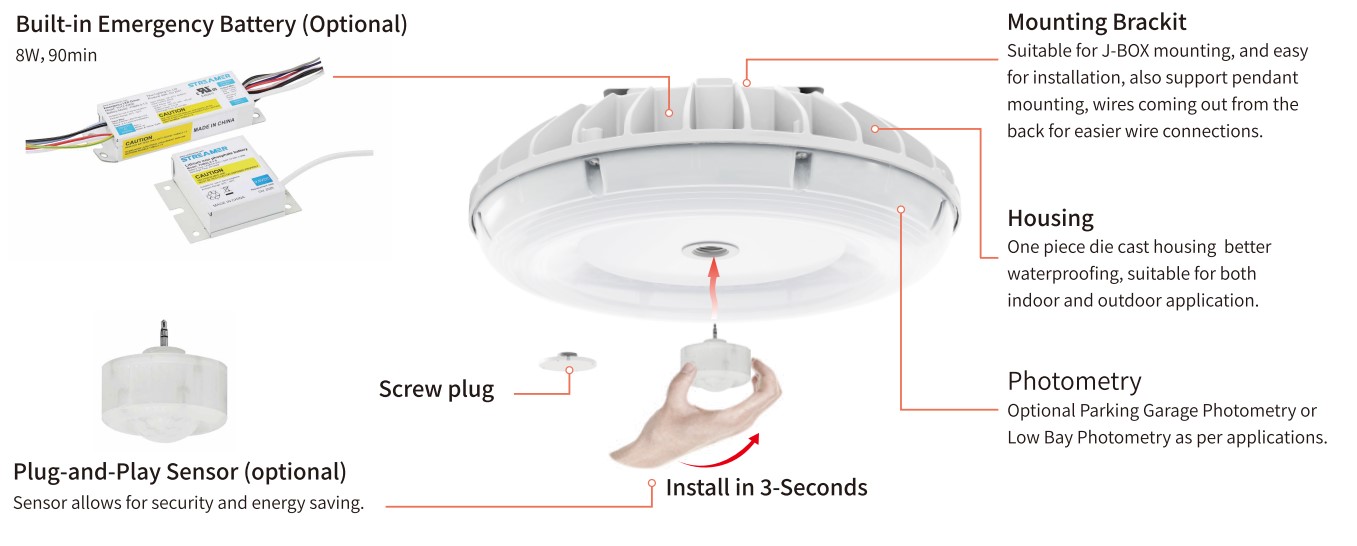

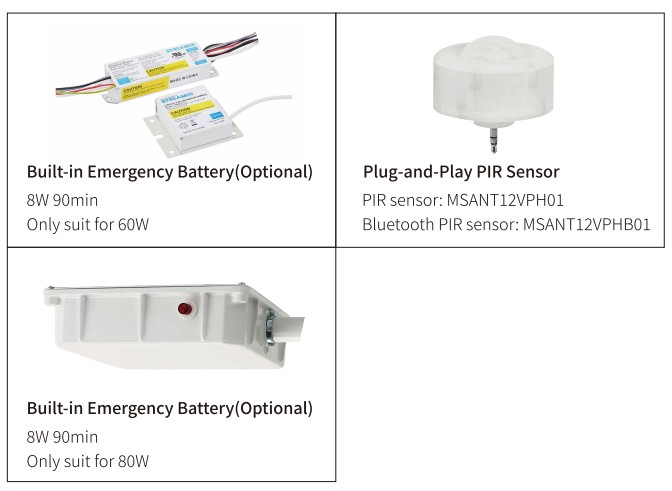

Controls

  • Optional Motion sensor.
  • Optional Emergency Battery.

Lifespan

  • Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

WARRANTY

  • Five-year limited warranty.

Certifications

  • UL cUL wet location listed.
  • DesignLights Consortium™ Qualified.

Note: Please refer to the DLC website for specific product qualifications at www.designlights.org.

Note

  • Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C(±5°C ) specifications subject to change without notice.

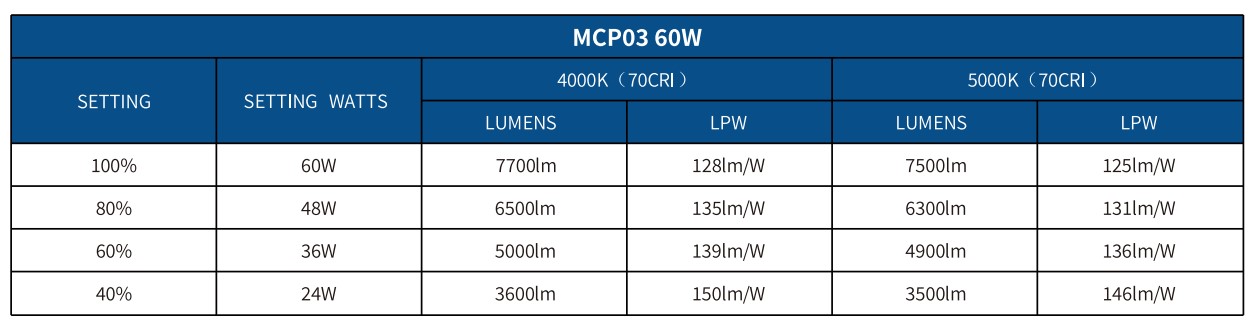

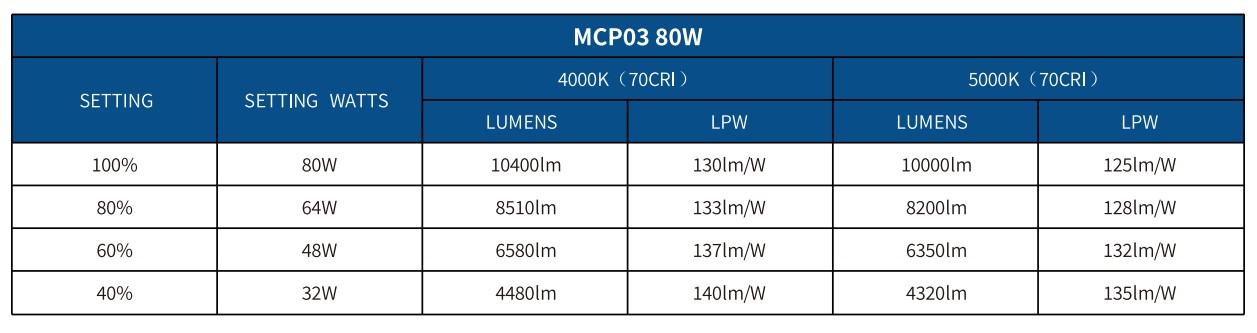

PERFORMANCE DATA



SETTING



SETTING WATTS

LUMENS

LPW

LUMENS

LPW

4000K (70CRI)

4000K (70CRI)

5000K (70CRI)

5000K (70CRI)

100%

60W

7700lm

128lm/W

7500lm

125lm/W

80%

46W

6500lm

141lm/W

6300lm

137lm/W

60%

34W

5000lm

147lm/W

4900lm

134lm/W

40%

22W

3600lm

164lm/W

3500lm

159lm/W

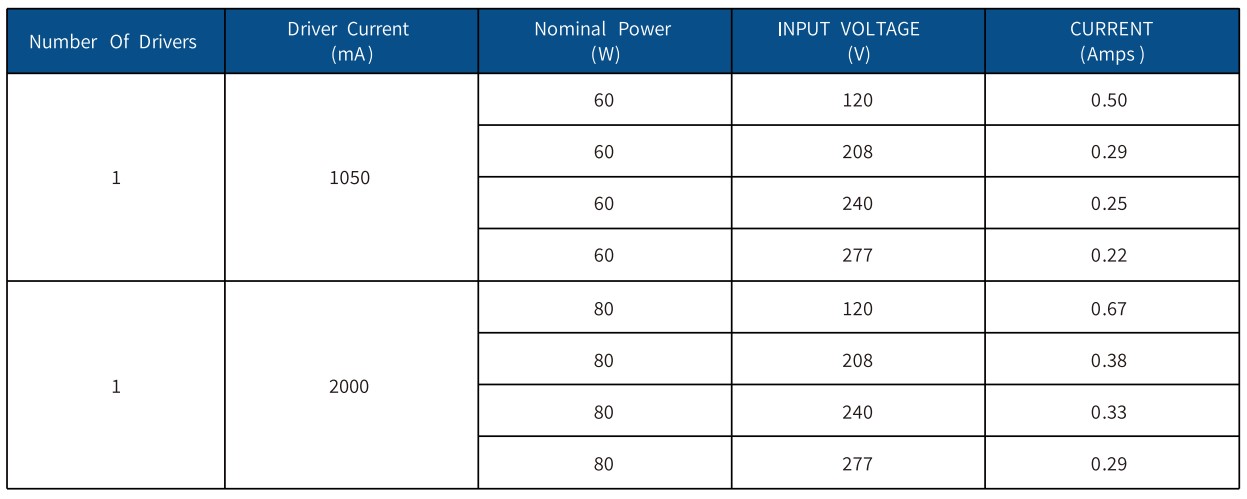

ELECTRICAL DATA

Number Of Drivers

Driver Current (mA)

Nominal Power (W)

INPUT VOLTAGE (V)

CURRENT

(Amps)







1







1050

60

120

0.50

60

208

0.29

60

240

0.25

60

277

0.22

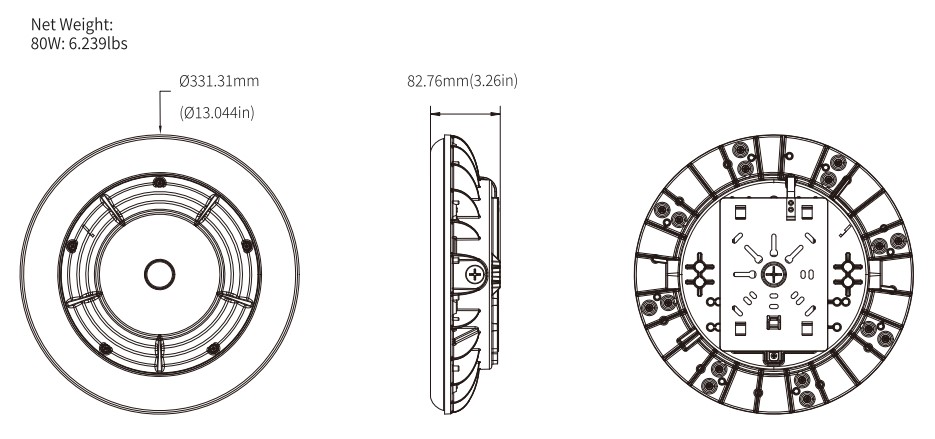

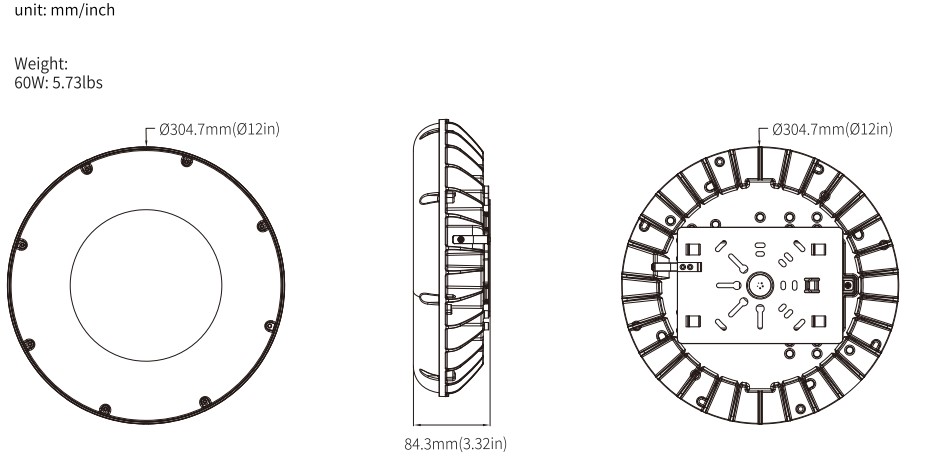

DIMENSION

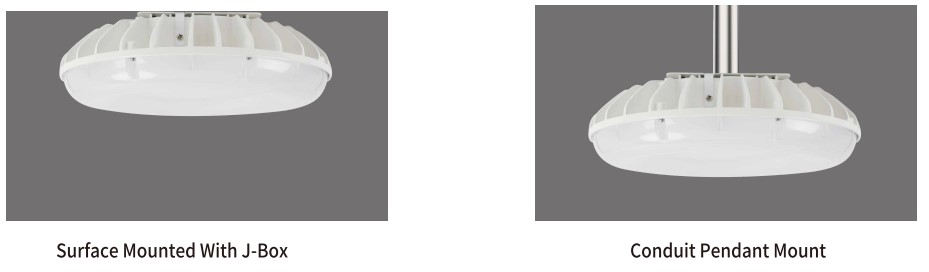

MOUNTING
