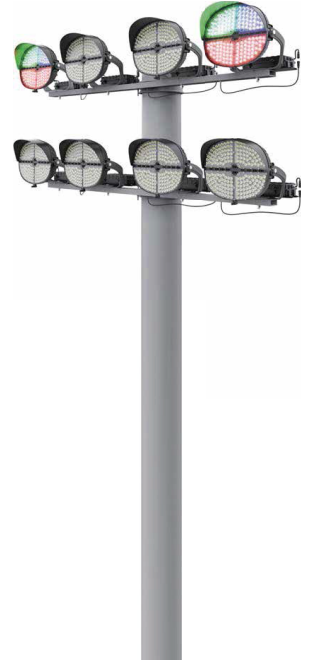

IMLS04 Sports Light – Red,Green,Blue
Description:
The MSL04 series is a powerful, smart and easy to install RGB sports light. Enhance the visual experience and create vibrant lighting effects for sports games or events with advanced versatility and superior operational efficiency. The MSL04 is a lamp with unlimited Opossibilities, not only to create dynamic and engaging light displays, but also to programmatically change the color, intensity, etc. to increase the excitement of the game and mobilize the audience's mood. Low consumption, high energy efficiency, and great flexibility make the MSL04 an excellent choice for sports lighting applications.
.png)
Construction
- Sealed die-casting profile for outdoor applications.
- Low profile, compact design minimizes wind load requirements.
- Housing is completely sealed against moisture and environmental contaminants (IP65).
Optics

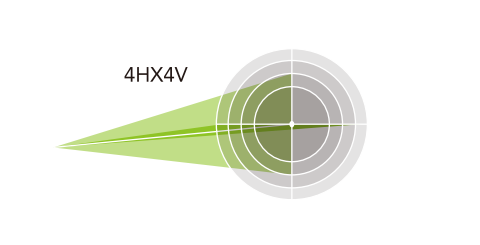

- Available in NEMA 4Hx4V distributions.
- Fully saturated RGB colors provide an amazing visual experience.
- Industry-leading light sources and precision designed UV optical lens.
- Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
Electrical
- Ultra-wide input voltage: 120-277V or 200-480V.
- Dimming Range: DIM TO OFF, 10%-100%.
- Built in surge suppression with max 40KV.
- THD: ≤20%
- Power Factor: >90%
Controls
- Wired DALI controls
- Wireless Synapse controls
Ambient Temperature
- Ambient operating temperature -40°C to 50°C (-40°F to 1227).
Lifespan
- Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
Certifications
- UL CUL wet location listed.
Note
- Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 C(+5C) specifications subject to change without notice.
.png)

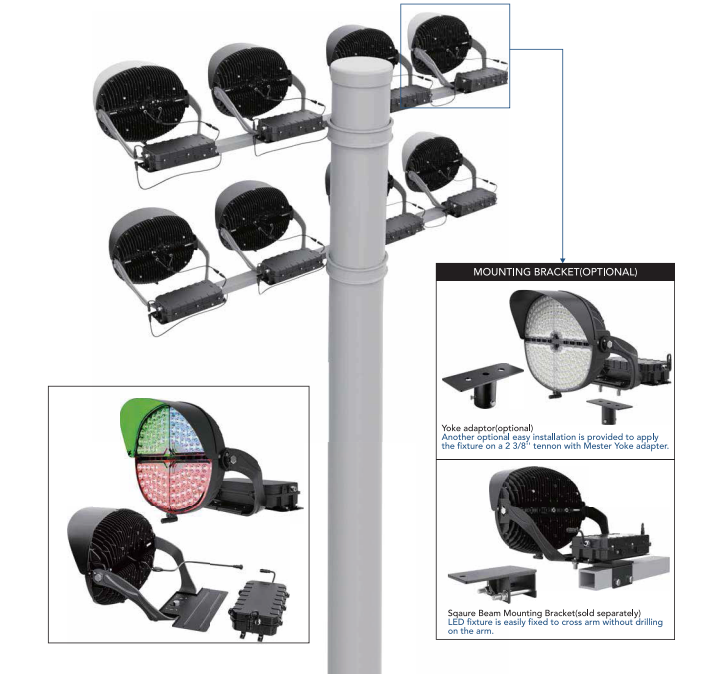

POWER BOX ATTACHED
The fixture with separate power can be installed on the top of the light pole as a whole unit, which is simple and fast way, without additional labor costs to install the driver. It is also beneficial to reduce the power consumption of fixtures caused by remote wiring, save energy and improve efficiency.
.png)

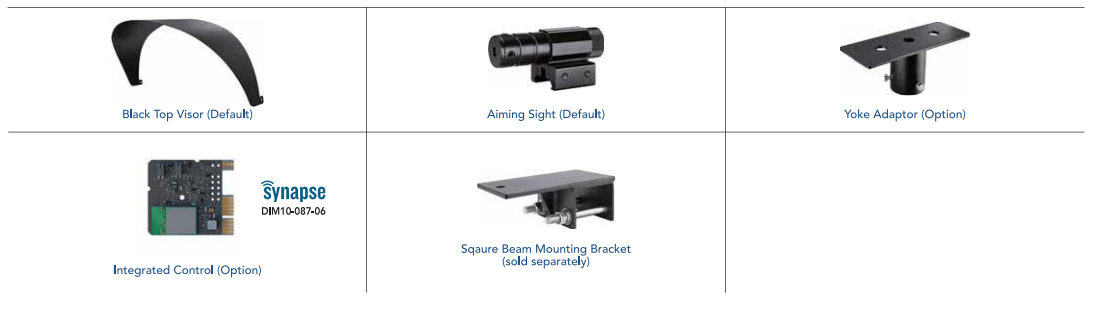

ACCESSORIES
.png)
PERFORMANCE DATA
| SYSTEM WATTS | VOLTAGE | EPA | LUMENS (Red) |
LUMENS (Green) |
LUMENS (Blue) |
|---|---|---|---|---|---|
| 480W | 120-277V/200-480V | 1.8911 | 10000lm | 8000lm | 2000lm |
ELECTRICAL DATA
| Number Of Drivers |
Driver Current (Amps) |
Nominal Power (W) |
INPUT VOLTAGE (V) |
CURRENT (Amps) |
|---|---|---|---|---|
| 1 | 10.45 | 480 | 120 | 4.00 |
| 480 | 208 | 2.31 | ||
| 480 | 240 | 2.00 | ||
| 480 | 277 | 1.73 | ||
| 480 | 347 | 1.38 | ||
| 480 | 480 | 1.00 |
ORDERING GUIDE
.png)

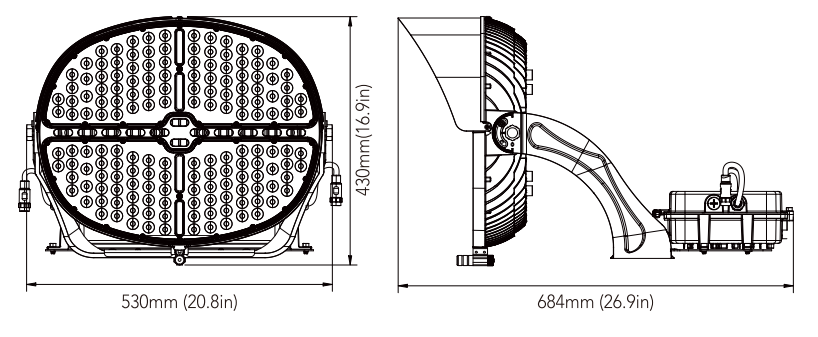

DIMENSIONAL
.png)
PHOTOMETRICS
.png)
CONTROL SYSTEM
- The fixture is compatible with Synapse ™ wireless control system or DALI, including RGB sports lighting. It offers a smart, stable and imaginative lighting control solution to your sports facility.

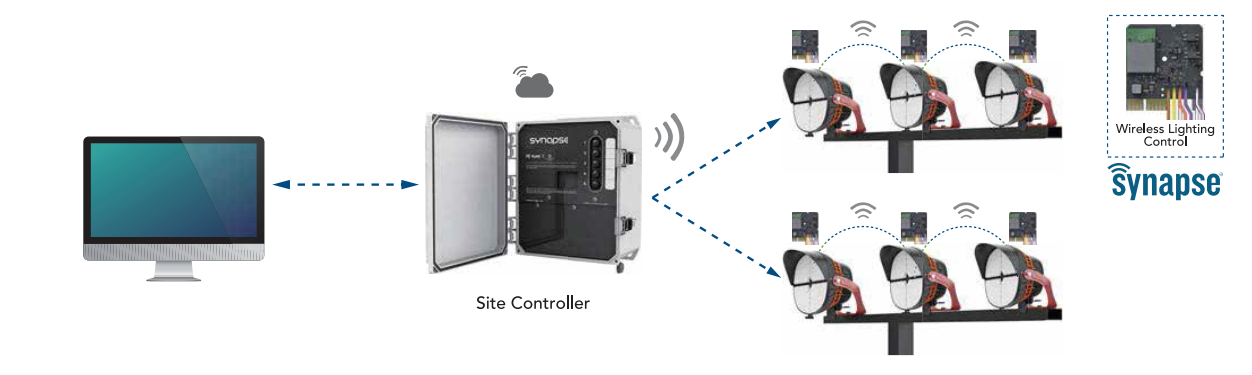

Wireless Synapse Controls
.png)

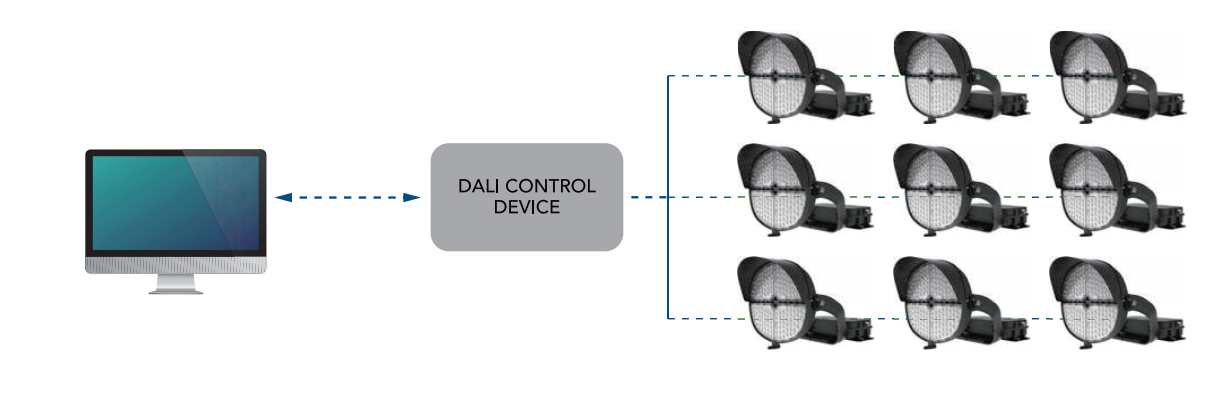

Wired DALI Controls
.png)
