IZE Series 1.3” Spec-grade Pendant
Description:
IUS series 1.3" linear pendant lighting is a unique linear series that brings any space to the center stage. These timeless, streamlined forms blend well with contemporary decors and modern workplaces. It can provide smooth uplight and downlight, allowing for wider spacing between fixtures and better ceiling light uniformity. Unleash lighting design flexibility with different shapes and patterns, it adds fun factor into each room. These creations will let you suggest rhythm, communicate meaning and showcase element of life.
Contact UsFeature
- 90+ CRI, 2ft, 3ft, 4ft and 8ft length option
- 2 lighting distributions by visible DIP switch
- CCT and wattage adjustable by visible DIP switch

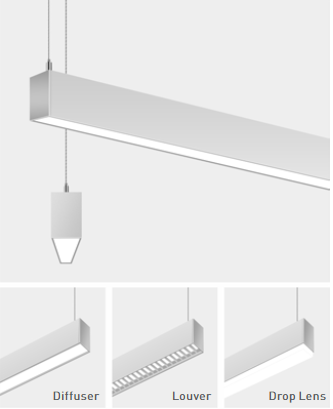

- Available in diffuser, louver and drop lens
- Individual units or continuous runs
- Custom pattern with optional Line, L, X, T, Y, V joiners
- Dry ceiling or T-Grid ceiling compatible.
- Pendant, surface and wall mount
- cULus listed, Damp locations and 5 years limited warranty
PERFORMANCE
| Lens | Length | Wattage Selectable | 25% UP/75% DOWN | 100% DOWN | CCT Adjustable | ||
|---|---|---|---|---|---|---|---|
| Efficacy | Lumen Output | Efficacy | Lumen Output | ||||
| Diffuser | 2' | 20W/15W/10W | 850lm/ft | 900~1700LM | 800lm/ft | 800~1600LM | 3000K/3500K/4000K |
| 3' | 30W/23W/15W | 1300~2600LM | 1200~2400LM | ||||
| 4' | 40W/30W/20W | 1700~3400LM | 1600~3200LM | ||||
| 8' | 80W/60W/40W | 3400~6800LM | 3200~6400LM | ||||
| Louver | 2' | 20W/15W/10W | 750lm/ft | 750~1500LM | 700lm/ft | 700~1400LM | 3000K/3500K/4000K |
| 3' | 30W/23W/15W | 1200~2300LM | 1100~2100LM | ||||
| 4' | 40W/30W/20W | 1500~3000LM | 1400~2800LM | ||||
| 8' | 80W/60W/40W | 3000~6000LM | 2800~5600LM | ||||
| Drop Lens | 2' | 20W/15W/10W | 1000lm/ft | 1000~2000LM | 950lm/ft | 950~1900LM | 3000K/3500K/4000K |
| 3' | 30W/23W/15W | 1500~3000LM | 1500~2900LM | ||||
| 4' | 40W/30W/20W | 2000~4000LM | 1900~3800LM | ||||
| 8' | 80W/60W/40W | 4000~8000LM | 3800~7600LM | ||||

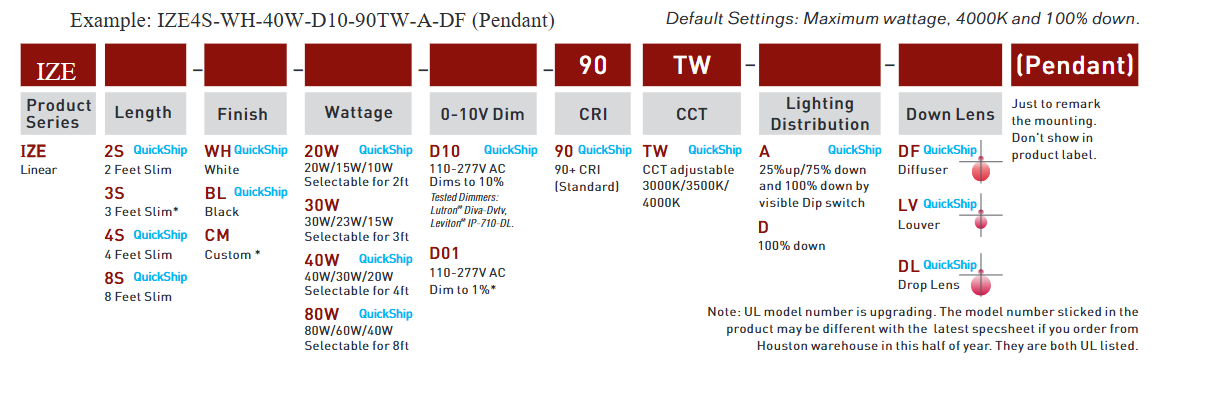

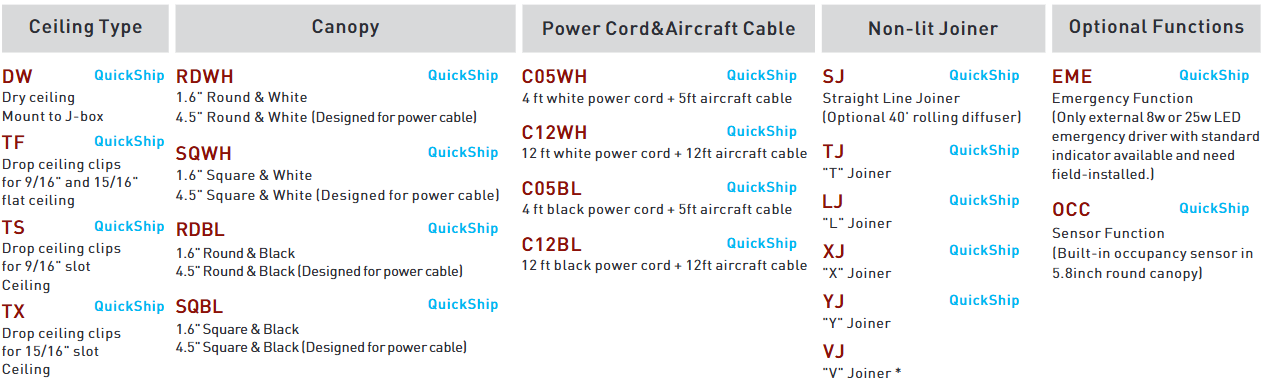

PRODUCT ORDERING GUIDE

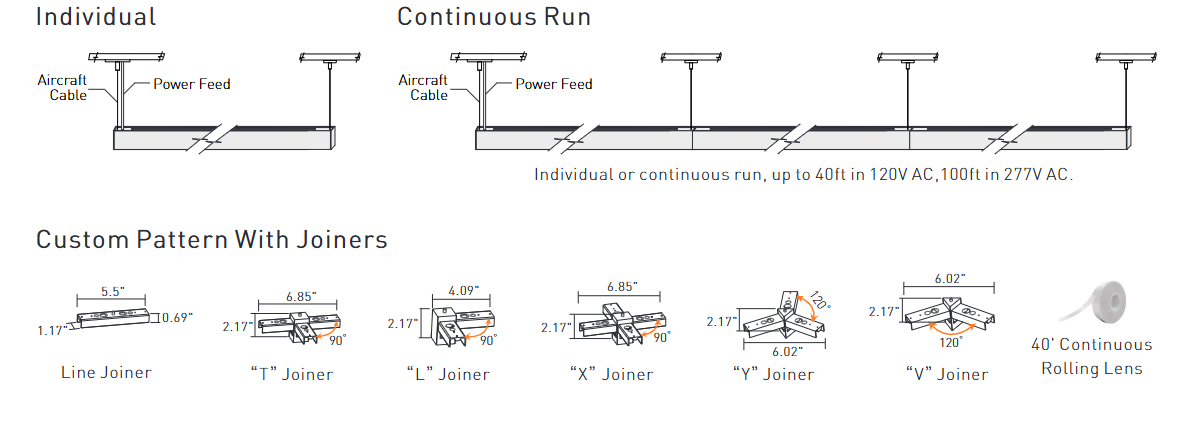

CUSTOM LINE OR SHAPE ORDERING GUIDE
MOUNTING

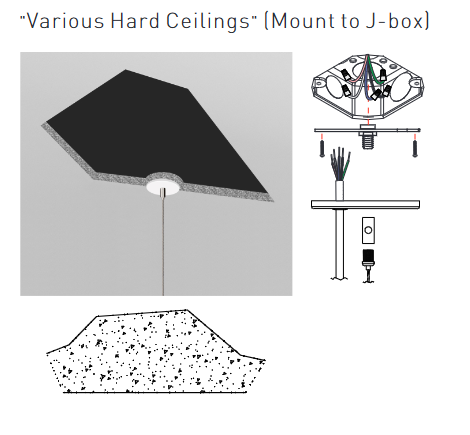

Dry Ceiling / Off Grid

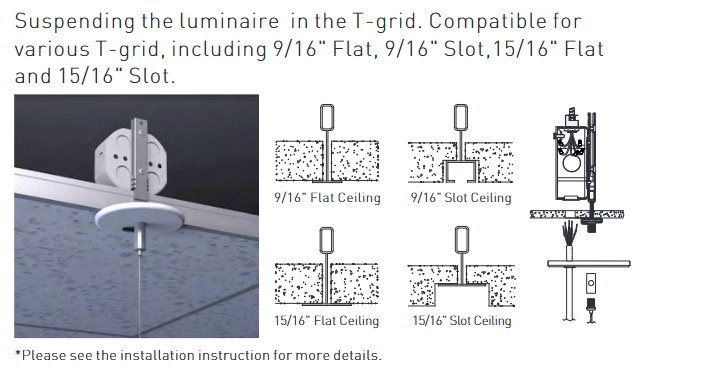

Drop Ceiling / On Grid

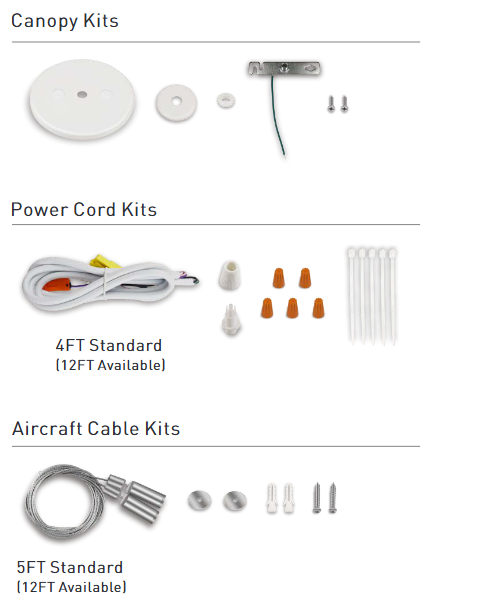

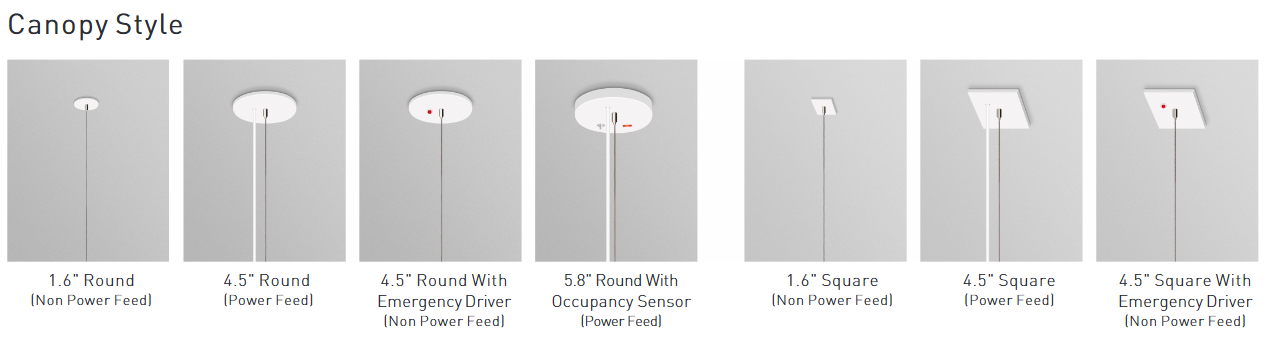

Pendant Accessories For Dry Ceiling

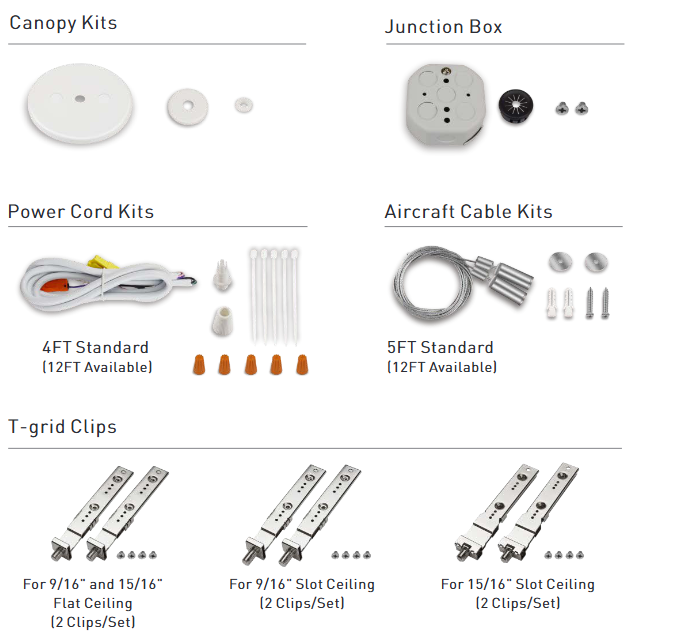

Pendant Accessories For Drop Ceiling
Standard Line Runs In 120v
|
Luminaire Run Length (ft) |
Run Configuration |
Line Joiner |
5' Power Cable |
5' Aircraft Cable |
Canopy |
|
2 |
2' |
- |
1 |
2 |
2 |
|
4 |
4' |
- |
1 |
2 |
2 |
|
6 |
4'+2' |
1 |
1 |
3 |
3 |
|
8 |
8' |
- |
1 |
2 |
2 |
|
10 |
8'+2' |
1 |
1 |
3 |
3 |
|
12 |
8'+4' |
1 |
1 |
3 |
3 |
|
14 |
8'+4'+2' |
2 |
1 |
4 |
4 |
|
16 |
8'+8' |
1 |
1 |
3 |
3 |
|
18 |
8'+8'+2' |
2 |
1 |
4 |
4 |
|
20 |
8'+8'+4' |
2 |
1 |
4 |
4 |
|
22 |
8'+8'+4'+2' |
3 |
1 |
5 |
5 |
|
24 |
8'+8'+8' |
2 |
1 |
4 |
4 |
|
26 |
8'+8'+8'+2' |
3 |
1 |
5 |
5 |
|
28 |
8'+8'+8'+4' |
3 |
1 |
5 |
5 |
|
30 |
8'+8'+8'+4'+2' |
4 |
1 |
6 |
6 |
|
32 |
8'+8'+8'+8' |
3 |
1 |
5 |
5 |
|
34 |
8'+8'+8'+8'+2' |
4 |
1 |
6 |
6 |
|
36 |
8'+8'+8'+8'+4' |
4 |
1 |
6 |
6 |
|
38 |
8'+8'+8'+8'+4'+2' |
5 |
1 |
7 |
7 |
|
40 |
8'+8'+8'+8'+8' |
4 |
1 |
6 |
6 |

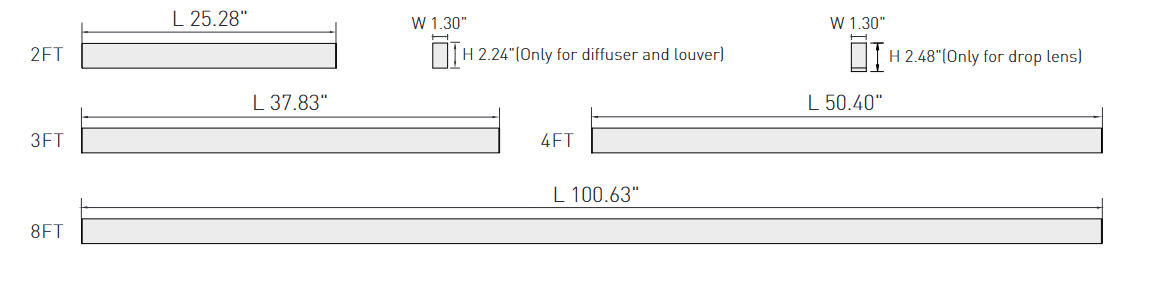

DIMENSIONS

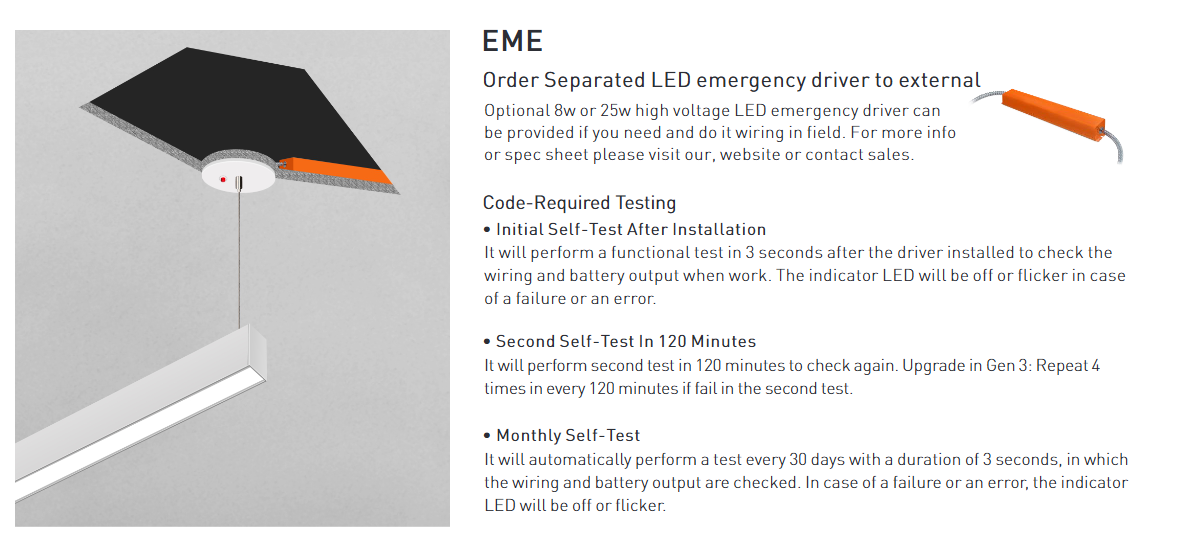

Emergency Option
IUS Lighting offers UL& CEC Listed LED emergency drivers. When AC power fails it, immediately switches to the emergency mode operating for lighting minimum 90 minutes. When AC power is restored it, automatically returns to the charging mode which meets critical life-safety lighting requirements.

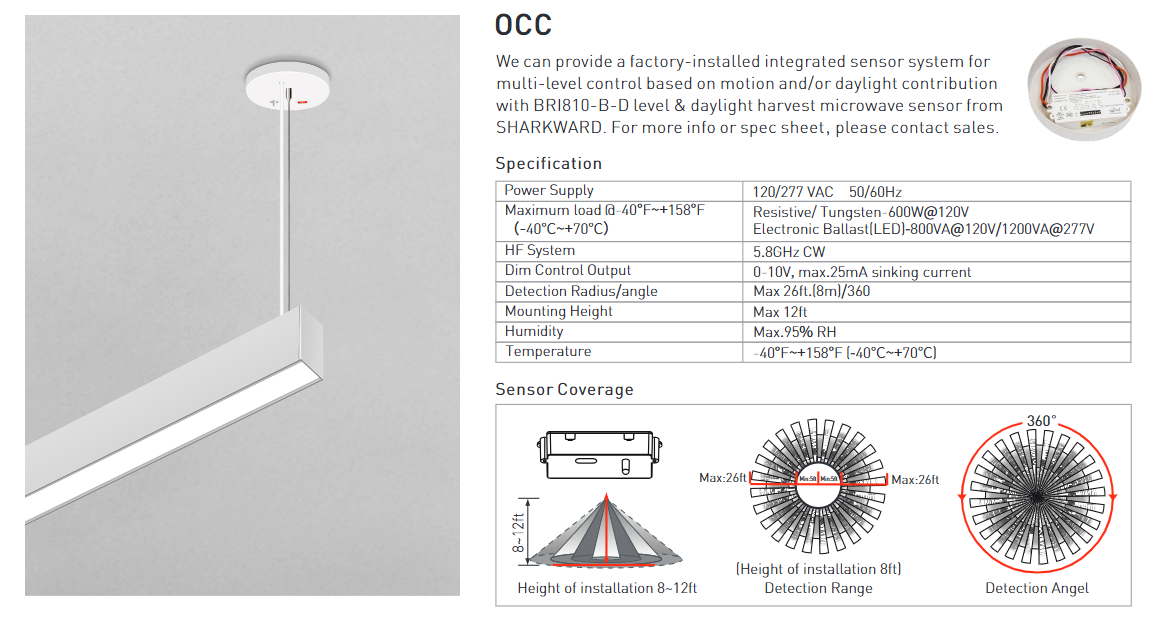

Occupancy Sensor

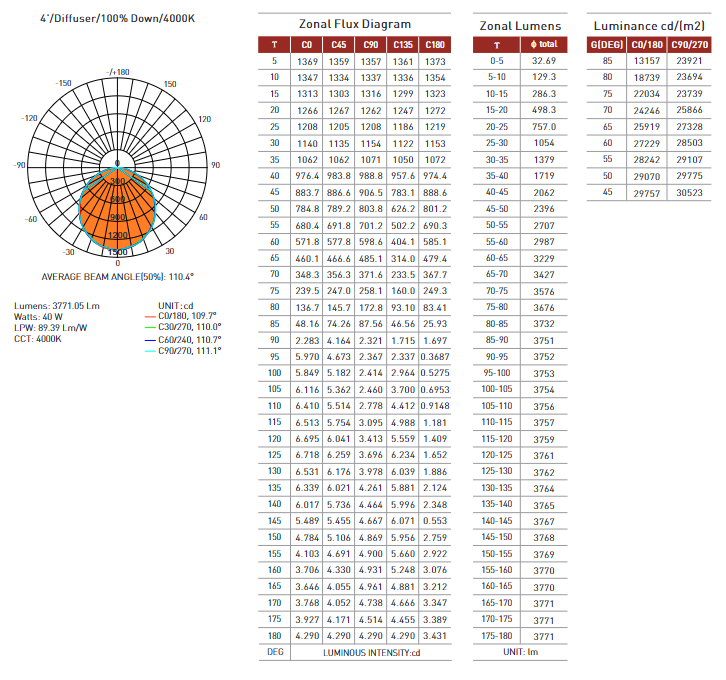

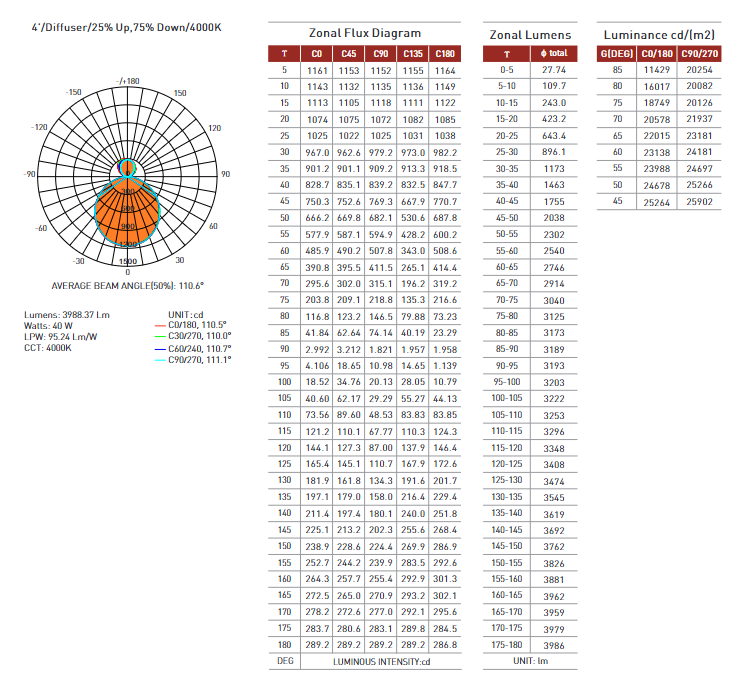

DISTRIBUTION DIAGRAM
