Remote head
Description:
Long lasting, efficient, ultra bright white LED lamp heads.High performance chrome-plated metallized reflector and glass lens with 8 or 12 LED's in each lamp head for optimal light distribution.Adjustable LED lamp heads increases center-to-center spacing.
Contact UsILLUMINATION
- Long lasting, efficient, ultra bright white LED lamp heads.
- High performance chrome-plated metallized reflector and glass lens with 8 or 12 LED's in each lamp head for optimal light distribution.
- Adjustable LED lamp heads increases center-to-center spacing.
ELECTRICAL
- Powered from low voltage power source with low voltage wiring (not provided).
MOUNTING
- Universal mounting base mounts to single-gang switch box.
- Distance of maximum run is determined by system voltage,wire gauge and total maximum wattage on the run.
- Suitable for wall or ceiling mount.
HOUSING
- Available in both engineering grade, high-impact resistant thermoplastic or premium grade die-cast aluminum housing.
- Sealed and gasketed in standard gray or optional black finish.
WARRANTY/LISTING
- Five year warranty.
- UL Listed with approved Best Lighting Products.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.

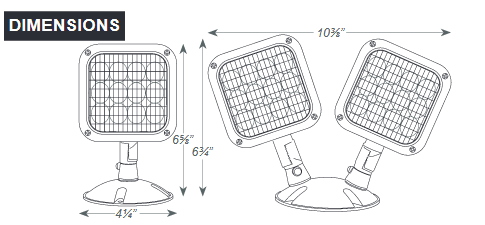

DIMENSIONS
FIXTURE COMPATIBILITY CHART
Reference individual unit equipment specification sheets for remote load capacity availability.
|
MODEL TYPE |
3.6V |
9.6V |
MV |
|
LEDCXTEU-RC |
|
X |
X |
|
CLPU-RC |
|
X |
X |
|
CKXTEU-RC |
X |
|
X |
|
LEDR-5HO |
X |
|
X |
|
LEDTFX-2 |
|
X |
X |
|
E-1-RC |
X |
|
X |
|
CEU-RC |
X |
|
X |

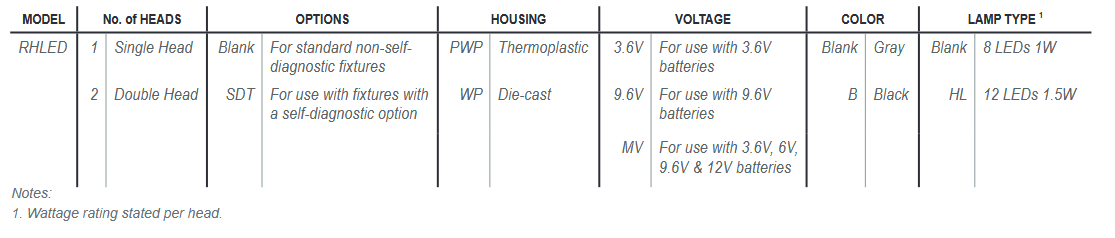

ORDERING INFORMATION
Remote head
